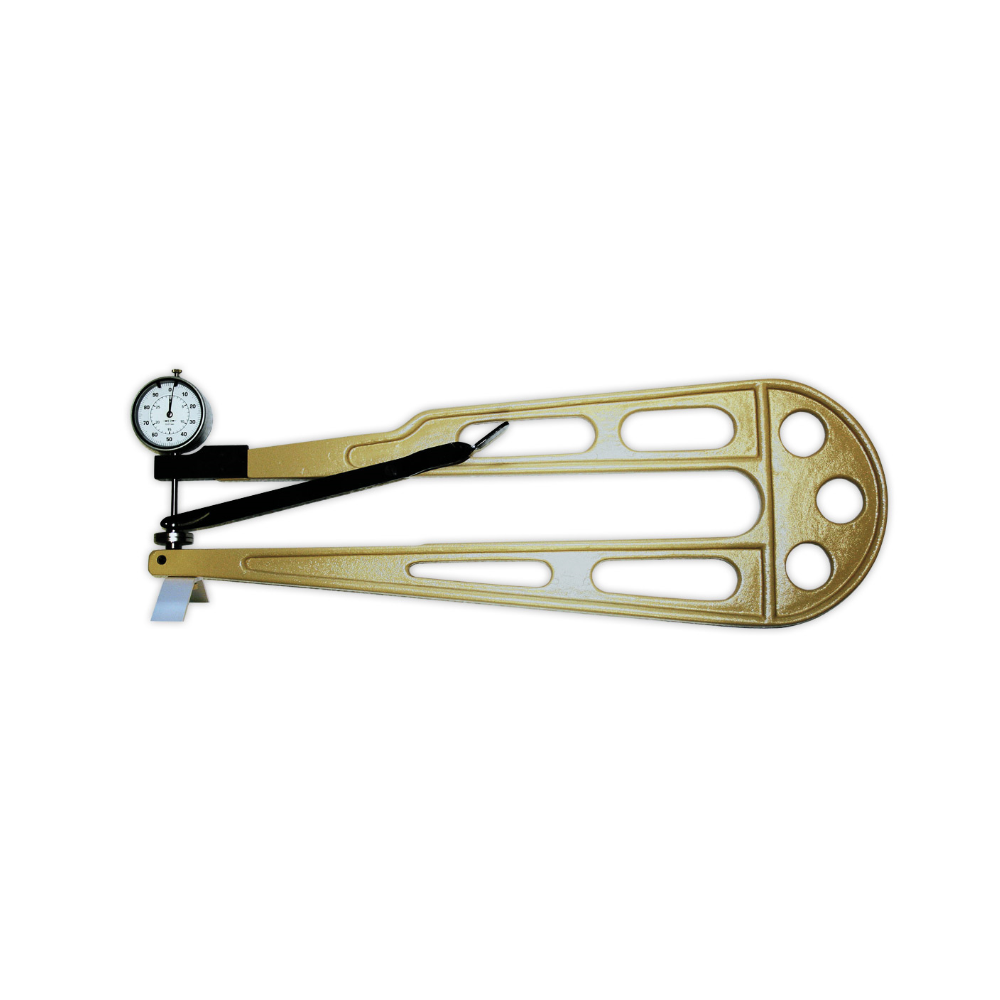

DMH-850-F
Thickness Gauge

Measuring range: 0 – 10 mm
Resolution: 0.01 mm
Thickness gauge to determine the thickness of leather, textiles, cardboard, felt, rubber, sheet metal, foil, plywood, plastic, foam and more

Self closing thickness gauge for fast and reliable measurements

Special Features

Thickness gauge DMH-850-F features an easy to read analog display along with the high accuracy
The thickness gauge is available with 5 different feelers, which can be found below
Measuring by spring force of 1 N
Opening by lifting device – self closing thickness gauge DMH-850-F

The thickness gauge is equipped with a big foot (Code F) for better operation

Available Models

Model	Measuring Range	Resolution	Depth of Jaw
DMH-850-F	10 mm	0.01 mm	500 mm
	alternative
DMH-3-1	25 mm	0.01 mm	50 mm
DMH-820-1	25 mm	0.01 mm	200 mm
DMH-830-F	10 mm	0.01 mm	300 mm
DMH-830-1-F	25 mm	0.01 mm	300 mm
DMH-850-1-F	25 mm	0.01 mm	500 mm

To order, please indicate the desired feeler, e.g. DMH-850-F-B for gauge with feeler “B”

SPECIFICATIONS

Resolution:	0.01 mm
Measuring range:	10 mm
Depth of jaw:	500 mm
Measuring pressure:	1 N
Feeler shape:	A/B/C/G/H
Measuring principle:	Self closing
Weight, net (gross):	Approx. 1450 g (1700 g)

Specifications subject to change without notice!

FEELER SHAPE

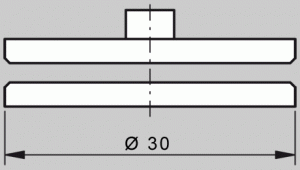

Feeler A (flat)

for rubber, felt*, soft materials*, non wovens* etc., diameter 30 mm

*meets no DIN EN ISO standards

Feeler customized (flat)

For rubber, felt*, soft materials*, non wovens*, etc.
customized feeler type “A” are available with diameter 31- 56 mm on request at extra charge.

*meets no DIN EN ISO standards

Feeler B (flat)

Suitable for rubber, felt*, soft materials*, non wovens*, etc. diameter 20 mm

*meets no DIN EN ISO standard

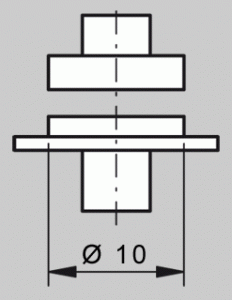

Feeler C (flat)

For soft leather, cardboard, paper, foils, etc., diameter 10 mm

Feeler G (spherical)

Suitable for sheet metal, etc. radius 1.5 mm

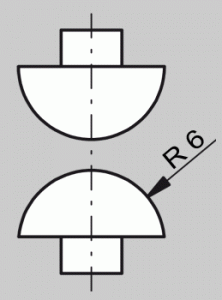

Feeler H (spherical)

For hard leather, plywood, fiberboard, etc., radius 6 mm
