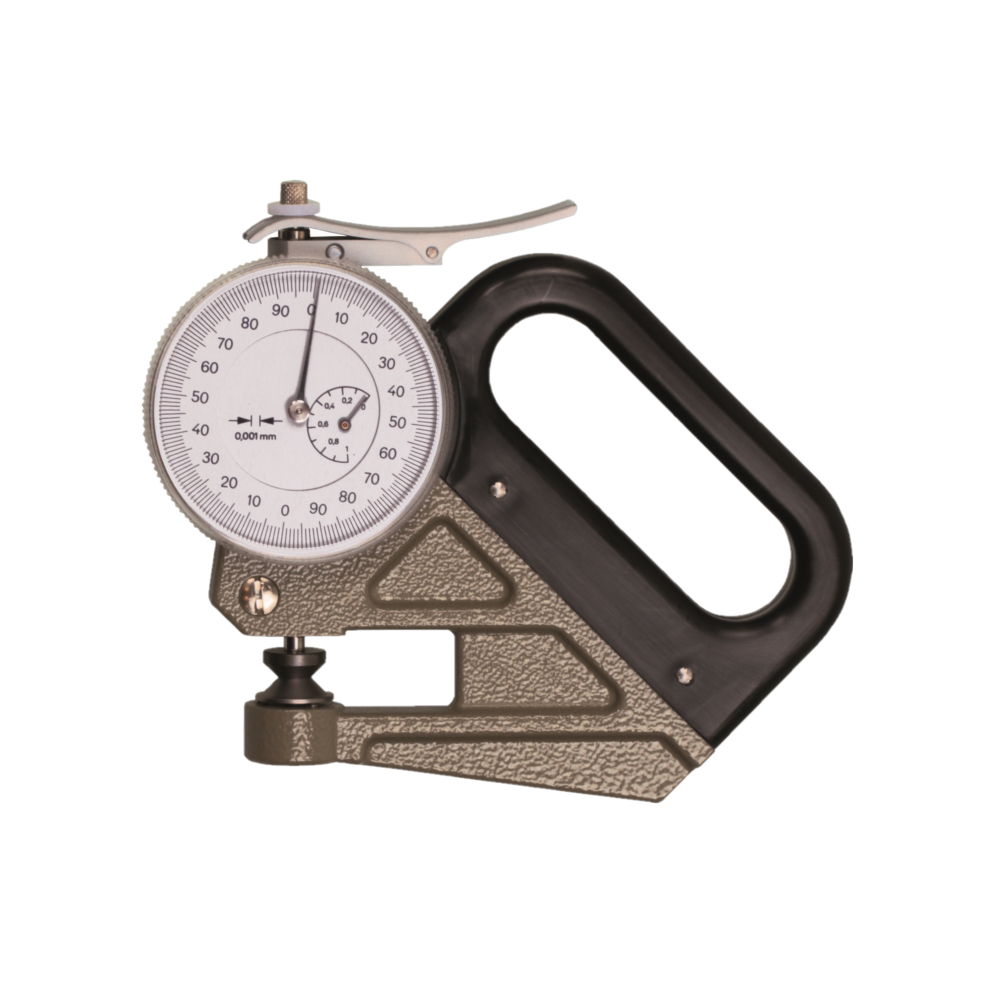

F-1000-30
Thickness Gauge

Measuring range: 0 – 1 mm
Resolution: 0.001 mm
Thickness gauge to determine the thickness of foil and all kind of thin materials

Self closing thickness gauge with highest accuracy and resolution

Special Features

  • Thickness gauge F-1000-30 features an easy to read analog display along with the high accuracy
  • The thickness gauge is used for foils and thin materials with a resolution of 0.001 mm; turn of the dial is 0.2 mm
  • The isolated handle ensures highest accuracy (prevents transfer of the heat from the operators hand to the gauge)
  • The instrument is equipped with a feeler Ø 6.35 mm
  • Measuring by spring force
  • Opening by lifting device (lever) – self closing thickness gauge F-1000-30

 Available Models

Model Measuring Range
 Resolution Depth of Jaw
 Display
F-1000-30 1 mm 0.001 mm 30 mm analog; turn of the dial is 0.2 mm
alternative
F-1101-30 1 mm 0.001 mm 30 mm analog; turn of the dial is 0.1 mm
FD-1000-30-3 3 mm
0.12 inch		 0.001 mm
0.00005 inch		 30 mm digital



SPECIFICATIONS

Resolution: 0.001 mm
Measuring range: 1 mm
Turn of the dial: 0.2 mm
Depth of jaw: 30 mm
Bezel diameter: 54 mm
Feeler shape: F
Measuring principle: Self closing
Weight, net (gross): Approx. 340 g (390 g)

Specification subject to change without notice!

FEELER SHAPE

Feeler F (flat)

For soft leather, plywood, fiberboard, etc., diameter 6.35 mm

OPTIONAL ACCESSORIES

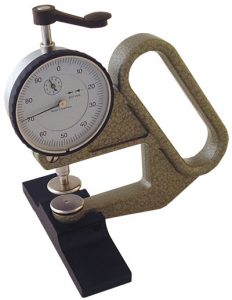

Foot

The foot changes the for hand-held use designed thickness gauges F-1000-30 into a gauge for on-table operation. They can be used for a lot of applications.
Order number: 30012K

DELIVERY INCLUDES

Thickness gauge F-1000-30 with transport packing case
