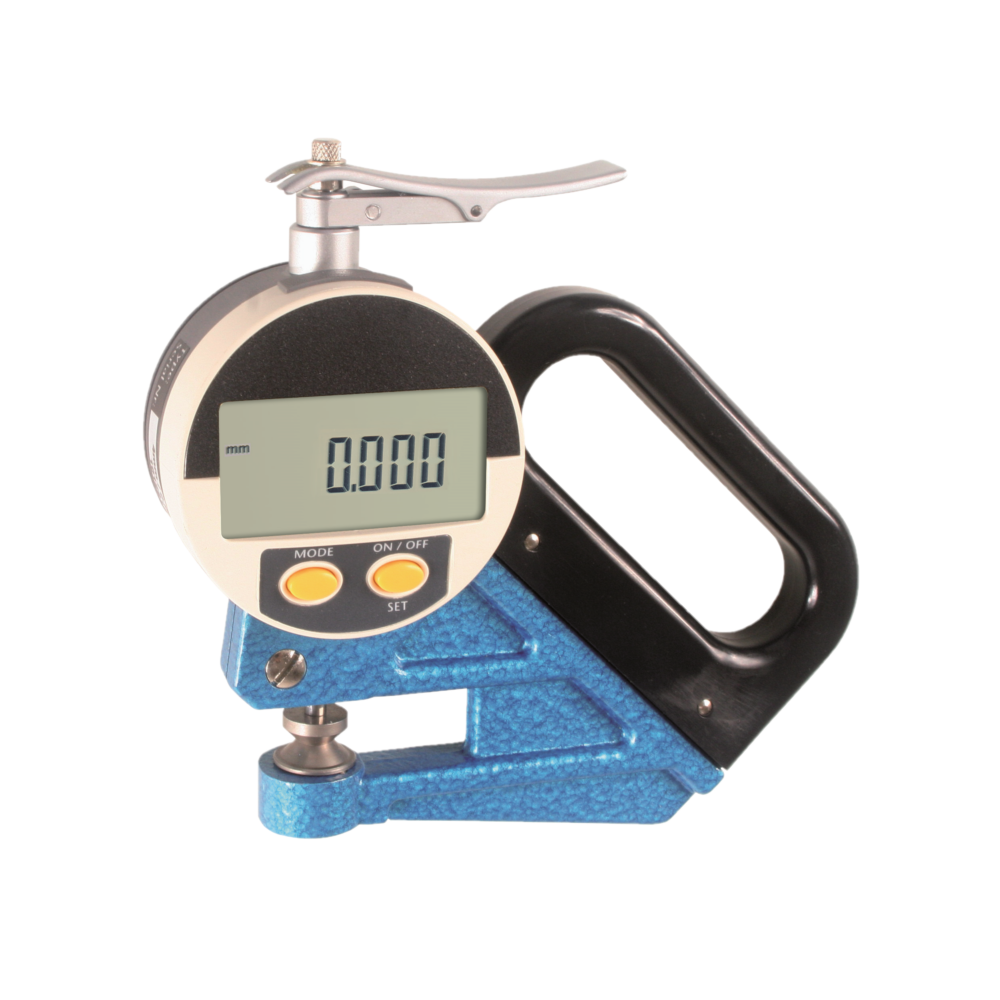

FD-1000-30-3
Thickness Gauge

Measuring range: 0 – 3 mm / 0 – 0.12 inch
Resolution: 0.001 mm / 0.00005 inch
Thickness gauge to determine the thickness of foil and all kind of thin materials

Self closing thickness gauge with highest accuracy and resolution

Special Features

  • FD-1000-30-3 Thickness gauge features an easy to read digital display along with the high accuracy
  • The thickness gauge is used for foils and thin materials with a resolution of 0.001 mm
  • The isolated handle ensures highest accuracy (prevents transfer of the heat from the operator´s hand to the gauge)
  • The instrument is equiped with a feeler Ø 6.35 mm
  • Measuring by spring force
  • Thickness gauge opening by lifting device (lever) – self closing thickness gauge FD-1000-30-3

 Output signal:
– USB
– RS 232

Standard Features

  • LCD display with user selectable units of measurement (mm or inch)
  • Thickness gauge FD-1000-30-3 with Sylvac dial gauge

 Available Models

Model Measuring Range Resolution Depth of Jaw Display
FD-1000-30-3 3 mm
0.12 inch		 0.001 mm
0.00005 inch		 30 mm digital
alternative
F-1000-30 1 mm 0.001 mm 30 mm analog, turn of the dial is 0.2 mm
F-1101-30 1 mm 0.001 mm 30 mm analog, turn of the dial is 0.1 mm

SPECIFICATIONS

Resolution: 0.001 mm / 0.00005 inch
Measuring range: 0 – 3 mm / 0 – 0.12 inch
Depth of jaw: 30 mm
 Measuring principle: Self closing
Feeler shape: F
Display: LCD 6 digit, 8.5 mm high
Measuring system: Capacitive (Sylvac)
Temperature range: 10 – 45 °C
Battery: 3 V Lithium, CR 2032
Data output: USB, RS-232, galvanic isolation
Weight, net (gross): Approx. 300 g (350 g)

Specifications subject to change without notice!

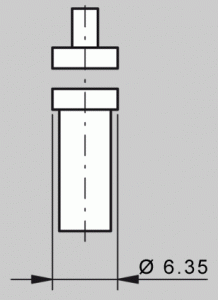

FEELER SHAPE

Feeler F (flat)

For soft leather, plywood, fiberboard, etc., diameter 6.35 mm

OPTIONAL ACCESSORIES

30051K – RS-232 Connecting Cable (For dial gauges from January 2014)

The data transmission cable allows a fast connection of the digital gauge with the RS-232 output signal to the a PC or another peripheral device.
Delivery includes a program to transmit and save the readings as an Excel-file.
The cable is 2 meters long and equipped with a 9 pin plug. For dial gauges from January 2014
Order number: 30051K









 30052K – USB Connecting Cable (For dial gauges from January 2014)

The data transmission cable allows a fast connection of the digital gauge with the USB output signal to the a PC or another peripheral device.
Delivery includes a program to transmit and save the readings as an Excel-file.
The cable is 2 meters long and equipped with a USB plug. For dial gauges from January 2014
Order number: 30052K









 30012K – Foot

The foot changes the for hand-held use designed thickness gauges FD-1000-30-3 into a gauge for on-table
operation. They can be used for a lot of applications
Order number: 30012K

DELIVERY INCLUDES

Thickness gauge FD-1000-30-3 with battery and carrying case
