Special Features

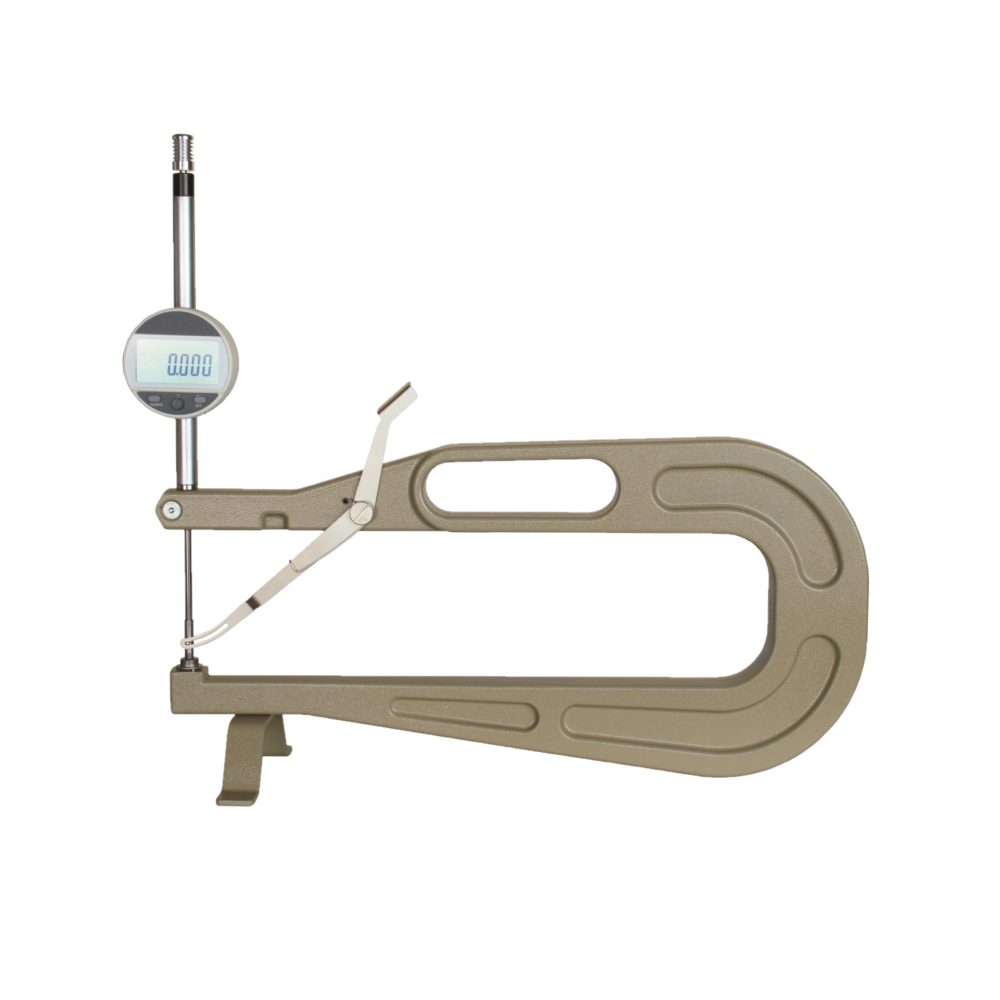

- Thickness gauge FD-300-50 features an easy to read digital display along with the high accuracy
- The thickness gauge is available with 5 different feelers, which can be found below
- Measuring by spring force
- Opening by lifting device (lever) – self closing thickness gauge FD-300-50
- Output signals:
– USB
– RS-232 - Includes swing-out foot for on-table operation
Standard Features
- LCD display with user selectable units of measurement (mm or inch)
- Thickness gauge FD-300-50 with Sylvac dial gauge
Available Models
| Model | Measuring Range |
Resolution | Depth of Jaw |
|
| FD-300-50 | 50 mm 2 inch |
0.001 mm 0.0001 inch |
300 mm | |
| alternative | ||||
| FD-50 | 12.5 mm 0.5 inch |
0.001 mm 0.0001 inch |
50 mm | |
| FD-100 | 12.5 mm 0.5 inch |
0.001 mm 0.0001 inch |
100 mm | |
| FD-200 | 12.5 mm 0.5 inch |
0.001 mm 0.0001 inch |
200 mm | |
| FD-200-25 | 25 mm 1 inch |
0.001 mm 0.0001 inch |
200 mm |
To order, please indicate the desired feeler, e.g. FD-300-50-B for gauge with feeler “B”
for rubber, felt*, soft materials*, non wovens* etc., diameter 30 mm
For rubber, felt*, soft materials*, non wovens*, etc.,
For rubber, felt*, soft materials*, non wovens*, etc., diameter 20 mm
For soft leather, cardboard, paper, foils, etc., diameter 10 mm
For hard leather, plywood, fiberboard, etc., diameter 10 mm, radius 15 mm
For sheet metal, etc. diameter 5 mm, radius 1.59 mm
The data transmission cable allows a fast connection of the digital gauge with the RS-232 output signal to a PC or another peripheral device.
The data transmission cable allows a fast connection of the digital gauge with the USB output signal to a PC or another peripheral device.
