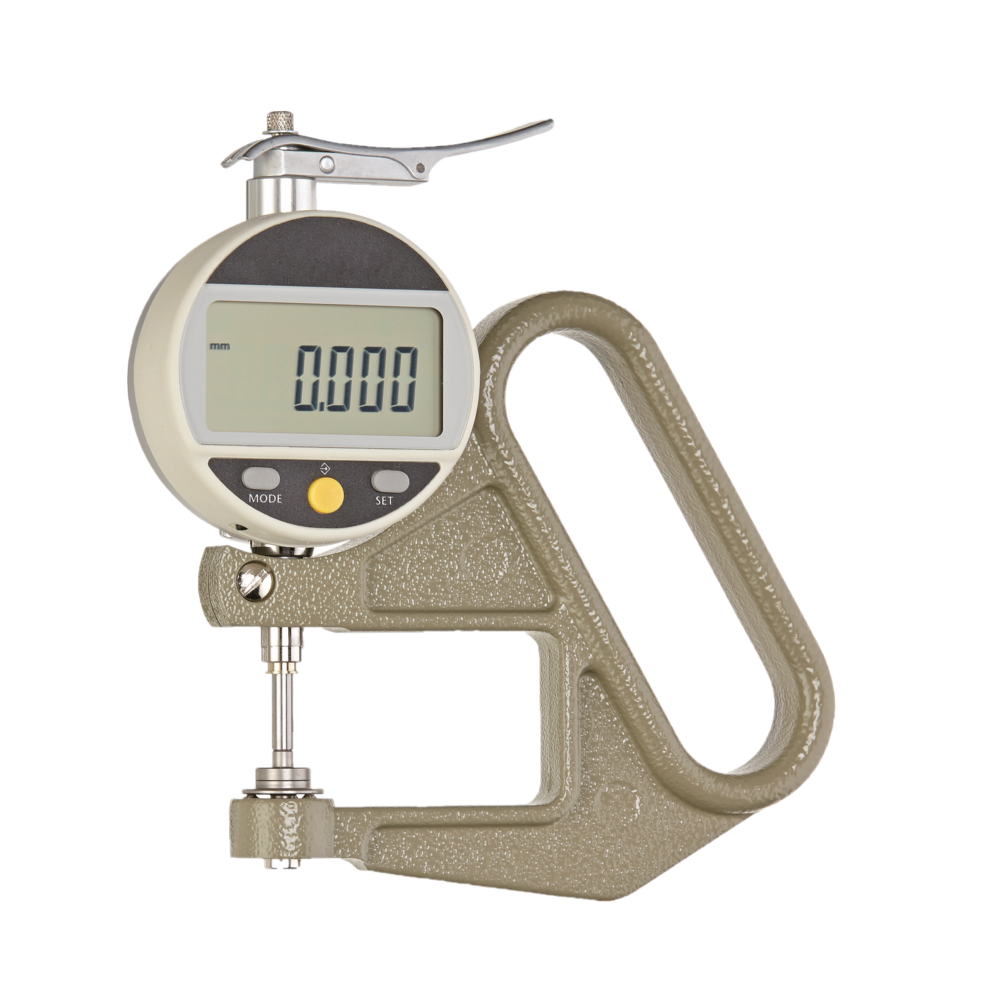

FD-50-R
Thickness Gauge with Rollers

Measuring range: 0 – 12.5 / 0.5 inch mm
Resolution: 0.001 mm / 0.0001 inch
Self closing thickness gauge with highest accuracy and resolution (0.001 mm)

Thickness gauge for measuring moving objects such as running wires, yarns, tapes and more

Special Features

  • Thickness gauge FD-50-R features an easy to read digital display along with the high accuracy. It is used to measure the thickness of moving objects as yarns. wires and more.
  • For better guiding the measured material the lower roller (width 8.7 mm) is standard equipped with flanges, optional available without flange to measure to measure paper, metal, foils and more.
  • Max. Line speed 150 m/min
  • Measuring by spring force
  • Opening by lifting device (lever) – self closing thickness gauge FD-50-R

  • Output signals:
    – USB
    – RS-232

Note:
The thickness gauge should not be used for continuous (online) use.

Standard Features

  • Thickness gauge for quick, reliable measurements
  • Thickness gauge FD-50-R with rollers: Ø 8.4 mm steel, grounded, width 8.7 mm
  • LCD display with user selectable units (mm or inch)
  • Thickness gauge with Sylvac dial gauge

 Available Models

Model Measuring Range
 Resolution Depth of Jaw
 Flange Display
FD-50-R 12.5 mm
0.5 inch		 0.001 mm
0.0001 inch		 50 mm yes digital
FD-50-RO 12.5 mm
0.5 inch		 0.001 mm
0.0001 inch		 50 mm no digital
alternative
J-50-R 5 mm 0.01 mm 50 mm yes analog
J-50-RO 5 mm 0.01 mm 50 mm no analog
J-50-RS 5 mm 0.005 mm 50 mm yes analog
J-50-RSO 5 mm 0.005 mm 50 mm no analog
JD-50-R 12.5 mm
0.5 inch		 0.01 mm
0.001 inch		 50 mm yes digital
JD-50-RO 12.5 mm
0.5 inch		 0.01 mm
0.001 inch		 50 mm no digital
JD-100-R 12.5 mm
0.5 inch		 0.01 mm
0.001 inch		 100 mm yes digital
JD-100-RO 12.5 mm
0.5 inch		 0.01 mm
0.001 inch		 100 mm no digital

The lower roller is standard equipped with flanges. If lower roller is requested without flange (material width > 8.4 mm), please use Code O.
Order code e.g. FD-50-RO

SPECIFICATIONS

Resolution: 0.001 mm / 0.0001 inch
Measuring range: 0 – 12.5 mm / 0.5 inch
Depth of jaw: 50 mm
Measuring principle: Self closing
Display: LCD 6 digit, 8.5 mm high
Measuring system: Capacitive (Sylvac)
Temperature range: 10 – 45 °C
Battery: 3 V Lithium, CR 2032
Data output: USB, RS-232, galvanic isolation
Weight, net (gross): Approx. 300 g (350 g)

Specifications subject to change without notice!

OPTIONAL ACCESSORIES

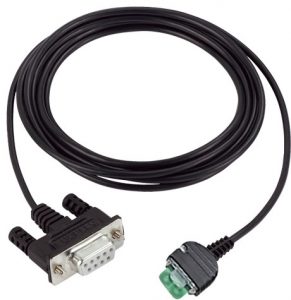

30051K – RS-232 Connecting Cable (For dial gauges from January 2014)

The data transmission cable allows a fast connection of the digital gauge with the RS-232 output signal to a PC or another peripheral device.
Delivery includes a program to transmit and save the readings as an Excel-file.
The cable is 2 meters long and equipped with a 9 pin plug. For dial gauges from January 2014
Order number: 30051K









 30052K – USB Connecting Cable (For dial gauges from January 2014)

The data transmission cable allows a fast connection of the digital gauge with the USB output signal to a PC or another peripheral device.
Delivery includes a program to transmit and save the readings as an Excel-file.
The cable is 2 meters long and equipped with a USB plug. For dial gauges from January 2014
Order number: 30052K









 30012K – Foot

The foot changes the for hand-held use designed thickness gauge JD-50-R into a gauge for on-table operation. They can be used for a lot of applications
Order number: 30012K

DELIVERY INCLUDES

Thickness gauge FD-50-R with battery and carrying case.
