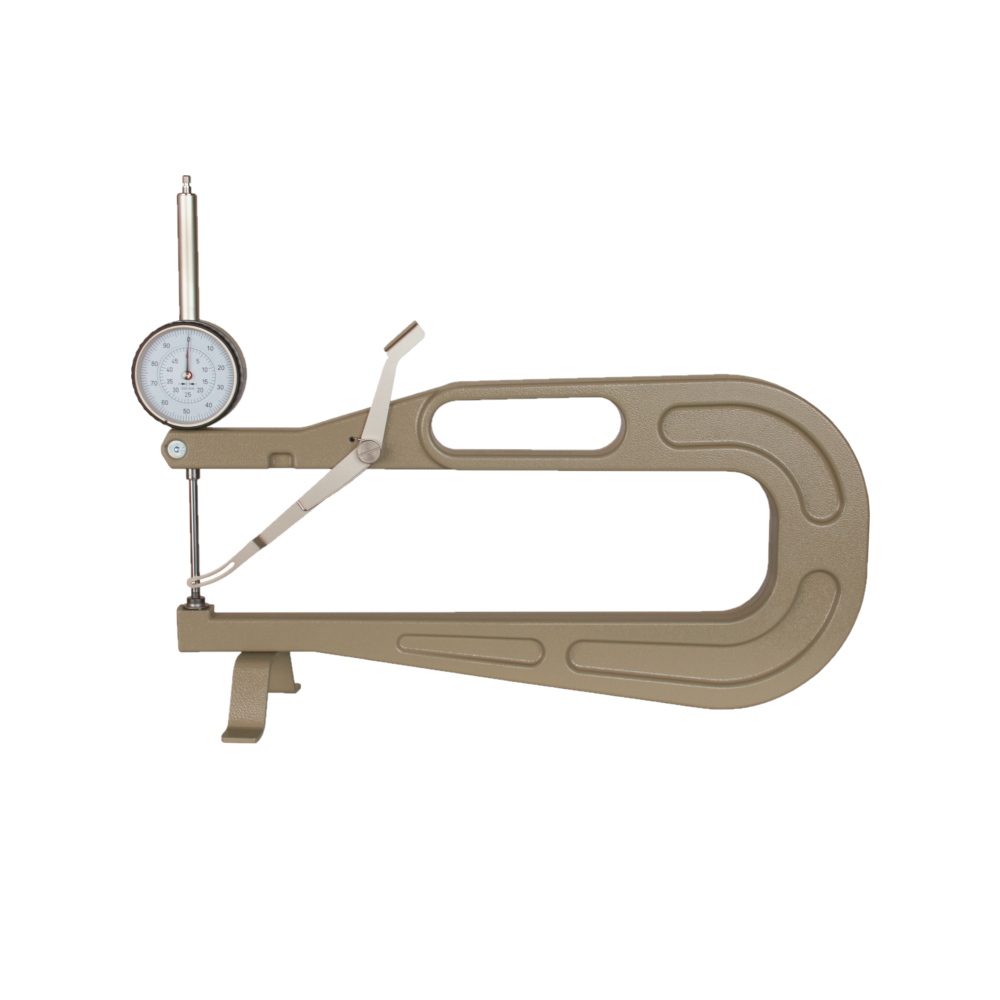

J-300-50
Thickness Gauge

Measuring range 0 – 50 mm
Resolution 0.01 mm
Thickness gauge to determine the thickness of leather, textiles, cardboard, felt, rubber, sheet metal, foil, plywood, plastic, foam and more

Self closing thickness gauge with high accuracy and resolution

Special Features

  • Thickness gauge J-300-50 features an easy to read analog display along with the high accuracy
  • The thickness gauge is available with 5 different feelers, which can be found below
  • Measuring by specified spring force
  • Opening by lifting device (lever) – self closing thickness gauge J-300-50

  •  Swing out foot for on-table operation

 Available Models



Model Measuring Range
 Resolution Depth of Jaw
J-300-50 50 mm 0.01 mm 300 mm
alternative
J-15 10 mm 0.01 mm 18 mm
J-45 10 mm 0.01 mm 45 mm
JA-50 10 mm 0.01 mm 50 mm
J-50 10 mm 0.01 mm 50 mm
J-100 10 mm 0.01 mm 100 mm
J-200 10 mm 0.01 mm 200 mm
J-200-30 30 mm 0.01 mm 200 mm
J-300 10 mm 0.01 mm 300 mm
J-300-30 30 mm 0.01 mm 300 mm
J-400 10 mm 0.01 mm 400 mm
J-400-30 30 mm 0.01 mm 400 mm

 To order, please indicate the desired feeler, e.g. J-300-50-B for gauge with feeler “B”

SPECIFICATIONS

Resolution: 0.01 mm
Measuring range: 50 mm
Depth of jaw: 300 mm
Bezel diameter: 54 mm
Feeler shape: A/B/C/D/E
Measuring principle: Self closing
Weight, net (gross): Approx. 1450 g (1550 g)

Specification subject to change without notice!

FEELER SHAPE

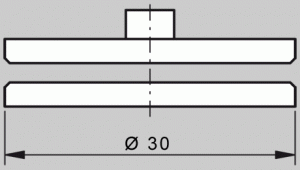

Feeler A (flat)

for rubber, felt*, soft materials*, non wovens* etc., diameter 30 mm

*meets no DIN EN ISO standards

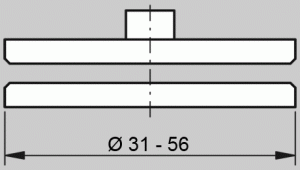

 Feeler customized (flat)

For rubber, felt*, soft materials*, non wovens*, etc.,
customized feeler type “A” are available with diameter 31- 56 mm on request at extra charge

*meets no DIN EN ISO standards





 Feeler B (flat)

For rubber, felt*, soft materials*, non wovens*, etc., diameter 20 mm

*meets no DIN EN ISO standard

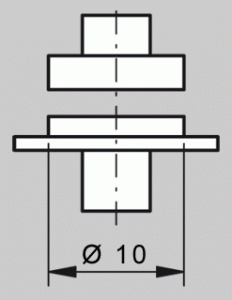

 Feeler C (flat)

For soft leather, cardboard, paper, foils, etc., diameter 10 mm

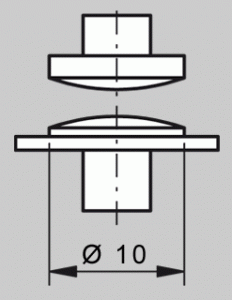

 Feeler D (curved)

For hard leather, plywood, fiberboard, etc., diameter 10 mm, radius 15 mm

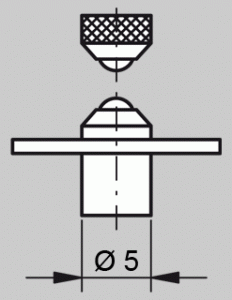

 Feeler E (spherical)

For sheet metal, etc. diameter 5 mm, radius 1.59 mm















To order, please indicate the desired feeler, e.g. J-300-30-B for gauge with feeler “B”

DELIVERY INCLUDES

Thickness gauge J-300-50 with transport packing case
