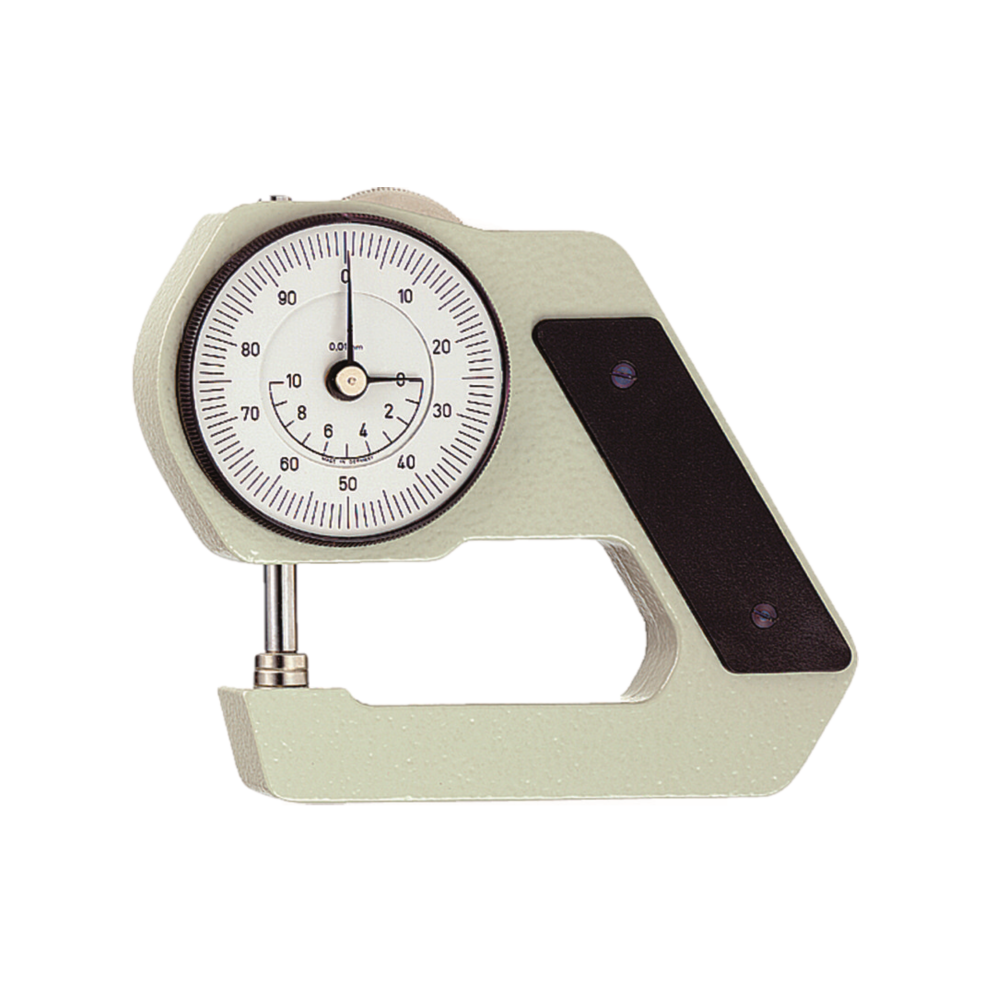

J-45
Thickness Gauge

Measuring range: 0 – 10 mm
Resolution: 0.01 mm
Thickness gauge to determine the thickness of leather, textiles, cardboard, felt, foil, foam and more

Self closing thickness gauge with high accuracy and resolution

Special Features

  • Thickness gauge J-45 features an easy to read analog display along with the high accuracy
  • The thickness gauge is fitted with a feeler Ø 6.35 mm
  • Measuring by specified spring force
  • Opening by lifting wheel – self closing thickness gauge J-45

 Available Models

Model Measuring Range
 Resolution Depth of Jaw
J-45 10 mm 0.01 mm 45 mm
alternative
J-15 10 mm 0.01 mm 18 mm
JA-50 10 mm 0.01 mm 50 mm
J-50 10 mm 0.01 mm 50 mm
J-100 10 mm 0.01 mm 100 mm
J-200 10 mm 0.01 mm 200 mm
J-200-30 30 mm 0.01 mm 200 mm
J-300 10 mm 0.01 mm 300 mm
J-300-30 30 mm 0.01 mm 300 mm
J-300-50 50 mm 0.01 mm 300 mm
J-400 10 mm 0.01 mm 400 mm
J-400-30 30 mm 0.01 mm 400 mm

SPECIFICATIONS

Resolution: 0.01 mm
Measuring range: 10 mm
Depth of jaw: 45 mm
Bezel diameter: 36 mm
Feeler shape: F
Measuring principle: Self closing
Weight, net (gross): Approx. 110 g (160 g)

Specifications subject to change without notice!

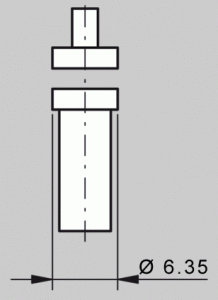

FEELER SHAPE

Feeler F (Flat)

For soft leather, plywood, fiberboard, etc., diameter 6.35 mm

DELIVERY INCLUDES

Thickness gauge J-45 with transport packing case
