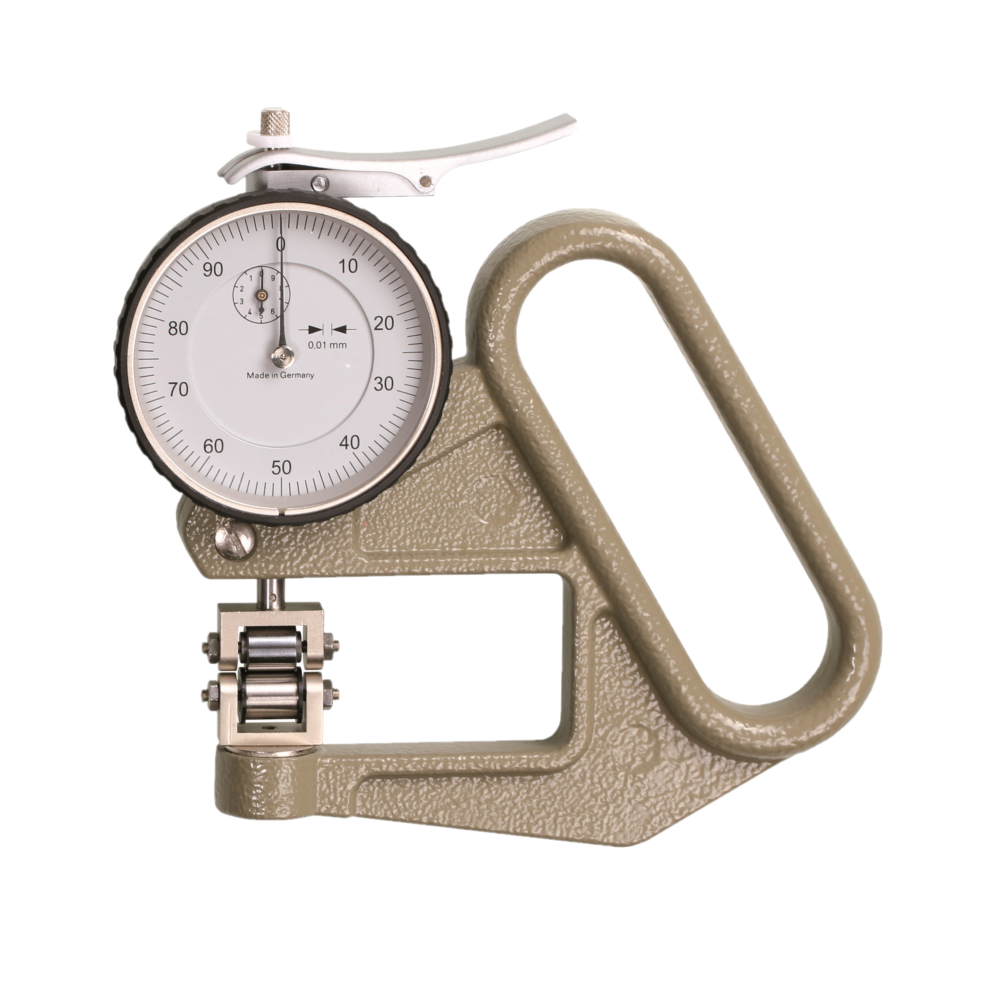

J-50-R
Thickness Gauge with Rollers

Special Features

• Thickness gauge J-50-R features an easy to read analog display along with the high accuracy. It is used to measure the thickness of moving objects as yarns. wires and more.
• For better guiding the measured material the lower roller (width 8.7 mm) is standard equipped with flanges, optional available without flange to measure to measure paper, metal, foils and more.
• Max. Line speed 150 m/min
• Measuring by spring force
• Opening by lifting device (lever) – self closing thickness gauge J-50-R

 Note:
Thickness gauge should not be used for continuous (online) use.

Standard Features

• Thickness gauge for quick, reliable measurements
• Thickness gauge J-50-R with rollers: Ø 8.4 mm steel, grounded, width 8.7 mm

 Available Models

Model	Measuring Range	Resolution	Depth of Jaw	Flange	Display
J-50-R	5 mm	0.01 mm	50 mm	yes	analog
J-50-RO	5 mm	0.01 mm	50 mm	no	analog
	alternative
J-50-RS	5 mm	0.005 mm	50 mm	yes	analog
J-50-RSO	5 mm	0.005 mm	50 mm	no	analog
JD-50-R	12.5 mm 0.5 inch	0.01 mm 0.001 inch	50 mm	yes	digital
JD-50-RO	12.5 mm 0.5 inch	0.01 mm 0.001 inch	50 mm	no	digital
JD-100-R	12.5 mm 0.5 inch	0.01 mm 0.001 inch	100 mm	yes	digital
JD-100-RO	12.5 mm 0.5 inch	0.01 mm 0.001 inch	100 mm	no	digital
FD-50-R	12.5 mm 0.5 inch	0.001 mm 0.0001 inch	50 mm	yes	digital
FD-50-RO	12.5 mm 0.5 inch	0.001 mm 0.0001 inch	50 mm	no	digital

 The lower roller is standard equipped with flanges. If lower roller is requested without flange (material width > 8.4 mm), please use Code O.
Order code e.g. J-50-RO
