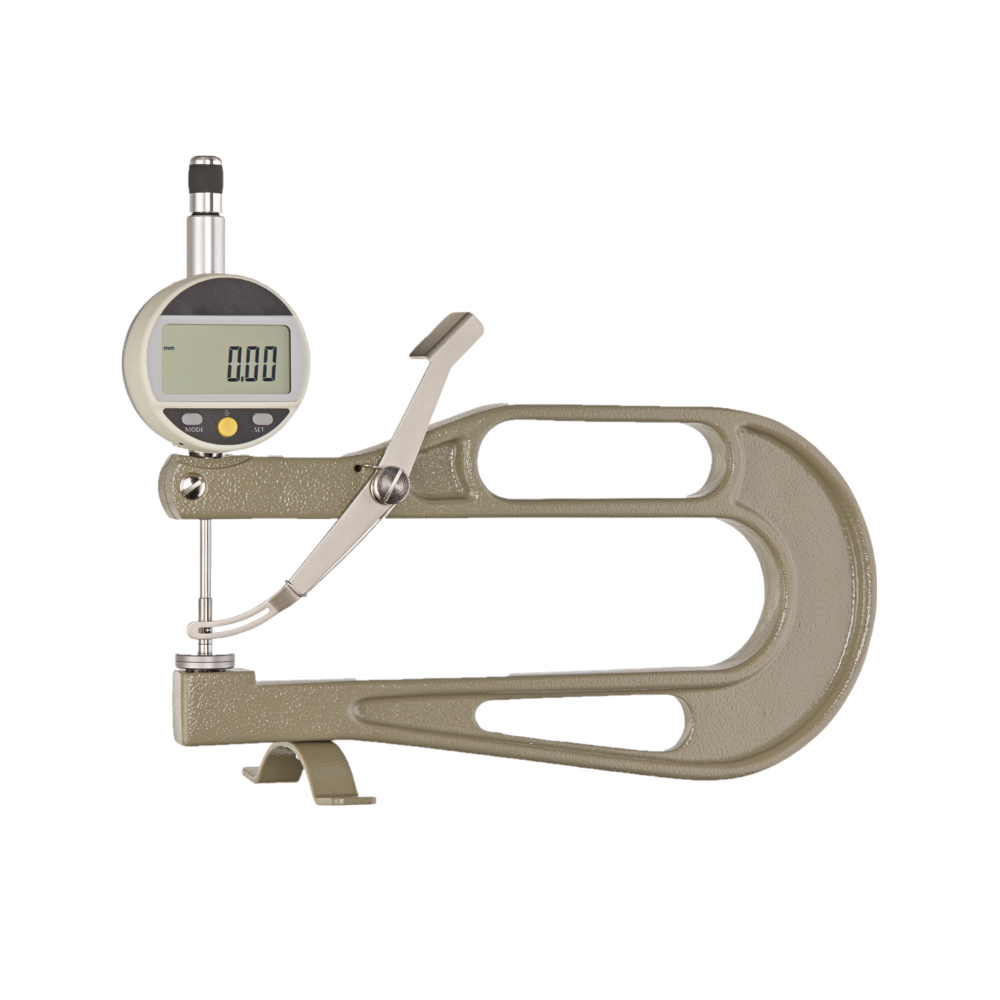

JD-200
Thickness Gauge

Measuring range 0 – 12.5 mm / 0 – 0.5 inch
Resolution 0.01 mm / 0.001 inch
Thickness gauge to determine the thickness of leather, textiles, cardboard, felt, rubber, sheet metal, foil, plywood, plastic, etc.

Self closing thickness gauge with high accuracy and resolution.

Special Features

  • Thickness gauge JD-200 features an easy to read digital display along with the high accuracy
  • The thickness gauge is available with 5 different feelers, which can be found below
  • Measuring by spring force
  • Opening by lifting device (lever) – self closing thickness gauge JD-200

  • Output signals:
    – USB
    – RS-232
  • Includes swing-out foot for on-table operation

Standard Features

  • LCD display with user selectable units of measurement (mm or inch)
  • Thickness gauge JD-200 with Sylvac dial gauge

 Available Models

Model Measuring Range
 Resolution Depth of jaw
JD-200 12.5 mm
0.5 inch		 0.01 mm
0.001 inch		 200 mm
alternative
JD-50 12.5 mm
0.5 inch		 0.01 mm
0.001 inch		 50 mm
JD-100 12.5 mm
0.5 inch		 0.01 mm
0.001 inch		 100 mm
JD-200-25 25 mm
1 inch		 0.01 mm
0.001 inch		 200 mm
JD-300 12.5 mm
0.5 inch		 0.01 mm
0.001 inch		 300 mm
JD-300-50 50 mm
2 inch		 0.01 mm
0.001 inch		 300 mm

To order, please indicate the desired feeler, e. g. JD-200-B for gauge with feeler “B”

SPECIFICATIONS

Resolution: 0.01 mm / 0.001 inch
Measuring range: 0 – 12.5 mm / 0 – 0.5 inch
Depth of jaw: 200 mm
Measuring principle: Self closing
Feeler shape: A/B/C/D/E
Display: LCD 6 digit, 8.5 mm high
Measuring system: Capacitive (Sylvac)
Temperature range: 10 – 45 °C
Battery: 3 V Lithium, CR 2032
Data output: USB, RS-232, galvanic isolation
Weight, net (gross): Approx. 1100 g (1150 g)

Specifications subject to change without notice!

FEELER SHAPE

Feeler A (flat)

for rubber, felt*, soft materials*, non wovens* etc., diameter 30 mm

*meets no DIN EN ISO standards







 Feeler customized (flat)

For rubber, felt*, soft materials*, non wovens*, etc.,
customized feeler type “A” are available with diameter 31- 56 mm on request at extra charge

*meets no DIN EN ISO standards





 Feeler B (flat)

For rubber, felt*, soft materials*, non wovens*, etc., diameter 20 mm

*meets no DIN EN ISO standard











 Feeler C (flat)

For soft leather, cardboard, paper, foils, etc., diameter 10 mm















 Feeler D (curved)

For hard leather, plywood, fiberboard, etc., diameter 10 mm, radius 15 mm















 Feeler E (spherical)

For sheet metal, etc. diameter 5 mm, radius 1.59 mm















To order, please indicate the desired feeler, e. g. JD-200-B for gauge with feeler “B”

OPTIONAL ACCESSORIES

30051K – RS-232 Connecting Cable (For dial gauges from January 2014)

The data transmission cable allows a fast connection of the digital gauge with the RS-232 output signal to a PC or another peripheral device.
Delivery includes a program to transmit and save the readings as an Excel-file.
The cable is 2 meters long and equipped with a 9 pin plug. For dial gauges from January 2014
Order number: 30051K









 30052K – USB Connecting Cable (For dial gauges from January 2014)

The data transmission cable allows a fast connection of the digital gauge with the USB output signal to a PC or another peripheral device.
Delivery includes a program to transmit and save the readings as an Excel-file.
The cable is 2 meters long and equipped with a USB plug. For dial gauges from January 2014
Order number: 30052K

DELIVERY INCLUDES

Thickness gauge JD-200 with battery and transport packing case
