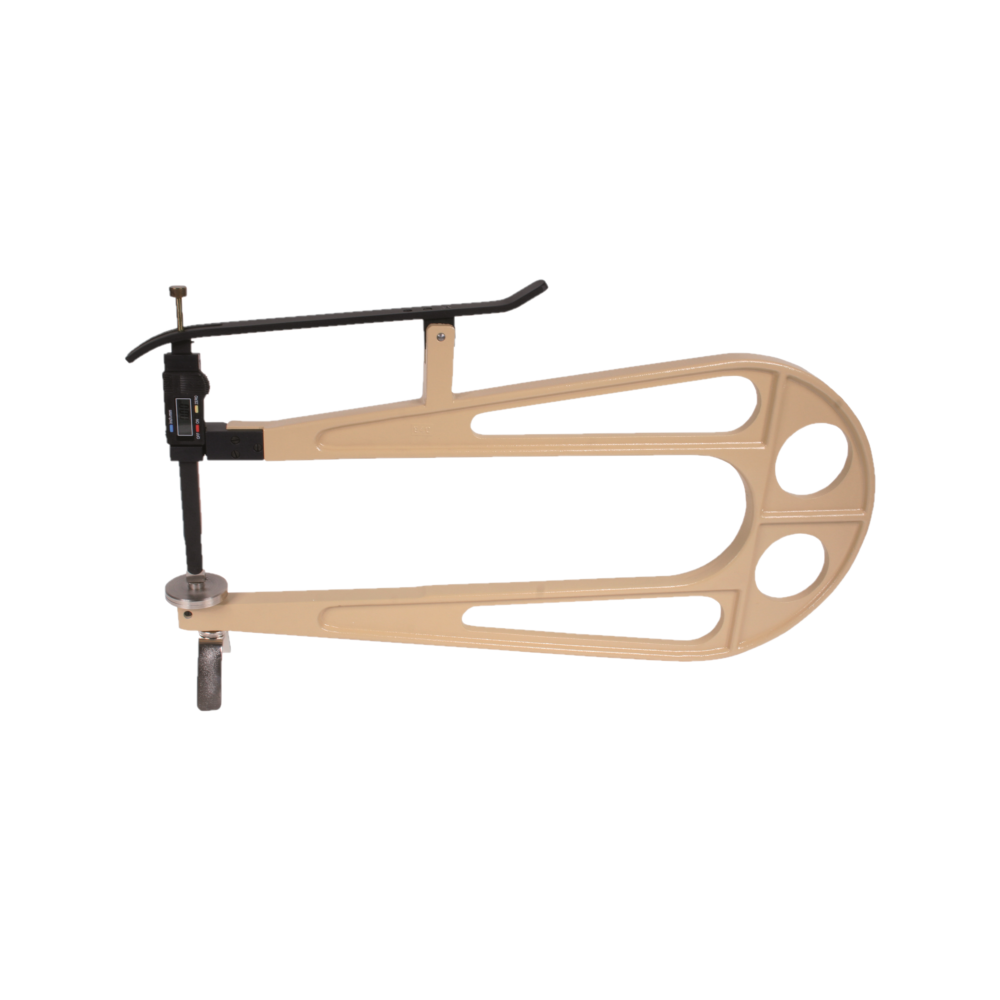

MDM-840-F
Thickness Gauge

Measuring range: 0 – 100 mm / 0 – 4 inch
Resolution: 0.01 mm / 0.005 inch
Thickness gauge to determine the thickness of leather, textiles, cardboard, felt, rubber, sheet metal, foil, plywood, plastic, foam and more

Self closing thickness gauge with high accuracy and resolution

Special Features

  • MDM-840-F1 Thickness gauge features an easy to read digital display along with the high accuracy
  • The MDM-840-F model is available with 5 different feelers, which can be found below
  • Measuring by spring force
  • Opening by lifting device (lever) – self closing thickness gauge MDM-840-F

  •  The thickness gauge is equipped with a big foot (Code F) for better operation
  • Output signal: USB

Standard Features

  • LCD display with user selectable units of measurement (mm or inch)
  • Zero setting by pushing a button

 Available Models

Model Measuring Range
 Resolution Depth of Jaw
MDM-840-F 100 mm
4 inch		 0.01 mm
0.0005 inch		 400 mm
alternativen
MDM-820-1 50 mm
2 inch		 0.01 mm
0.0005 inch		 200 mm
MDM-830-1-F 50 mm
2 inch		 0.01 mm
0.0005 inch		 300 mm
MDM-835-F 75 mm
3 inch		 0.01 mm
0.0005 inch		 350 mm

 To order, please indicate the desired feeler, e.g. MDM-840-F-B for gauge with feeler “B”

SPECIFICATIONS

Resolution: 0.01 mm / 0.0005 inch
Measuring range: 0 – 100 mm / 4 inch
Depth of jaw: 400 mm
Measuring pressure: 2 N
Measuring principle: Self closing
Feeler shape: A/B/C/G/H
Display: LCD 10 mm high
Measuring system: Capacitive
Data output: USB
Weight, net (gross): Approx. 1400 g (1450 g)

Specifications subject to change without notice!

FEELER SHAPE

Feeler A (flat)

for rubber, felt*, soft materials*, non wovens* etc., diameter 30 mm

*meets no DIN EN ISO standards







 Feeler customized (flat)

For rubber, felt*, soft materials*, non wovens*, etc.
customized feeler type “A” are available with diameter 31- 56 mm on request at extra charge.

*meets no DIN EN ISO standards





 Feeler B (flat)

Suitable for rubber, felt*, soft materials*, non wovens*, etc. diameter 20 mm

*meets no DIN EN ISO standard











 Feeler C (flat)

For soft leather, cardboard, paper, foils, etc., diameter 10 mm















 Feeler G (spherical)

Suitable for sheet metal, etc. radius 1.5 mm















 Feeler H (spherical)

For hard leather, plywood, fiberboard, etc., radius 6 mm















To order, please indicate the desired feeler, e.g. MDM-840-F-B for gauge with feeler “B”

OPTIONAL ACCESSORIES

SW-53 – Software Measuring Tool

Software for data transfer, displaying and analysis of measured data on PC
– Actual value
– Average value
– List of all readings
– Maximum
– Minimum
– Data storage in Excel
Order number: SW-53

 35012W – Data cable

Data cable USB used for data transfer via USB interface
Order number: 35012W

DELIVERY INCLUDES

Thickness gauge MDM-840-F with transport packing case
