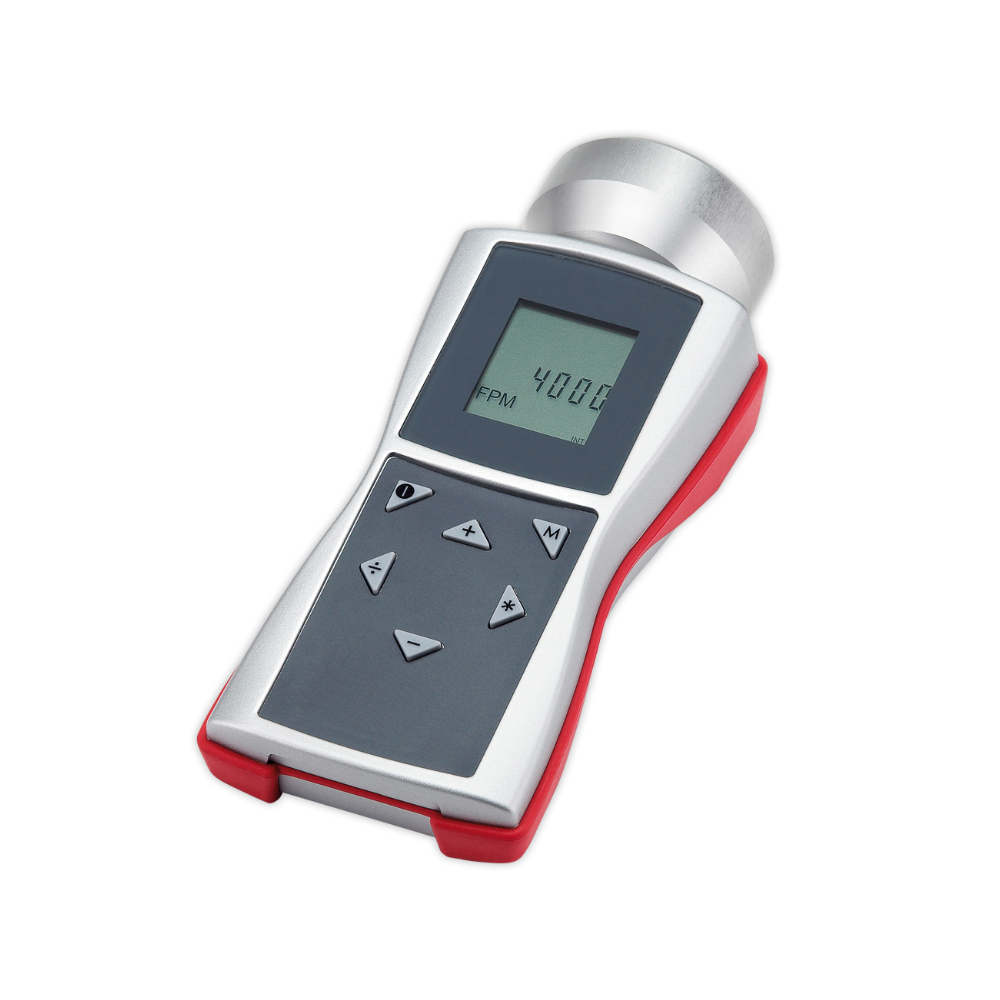

DSL-300
Stroboscope

Measuring range 30 – 300000 flashes per minute (FPM)
Frequency range 0.5 – 5000 Hz
LED-hand held stroboscope for non-contact determination of revolutions, for monitoring moving parts and ascertain the oscillation frequency of running systems

Industrial stroboscope for battery operation with LCD display

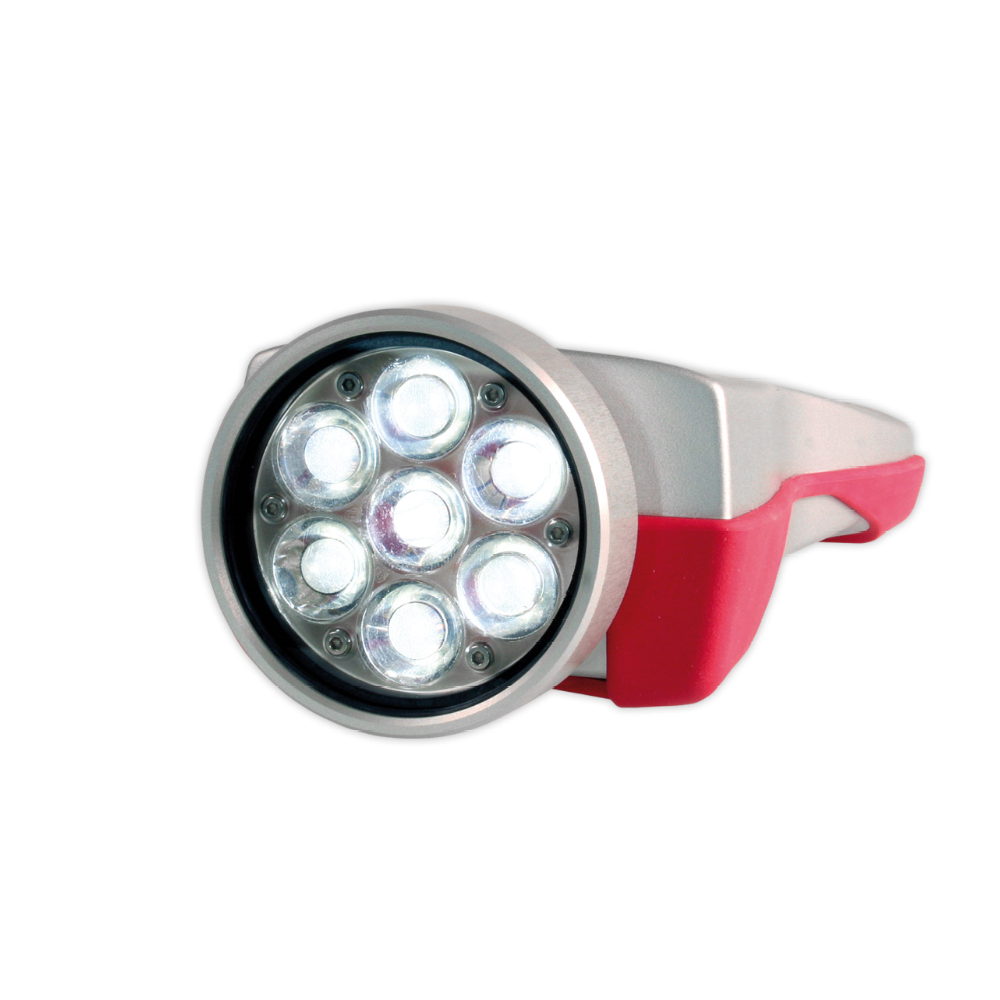

Stroboscope with shock-proofed aluminium housing and 7 LED illuminants

Special Features

  • Stroboscope DSL-300 with easy to read LCD display
  • 7 LED illuminants assure a good illumination of the observing object
  • 1500 Lux at a distance of 20 cm and 6000 FPM
  • Double-flash-function (x 2) and half-rate-flash function (: 2) for easy and fast determination of the true flash rate
  • Adjustable flash duration time for best illumination
    – e. g. shorter flash period = tighter image
    – e. g. longer flash period = more brightening
  • Adjustable delay time of internal trigger signal and flash for optimal monitoring of motion sequences
  • Protection class IP65 (splash water and dust protection)
  • Battery operated

Additional function: Stroboscope DSL-300-T with trigger input and output

  • External trigger signal
    – Adjustable delay time in milliseconds (ms) between external trigger input signal and flash for optimal monitoring e. g. clock frequency or starting period of a machine
    – Phase shift between trigger signal and flash to make a rotating part visible in different degrees
    – Pulse divider to determine which input pulse should be used as signal for the flash

Standard Features

  • Selectable units Hz, rpm or FPM
  • One hand use
  • Handy, shock protected housing
  • Calibration report of manufacturers optional available

 Available Models

Model Measuring Range
 Trigger Signal
DSL-300 30 – 300000 FPM (0.5 – 5000 Hz) no
DSL-300-T 30 – 300000 FPM (0.5 – 5000 Hz) yes

SPECIFICATIONS

Flash range: 30 – 300000 FPM (flash per minute), 0.5 – 5000 Hz
Accuracy: ±0.02 %, (±1 digit)
Resolution: 0.1 (30 – 999 FPM), 1 (1000 – 300000 FPM)

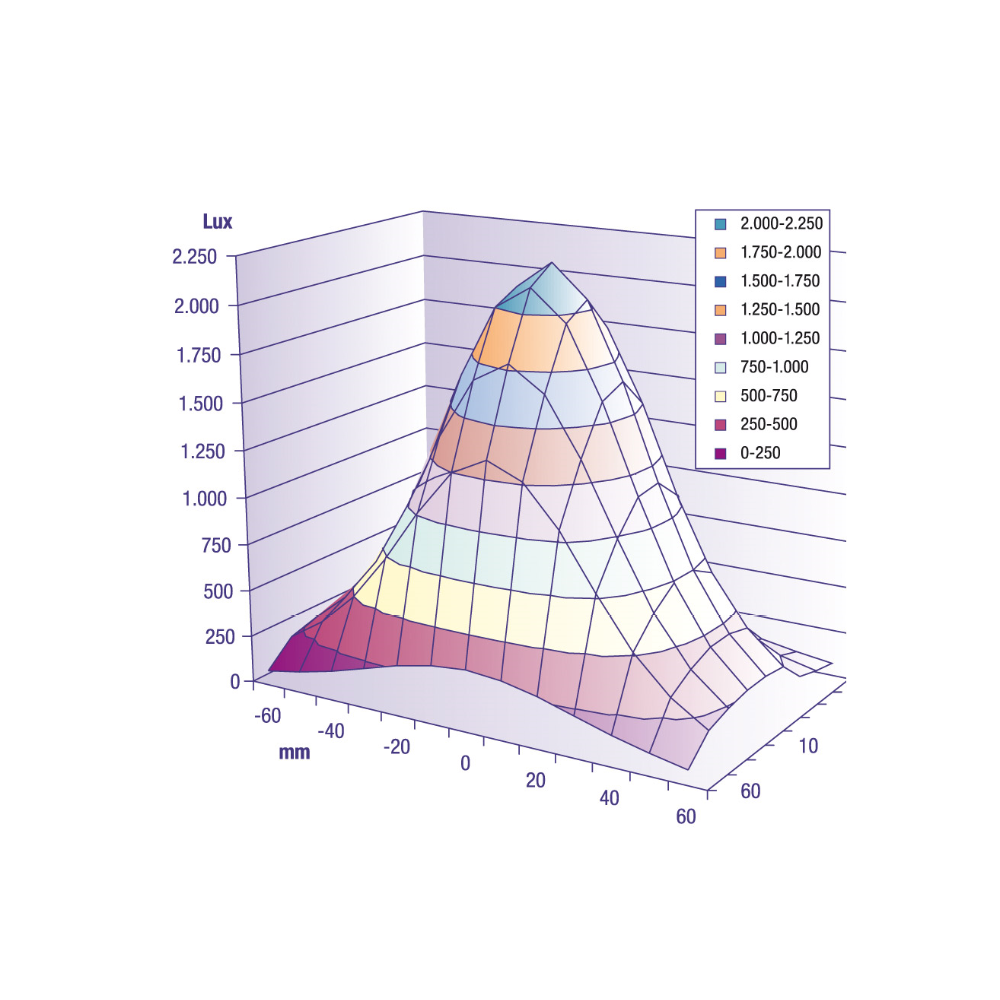

Light intensity: 1500 Lux at 20 cm distance and 6000 FPM
Flash duration: Adjustable
Flash color: Approx. 6500 K
Display: LCD multiline
Power supply: 3 x AA battery (Standard) or 3 x NiMH Accumulators – AA
Operating time:
(depending on frequency)		 Battery approx. 6 h, accumulator min. 6 h at 6000 FPM respectively
Air humidity: 95 % RH, max.
Housing material: Aluminium / ABS with shock absorber
Dimensions: 191 x 82 x 60 mm (LxWxH)
Weight net (gross): Approx. 420 g (850 g)
Additional Specifications for model DSL-300-T
Trigger Input Principle: Optocoupler, isolated
Low level: < 1 V
Level: 3 – 32 V, NPN + PNP
Minimum pulse length: 50 µs
Reverse voltage protection: Yes
Trigger Output Principle: Short-circuit and overvoltage proof transistor output to the optocoupler, non isolated
Level: NPN, max. 32 V
Puls length: Adjustable
Maximum current: 50 mA
Reverse voltage protection: Yes

Specifications subject to change without notice!

OPTIONAL ACCESSORIES

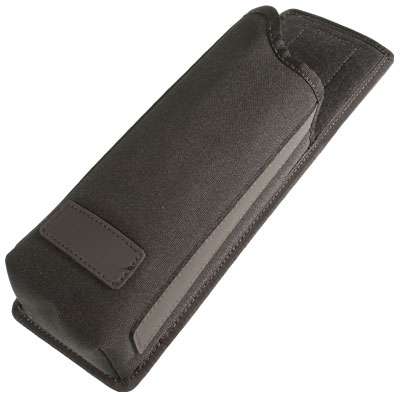

20003R – Belt-clip holster

Leather bag for take up the device. For fast mount on a belt.
Order number: 20003R

DELIVERY INCLUDES

Stroboscope DSL-300 with carrying case, 6 batteries AA (incl. 3 spare batteries), manufacturer`s inspection report, manual in English and German
Additional for stroboscope DSL-300-T:
Cable with plug for trigger
