The CHECK-LINE CDT-2000HD Combination Portable Tachometer combines the best features of both contact and non-contact models to accurately measure RPM, surface speed and length.

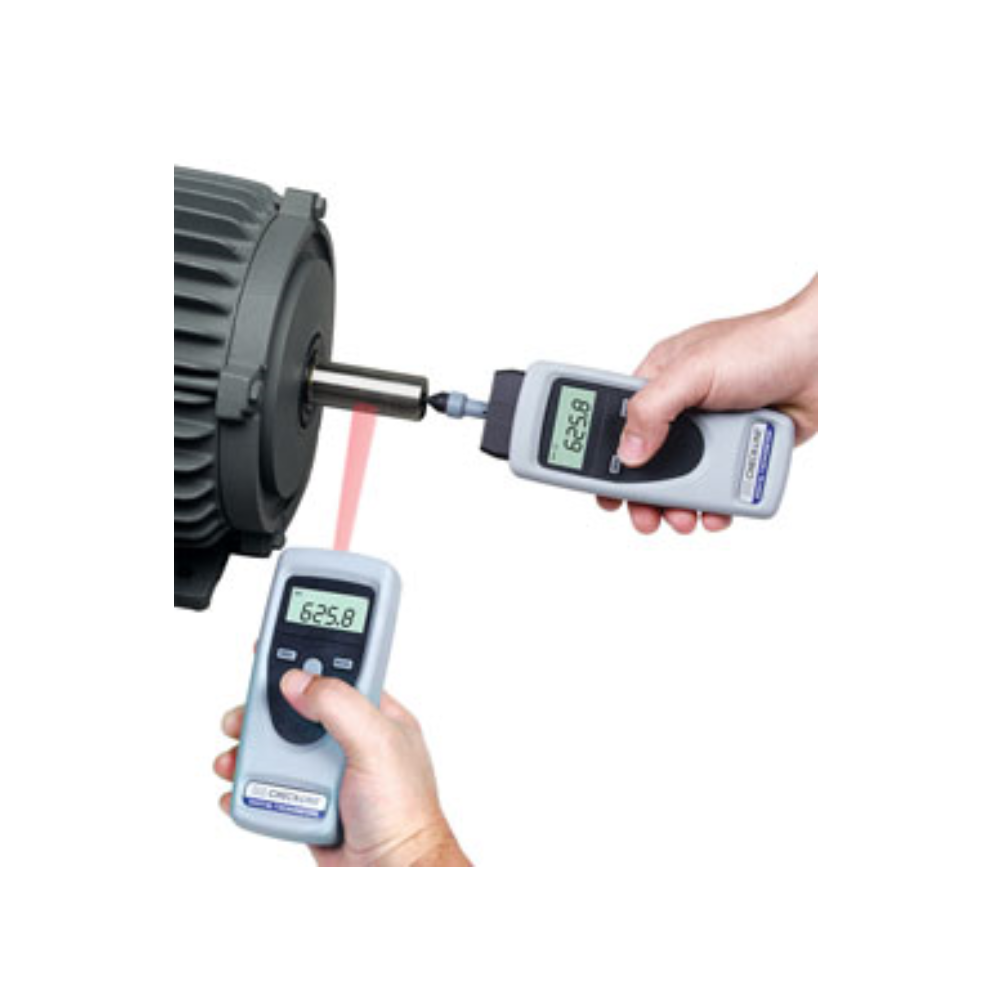

When using the non-contact mode, rotational speed (RPM) is measured using a visible beam of light. The CDT-2000HD can be up to 24 inches away from the small piece of reflective tape that is affixed to the rotating element. In the contact operating mode, the speed is sensed by directly contacting rotating device using one of the contact adapters supplied with the instrument.
The CDT-2000HD’s rugged construction, portability and outstanding features make It an ideal choice for maintenance personnel, machine operators or others in a wide variety of machinery and material handling applications.

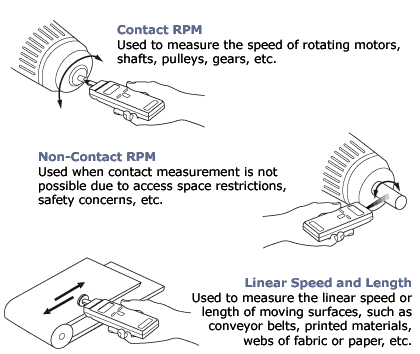

Applications
Measuring Ranges
| RPM | |||
| Non-Contact | 1-99,999 | ||
| Contact | 1-19,999 | ||
| Surface Speed | 6″* (Standard) | 12″* | 0.1 m* |
| m/min | 0.10-1,524 | 0.40-609.6 | 0.10-1,999 |
| ft/min | 0.40-5,000 | 0.40-2,000 | 0.40-6,550 |
| in/min | 4.00-60,000 | 4.00-24,000 | 4.00-78,700 |
| m/sec | 0.10-25.40 | 0.10-10.16 | 0.10-33.30 |
| ft/sec | 0.10-83.33 | 0.10-33.33 | 0.10-109 |
| Total Length | |||
| Meters | 99,999 | ||
| Feet | 99,999 | ||
| Inches | 99,999 | ||
| *Note: Sizes listed are the circumference of measuring wheel | |||
LCD Display
Units of Measure Indicators show the user-selected units of measure.
Contact Indicator shows if contact or non-contact operation is selected.
Low Battery Indicator alerts the operator if the batteries are low.
On-Target Indicator confirms that the measurements are reliable.
Memory Indicators are illuminated when the maximum, minimum, average and last readings are recalled to the display for viewing.
Complete Kit
The CDT-2000HD includes the Tachometer, Slide-In Contact Adapter, 6″ & .1m Surface Speed Wheels, Cone Tip, Funnel Tip, Extension Shaft, Reflective Tape, Two (2) AA Batteries (1.5 V), Calibration Certificate and Operating Instruction Manual — all supplied in a foam-fitted, hard-plastic Carrying Case.
| Item | Descrıptıon | |||
|---|---|---|---|---|
|
CDT-2000HD
|
Combination Contact and Non-Contact Tachometer kit – Rotaro A5-1000
|
|||
| Accessorıes | ||||
|
ISO-17025 Certificate for Tachometer or Stroboscope
|
||||
|
NISTCAL
|
NIST Traceable Calibration Certificate (replaces included DAKKS certificate)
|
|||
|
DTCA
|
Tachometer Cone Tip for CDT-2000HD
|
|||
|
CDT-TAPE
|
10 Strips of 1/2 x 4 inch reflective tape
|
|||
|
CDT-WHEEL
|
.1 m Circumference wheel for CDT-2000HD
|
|||
|
DT6
|
6 Inch Circumference Tachometer wheel, 7mm shaft (FPM-6)
|
|||
|
DT12
|
12 Inch Circumference Tachometer wheel, 7mm shaft (FPM-12)
|
|||
|
DTSX
|
Shaft Extension for Tachometers, 3 inch
|
|||
|
DTFA
|
Funnel Tip for Hand-held tachometers
|
|||
|
LMA-3
|
12″ Knurled Aluminum Measuring Wheel
|
|||
|
205TS-4
|
Qty 4 Reflective Tab Sheet, 35 1/2″ x 1/2″ Squares
|
|||
|
BATT-RC4AA-WC
|
4-pack AA Ni-MH Rechargeable Batteries & Charger Kit
|
|||
|
CDT-ADAP
|
Contact Adapter for CDT-2000 and CDT-2000HD
|
|||
|
CDT-CC
|
Carrying Case for CDT-1000HD/2000HD
|
|||
|
UGD-6
|
6 in Circumference U-grooved Wheel – FPM-6-GV
|
|||
