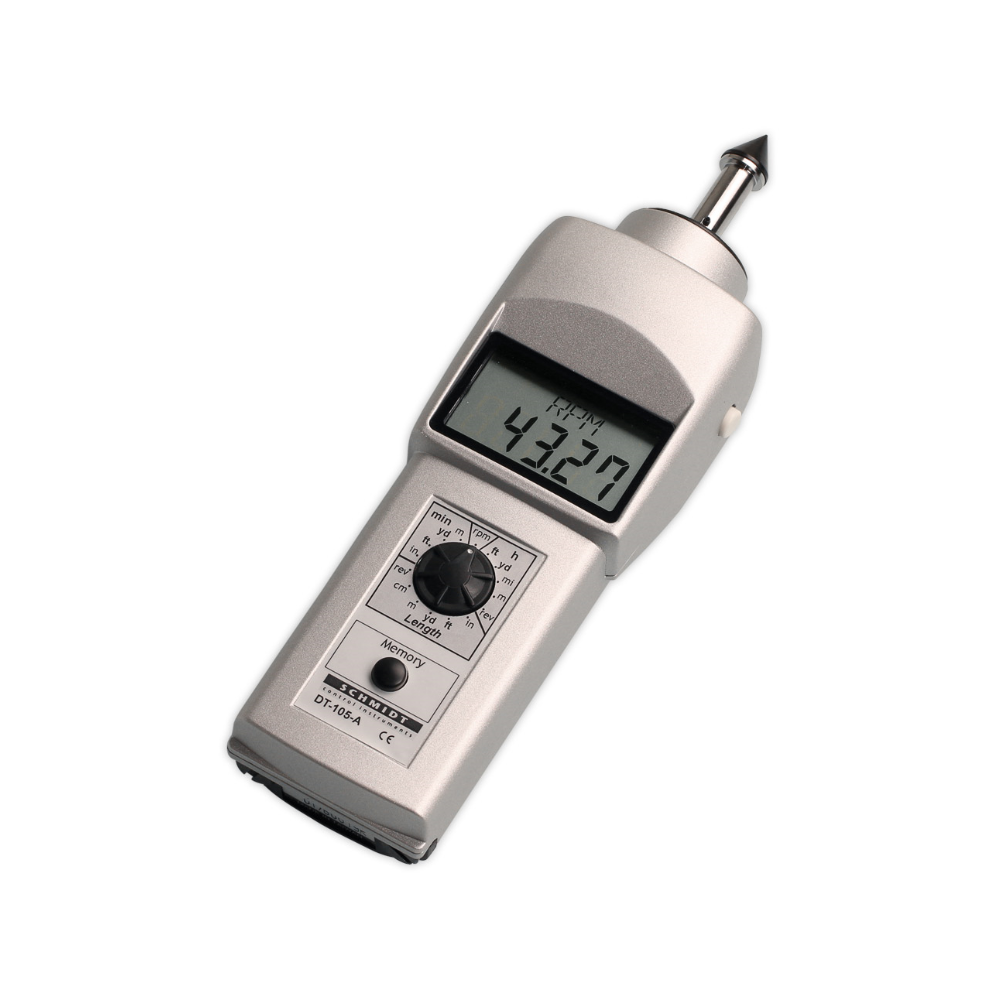

DT-105A
Tachometer

Hand-held tachometer for accurate contact measurement of revolution of engines or shafts as well as surface speed and length e.g. belts and conveyer belts

Tachometer with LCD display and many selectable units

High quality hand-held tachometer for professional use

Special Features

  • Hand-held tachometer DT-105A for contact measuring of revolutions, line speeds and length;
    the measurtement is carried out, as long as the measuring key is pressed

Contact measurement of revolutions, surface speed and length

  •  For exact measurements of revolutions per minute, total revolutions, length and velocity with different metric and English units

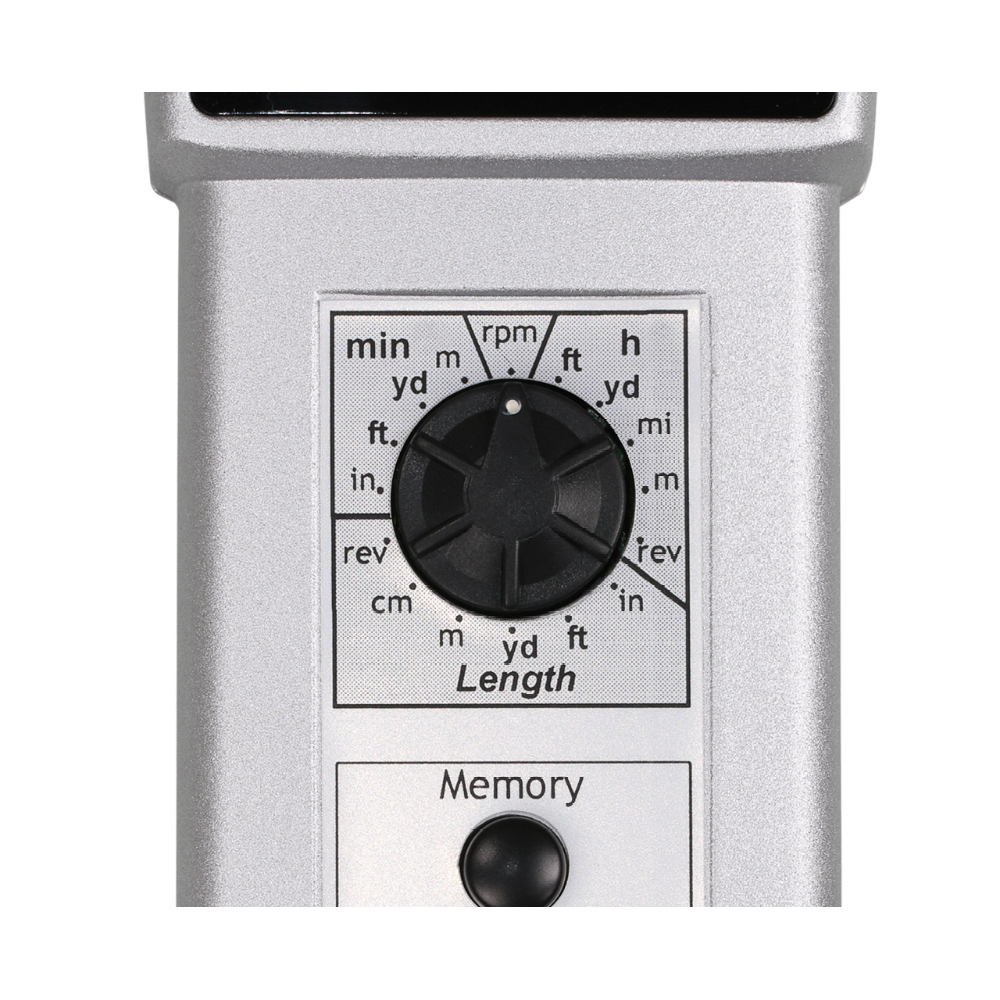

  • 16 user selectable measuring units (rpm; rev; m/min; m/h; ft/min; ft/h; yd/min; yd/h; in/min; in/h; mil/h; cm; m; in; ft; yd)
  • Tachometer with large, electricity saving LCD display
  • Hand-held tachometer with automatic and manual memory (MAX, MIN, last and 10 separate readings) for recall in display
  • Rugged aluminium housing with fixing for tripod (1/4-20 UNC thread)
  • Optionally available: Inspection Certificate 3.1 according EN 10204 with calibration report

Standard Features

  • Easy to use
  • Certificate of Compliance with the order 2.1 according EN 10204 is included

 Available Models

Model Application Display
DT-105A contact measuring  LCD
alternative
DT-107A contact measuring  LED
DT-205L contact measuring, non-contact  LCD
DT-207L contact measuring, non-contact  LED
DT-2100 contact measuring, non-contact  OLED

 All models are available with 12 inch (circumference) measuring wheels:
Grooved measuring wheel: e. g. Tachometer DT-105A-12C
Rubber measuring wheel: e. g. Tachometer DT-105AS (12″ circumference measuring wheel which is offered for safer and easier surface speed measurement by keeping the users hand farther from the moving surface and slowing down the rotational speed)

SPECIFICATIONS

Measuring range:
(floating decimal point)		 Revolution: 0.1 – 25000 rpm; 6 – 9999.9 rph
Speed: e. g. 0.02 – 3810 m/min; 0.9 – 99999 m/h;
0.6 – 99999 in/min; 0.05 – 12500 ft/min; 3 – 99999 ft/h; 0.02 – 4167 yd/min;
1.0 – 9999 yd/h; 0.0006 – 142.5 mil/h
Length: 0.5 – 99999 cm; 0.005 – 99999 m; 0.1 – 9999.9 in; 0.01 – 99999 ft;
0.005 – 9999.9 yd
Accuracy: Revolution: 0 – 999.9 rpm (±0.1 rpm) ±1 digit
1000 – 9999.9 rpm (±1 rpm) ±1 digit
10000 – 25000 rpm (±0.01% of reading) ±1 digit
Speed and length: ±0.4 % of reading, ±1 digit
Measuring units: Revolution: rpm; rph
Total revolutions (counter): rev
Speed: m/min; m/h; ft/min; ft/h; yd/min;yd/h; inch/min; in/h; mil/h
Length: cm; m; inch; ft; yd
Memory: 13 readings (incl. MIN + MAX + Last reading) for 5 min after last use
Resolution: Length: 0.00254 m/Impulse (with 6 inch measuring wheel)
Revolution: 60 Impulse/revolution
Display: 5 digit, LCD 12 mm
Display update: 1 sec
Over range indicator: Display is flashing
Auto power off: After 5 min of non-use
Power supply: 2 x 1.5 V Type AA; approx. 65 h continuous use
Low battery indicator: ”LO BAT” flashes at the display
Temperature range: 5 – 45 °C
Air humidity: 85 % RH, max.
Housing material: Die-cast aluminium
Tripod fixing: 1/4-20 UNC thread
Dimensions: 183 x 60 x 46 mm (LxWxH)
Weight, net (gross): Approx. 350 g (800 g)

Specifications subject to change without notice!

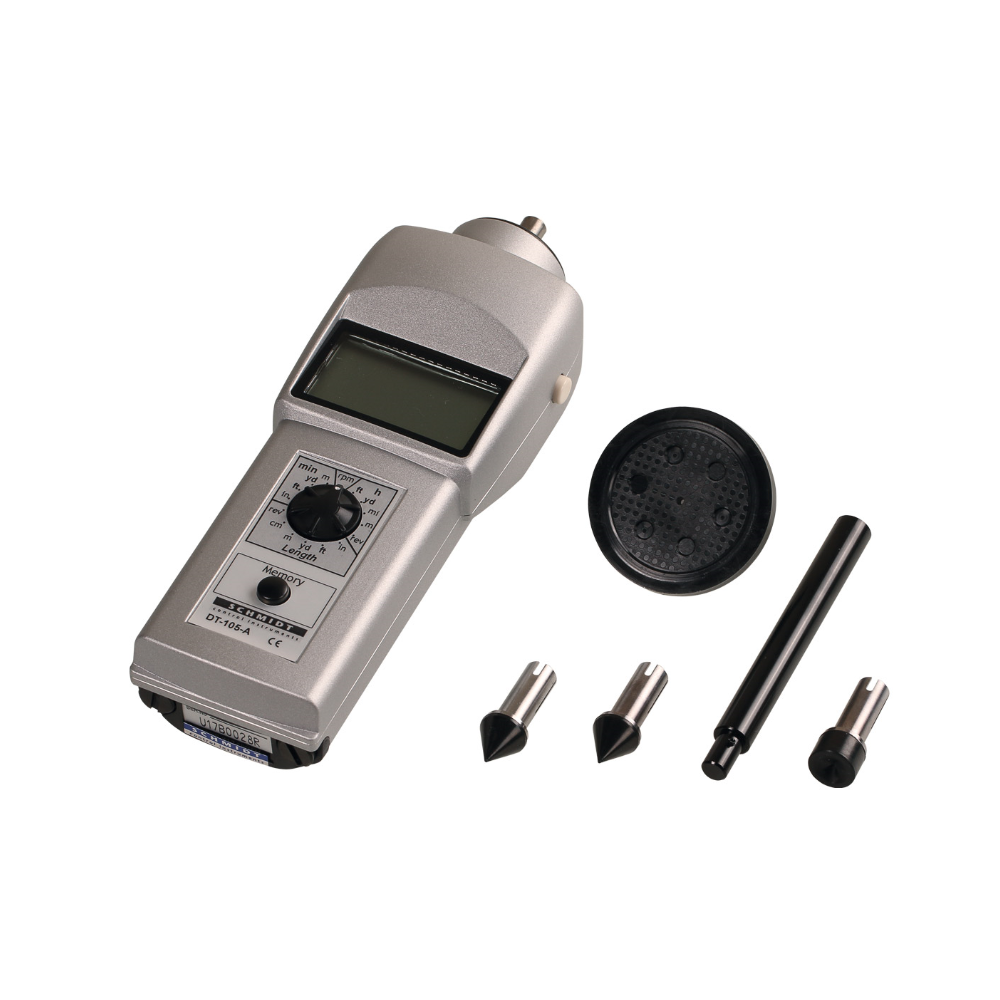

STANDARD ACCESSORIES

10006S – Rubber Tip

Tip for contact measurement of revolutions (rpm)
Order number: 10006S

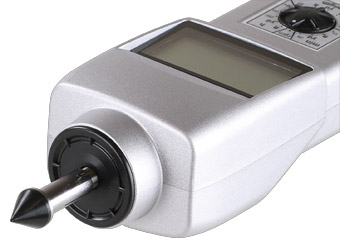

 10007S – Funnel Tip

Tip for contact measurement of revolutions (rpm)
Order number: 10007S

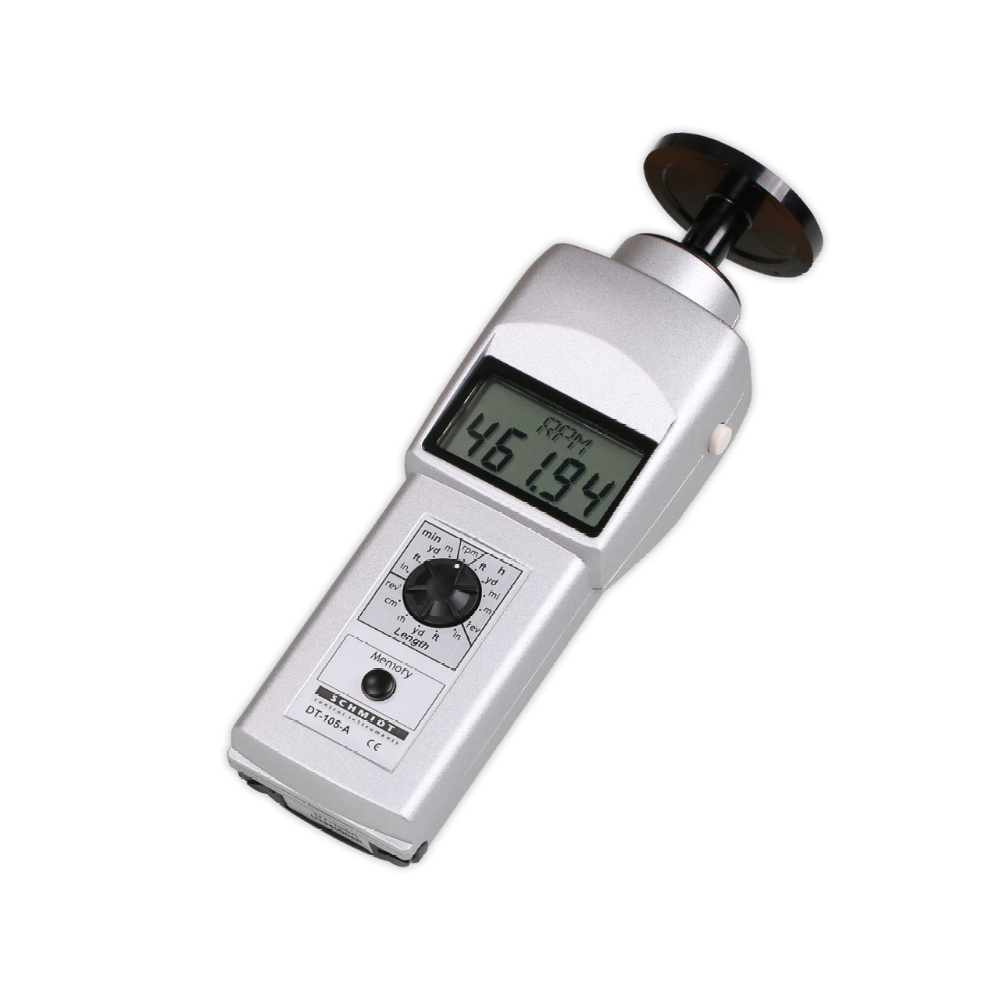

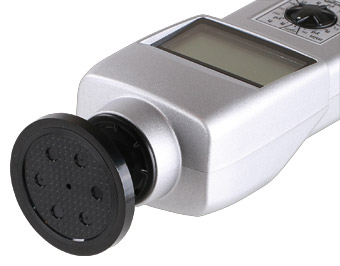

 10002S – Rubber Measuring Wheel

Wheel with 6 inch circumference for measuring line speeds
Order number: 10002S

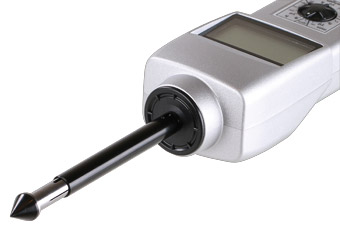

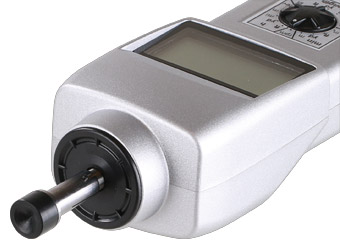

 10008S – Extension

Shaft 75 mm long
Order number: 10008S

OPTIONAL ACCESSORIES

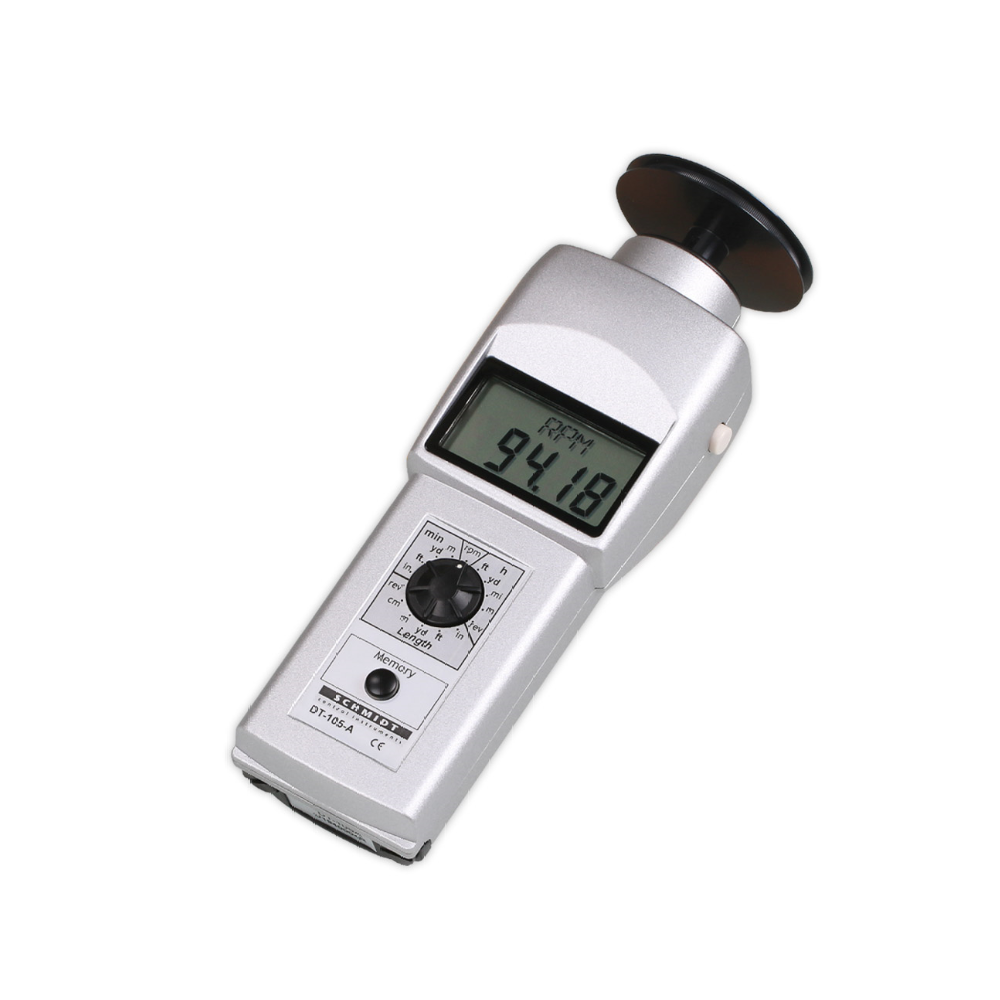

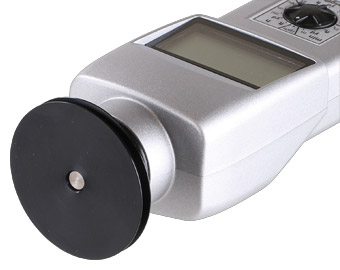

10005S – Grooved Wheel

Measuring Wheel (6 inch circumference) with special groove for measuring yarn and wire speeds.
Order number: 10005S

DELIVERY INCLUDES

Tachometer DT-105A with batteries, carrying case, 2 rubber tips, 1 funnel, 1 rubber measuring wheel (6 inch circumference), 1 extension 75 mm, Certificate of Compliance with the order 2.1 according EN 10204 free of charge and operating instructions in German and English
