DT-205LR – DT-207LR
Combination Contact and Non-Contact Tachometer

DT-205LR LCD Display with 6″ Circumference Measuring Wheel
DT-205LR-12 LCD Display with 12″ Circumference Measuring Wheel
DT-207LR LED Display with 6″ Circumference Measuring Wheel
DT-207LR-12 LED Display with 12″ Circumference Measuring Wheel

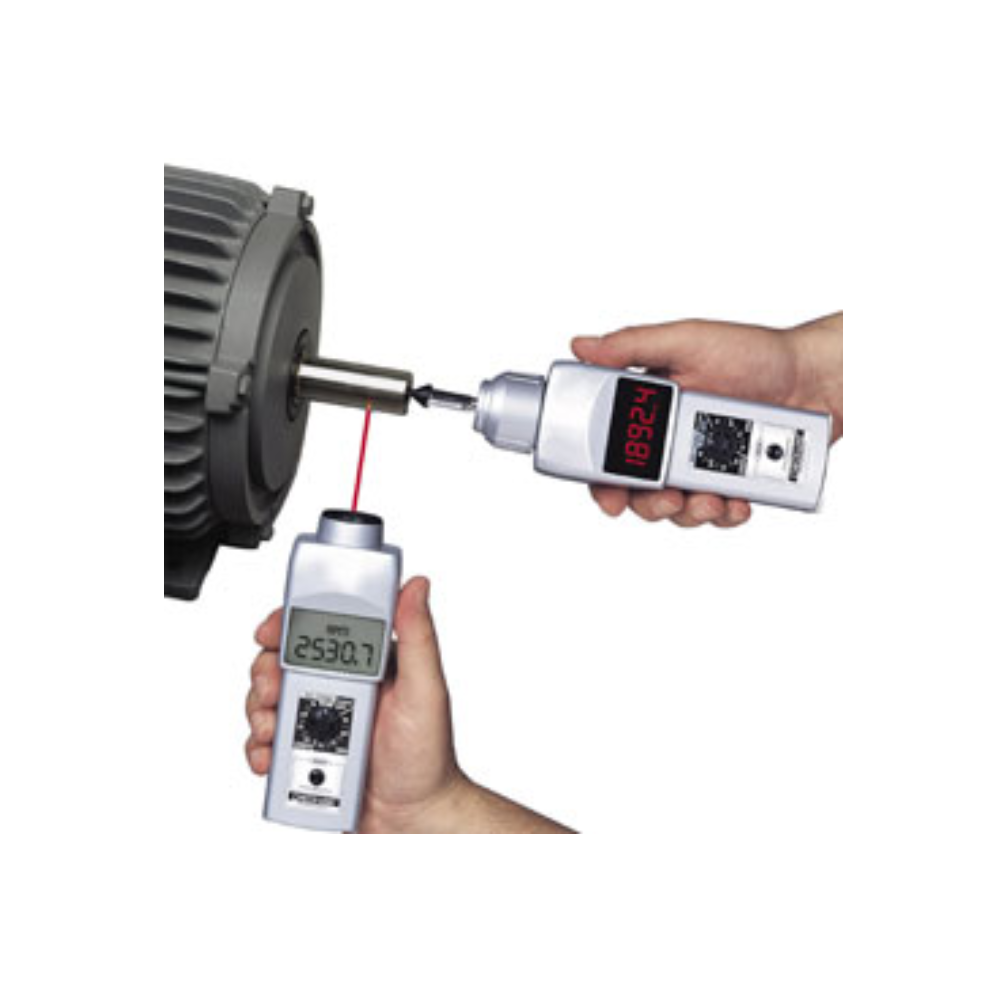

The DT-205LR & DT-207LR combine the best features found in both contact and non-contact tachometers for the accurate measurement of rpm, surface speed and length. The screw-in contact adapter makes it quick & easy to convert from non-contact to contact operation.

NSN 6680-01-378-6490 (DT-205LR)
NSN 6680-01-507-0818 (DT-207LR) DT-207LR-12 = Avtron M740

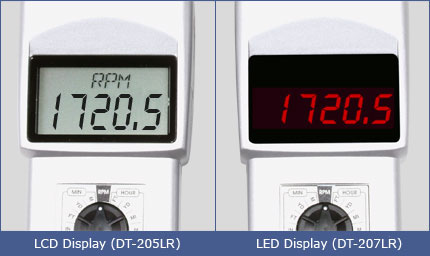

LCD Display vs LED Display

Complete Kit

All models are supplied as a complete kit including the tachometer, reflective tape, screw-in contact adapter, 2 cone tips, funnel tip, shaft extension, surface speed wheel, two AA batteries, NIST traceable calibration certificate and an operating instruction manual – all supplied in a foam-fitted carrying case.

Note: On DT-205LR-12 and DT-207LR-12 models 12″ circumference wheel is supplied instead of 6″ version

	Item	Descrıptıon
	DT-205LR	Contact / Non-Contact Tachometer with LCD Display and 6″ Circumference Wheel
		Contact / Non-Contact Tachometer with LED Display and 6″ Circumference Wheel
	DT-205LR-12	Contact / Non-Contact Tachometer with LCD Display and 12″ Circumference Wheel – DT-205LR-S12
		Contact / Non-Contact Tachometer with LED Display and 12″ Circumference Wheel – DT-207LR-S12
Accessorıes
	ISO-17025-TS	ISO-17025 Certificate for Tachometer or Stroboscope
	DTCA	Cone Tip for Hand-held tachometers
	DTFA	Funnel Tip for Hand-held tachometers
	DTSX	Shaft Extension for Tachometers, 3 inch
	205T	Reflective Tape, 1×7 Inch Strip – TAPE
	205TS	Reflective Tab Sheet, 35 1/2″ x 1/2″ Squares – TAB
	205TS-4	Qty 4 Reflective Tab Sheet, 35 1/2″ x 1/2″ Squares
	DT6	6 Inch Circumference Tachometer wheel, 7mm shaft (FPM-6)
	DT12	12 Inch Circumference Tachometer wheel, 7mm shaft (FPM-12)
	DT-ADP-200LR	Contact Adapter for DT-205LR and DT-207LR tachometers
	DT-TRI-HD	Tripod for Tachometers and Stroboscopes
	BATT-RC4AA-WC	4-pack AA Ni-MH Rechargeable Batteries & Charger Kit
	DTCC	Spare Carrying Case for Shimpo Tachometers
	ZZHH0018	Replacement Battery Cover for DT-105A/7A – DT-205/7 L & LR Models Tachometers
	BDTC1700120	Window glass for DT-107A / DT-207LR

FEATURES

Includes NIST Traceable calibration Certificate
High-precision laser measures from distances up to 14 feet
LCD Version for use in sunlight and for longest battery life
LED version for use in poorly lit or dark environments
Includes 6″ circumference surface speed wheel
Built-in memory for last, maximum, minimum and 10 separate readings
DT-205LR NSN: 6680-01-378-6490

SPECIFICATIONS

Measuring Range	Non-Contact – 6 to 99,999 rpm Contact – 0.8 to 25,000 rpm
Accuracy	6 to 8,299 rpm: ±1 rpm 8,300 to 24,999 rpm: ±2 rpm 25,000 to 99,999 rpm: ±6 rpm, max.
Resolution	Non-Contact Mode: 1 RPM Contact Mode: 0.1 RPM
Display	DT-205LR: (LCD MODEL) 5 digit 0.47″ (12mm) high DT-207LR: (LED MODEL) 5 digit 0.4″ (10mm) high
Measurement Units	Per Second: Inches, Centimeters (optional, inquire) Per Minute: Revolutions, Inches, Feet, Yards, Meters Per Hour: Miles, Kilometers (optional, inquire) Total: Revolutions, Inches, Feet, Yards, Centimeter, Meters
Measuring Distance	14 feet (4.2 m) maximum
Detection	Laser Diode, Class II
Memory	13 readings are stored in memory and retained for 5 minutes (last, max., min., and 10 measurements)
Over-Range Indicator	Flashing numerals
Update Time	1 second (typical)
Batteries	2 – 1.5 V AA
Battery Life	DT-205LR Approx 40 hrs DT-207LR Approx 25 hrs
Low Voltage Indicator	DT-205LR Flashing “LO BAT” display DT-207LR “B” display
Operating Temp	32 to 113° F (0 to 45° C)
Construction	Die-cast aluminum housing
Weight	0.8 pounds (365 grams)
Dimensions	6.6″ L x 2.4″ W x 1.8″ H (167mm x 61mm x 45.7)
Origin	Taiwan
