DT-2100
Tachometer with USB Output – Combination Contact / Non-Contact Operation

The DT-2100 is an advanced combination contact / non-contact hand-held tachometer. The DT-2100 features data-logging, USB output and a programmable scaling feature to offset RPM according to application variables. It features a backlit LED Display with upper/lower limit icons and a unique X-Y Graphic mode. Additional display modes unique to the DT-2100 is the “Needle Sweep” and Bar Graph” offers the user a choice of how to view the data. The display can also be inverted to optimize the viewing angle.

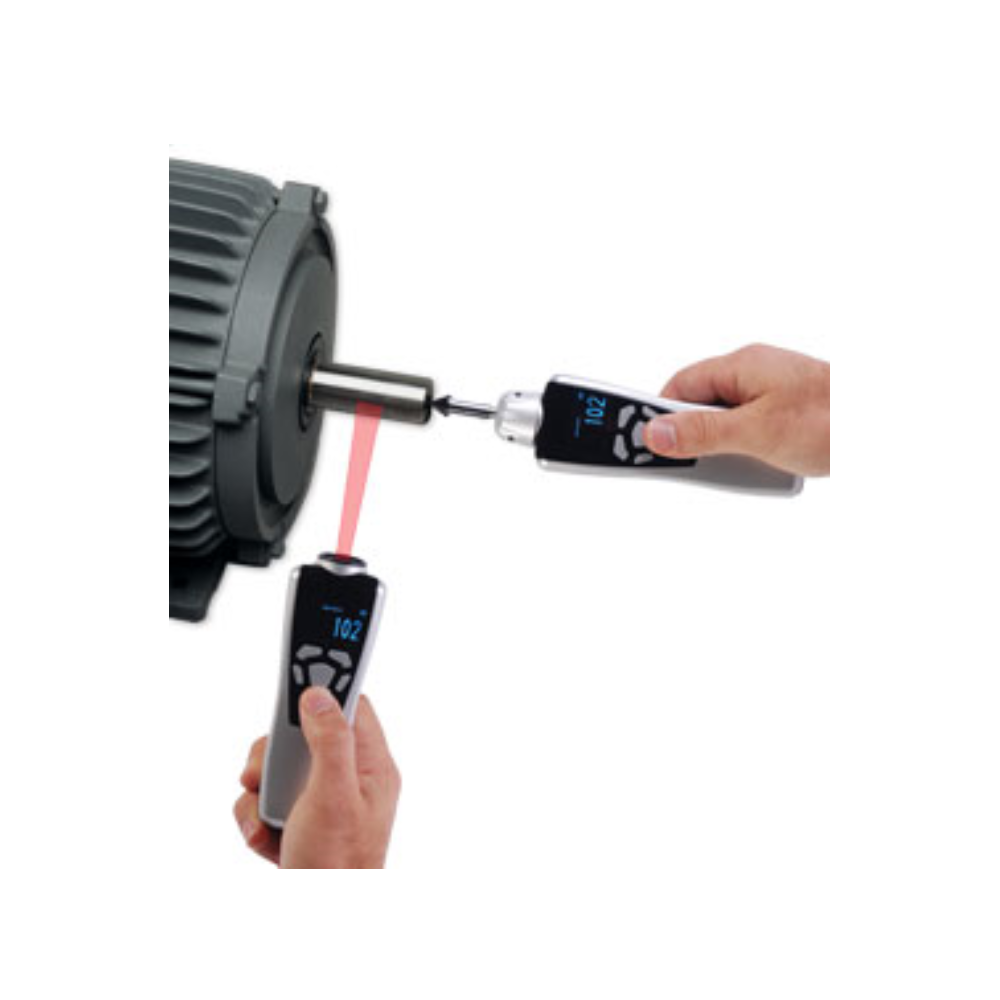

In non-contact mode the tachometer measures RPM up to 99,999 RPM at distances up to 13 feet or 500 cm. The DT-2100 can also measure contact RPM, surface speed, or length using the supplied screw-on adapter.

Data logging can be set for single point or continuous logging. Single data points as well as statistics (Max, Min, Average) can be stored in the built-in memory and recalled to the display. Often users need to adjust machinery during testing, with the DT-2100 you can mount it on a tripod, select continuous logging and adjust machinery as necessary. After the test, you can easily review the data on the DT-2100’s display or download to a computer using the optional Windows Software.

The DT-2100 is supplied as a complete kit with 2 cone tip adapters, funnel tip adapter, shaft extension, 6 inch circumference surface speed wheel, reflective tape, 2 AA batteries … all supplied in a foam-fitted carrying case. A NIST-Traceable Calibration Certification is optionally available.

Complete Kit

The DT-2100 is supplied as a complete kit with tachometer, 2 cone adapters, funnel adapter, 3.5” extension shaft, surface speed wheel (6” circumference), reflective tape, 2 AA batteries, contact adapter in a foam-fitted carrying case

	Item	Descrıptıon
	DT-2100	Tachometer with USB Output – Combination Contact / Non-Contact Operation
Accessorıes
		Software for DT-2100 Data Logging Tachometer, includes USB cable. (Windows 7-10 Compatible)
	DT-2100-OP-RBB	Protective Rubber Sleeve for DT-2100 Tachometer
	NISTCAL	NIST Traceable Calibration Certificate for DT-2100 Tachometer
	ISO-17025-TS	ISO-17025 Traceable Certificate for DT-2100 Tachometer
	DT-2100-OP-CAS	Screw-On Contact Adapter & Accessory Kit for DT-2100 Tachometer
	DT-2100-OP-CAS-L	LOW SPEED Screw-On Contact Adapter for DT-2100 Tachometer, Range 0.1 – 10.0 RPM
	DTCA	Cone Tip for Hand-held tachometers
	DTFA	Funnel Tip for Hand-held tachometers
	DTSX	Shaft Extension for Tachometers, 3 inch
	DT6	6 Inch Circumference Tachometer wheel, 7mm shaft (FPM-6)
	DT12	12 Inch Circumference Tachometer wheel, 7mm shaft (FPM-12)
	205T	Reflective Tape, 1×7 Inch Strip – TAPE
	205TS	Reflective Tab Sheet, 35 1/2″ x 1/2″ Squares – TAB
	205TS-4	Qty 4 Reflective Tab Sheet, 35 1/2″ x 1/2″ Squares
	DT-TRI-HD	Tripod for Tachometers and Stroboscopes
	BATT-RC4AA-WC	4-pack AA Ni-MH Rechargeable Batteries & Charger Kit
	USB-MINI	Mini USB Cable for use with DT-2100
	UGD-6	6 in Circumference U-grooved Wheel – FPM-6-GV

FEATURES

Data Logging with Continous, Single Unit or Statistics modes
View data and statistics on tachometer display or with optional Windows software (Windows 7-10 Compatible)
Built-in Memory with USB Data Output
Powerful laser for non-contact measurement 2” to 13.1’ (5 to 400 cm)
Non-Contact length measuring mode (requires reflective tape or edge of roller)
Programmable multiplier to convert reading based on wheel diameter, gear ratios, etc…
On-screen hi-lo limits for pass/fail analysis
Auto-detection of contact adapter
Reversible Display
1/4-20 Threaded Insert on bottom of housing for fixed-mounting or use on Tripod
Optional Low Speed Contact Adapter for applications with a measuring range of 0-10 RPM – DT-2100-OP-CAS-L
NSN: 6680-01-661-1493

SPECIFICATIONS

Range	6-99,999 rpm Non-contact 0.8-25,000 rpm Contact
Resolution Non-Contact	1 RPM
Resolution Contact	0-9,999: 0.1 RPM 10,000 and above: 1 RPM
Resolution Other	For other units, refer to PDF available in downloads section
Accuracy	±0.006% of reading ±1 least significant digit
Measuring Units	Speed: rpm, m/min, cm/min, inch/min, ft/min, yds/min, rps, m/sec, cm/sec, inch/sec, km/hr, mph Distance: cm, m, km, in, ft, yd
Memory	Continuous Mode: 1000 Single Mode: 100 Statistics Mode: 100
Laser Sensing Distance	2 inches up to 13.1 Feet (5 to 400 cm)
Display	Graphical Blue Light OLED, reversible
Display Update Time	Selectable: 100 ms, 500 ms, 1 sec, 5 sec
Data Transfer Rate	Selectable: 100 ms, 500 ms, 1 sec, 5 sec (to optional software)
Power	2 AA 1.5V batteries or USB
Battery Life	Approx: 20 hours with brightness set to 20%
Temperature Limits	32º – 113ºF (0º – 45ºC) Non-Condensing
Construction	Polycarbonate
Dimensions	6.1” x 2.2” x 1.4” (155 x 55 x 35 mm)
Product Weight	4.14 oz (125 g)
Approvals	CE, RoHS, PSC, FDA, IEC/EN 60825-1 : 2007
Included Accessories	2 cone adapters, funnel adapter, 3½” extension shaft, surface speed wheel (6” circumference), 2 AA batteries, contact adapter and carrying case
NSN	6680-01-661-1493
