Positector SPG Surface Profile Gages use a digital depth micrometer fitted with a fine pointed probe to measure and record peak-to-valley surface profile eights in preparation for the application of coatings.
5 Models Available:

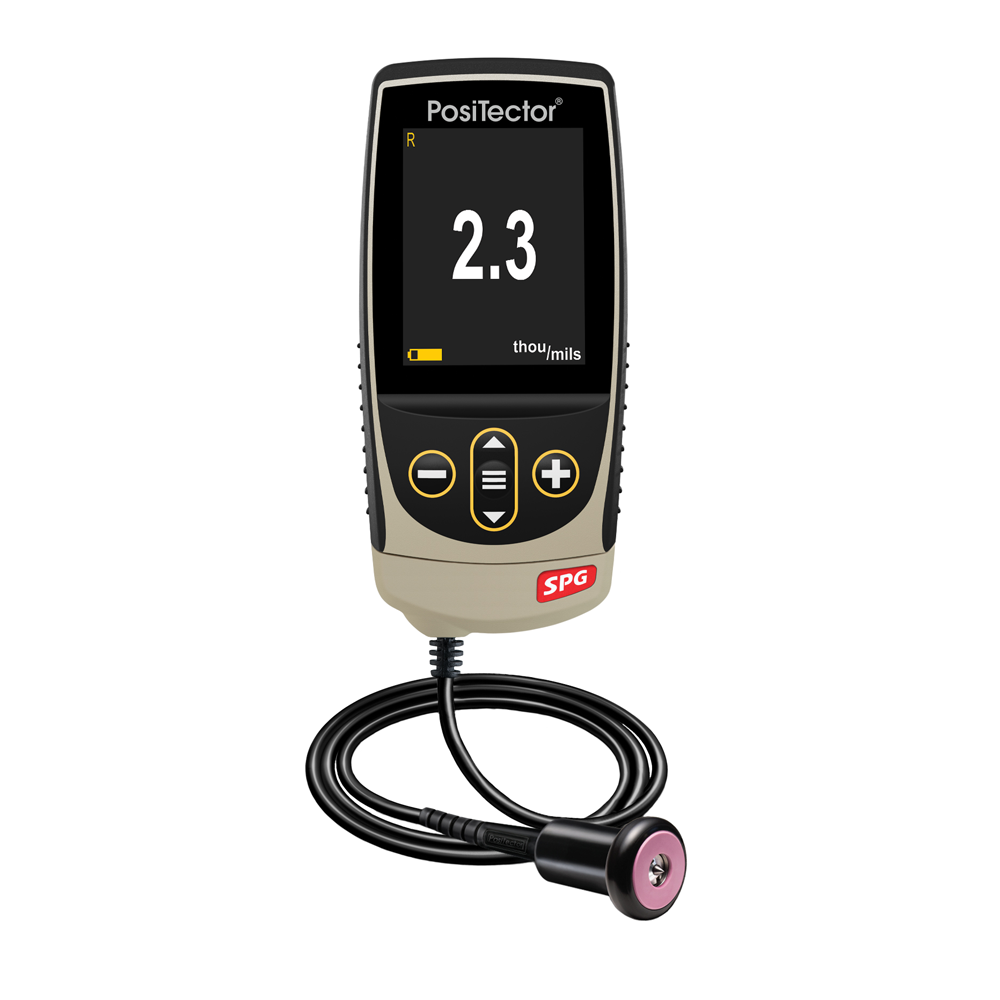

SPG: Integrated Probe, 500 micron / 20 mil range, 60° angle
SPG-S: Cabled Probe, 500 micron / 20 mil range, 60° angle
SPG-OS: Cabled Probe, for Convex Surfaces, 500 micron / 20 mil range, 60° angle
SPG-CS: Cabled Probe, for Textured Coatings, 1500 micron / 60 mil range, 60° angle
SPG-TS: Cabled Probe, for Concrete, 6 mm / 250 mill range, 60° angle
Conforms to ASTMD4417-B, ASTM D8271 (SPG TS only), AS 3894.5-C (with optional 30° tip), U.S.Navy NSI 009-32, Navy NAVSEA 009-32, US Navy NAVSEA PPI 63101-000, SSPC PA 17, SANS 5772, and others. Conforms to ASTM D4417-B, AS 3894.5-C (with optional 30° tip angle), U.S. Navy NSI 009-32, SANS 5772 and others.
Probe Options
| Probe Order Code | SPG | SPG S | SPG OS | SPG CS | SPG TS | |
| Application | Blasted Steel | Blasted Steel | Convex Surfaces | Textured Coatings | Concrete Surface Profile | |
| Measuring Range | 0 – 500 µm 0 – 20 mils |
0 – 500 µm 0 – 20 mils |
0 – 500 µm 0 – 20 mils |
0 – 1500 µm 0 – 60 mils |
0 – 6 mm 0 – 250 mils |
|
| Accuracy | ± (5 µm + 5%) ± (0.2 mil + 5%) |
± (5 µm + 5%) ± (0.2 mil + 5%) |
± (5 µm + 5%) ± (0.2 mil + 5%) |
± (5 µm + 5%) ± (0.2 mil + 5%) |
± (25 μm + 1%) ± (1 mil + 1%) |
|
| Tip | Angle | 60 degree* | 60 degree* | 60 degree* | 60 degree | 60 degree |
|---|---|---|---|---|---|---|
| Radius | 50 µm (2 mils) |
50 µm (2 mils) |
50 µm (2 mils) |
500 µm (20 mils) |
500 µm (20 mils) |
|
* 30 degree tips available for conforming to Australian standard AS 3994.5-C
All probes feature durable Alumina wear face and tungsten carbide tip for long life and continued accuracy.
Display Options (Standard vs Advanced)
Standard Models
- Storage of 1,000 readings per probe—stored readings can be viewed or downloaded
Advanced Models
- Storage of 250,000 readings in up to 1,000 batches and sub-batches
- SmartBatch™ allows entry of user-defined parameters and criteria to for quick statistical analysis comply with standards such as ASTM D4417 and SSPC PA-17
- Live graphing of measurement data
- NEW Touchscreen keyboard for quickly renaming batches, adding notes, and. more
- WiFi technology wirelessly synchronizes with PosiSoft.net and downloads software updates
- Bluetooth 4.0 Technology for data transfer to a mobile device running the PosiTector App or optional portable printer. BLE API available for integration into third-party software.
- Integrate with third-party software, drones, ROVs, PLCs, and robotic devices using several industry-standard communication protocols
| Item | Descrıptıon | |||
|---|---|---|---|---|
|
SPG1
|
Surface Profile Gauge with Built-In Probe, Standard Kit
|
|||
|
SPG3
|
Surface Profile Gauge with Built-in Probe, Advanced Kit
|
|||
|
SPGS1
|
Surface Profile Gauge, Separate Probe, Standard Kit
|
|||
|
SPGS3
|
Surface Profile Gauge, Separate Probe, Advanced Kit
|
|||
|
SPGCS1
|
Surface Profile Gauge, Separate C Probe, Standard Kit
|
|||
|
SPGCS3
|
Surface Profile Gauge, Separate C Probe, Advanced Kit
|
|||
|
SPGTS1
|
Surface Profile Gauge, Separate TS Probe, Standard Kit
|
|||
|
SPGTS3
|
Surface Profile Gauge, Separate TS Probe, Advanced Kit
|
|||
|
SPGOS1
|
Surface Profile Gauge, Separate OS Probe, Standard Kit
|
|||
|
SPGOS3
|
Surface Profile Gauge, Separate OS Probe, Standard Kit
|
