- Supports digital audio input (coaxial/optical) and analog audio output (L/R)
- Supports uncompressed 2-Channel LPCM digital audio input
- Integrated Digital to Analog Converter and digital interpolator filter
- Integrated Analog to Digital Converter
- Supports S/PDIF 24 bit data for the left and right channels up to 96kHz
- Easy installation/operation and compact size
- Supports sampling rates 32, 44.1, 48 and 96kHz
- Electromagnetic Noise Free transmission

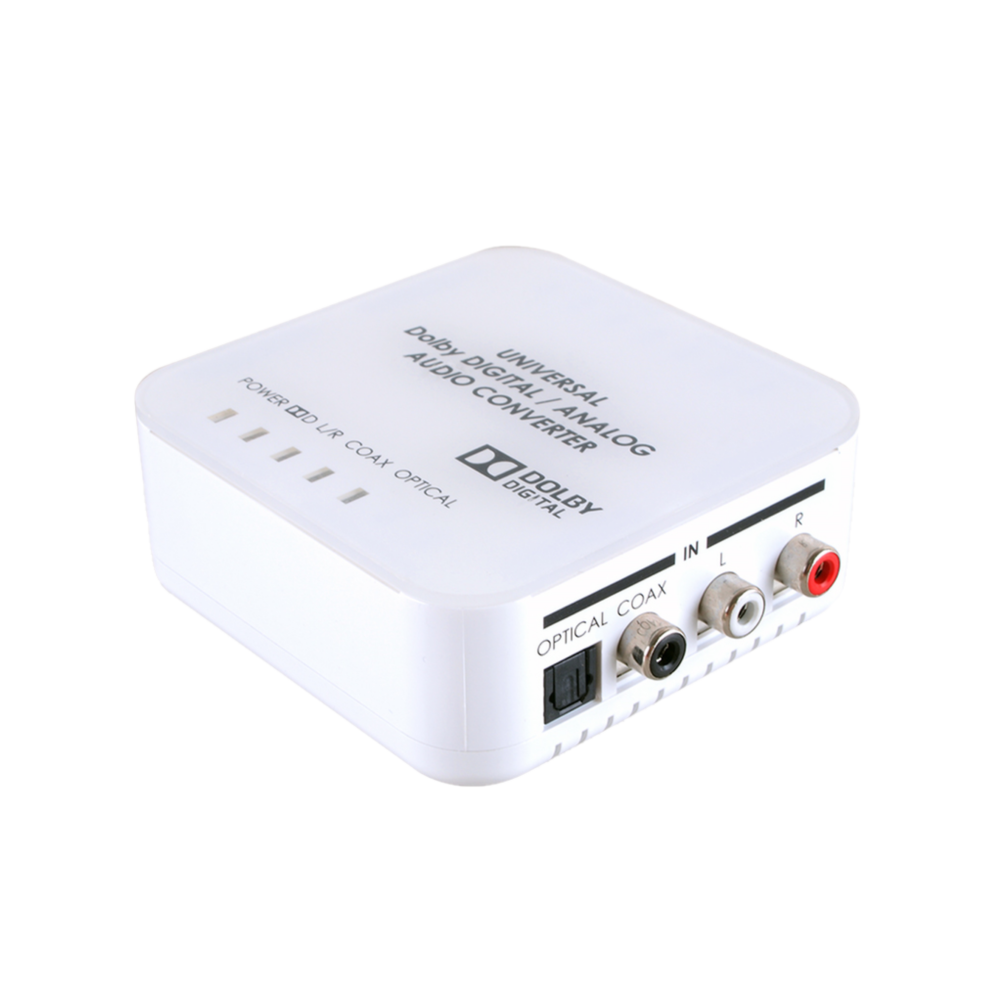

Inputs
- 1x TOSLINK [1x Optical 2 Channel LPCM]
- 1x RCA [1x Coax 2 Channel LPCM]
- 2x RCA [1x Stereo (L/R)]

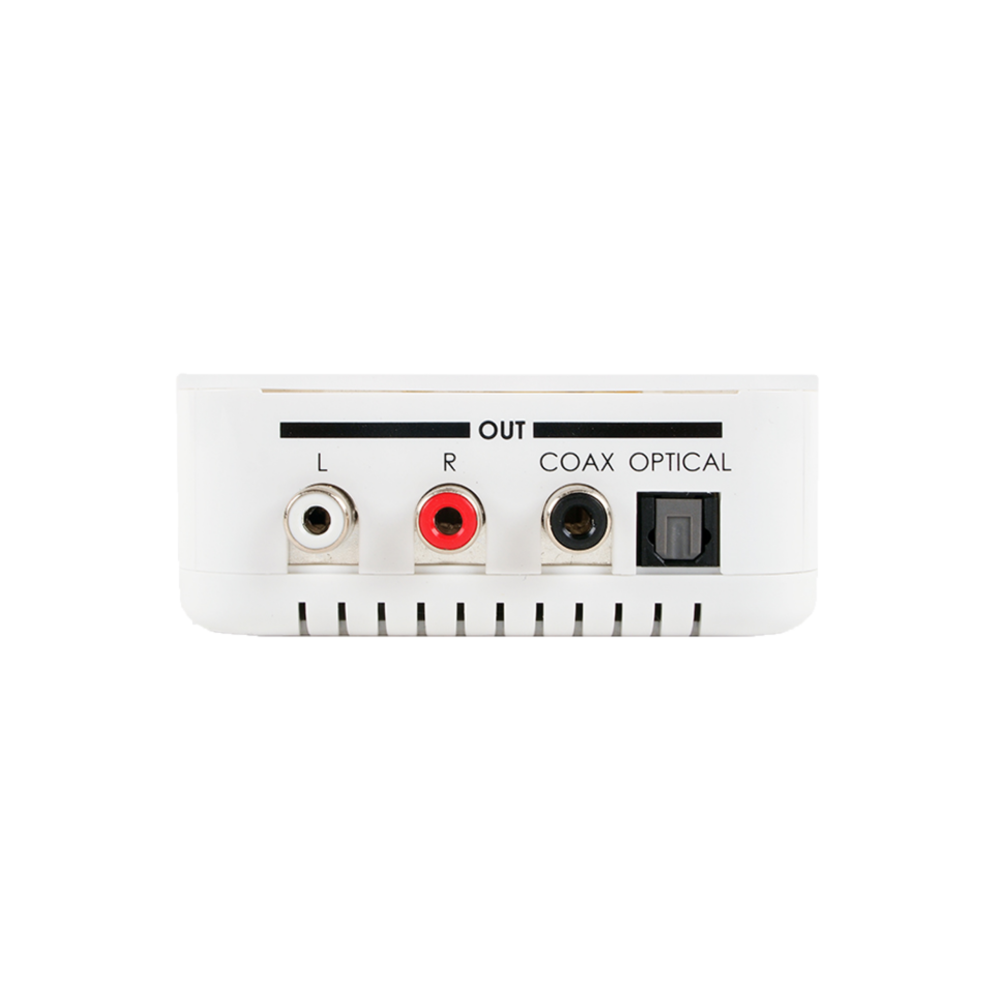

Outputs
- 1x TOSLINK [1x Optical 2 Channel LPCM]
- 1x RCA [1x Coax 2 Channel LPCM]
- 2x RCA [1x Stereo (L/R)]
PSU:
- 5V/1A
Dimensions
- 97mm [W] x 85mm [D] x 35mm [H]
Net Weight
- 120gr
