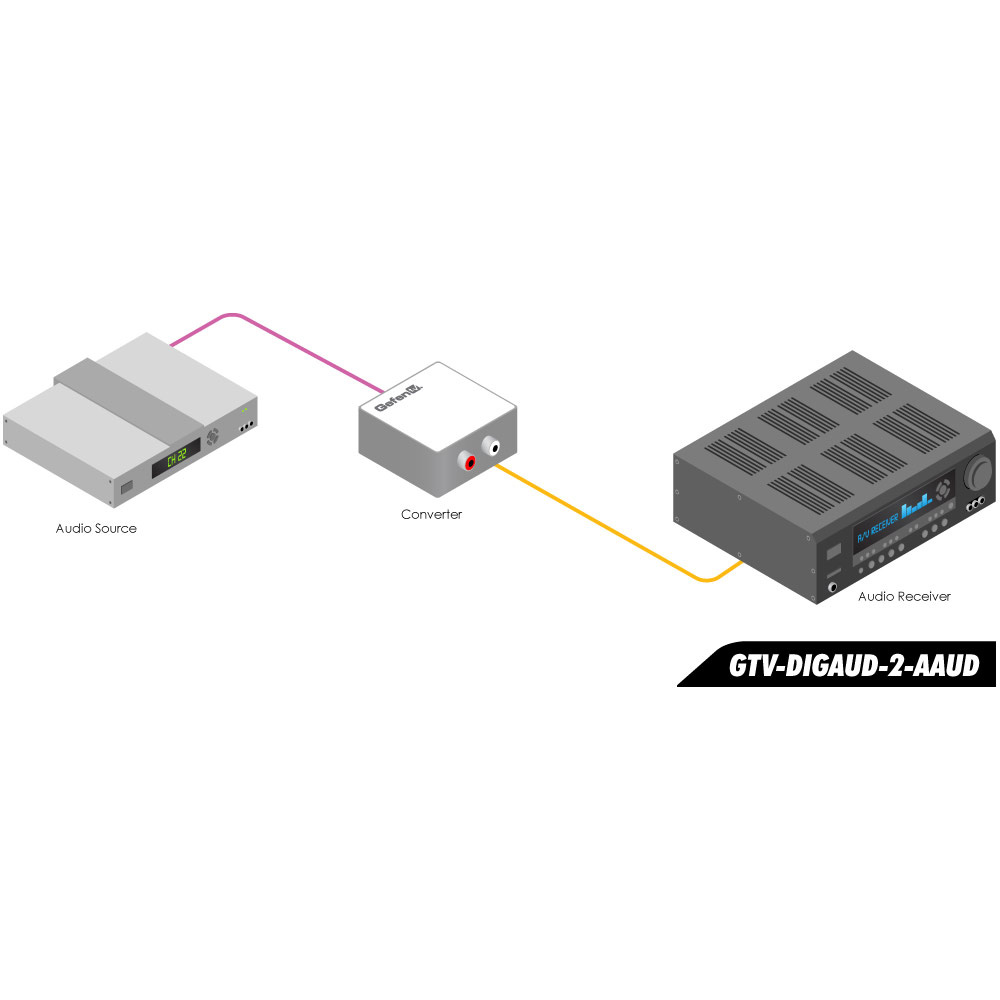

The Digital To Analog Audio converter box takes your coaxial/optical (S/PDIF or TOSLink) digital audio source and converts it to standard analog left/right audio, available for connection to an external device such as an amplifier or recording deck via standard RCA-style jacks. Now you can bridge your legacy sound system with digital sources such as DVD and CD players that don’t have RCA-style analog outputs.
FEATURES
- Converts S/PDIF or TOSLink digital audio signals to analog L/R audio
- Digital interpolation filter and digital to analog converter (DAC)
- Accepts uncompressed digital audio as input
- Samples at 32, 44.1, 48 and 96 KHz
- 2-channel LPCM (Linear Pulse Code Modulation)
- 24-bit S/PDIF incoming bitstream on left and right channels
- Compact and easy to install
SPECIFICATIONS

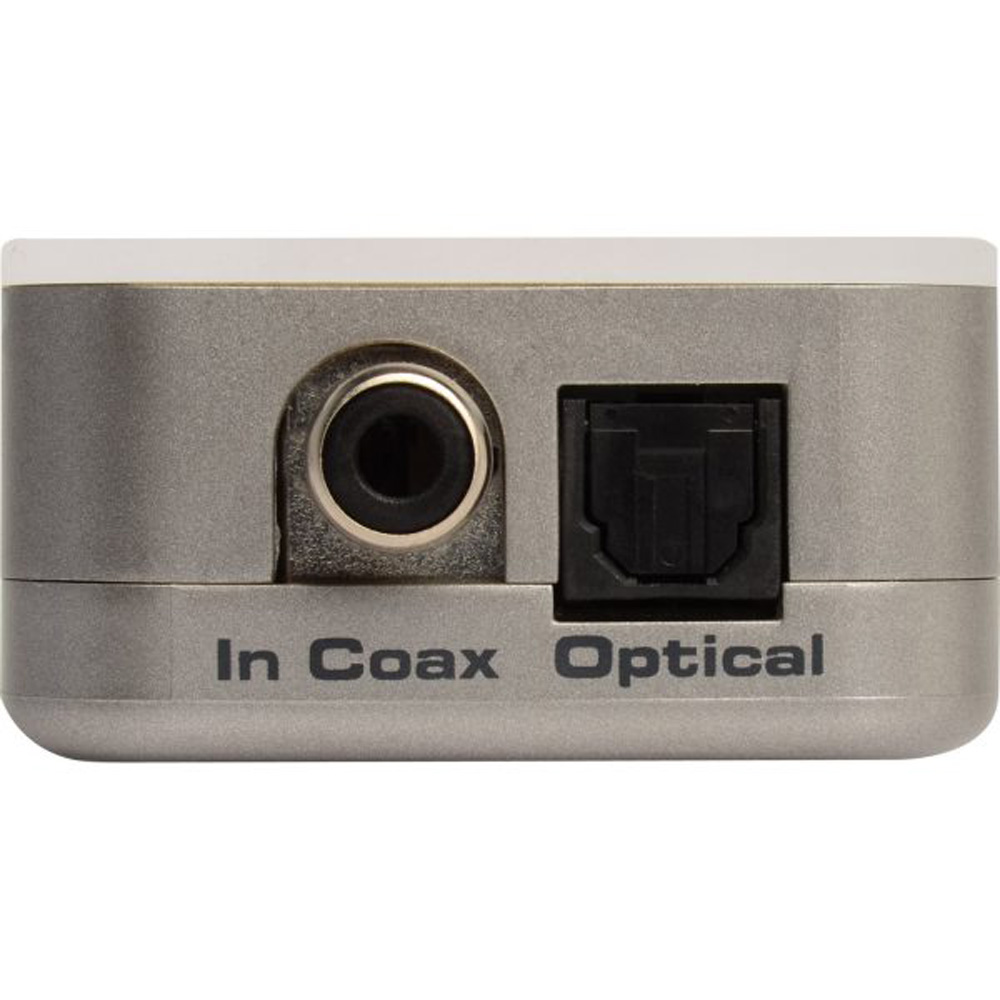

Coaxial and Optical digital input ports

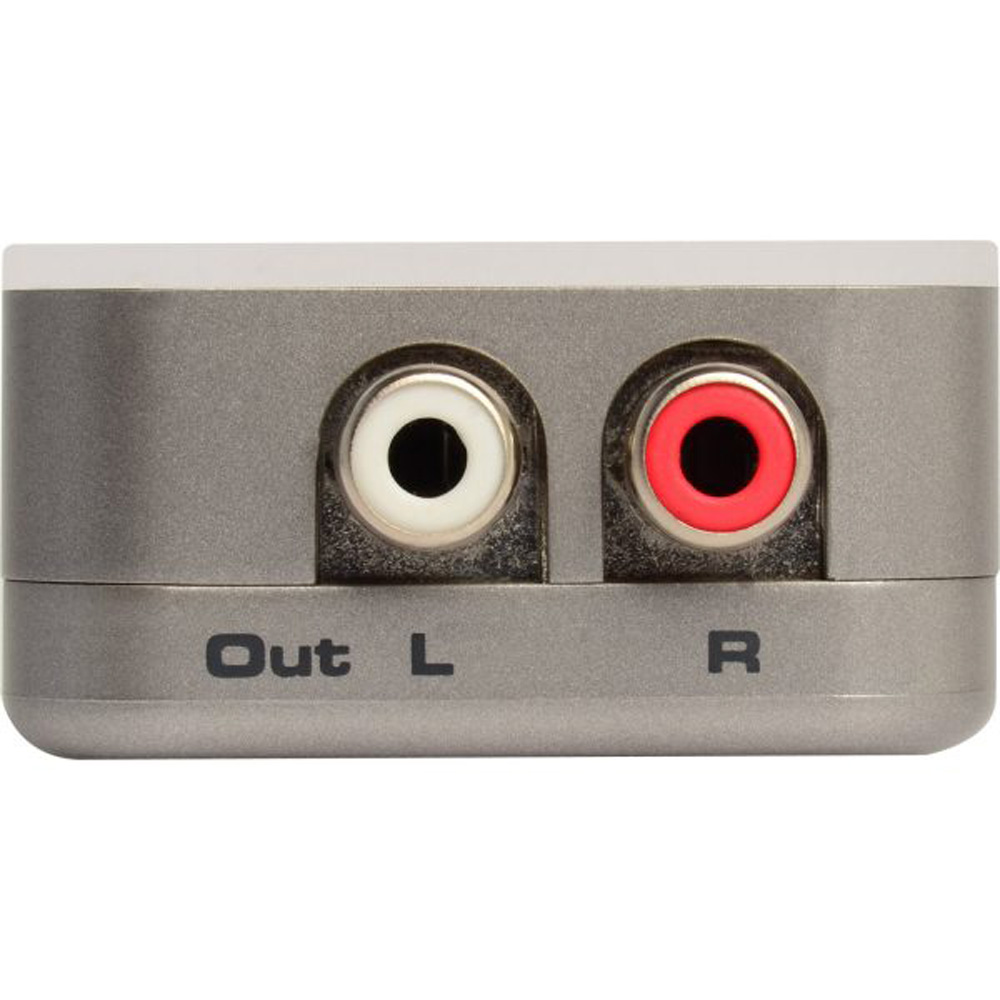

Right and Left RCA Stereo analog output ports
Distortion: : <0.001% @ 1kHz at 2V RMS SNR: > 90dB (20Hz – 20kHz A Weighting)
Chassis: White plastic chassis
Operating Temperature: 0-70 deg. C

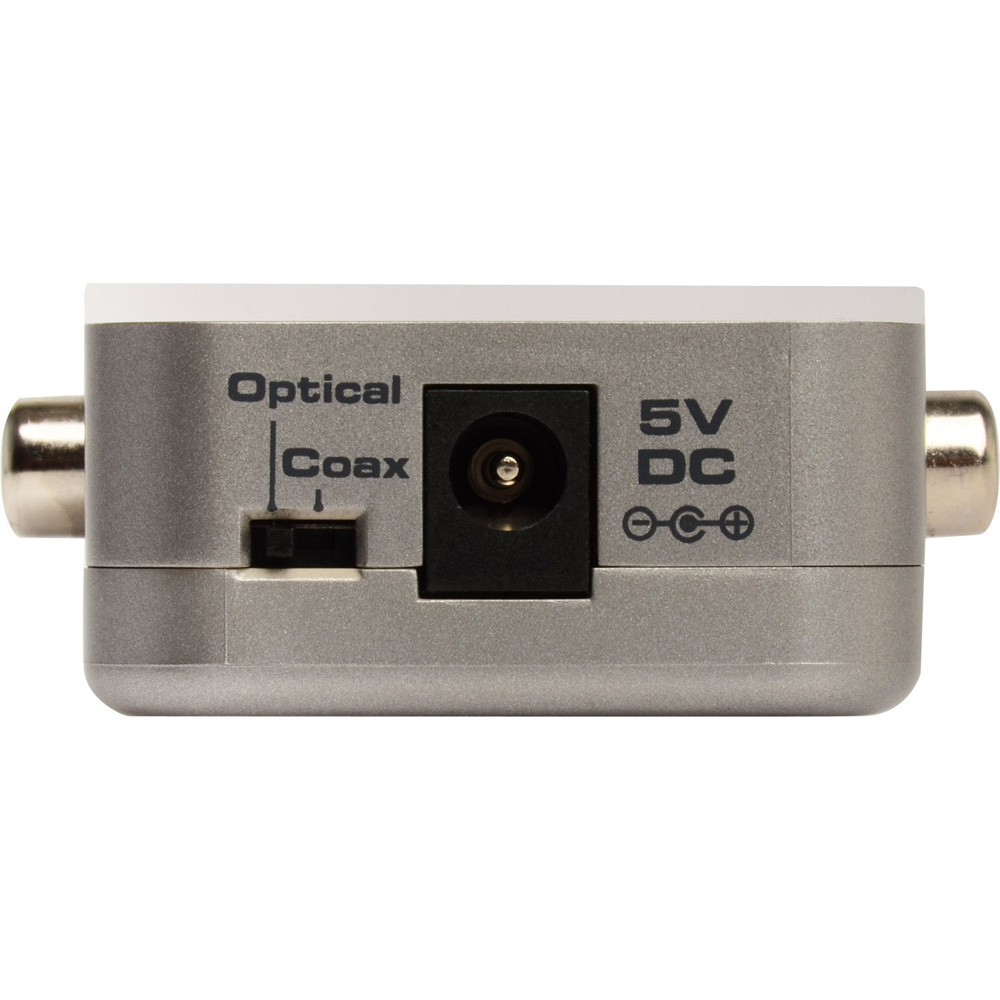

Power supply: : 5v DC / 5W (US/EU standards, CE/FCC/UL certified)
Dimensions: : 1.8″ W x 1.8″ H x 0.9″ D
Shipping Weight: : 1 lb.
OTHER SPECIFICATIONS
Shipping Info
- Length7.48 (Inches)
- Width5.31 (Inches)
- Height2.75 (Inches)
- Weight0.8 (Lbs)
- UPC845344080567
Other Specifications
- Coaxial and Optical digital input ports
- Right and Left RCA Stereo analog output ports
- Distortion: <0.001% @ 1kHz at 2V RMS SNR: > 90dB (20Hz – 20kHz A Weighting)
- Chassis: White plastic chassis
- Operating Temperature: 0-70 deg. C
- Power supply: 5v DC / 5W (US/EU standards, CE/FCC/UL certified)
- Dimensions: 1.8″ W x 1.8″ H x 0.9″ D
- Shipping Weight: 1 lb.
In The Box

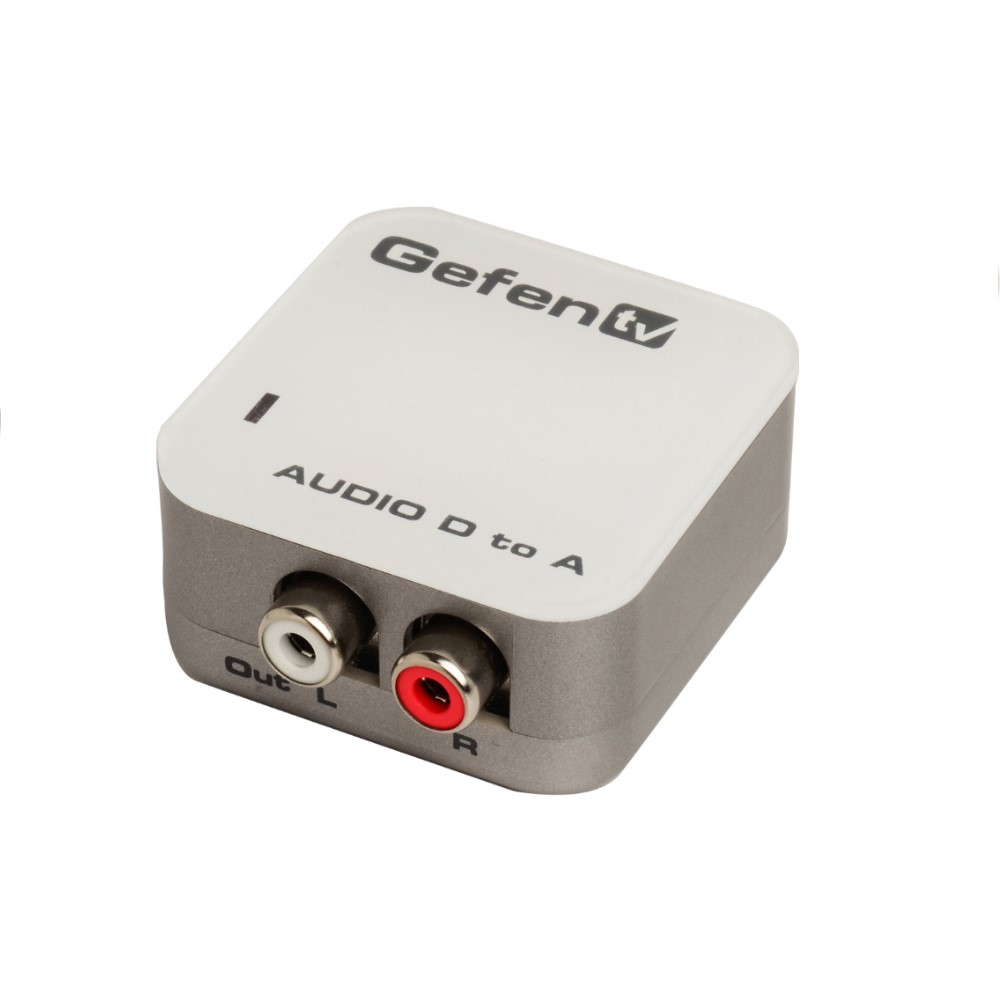

- GefenTV Digital To Analog Audio Adapter (GTV-DIGAUD-2-AAUD)(1)
- 3 ft. Optical Cable (CAB-TLINK-3MM-O)(1)
- 5V DC Power Supply (EXT-PS51AIP-O)(1)
- Quick-Start Guide (QSG-GTV-DIGAUD-2-AAUD)(1)
