GTV-HDMI-2-HDMIAUD
HDMI to HDMI Plus Audio Converter

Converts Hi-Def source using HDMI with HDCP and outputs to an HDTV display with up to 8 channels of LPCM audio

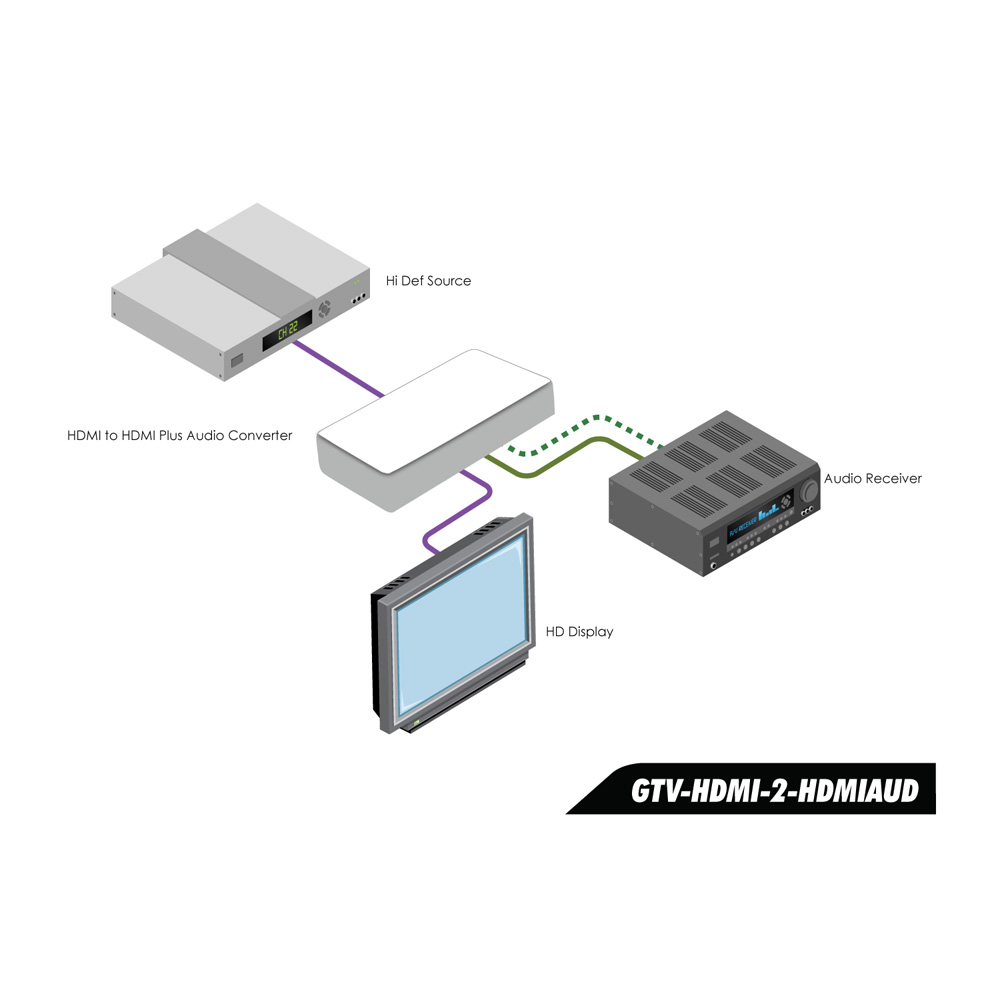

The GefenTV HDMI to HDMI Audio Converter is a product that takes a Hi-Def source using HDMI and outputs it to an HDTV display using HDMI and, in addition, up to 8 channels of LPCM audio output through eight RCA connectors. Bitstream is output via an Optical digital connector.

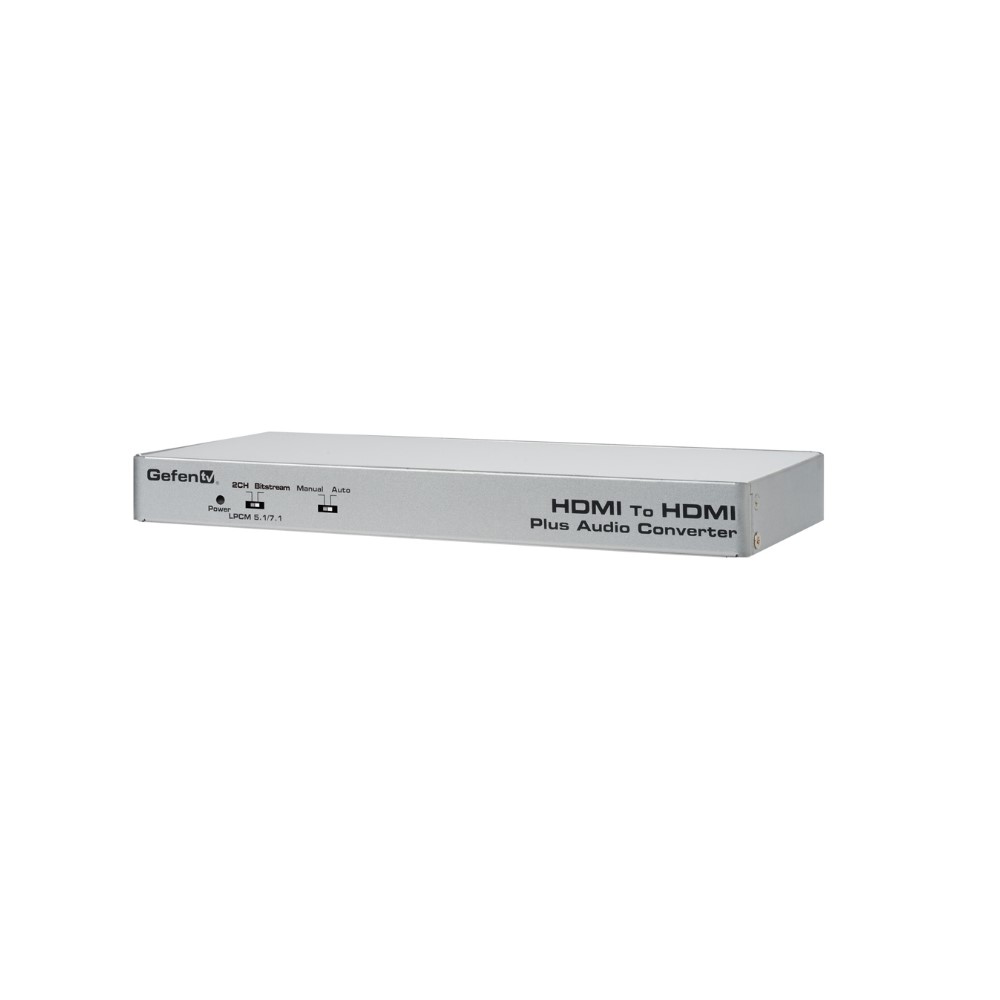

Additional features include switchable audio selections between auto mode and manual mode affording further selection between two-channel audio only, multi-channel bitstream, and 7.1 LPCM audio.

FEATURES

  • Switchable selection between Auto mode and Manual mode

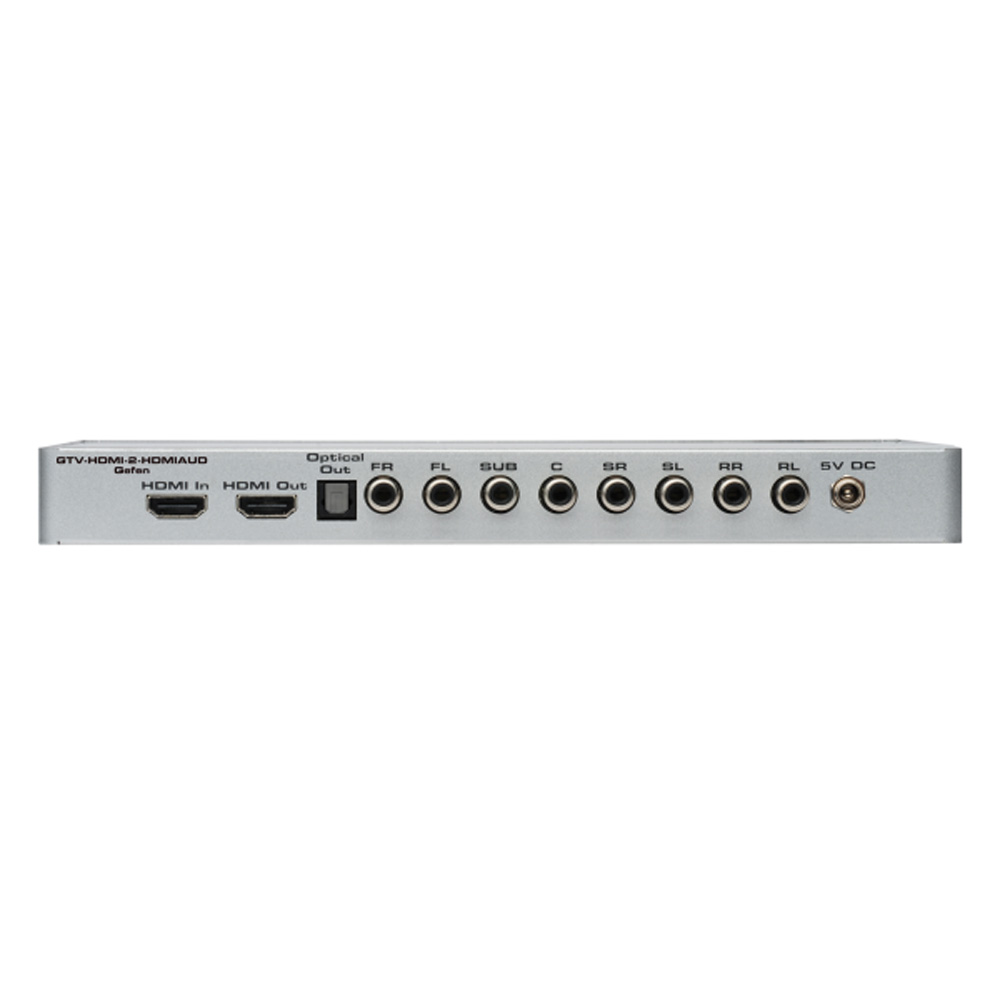

  • Bitstream Audio via Optical Toslink and LPCM 7.1 via 8 RCA connectors
  • Locking power supply

SPECIFICATIONS

Maximum Pixel Clock: 225 MHz

Maximum Resolutions: 1080p, 1920 x 1200

HDMI Input: 19-pin HDMI connector

HDMI Output: 19-pin HDMI connector

Digital Audio Output: TOSLINK

Analog Audio Outputs: 8 x RCA

Power Supply: 5V / 2.6A DC, locking

Power Consumption: 13 Watts (max)

Operating Temperature: 0 – 40 °C

Dimensions: 9.5″W x 1″H x 4″D

Shipping Weight: 3 lbs

OTHER SPECIFICATIONS

Shipping Info

  • Length0 (Inches)
  • Width0 (Inches)
  • Height0 (Inches)
  • Weight0 (Lbs)
  • UPC845344056111

Other Specifications

  • Maximum Pixel Clock: 225 MHz
  • Maximum Resolutions: 1080p, 1920 x 1200
  • I Input: 19-pin HDMI connector
  • HDMI Output: 19-pin HDMI connector
  • Digital Audio Output: TOSLINKAnalog Au
  • dio Outputs: 8 x RCA
  • Power Supply: 5V / 2.6A DC, locking
  • Power Consumption: 13 Watts (max)
  • Operating Temperature: 0 – 40 Â °C
  • Dimensions: 9.5″W x 1″H x 4″D
  • Shipping Weight: 3 lbs

In The Box

  • HDMI to HDMI Plus Audio Converter(1)
  • 6 ft HDMI Cable(1)
  • 5V DC Locking Power Supply(1)
  • Quick Start Guide(1)
