- Compatible with HDMI, HDCP 1.2 and DVI 1.0
- HDMI audio sampling rates up to 192 kHz
- Optical S/PDIF audio sampling rate up to 48 kHz
- TMDS clock frequency up to 225 MHz
- Supports high bit rate (HBR) audio
- HDMI cable distance test with 1080p/8 bits resolution, the Input/Output distance can run up to 15/15 meters
- HDMI cable distance test with 1080p/12 bits resolution, the Input/Output distance can run up to 10/10 meters
- Supports 3D signal
- Low power consumption

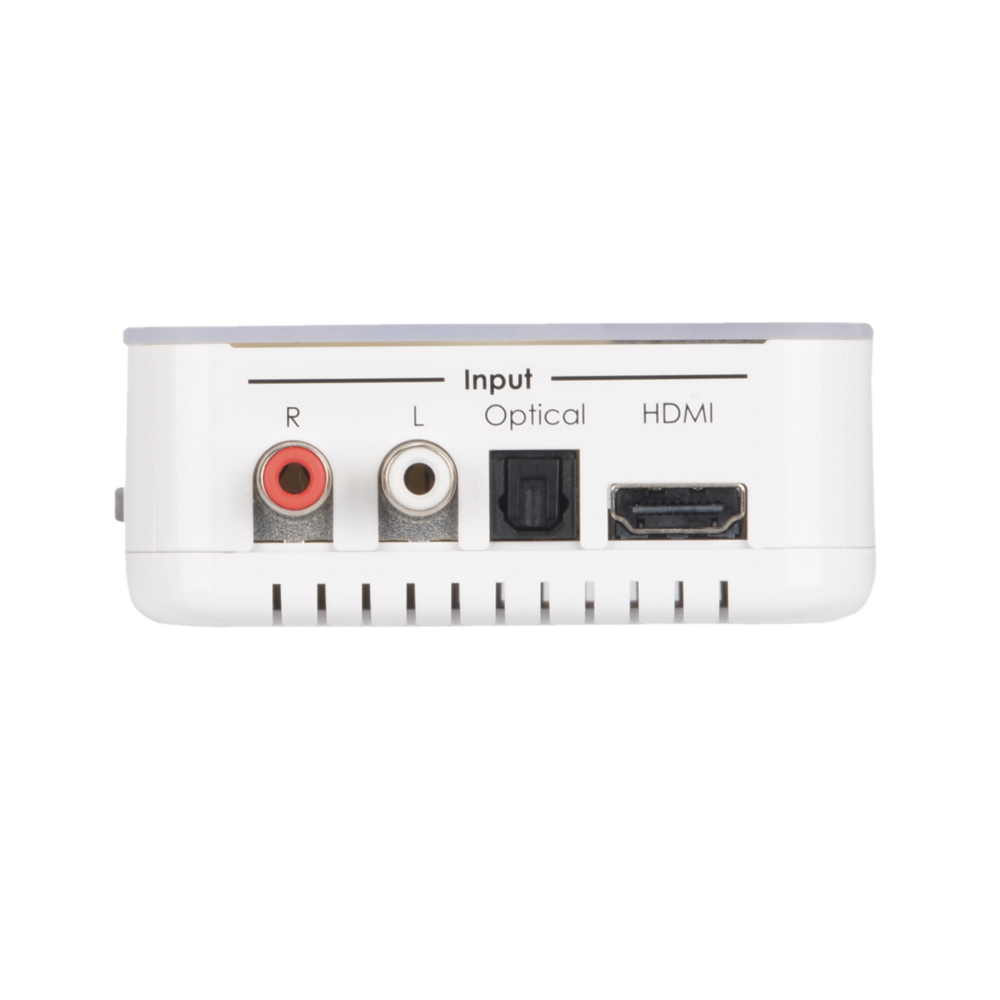

Inputs
- 1x HDMI [1x Uncompressed AV and Data]
- 1x TOSLINK [1x Optical 2 Channel LPCM]
- 2x RCA [1x Stereo (L/R)]

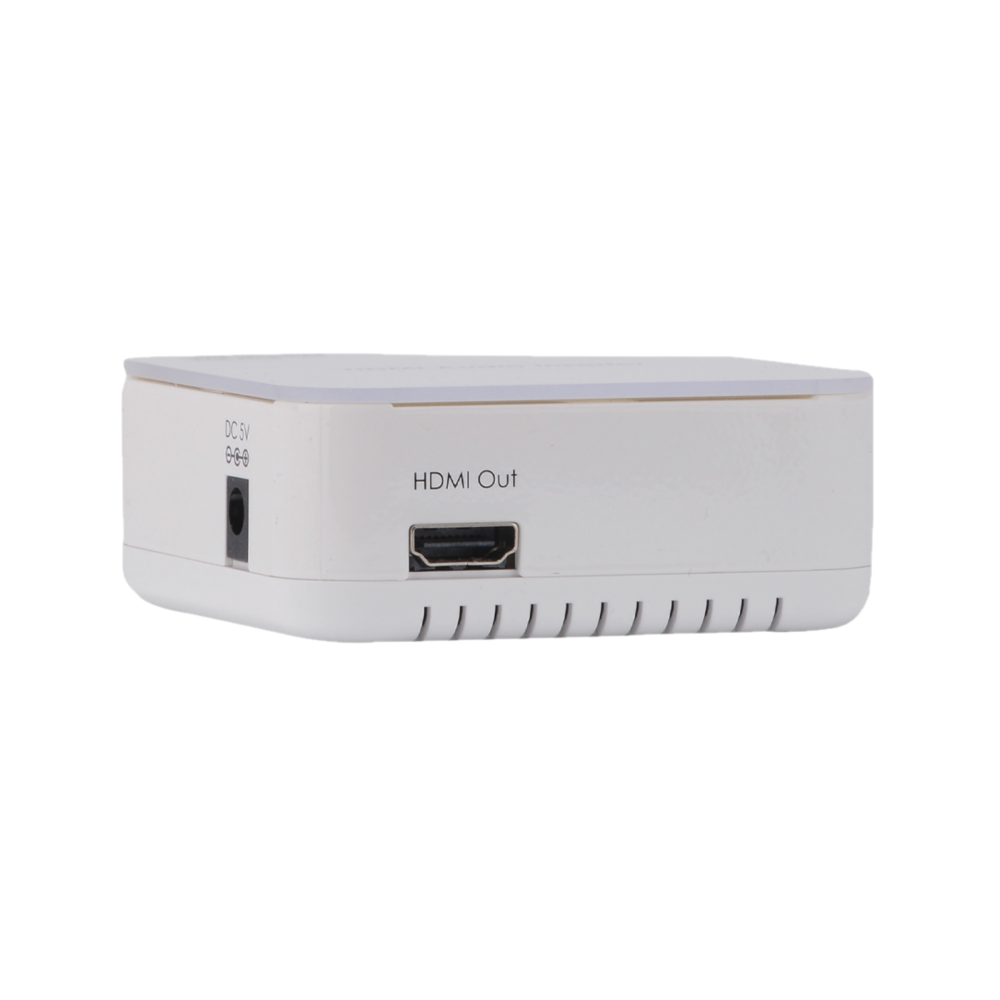

Outputs
- 1x HDMI [1x Uncompressed AV and Data]
PSU:
- 5V/1.2A
Dimensions
- 91mm [W] x 86mm [D] x 34mm [H]
Net Weight
- 107gr
