- HDMI 2.0 (with 6G audio/video support), HDCP 2.2 and DVI compliant
- Supports extracting the HDMI audio and outputing to a multi-channel digital or analog audio signal
- Supports analog multi-channel and Optical S/PDIF audio outputs
- Supports HDMI audio sampling rates up to 192kHz
- Supports Optical (S/PDIF) audio sampling rate up to 192kHz
- HDMI signal supports High Bit Rate (HBR) audio
- Supports HDTV resolutions up to 4K2K: 3840×2160@24/25/30Hz, 3840×2160@50/60Hz (YUV444) & 4096×2160@24/25/30Hz, 4096×2160@50/60Hz (YUV444)
- Supports CEC bypass

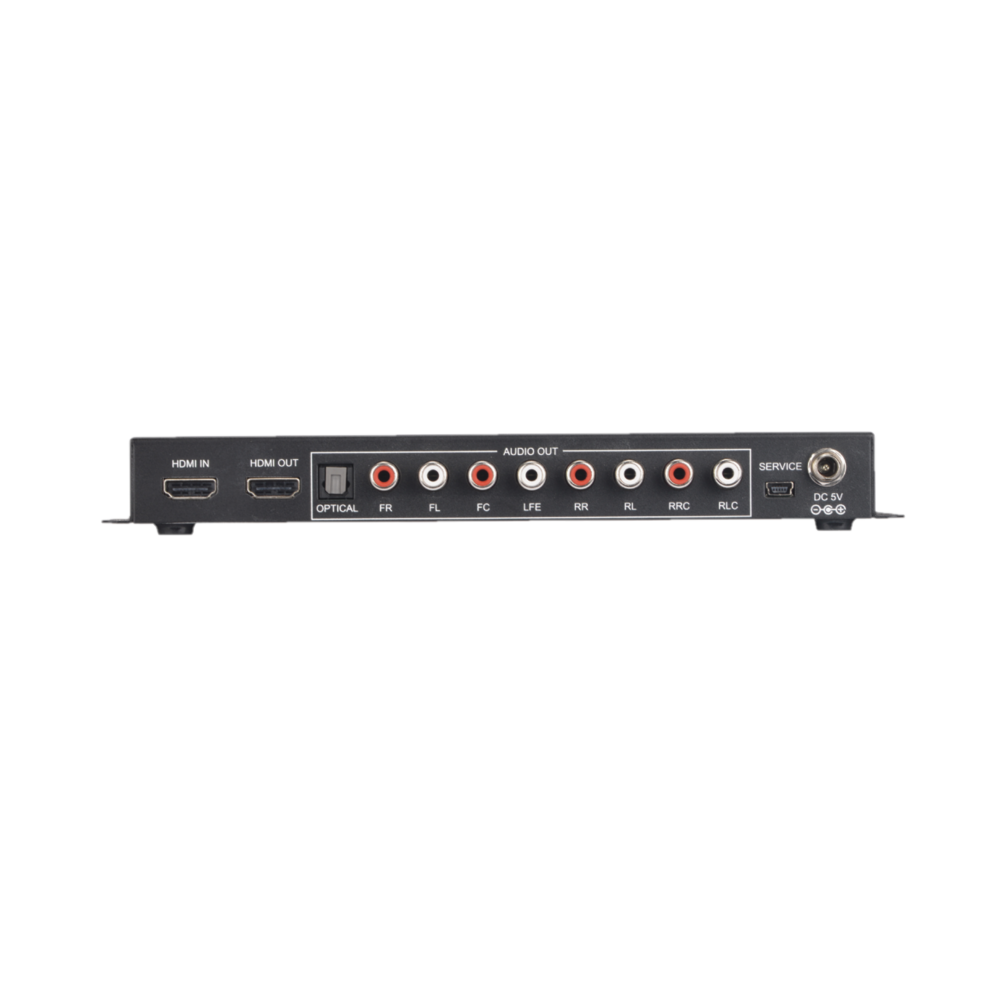

Inputs
- 1x HDMI [1x Uncompressed AV and Data]
- 1x USB Mini-B [1x SERVICE Propriety Data]
Outputs
- 1x HDMI [1x Uncompressed AV and Data]
- 1x TOSLINK [1x 2 Channel LPCM / DTS / Dolby Digital]
- 8x RCA [1x Analogue Audio 7.1 ]
PSU:
- 5V/2.6A
Dimensions
- 213mm [W] x 116mm [D] x 30mm [H]
Net Weight
- 658g
