- Supports digital-to-analog audio conversion (DAC)
- Supports optical input sampling rates up to 192kHz
- Supports optical, analog L/R, AUDIO-CAT and 48V/Line microphone inputs
- Supports AUDIO CAT transmitter input up to 300m over CAT5e/6/7 cable
- Supports up to 50W per channel speaker output
- Sound output up to 20dB
- Supports microphone sound up to 18dB
- Supports stereo or mono output
- Supports volume control from on-panel, Telnet or WebGUI
- Use single button for input source switching
- Supports RS-232 input control for Baud rate 115200bps
- Supports sound mixing of the microphone into the analog sound output
- Supports individual microphone input

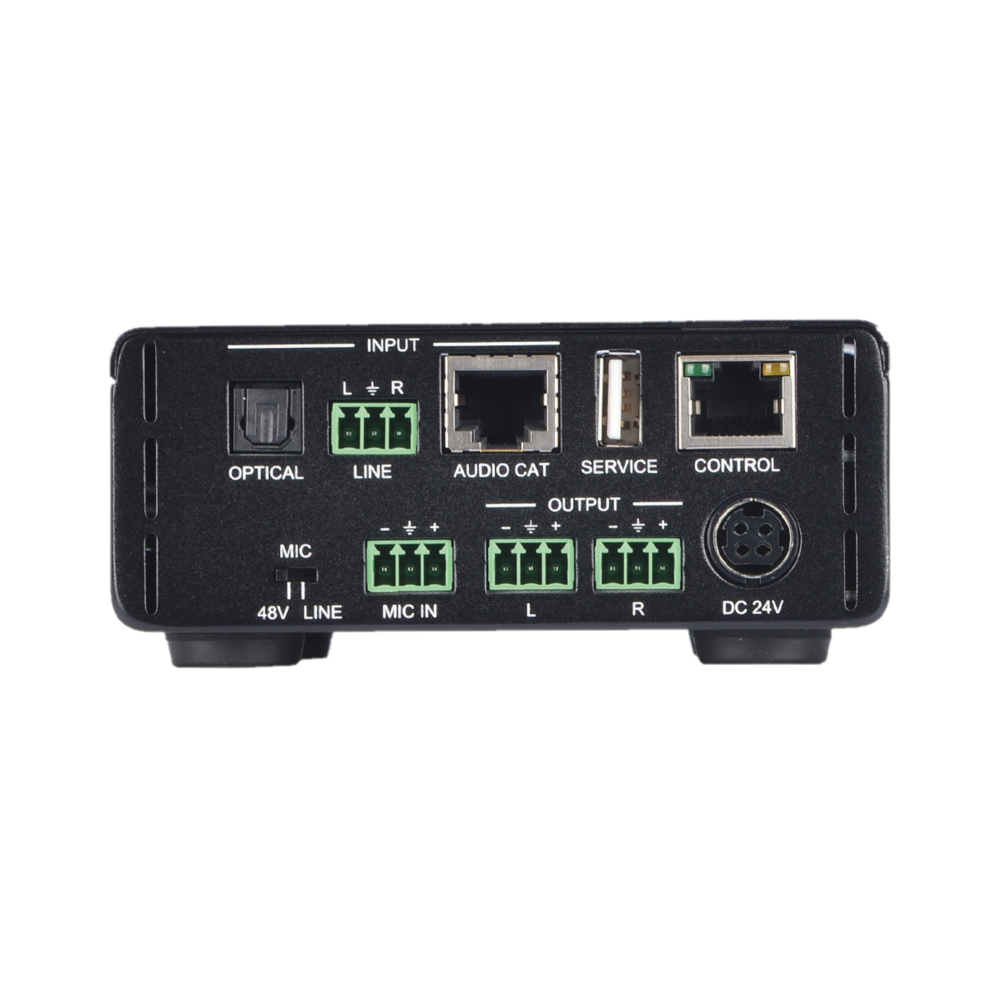

Inputs
- 1x TOSLINK [1x OPTICAL 2 Channel LPCM]
- 3x 1-Pin Terminal Block [1x Stereo (L/R)]
- 3x 1-Pin Terminal Block [1x Microphone]
- 1x RJ45 [1x AUDIO-CAT Digital Audio Propriety Data / Propriety Data]
- 1x RJ45 [1x IP Control]
- 1x USB Type A [1x SERVICE Propriety Data]
Outputs
- 6x 1-Pin Terminal Block [1x Speaker Out (L/R)]
PSU:
- 24V/2.7A
Dimensions
- 109mm [W] x 157mm [D] x 48mm [H]
Net Weight
- 644g
