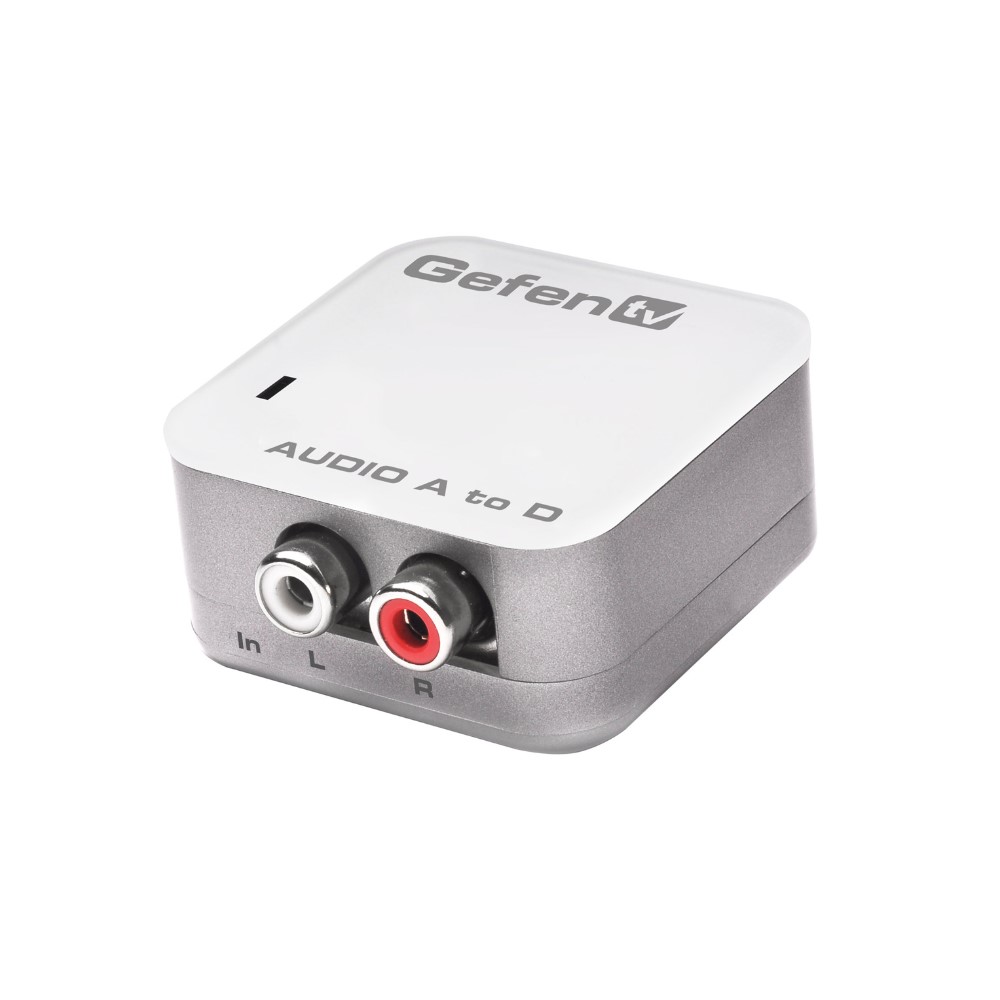

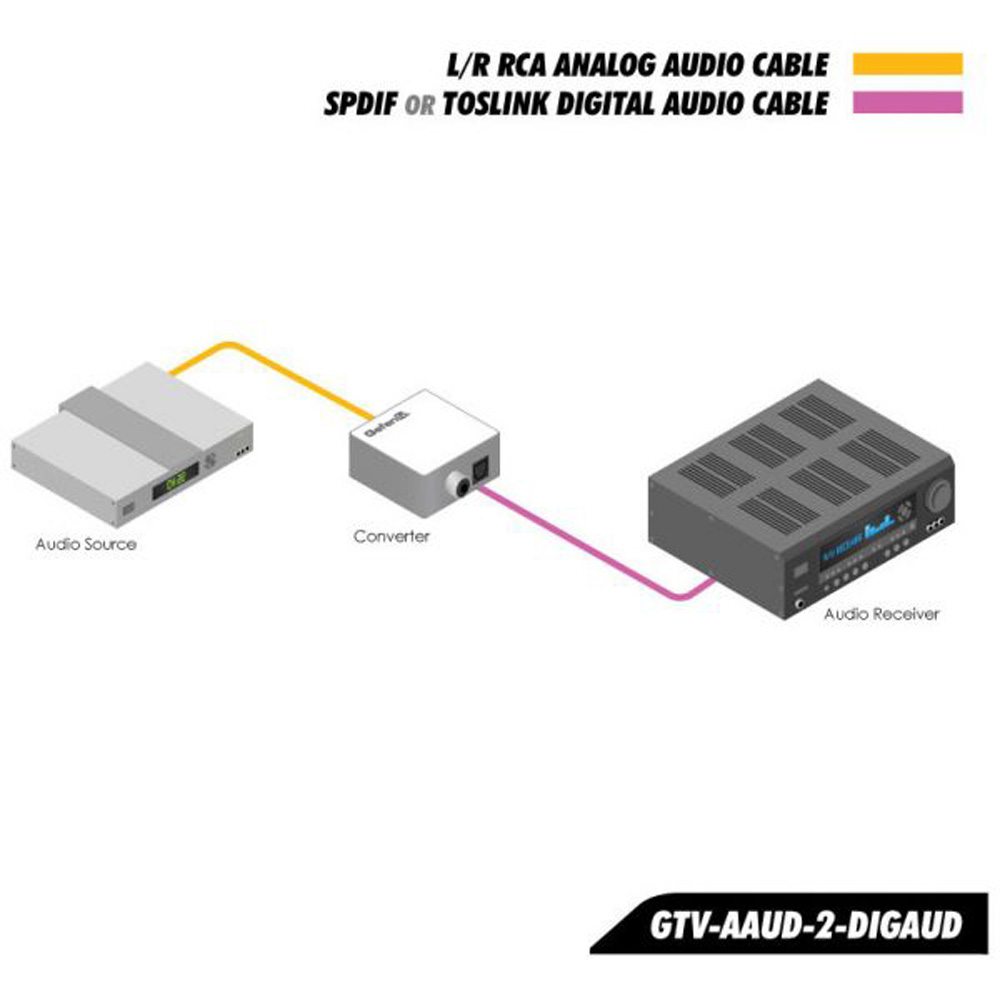

The GefenTV Analog to Digital Audio Adapter converts analog Left/Right RCA-style audio connections to digital S/PDIF or TOSLINK outputs. The unit is compact, easy to install, and operates in a wide variety of operating conditions.
FEATURES
- Converts analog L/R signals to digital S/PDIF or TOSLink
- Compact and easy to install
- Simple to Operate
SPECIFICATIONS
Supports 48 kHz output sampling frequency

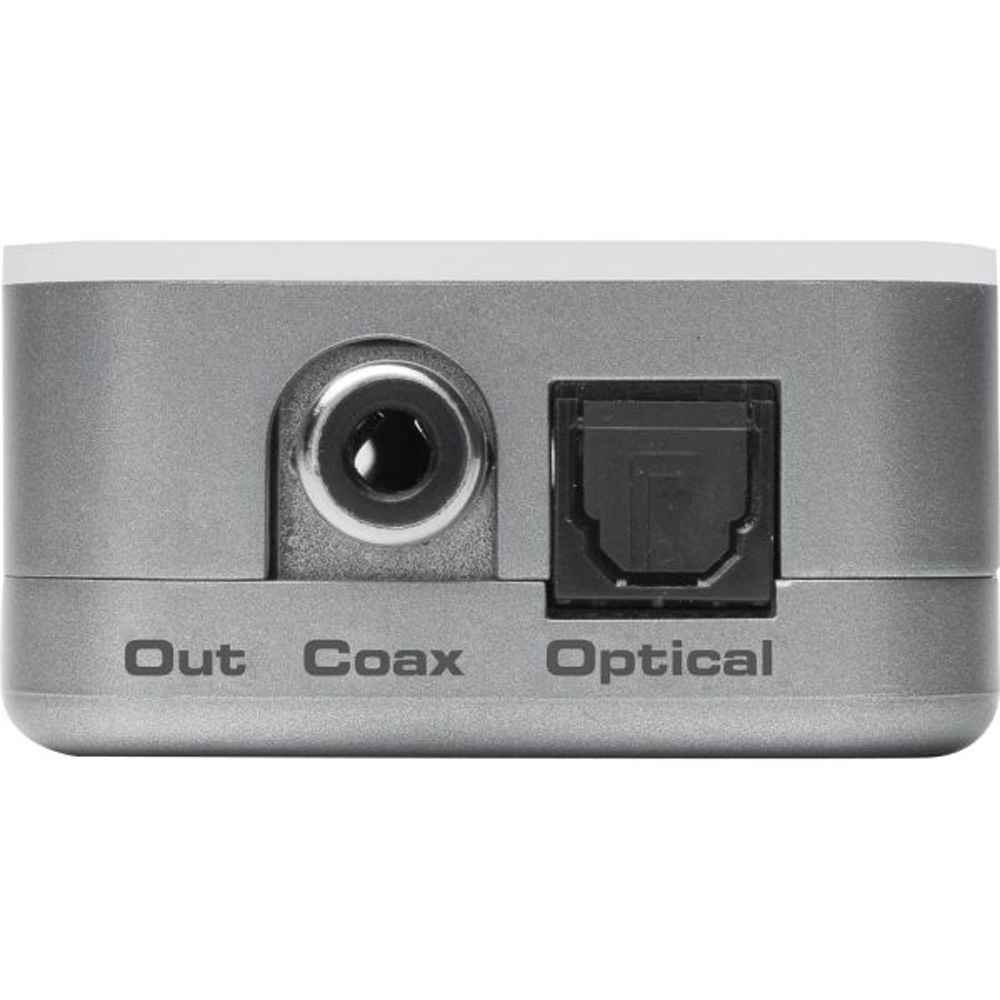

Coaxial and optical output ports

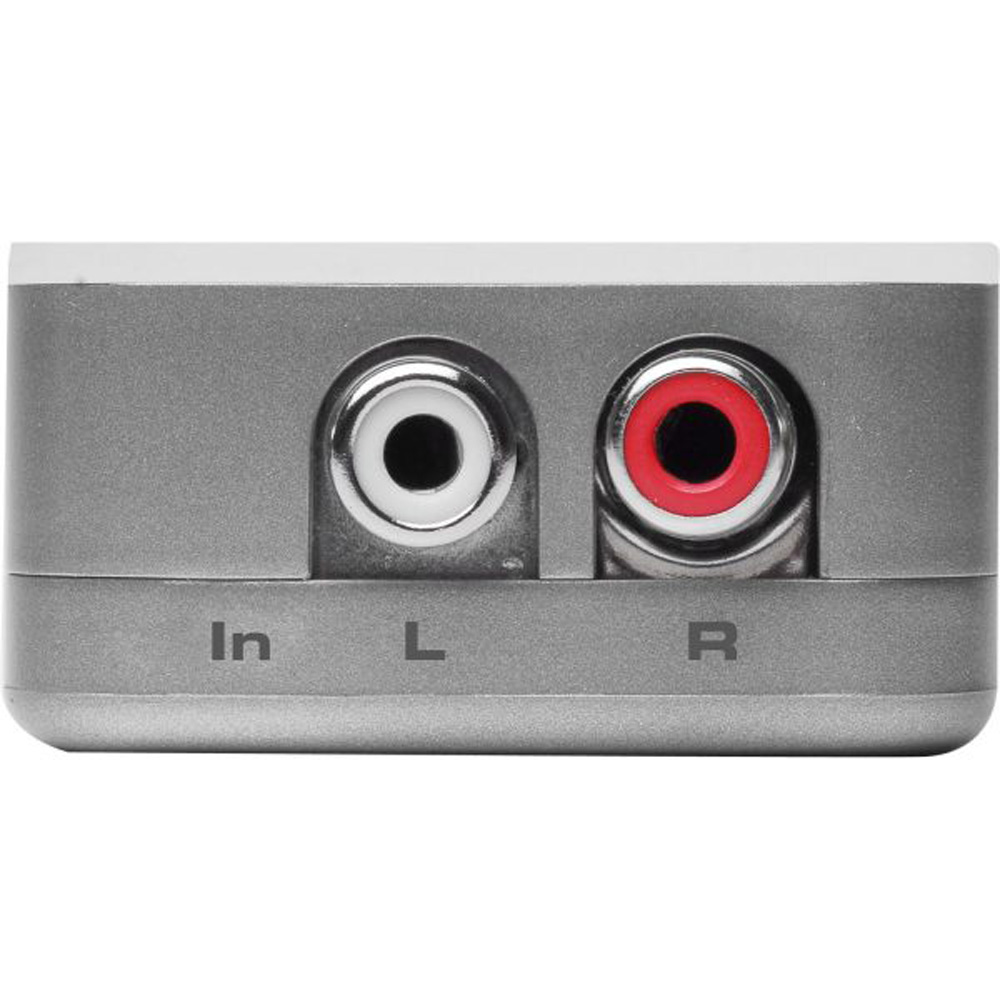

Right and Left RCA Stereo input ports
Supports optical cable run of up to 5 meters (15 feet)
Signal To Noise Ratio: >90dB (20Hz-20kHz A weight filter)
THD+N: < 0.01% at 1kHz at reference level
Frequency Response: < +/- 0.5dB 20Hz-20kHz
Crosstalk: < -85dB
RMS Level (CH1 / CH2): : 1.0 Vrms analog input at the -7.4 dBFS digital output level
Operating temperature: 0-48 deg. C

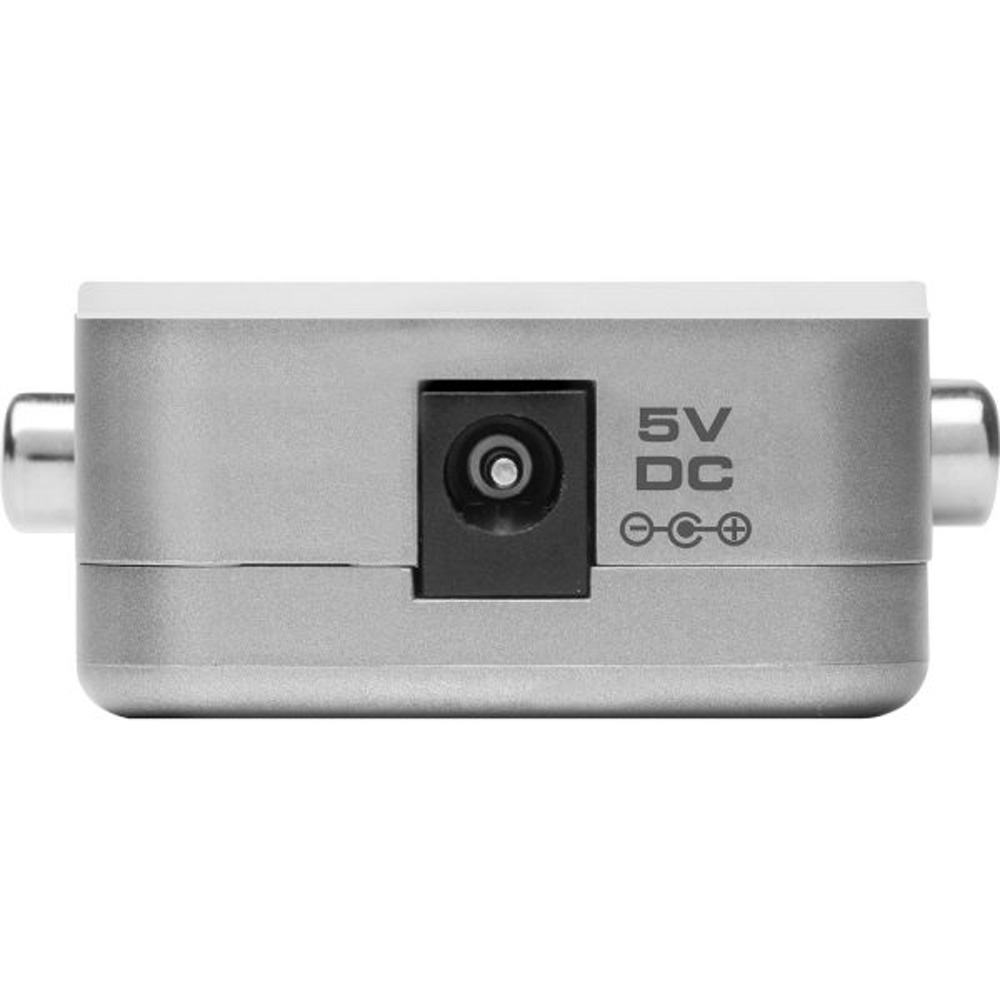

Power Supply: 5V DC / 0.36A
Dimensions: : 1.8″ W x 1.8″ H x 0.9″ D
Weight: 1 lb.
OTHER SPECIFICATIONS
Shipping Info
- Length7.48 (Inches)
- Width5.31 (Inches)
- Height2.56 (Inches)
- Weight0.8 (Lbs)
- UPC845344055404
Other Specifications
- Supports 48 kHz output sampling frequency
- Coaxial and optical output ports
- Right and Left RCA Stereo input ports
- Supports optical cable run of up to 5 meters (15 feet)
- Signal To Noise Ratio: >90dB (20Hz-20kHz A weight filter)
- THD+N: < 0.01% at 1kHz at reference level
- Frequency Response: < +/- 0.5dB 20Hz-20kHz
- Crosstalk: < -85dB
- RMS Level (CH1 / CH2): 1.0 Vrms analog input at the -7.4 dBFS digital output level
- Operating temperature: 0-48 deg. C
- Power Supply:5V DC / 0.36A
- Dimensions: 1.8″ W x 1.8″ H x 0.9″ D
- Weight: 1 lb.
In The Box
- GefenTV Analog-to-Digital Audio Converter(1)
- 5V DC external power adapter(1)
