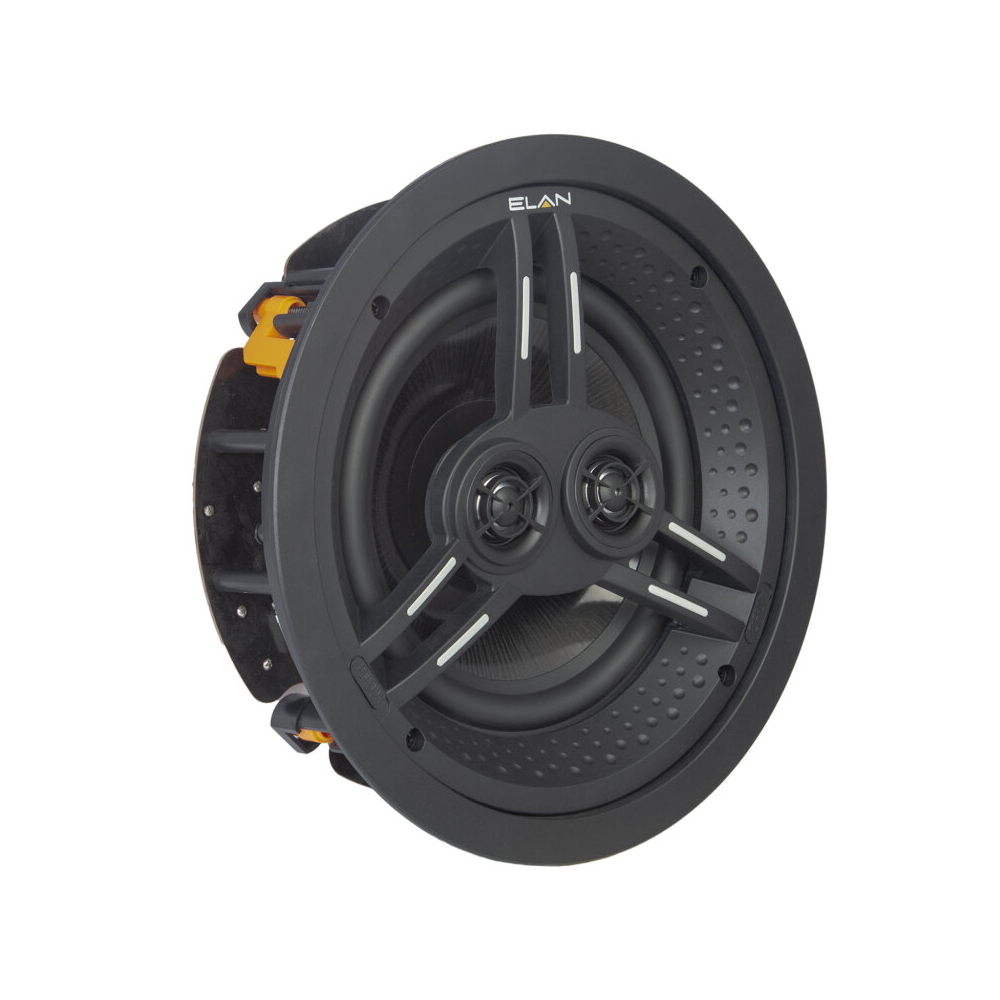

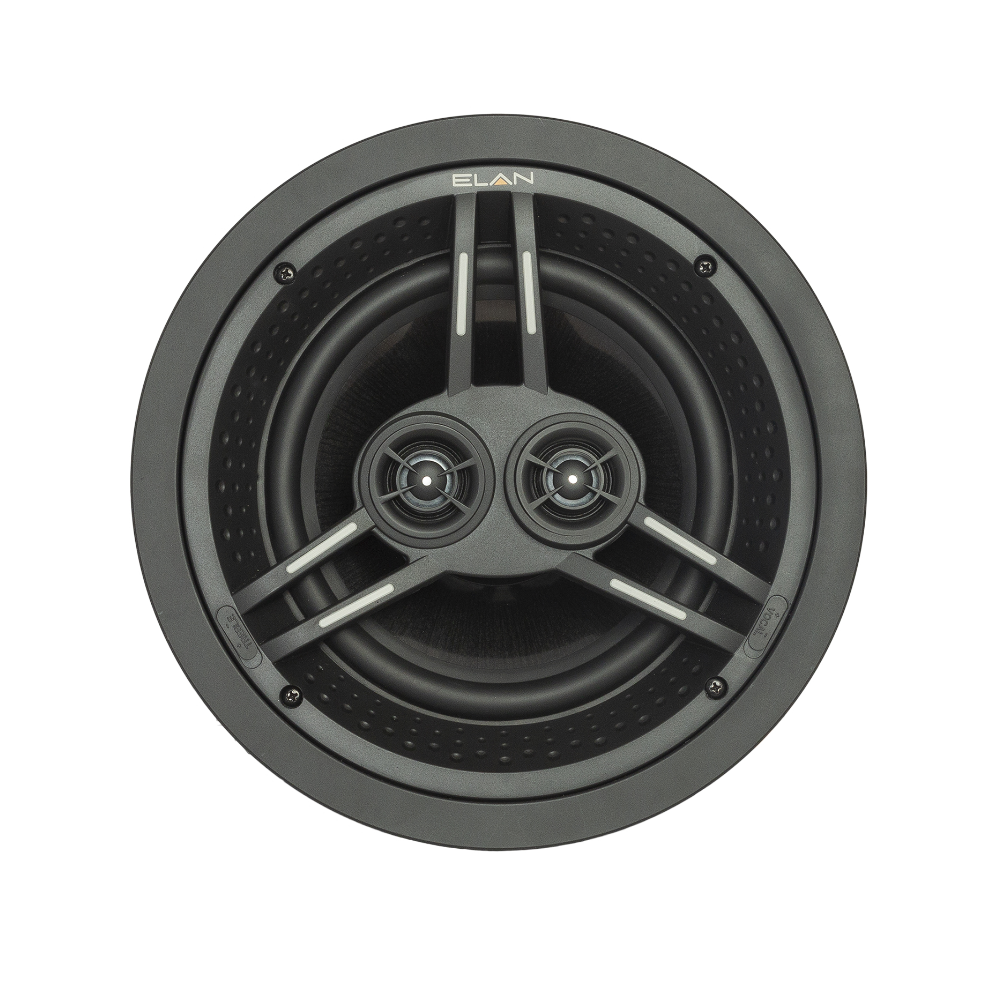

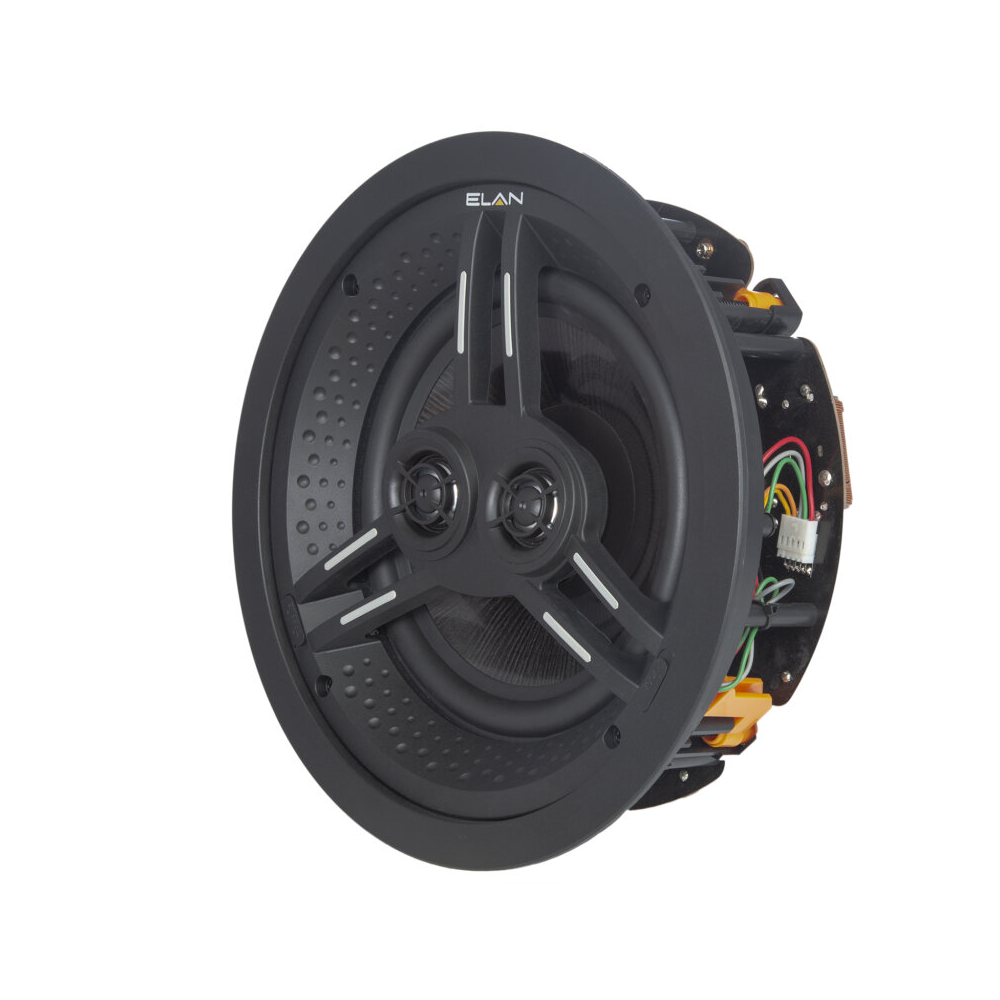

For and exceptional high-performance distributed audio experience, the EL-800-ICDVC-8 is the perfect choice for discerning customers. Better clarity, resolution and dynamics are achieved via a graphite-injected polypropylene cone woofer and two pivoting 1″ aluminum dome tweeters. The dual input / single stereo design delivers a complete experience from a single speaker without the need for a stereo pair. Increased vocal clarity, enhanced dialogue and adjustment of post-installation tweeter performance are enabled with the front-mounted vocal and tweeter enhancement switches.
FEATURES
Don’t miss a Beat
The speaker’s Left and Right inputs allow you deliver a complete experience out of one speaker without the need of a stereo pair
Quick, Responsive Highs
The Aluminum dome tweeters are lightweight, strong and respond instantaneously to changes in music or movies
Dual Tilting Tweeters
The tilting tweeter mechanism allows you to direct sound to the listening area and maintains high frequency performance even when the speaker is mounted in less than ideal locations
Vocal and Tweeter Enhancement Switch
Easily adjust tweeter performance or enhance dialogue via the Vocal and Tweeter Enhancement Swiches
Thin is In
A thin-bezel magnetic grille ensures a secure fit, pleasing aesthetic and with a one-step paint process, it fits universally into almost any décor
Easy-Grip Tweeter Bridge
We know you do it! Installing speakers above your head requires a sturdy grip point and the Nice/ELAN Tweeter bridge ensures you have one. We even protect the tweeter from accidental finger pokes
Dimpled Baffle Design
The dimpled baffle design eliminates annoying echoes and increases dispersion by reducing the focusing action of the concave baffle. The result is crystal-clear room filling sound
Secure Connection

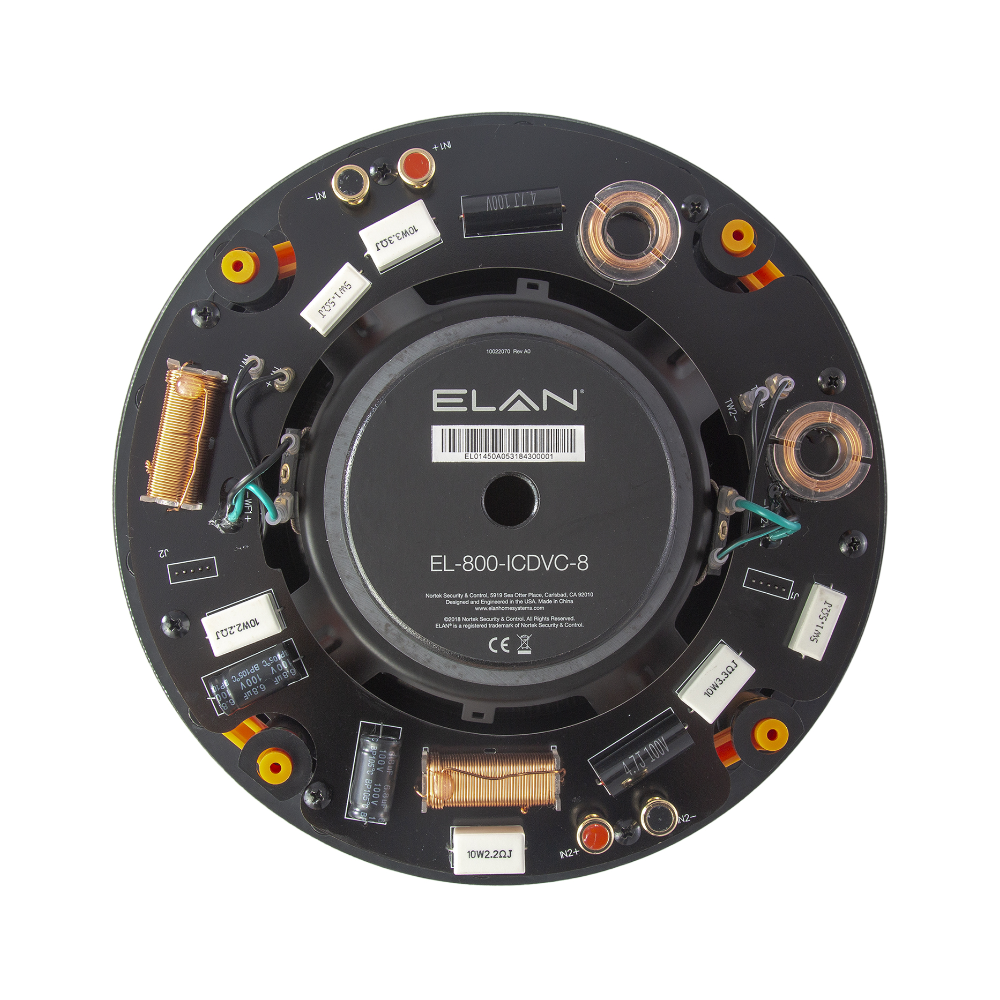

All Nice/ELAN speakers feature spring loaded binding posts that provide a secure, worry-free connection in the wall or ceiling
Lifetime Warranty
Feel confident that All Nice/ELAN Architectural speakers are backed by a limited lifetime warranty
SPECIFICATIONS
Woofer Size: 8″ / 200mm
Woofer Construction: Graphite Injected Polypropylene Cone
Tweeter: Dual 1″ / 25mm Pivoting Aluminum Dome
Frequency Response: 48Hz-20kHz
Impedance: 8 (Ohms)
Power Handling: 130 (Watts)
Sensitivity: 91 (dB)
Timbre: Timbre-Matched to all 800 Series Speakers
Dimensions: 10.8″ / 275mm Diameter x 4.65″ / 118 mm Depth
Hole Cutout Dimensions: 9.75″ / 248 mm Diameter
Mounting Depth: 4.53″ / 115mm
OTHER SPECIFICATIONS
Shipping Info
- Length12.9 (Inches)
- Width13.4 (Inches)
- Height7.4 (Inches)
- Weight3.62 (Lbs)
- Unit of MeasureEach
- UPC844039014504
Other Specifications
- Woofer Size 8″ / 200mm
- Woofer Construction Graphite Injected Polypropylene Cone
- Tweeter Dual 1″ / 25mm Pivoting Aluminum Dome
- Frequency Response 48Hz-20kHz
- Impedance 8 (Ohms)
- Power Handling 130 (Watts)
- Sensitivity 91 (dB)
- Timbre Timbre-Matched to all 800 Series Speakers
- Dimensions 10.8″ / 275mm Diameter x 4.65″ / 118 mm Depth
- Hole Cutout Dimensions 9.75″ / 248 mm Diameter
- Mounting Depth 4.53″ / 115mm
