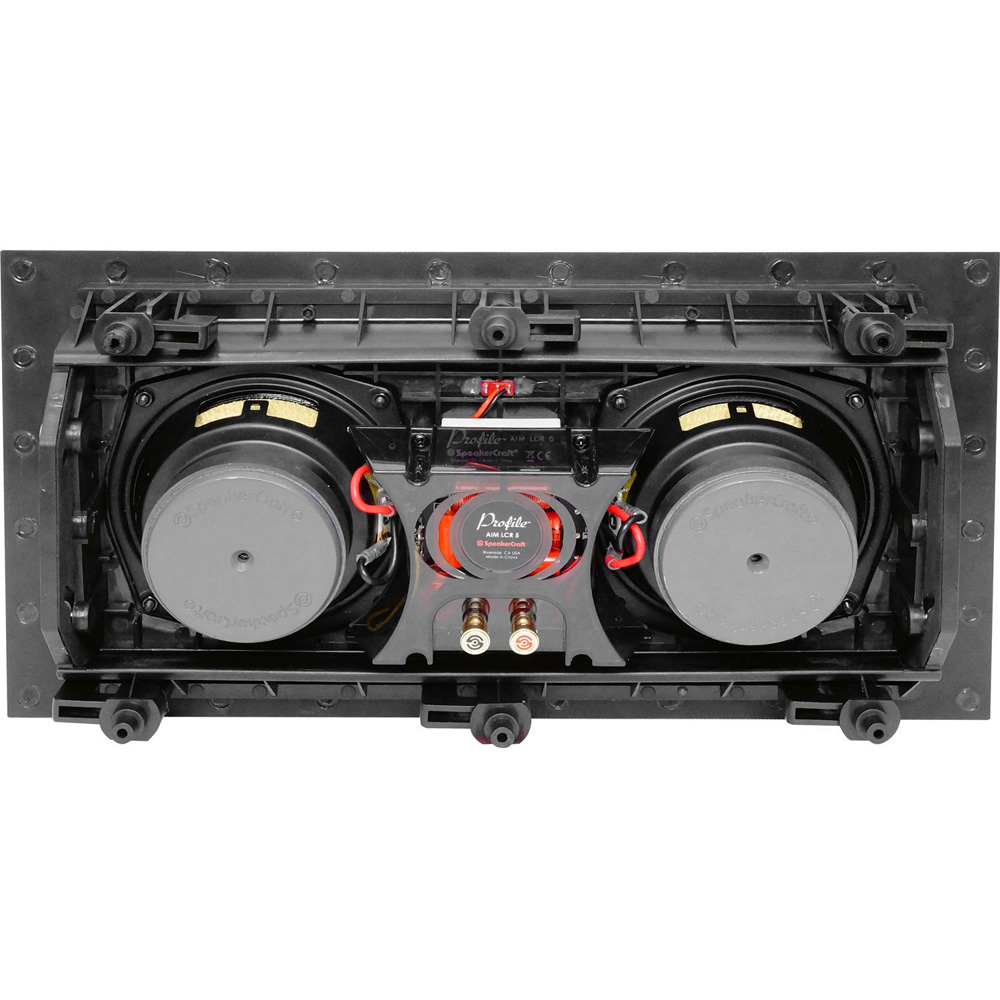

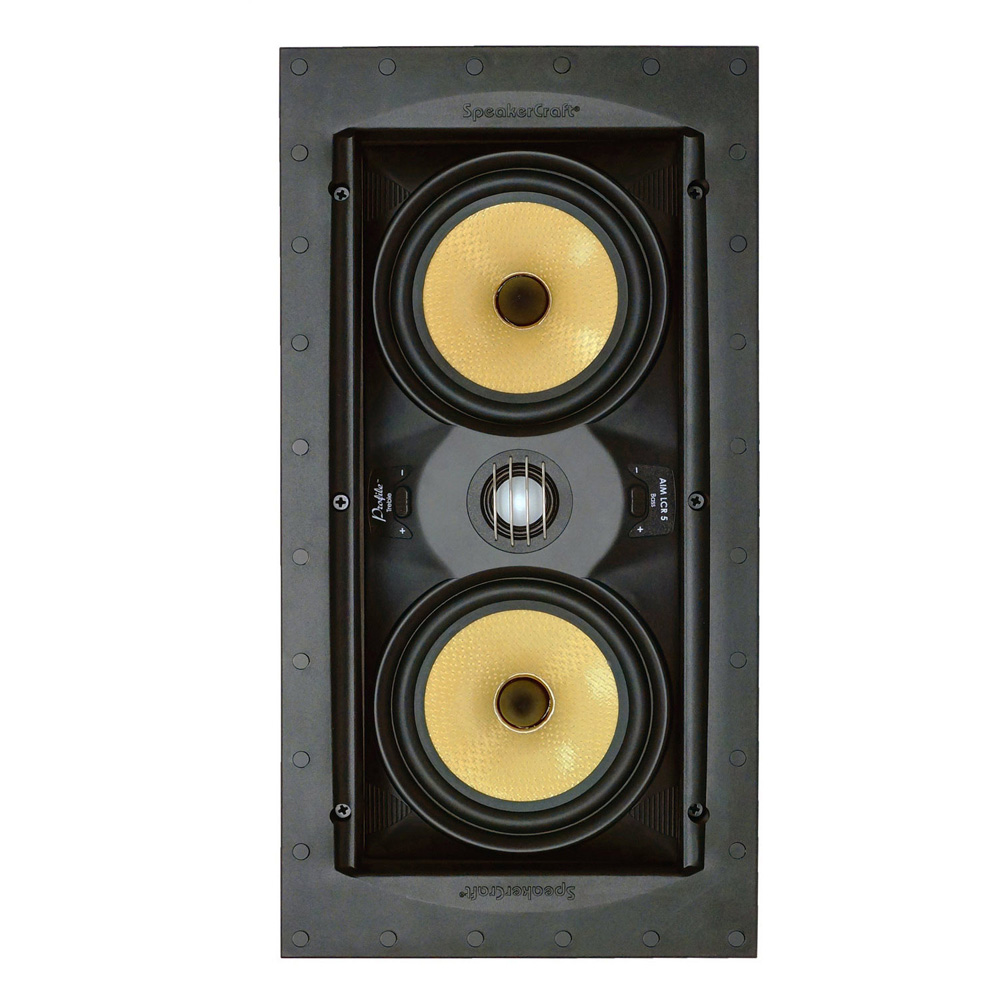

The Profile AIM LCR Series was created to compliment the trend of on-wall mounted flat panel television viewing and is the perfect addition either beside, above or below any flat panel display. They are an ideal choice in a multi-channel surround sound system for all channels when wanting identical performance from each of the in-wall surround sound channels. The Profile AIM LCR Series offers the ability to pivot the entire baffle, enabling the user to easily focus the sound into the primary listening area creating a more realistic and enveloping sound stage.
FEATURES
- 2 Way, In-Wall LCR (Left, Center, Right) Speaker with Dual 5 1/4” Woofers and 1” Tweeter mounted on a Pivoting Speaker Baffle
- Flangeless Appearance with Magnetically Attached Full Coverage Steel Grille
- Pivoting Speaker Baffle
- Two – 5 1/4” Kevlar Woofers with Phase Plugs
- Independently Pivoting 1” Aluminum/Magnesium Dome Tweeter
- Bass & Treble EQ Switches
- Timbre-Matched to All FIVE Series Speakers
- Sensitivity: 91dB 1W/1m
- Power Handling: 100 Watts
- Adjustable Impedance: 8/6 Ohm
- Frequency Response: 48Hz – 20kHz
- Dimensions: (H x W x D) 9 1/4” x 17 7/16” x 4” 235mm x 443mm x 102mm
- Wall Cut-Out: (H x W) 7 1/2” x 14 1/4” (190mm x 362mm)
OTHER SPECIFICATIONS
| General | |
| Family | Profile AIM LCR |
| Woofer Size | 5.25 (Inches) |
| Woofer Construction | Two – 5 1/4″ Kevlar Woofers with Phase Plugs |
| Frequency Response | 48Hz – 20kHz |
| Impedance | 8 (Ohms) |
| Power Handling | 100 (Watts) |
| Sensitivity | 91 (dB) |
| Timbre | Timbre-Matched to All FIVE Series Speakers |
| Dimensions | (H x W x D) 9 1/4″ x 17 7/16″ x 4″ 235mm x 443mm x 102mm |
| Hole Cutout Dimensions | (H x W) 7 1/2″ x 14 1/4″ (190mm x 362mm) |
| Shipping Info | |
| Length | 19.9 (Inches) |
| Width | 11.6 (Inches) |
| Height | 5.7 (Inches) |
| Weight | 10.1 (Lbs) |
| Unit of Measure | Each |
| UPC | 6.64254E+11 |
| Master Pack Qty | 4 |
