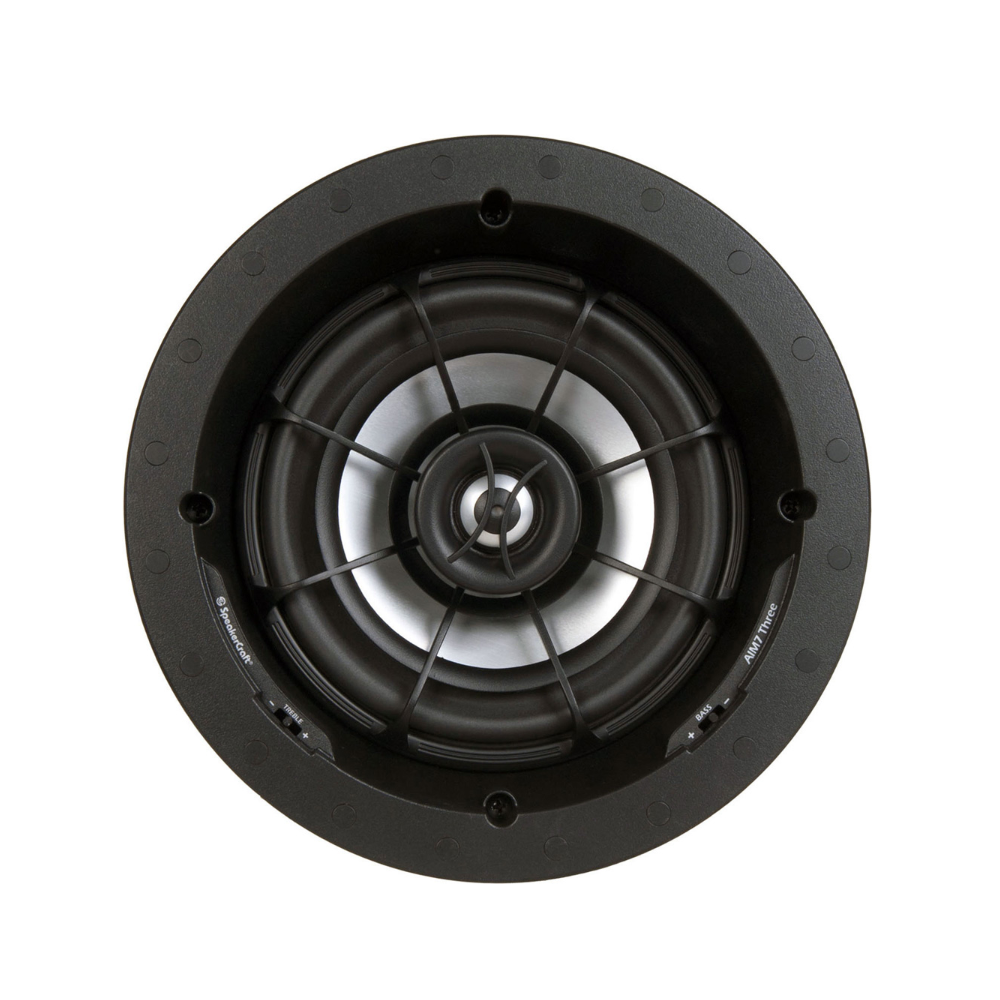

AIM Series in-ceiling speakers were the first to feature an aimable woofer/tweeter module that aims the sound in any direction you choose. No longer are you bound by the design of your room. Just mount the speakers wherever it’s convenient and point them wherever you want sound. Profile grilles are available in AIM8, AIM7 and AIM5 models.
SPECIFICATIONS
- Flangeless Appearance
- Pivoting and Rotating 7″ Aluminum Cone Woofer
- Pivoting 1″ Aluminum Dome Tweeter
- WavePlane Technology
- Front-Mounted Bass & Treble Equalization Switches
OTHER SPECIFICATIONS
| General | |
| Family | Profile AIM |
| Woofer Size | 7 (Inches) |
| Woofer Construction | Pivoting and Rotating 7″ Aluminum Cone Woofer |
| Tweeter | Pivoting 1″ Aluminum Dome Tweeter |
| Impedance | 8 (Ohms) |
| Power Handling | 125 (Watts) |
| Sensitivity | 91 (dB) |
| Timbre | Timbre-Matched to All Three Series Speakers |
| Switches | Front-Mounted Bass & Treble Equalization Switches |
| Dimensions | 9 5/8″ x 5 1/8″ (251 mm x 130 mm) (with Grille) |
| Hole Cutout Dimensions | 8 1/4″ (210 mm)Cut-Out Diameter: 8 1/4″ (210 mm) |
| Shipping Info | |
| Length | 11.4 (Inches) |
| Width | 11.3 (Inches) |
| Height | 6.7 (Inches) |
| Weight | 5.55 (Lbs) |
| Unit of Measure | Each |
| Master Pack Qty | 4 |
| Other Specifications | |
| Flangeless Appearance | |
| Pivoting and Rotating 7″ Aluminum Cone Woofer | |
| Pivoting 1″ Aluminum Dome Tweeter | |
| WavePlane Technology | |
| Front-Mounted Bass & Treble Equalization Switches |
