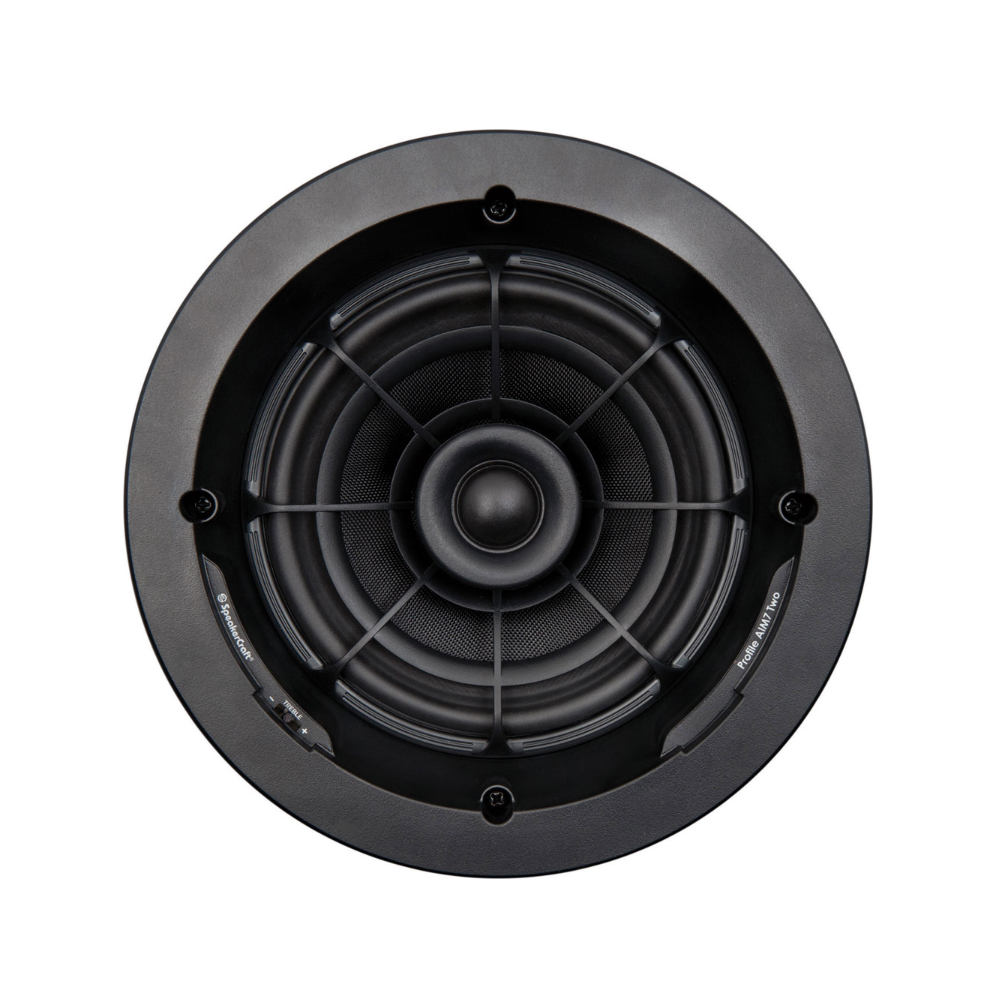

AIM Series in-ceiling speakers were the first to feature an aimable woofer/tweeter module that aims the sound in any direction you choose. No longer are you bound by the design of your room. Just mount the speakers wherever it’s convenient and point them wherever you want sound. Profile grilles are available in AIM8, AIM7 and AIM5 models.
SPECIFICATIONS
- Flangeless Appearance
- Pivoting and Rotating 7” Resin Reinforced Fiberglass Cone Woofer
- Pivoting 1” Silk Dome Tweeter
- Front-Mounted Treble Equalization Switch
- U.S. Patent No. D419,561 & 6,101,262
OTHER SPECIFICATIONS
| General | |
| Family | Profile AIM |
| Woofer Size | 7 (Inches) |
| Woofer Construction | Pivoting and Rotating 7″ Resin Reinforced Fiberglass Cone Woofer |
| Tweeter | Pivoting 1″ Silk Dome Tweeter |
| Frequency Response | 40Hz – 20kHzZ |
| Impedance | 8 (Ohms) |
| Power Handling | 125 (Watts) |
| Sensitivity | 90 (dB) |
| Timbre | Timbre-Matched to All Two Series Speakers |
| Switches | Front-Mounted Treble Equalization Switch |
| Dimensions | 9-5/8″ x 5-1/8″ (244 mm x 130 mm) |
| Hole Cutout Dimensions | 8-1/4″ (210 mm) |
| Shipping Info | |
| Length | 0 (Inches) |
| Width | 0 (Inches) |
| Height | 0 (Inches) |
| Weight | 0 (Lbs) |
| Unit of Measure | Each |
| Master Pack Qty | 4 |
| Other Specifications | |
| Flangeless Appearance | |
| Pivoting and Rotating 7″ Resin Reinforced Fiberglass Cone Woofer | |
| Pivoting 1″ Silk Dome Tweeter | |
| Front-Mounted Treble Equalization Switch | |
| U.S. Patent No. D419,561 & 6,101,262 |
