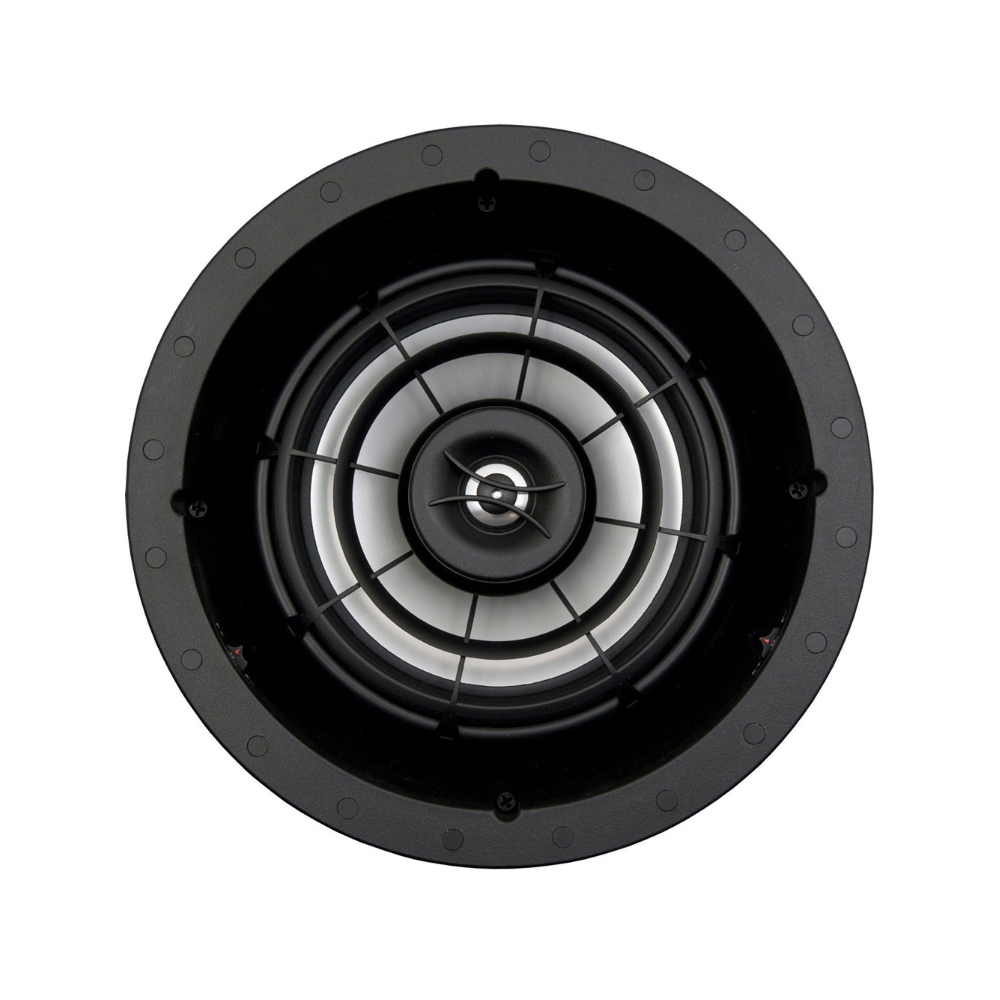

AIM Series in-ceiling speakers were the first to feature an aimable woofer/tweeter module that aims the sound in any direction you choose. No longer are you bound by the design of your room. Just mount the speakers wherever it’s convenient and point them wherever you want sound. Profile grilles are available in AIM8, AIM7 and AIM5 models.
SPECIFICATIONS
- Flangeless Appearance
- Pivoting and Rotating 8″ Aluminum Cone Woofer
- Pivoting 1″ Aluminum Dome Tweeter
- WavePlane Technology
- Front-Mounted Switches Allow for up to ±3dB of Bass and Treble Adjustment
- Accu-Grille Dramatically Reduces Unwanted Acoustic Reflections
OTHER SPECIFICATIONS
| General | |
| Family | Profile AIM |
| Woofer Size | 8 (Inches) |
| Woofer Construction | Pivoting and Rotating 8″ Aluminum Cone Woofer |
| Tweeter | Pivoting 1″ Aluminum Dome Tweeter |
| Frequency Response | 37Hz – 20kHz |
| Impedance | 8 (Ohms) |
| Power Handling | 150 (Watts) |
| Sensitivity | 89 (dB) |
| Timbre | Timbre-Matched to All Three Series Speakers |
| Switches | Front-Mounted Switches Allow for up to ±3dB of Bass and Treble Adjustment |
| Dimensions | 11″ x 5.9″ (279.4 mm x 149.86 mm) (with Grille) |
| Hole Cutout Dimensions | 9 3/4″ (248 mm) |
| Shipping Info | |
| Length | 12.9 (Inches) |
| Width | 12.9 (Inches) |
| Height | 7.8 (Inches) |
| Weight | 9.25 (Lbs) |
| Unit of Measure | Each |
| Master Pack Qty | 4 |
| Other Specifications | |
| Flangeless Appearance | |
| Pivoting and Rotating 8″ Aluminum Cone Woofer | |
| Pivoting 1″ Aluminum Dome Tweeter | |
| WavePlane Technology | |
| Front-Mounted Switches Allow for up to ±3dB of Bass and Treble Adjustment | |
| Accu-Grille Dramatically Reduces Unwanted Acoustic Reflections |
