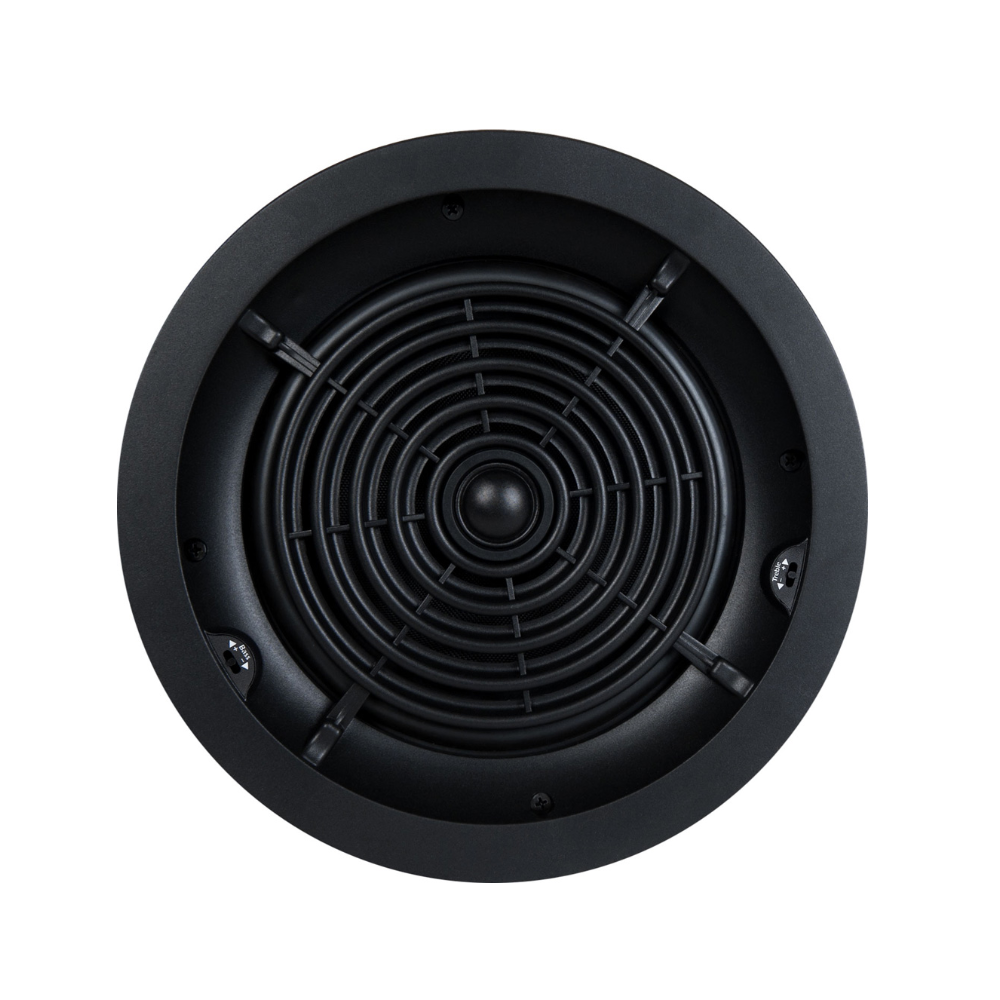

AIM Series in-ceiling speakers were the first to feature an aimable woofer/tweeter module that aims the sound in any direction you choose. No longer are you bound by the design of your room. Just mount the speakers wherever it’s convenient and point them wherever you want sound. Profile grilles are available in AIM8, AIM7 and AIM5 models.
SPECIFICATIONS
- Flangeless Appearance
- 6 1/2″ Glass Composite Cone Woofer with Rubber Surround
- Pivoting 1″ Liquid Cooled Silk Dome Tweeter
- WavePlane Technology
- Front-Mounted Switches Allows for up to ±3dB of Treble Adjustment
OTHER SPECIFICATIONS
| General | |
| Family | Profile CRS |
| Woofer Size | 6.5 (Inches) |
| Woofer Construction | Glass Composite Cone Woofer with Rubber Surround |
| Tweeter | Pivoting 1″ Liquid Cooled Silk Dome Tweeter |
| Frequency Response | 40Hz – 20kHz |
| Impedance | 8 (Ohms) |
| Power Handling | 120 (Watts) |
| Sensitivity | 92 (dB) |
| Timbre | Timbre-Matched to All Two Series Speakers |
| Switches | Front-Mounted Switches Allows for up to ±3dB of Treble Adjustment |
| Dimensions | 9 5/8″ x 4 1/16″ (249 mm x 103 mm) (with Grille) |
| Hole Cutout Dimensions | 8 1/4″ (210 mm) |
| Shipping Info | |
| Length | 0 (Inches) |
| Width | 0 (Inches) |
| Height | 0 (Inches) |
| Weight | 0 (Lbs) |
| Unit of Measure | Each |
| Master Pack Qty | 4 |
| Other Specifications | |
| Flangeless Appearance | |
| 6 1/2″ Glass Composite Cone Woofer with Rubber Surround | |
| Pivoting 1″ Liquid Cooled Silk Dome Tweeter | |
| WavePlane Technology | |
| Front-Mounted Switches Allows for up to ±3dB of Treble Adjustment |
