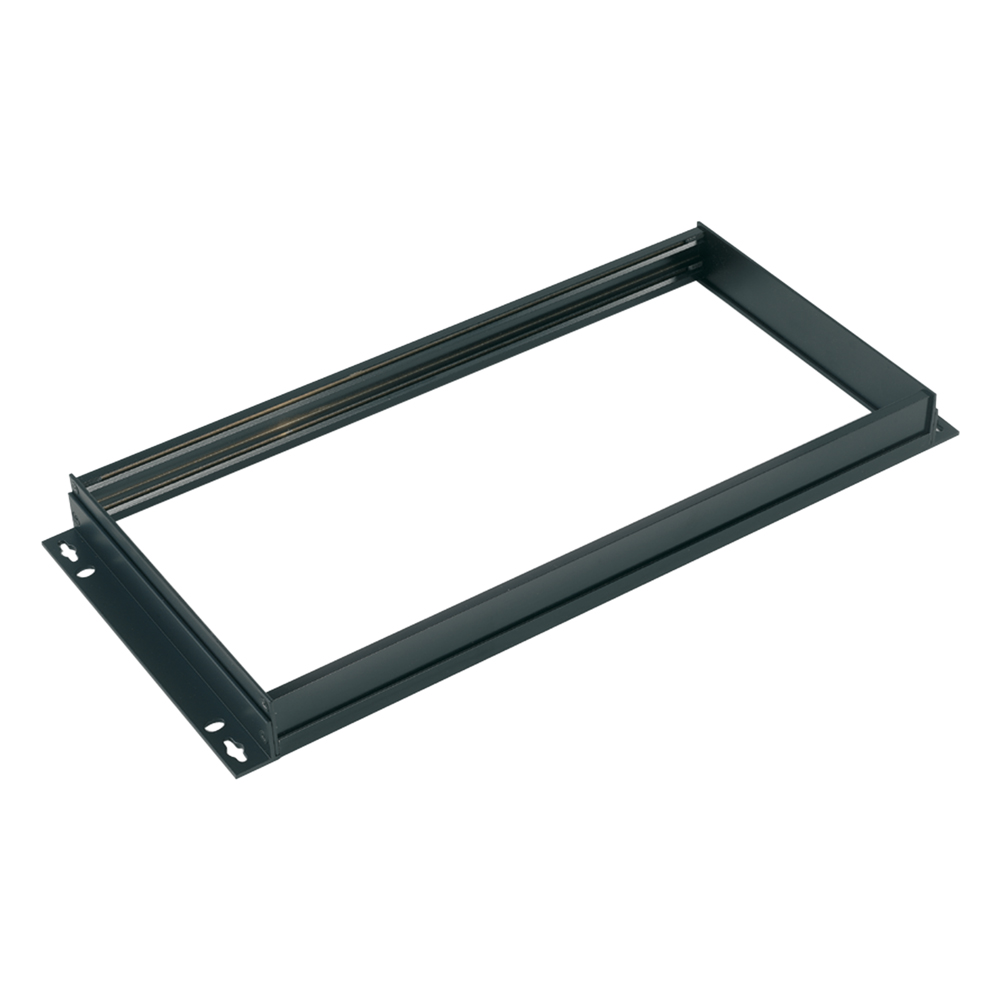

19″-Rack ring
Installation for multiple T12/T.0X modules / Ref. 5301

Device used for the remote control and monitoring of a T.0X Televes headend. The IP-network access methods are implemented using an Ethernet 10/100 Mbps interface, or a 3G internal modem for ref.555911. These devices establish a connection with a Link server located in the Televes premises, which provides direct connection between installer and headend.

Main features

  • Built in 2.5 mm-thick steel sheet
  • Matt epoxy-paint finish, 80-micron thick

    • li>Equipped with two nickel-plated steel strips

  • Capacity for 1 power supply, and 7 T.0X or 10 T12 modules

FAQs

I have installed the equipment with references 5054 and 5078, and I see horizontal lines moving vertically across my TV set screen. Why is it so?

The effect of the lines moving vertically across the TV screen could be caused by the T05 headend not being grounded correctly. To avoid this, proceed to: Either mounting the modules on the appropriate connection strip (ref. 5071) Or screwing the modules to the sub-rack (5301, 5306)

What are the heights of a rack?

The dimension of the modules of a rack is stated in “heights”. One “height” is equivalent to 43.5 mm. For example, a 19″ sub-rack “, ref. 5301, is 5 “heights” (217.5 mm).
[/ux_text]

How many T.0X modules can I install in my housing and frames?

The dimension of the modules of a rack is stated in “heights”. One “height” is equivalent to 43.5 mm. For example, a 19″ sub-rack “, ref. 5301, is 5 “heights” (217.5 mm).

How many T.0X modules can I install in my housing and frames?

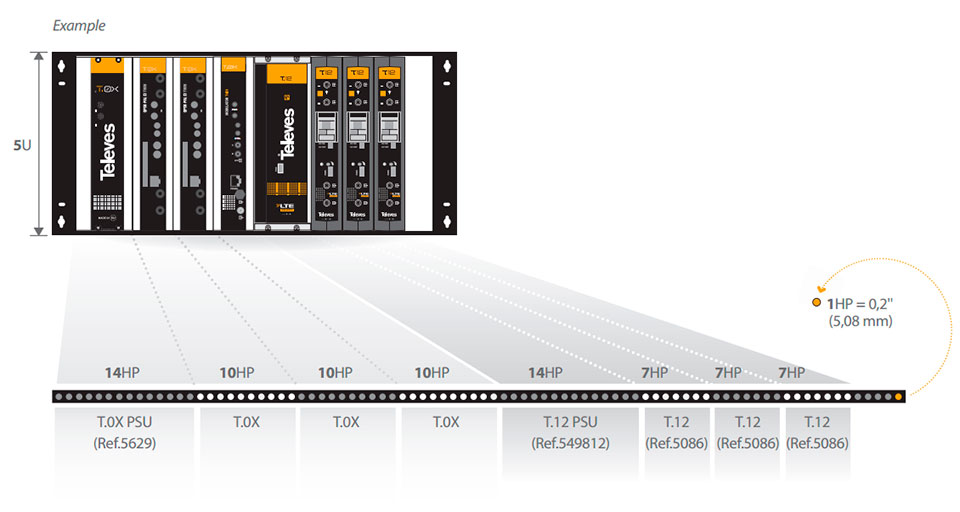

Thanks to these measures and graphics, you will be able to know how many modules you can fit in each cabinet or frame. Televes uses standard dimensions in order to make installation easier for our technicians. These dimensions are taken from a Eurocard (standard European format for PCB). Vertically, we find the U (Unit Rack) equivalent to 1.75 inches (44.45 mm), horizontally we have the HP (Horizontal Pitch), equivalent to 0.2 inches (5.08 mm).

Below you will find the dimensions of the main modules in our headend series.

Supports and Cabinets HP
5301 19’’ Rack frame 84
567201 19’’ Wall support 54
5072 Lockable Cabinet 498mm 84
5069 Lockable Cabinet 648mm 112
5235 Lockable Cabinet 948mm 168



Equipment dimensions’ list

 HP

5629

549812

 Power Supply Unit (T.0X/T.12) 14
– T.0X (Transmodulators, CDC,… normal chassis equipment) 10
– T.12 7
5673 T.0X Blank Plate 10
507312 T.12/T.05 Blank Plate 7



Optical fibre HP
234220 T.0X EDFA 14

2337

2339

 T.0X Splitter 2D/4D 10
234401
234501
234601		 T.0X Splitter 8D/16D/32D 18
234228 T.0X EDFA 1E/8S 22
