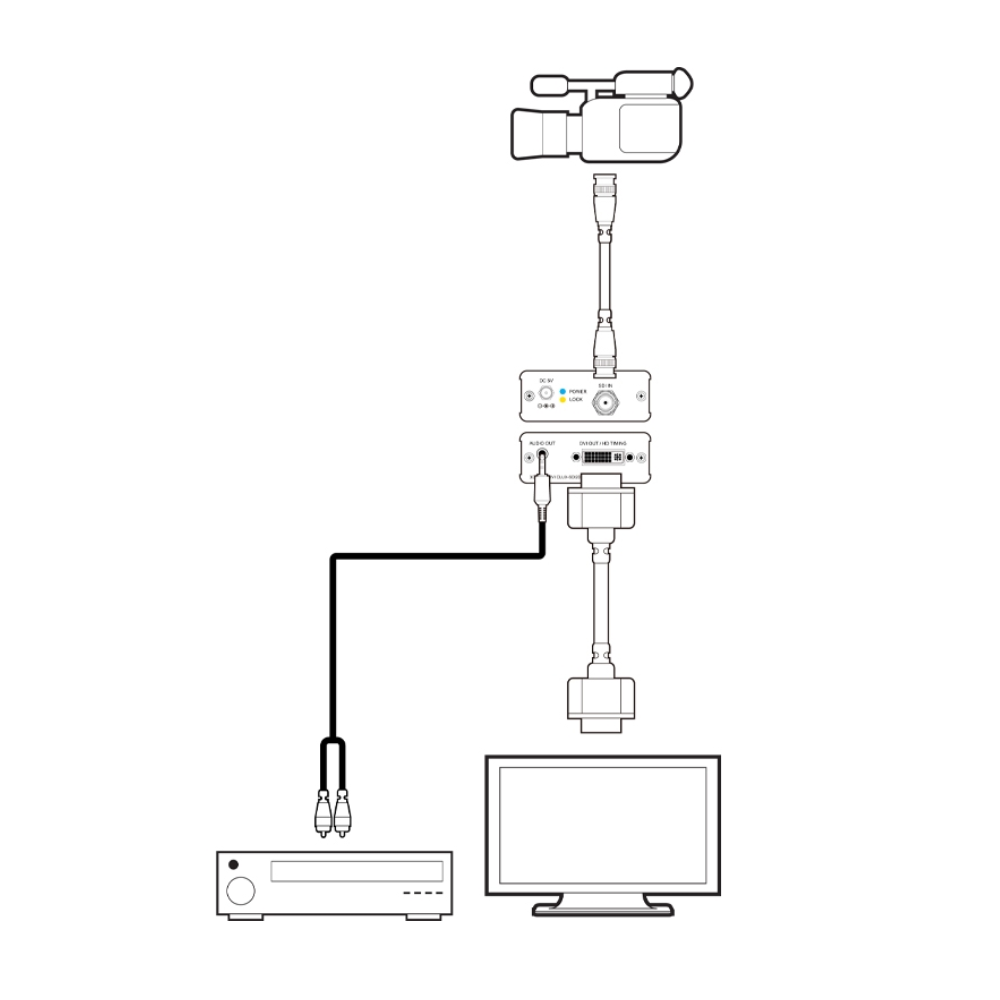

- Shows SDI source on DVI display
- Auto-detects SD-SDI, HD-SDI and 3G-SDI input signals
- Supports SDI bitrates of 2.970Gbit/s & 2.970/1.001Gbit/s, 1.485Gbit/s & 1.485/1.001Gbit/s, and 270Mbit/s:
- 3G-SDI supports SMPTE 424M/425M-A@2.970Gbit/s & 2.970/1.001Gbit/s
- HD-SDI supports SMPTE 292M@1.485Gbit/s & 1.485/1.001Gbit/s
- SD-SDI supports SMPTE 259M-C@270Mbit/s
- Converts SDI formatto DVI:
- SD-SDI (SMPTE 259M-C) to 480i/576i
- HD-SDI (SMPTE 292M) to 720p@50/59.94/60Hz, 1080i@50/59.94/60Hz
- 3G-SDI (SMPTE 424M/425M-A) to 1080p@23.98/24/25/29.97/30/ 50/59.94/60Hz, 1080PsF@23.98/24/25/29.97/30Hz
- Supports SDI input distance up to 100 meters (3G-SDI), 200 meters (HD-SDI), or 300 meters (SD-SDI)
Inputs
- 1x BNC [1x 3G-SDI / HD-SDI / SD-SDI]

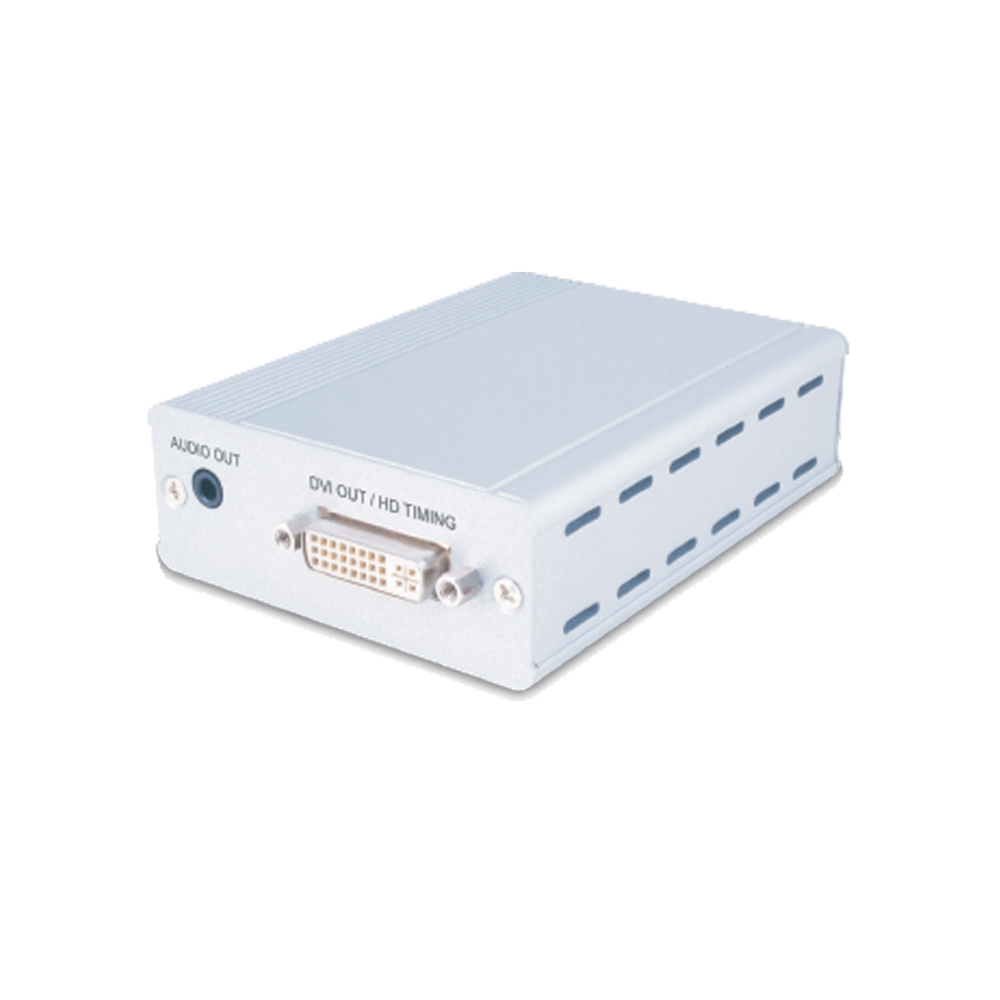

Outputs
- 1x DVI-I [1x DVI-D]
- 1x 3.5mm Stereo Mini-jack [1x Stereo(L/R)]
PSU:
- 5V/2.6A
Dimensions
- 78mm [W] x 124mm [D] x 30mm [H]
Net Weight
- 194g
