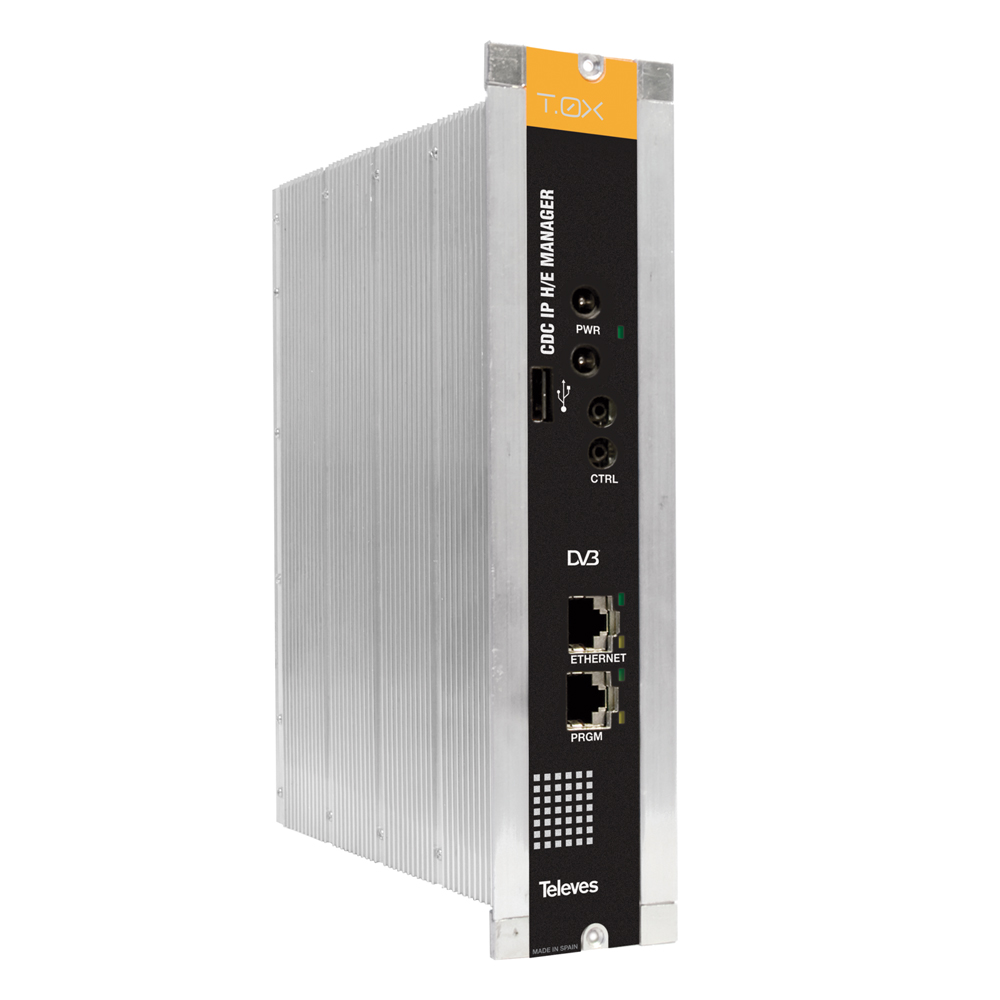

Headend Controller (CDC)
IP/3G / Ref. 5559

Device used for the remote control and monitoring of a T.0X Televes headend. The IP-network access methods are implemented using an Ethernet 10/100 Mbps interface, or a 3G internal modem for ref.555911. These devices establish a connection with a Link server located in the Televes premises, which provides direct connection between installer and headend.

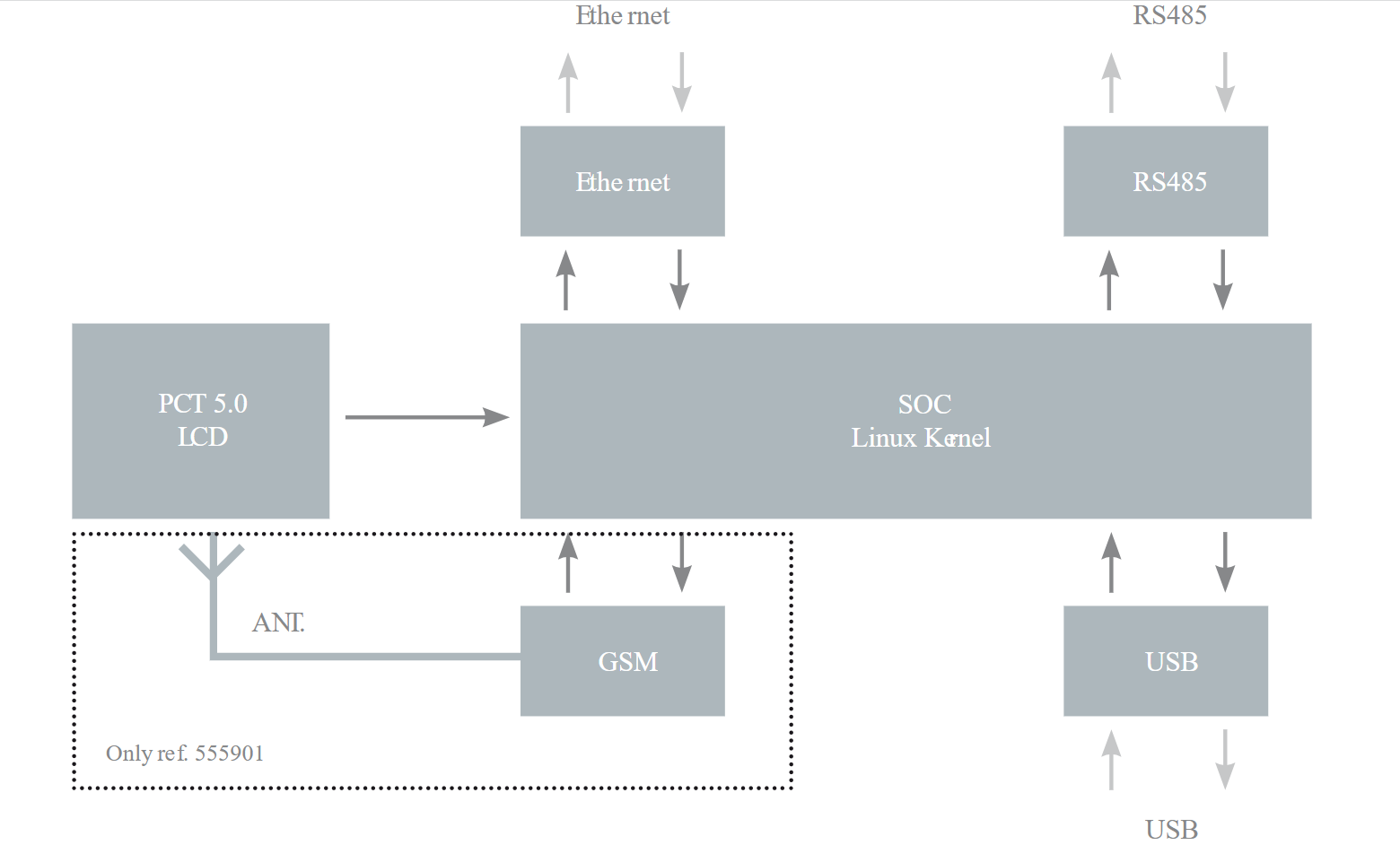

Main features

  • Headend management and control is carried out by a centralized service called “Televes Services”. This portal is located in a Televes Server Centre accessible to the user through authentication
  • Equipped with a RISC Microcomputer and GNU/Linux Operating System, which ensure reliability in interface, protocol and peripheral device management

SPECIFICATIONS

CPU Processor ARM920T™
Memories Type 8 MB Flash
64 MB SDRAM
128M x 8 bit NAND Flash Memory
Interfaces Connectors T.0X powering Vdc 24
Interface RS-485
Interface USB 2.0 Full Speed Host (12 Mbps)
SIM interface SIM cards reader
RJ45 connector 10/100 Base-T Ethernet
RJ45 connector Debugging / LCD programmer
GSM Antenna connector F connector
GSM/GPRS Radio interface Transmission power GSM-850/900
Power peak 2W RF (+33dBm) over 50 Ohm
DCS-1800/PCS-1900
Power peak 1W RF (+30dBm) over 50 Ohm
Reference Sensitivity GSM-850/900 – 107dBm
DCS-1800/PCS-1900 – 107dBm
Antenna gain dBi 1,5 ≤ Gain < 3 (reference: λ/2 dipole)
GPRS type CLASS 10
GPRS encoding schemes CS1, CS2, CS3 and CS4
GPRS max. downlink transmission rate Kbps 85,6
GPRS max. uplink transmission rate Kbps 48,8
Packet Broadcast Control Channel Yes
VSWR (Voltage Standing Wave Ratio) max. absolute ≤ 5:1
VSWR (Voltage Standing Wave Ratio) recommended ≤ 2:1
Input power (peak) W >2
Antenna impedance Ohm 50
Bandwidth MHz GSM 850: 70
GSM 900: 80
DCS: 170
PCS: 140
Peripherals Real Time Clock / Alarm
Digital thermometer
Operative System Linux Kernel 2.6.16
General Powering Vdc 24
Consumption mA 300
Operating temperature ºC -5 … +45
Protection index IP 20
