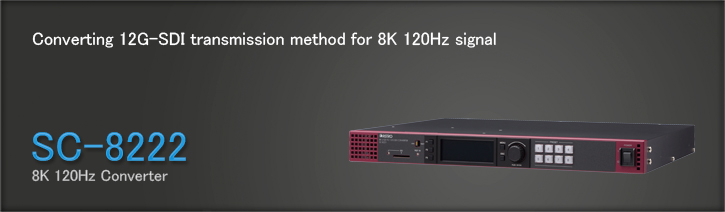

SC-8222
8K 120Hz Converter

It converts 8K YCBCR 4:2:2 120p signal to 12G-SDI transmission format.
Connected to an Astrodesign AB-4815 8K camera, it can convert to 8K 60p Quad Link x2 (Odd, Even).

Features

  • Conversion function
    12G-SDI（8K60p Quad Link x2） ⇔ 12G-SDI（8K120p Dual Link x2） ⇔ 12G-SDI （4K120p Dual Link x4）
  • Redundant power supply
  • 1U rack mount size

Rear

SPECIFICATIONS

SDI I/O

Mode Resolutıon Frame Rate Colorımetry Format
Mode：8K 60Hz
Format：2SI		 7680×4320 119.88ｐ /120p YCBCR 4:2:2 10bit 12G-SDI　Type1
2-Sample Interleave Division
(SMPTE ST 2082-1/12)
Mode：8K 60Hz
Format：4kx4		 7680×4320 119.88ｐ /120p YCBCR 4:2:2 10bit 12G-SDI　Type1
2-Sample Interleave Division
(SMPTE ST 2082-1/10)
Mode：4K 120Hz
Format：2SI		 7680×4320 119.88ｐ /120p YCBCR 4:2:2 10bit 12G-SDI　Type1
Dual Link
(Original Format)
Mode：4K 120Hz
Format：4kx4		 7680×4320 119.88ｐ /120p YCBCR 4:2:2 10bit 12G-SDI　Type1
Dual Link
(SMPTE ST 2082-1/11)



Audıo
Sampling Frequency 48KHｚ
Resolution 24bit
Output Format 32ch



Delay
Input Lock 2 frames (120Hz conversion) from input SDI 16.7ms delay
REF IN 2 frames (120Hz Conversion) 16.7ms delay
+ Genlock adjustment value (REF input reference)



Reference Input
Format NTSC BB（EIA RS-170A）
HD tri levels　(SMPTE 240M/274M/296M)
（1920 x 1080/59.94i/60i）
Loop Through Through output side unconnected 75 Ω termination (automatic termination)
Pull-in range Less than ±60us, ±2H (HD-SDI) for input SDI signal



General Specıfıcatıon
Power Consumption 100W
Power Voltage AC100-240V
Operating Temperature 5～40℃
Operating Humidity 20～80％RH（no condensation）
Dimensions 430(W) × 44(H) × 351(D)mm (without protrusion)
Weights 4.5 kg
