SD-7077
HDMI 2.1 To 2.0×4 Converter

SD-7077 is a converter that supports 8K and 4K and outputs HDMI 2.1 signal to HDMI 2.0 signal in 4 divisions.
Useful for connecting to large LED visions and multi-display systems.

Features

  • HDMI 2.1(FRL)x1 to HDMI 2.0(TMDS) x4 divisions output
  • Supports various formats
    7680×4320 60p/59.94p/50p/30p/29.97p/25p/24p/23.98p
    3840×2160 120p/119.88p/100p
  • Supports HDCP1.4 and 2.3
  • Small size and lightweight

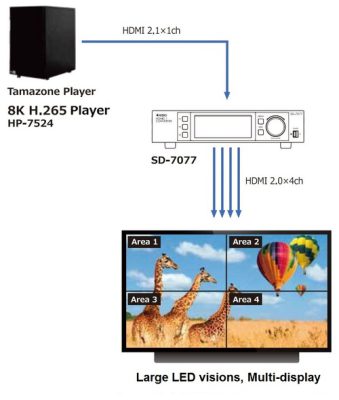

Connection example

SPECIFICATIONS

HDMI2.1 ınput
FRL10Gbps/ 4Lane, CTA-861-G, complıant, DSC non-complıant		 HDMI 2.0 output (format per one)
TMDS 18Gbps, CTA-861-G, HDCP complıant, DSC non-complıant
Format Color Space bit Format Color Space bit
7680×4320
50p/59.94p/60p		 YCBCR 4:2:0 8/10 3840×2160 60p/59.94p/50p RGB/YCBCR 4:4:4 8
3840×2160 60p/59.94p/50p YCBCR 4:2:2 8/10/12
3840×2160 30p/29.97p/25p/24p/23.98p RGB/YCBCR 4:4:4 8/10/12
3840×2160 30p/29.97p/25p/24p/23.98p YCBCR 4:2:2 8/10/12
7680×4320
30p/29.97p/25p/24p/23.98p		 RGB/YCBCR 4:4:4 8/10 3840×2160 60p/59.94p/50p RGB/YCBCR 4:4:4 8
3840×2160 60p/59.94p/50p YCBCR 4:2:2 8/10/12
3840×2160 30p/29.97p/25p/24p/23.98p RGB/YCBCR 4:4:4 8/10/12
3840×2160 30p/29.97p/25p/24p/23.98p YCBCR 4:2:2 8/10/12
7680×4320
30p/29.97p/25p/24p/23.98p		 YCBCR 4:2:2 8/10/12 3840×2160 60p/59.94p/50p RGB/YCBCR 4:4:4 8
3840×2160 60p/59.94p/50p YCBCR 4:2:2 8/10/12
3840×2160 30p/29.97p/25p/24p/23.98p RGB/YCBCR 4:4:4 8/10/12
3840×2160 30p/29.97p/25p/24p/23.98p YCBCR 4:2:2 8/10/12
3840×2160
120p/119.88p/100p		 RGB/YCBCR 4:4:4 8/10 1920×1080 120p/119.88p/100p RGB/YCBCR 4:4:4 8/10/12
1920×1080 120p/119.88p/100p YCBCR 4:2:2 8/10/12
1920×1080 60p/59.94p/50p RGB/YCBCR 4:4:4 8/10/12
1920×1080 60p/59.94p/50p YCBCR 4:2:2 8/10/12
3840×2160
120p/119.88p/100p		 YCBCR 4:2:2 8/10/12 1920×1080 120p/119.88p/100p RGB/YCBCR 4:4:4 8/10/12
1920×1080 120p/119.88p/100p YCBCR 4:2:2 8/10/12
1920×1080 60p/59.94p/50p RGB/YCBCR 4:4:4 8/10/12
1920×1080 60p/59.94p/50p YCBCR 4:2:2 8/10/12



Audıo Format
Sample Frequency 48kHz
Resolution 24bit
Number of channels Up to 8 channels



General Specıfıcatıons
Power Requirements DC 12V
Power Consumption 30W MAX
Operating Temperature Range 0～40℃
Operating Humidity Range 20～80％ RH (no condensation)
External Dimensions 210(W) × 44(H) × 210(D)mm (excluding protrusions)
Weight 2.0 kg
