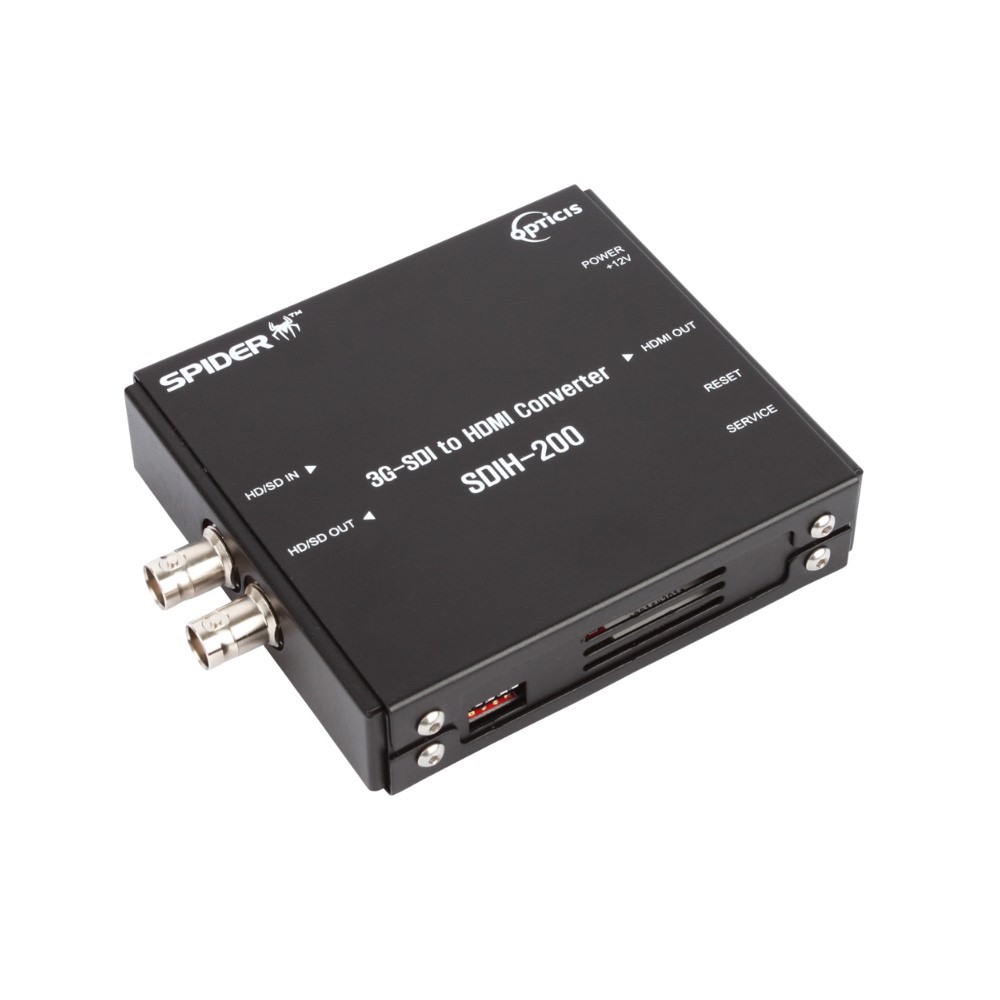

OPTICIS mini converter, SDIH-200 convert multi-rate SDs complied with SMPTE standard including SD, HD and 3G-SDI to corresponding HDMI1.3 formats up to 1080p with embedded audio in application for broadcast or a professional video production.
SDIH-200
SDI to HDMI Converter
PRODUCT SPECIFICATIONS
• Supports multi-rate SDI formats
– SMPTE 125M: SD : 601*625i (576_ PAL), SD : 601*525i (486_ NTSC)
– SMPTE 296M: HD : 1280*720p (60/59.94/50)
– SMPTE-274M: HD : 1920*1080p (30/29.97/25/24/23.98)
HD : 1920*1080i (60/59.94/50)
– SMPTE-425M: 3G : 1920*1080p(60/59.94/50)
• Equipped one (1) 3G-SDI input and Loop-through output
• Equalizes one (1) HDMI1.3 output
• Input status LED
• Input voltage range: +5~24V
• Dimensions (WDH): 105 x 95 x 25mm
• Weight: 0.20Kg

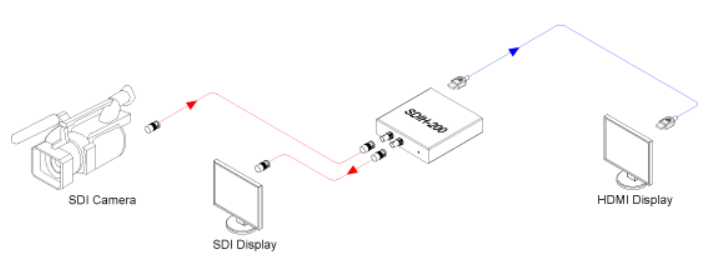

CONNECTION DIAGRAM
