1T-C2-520
Video Scalers

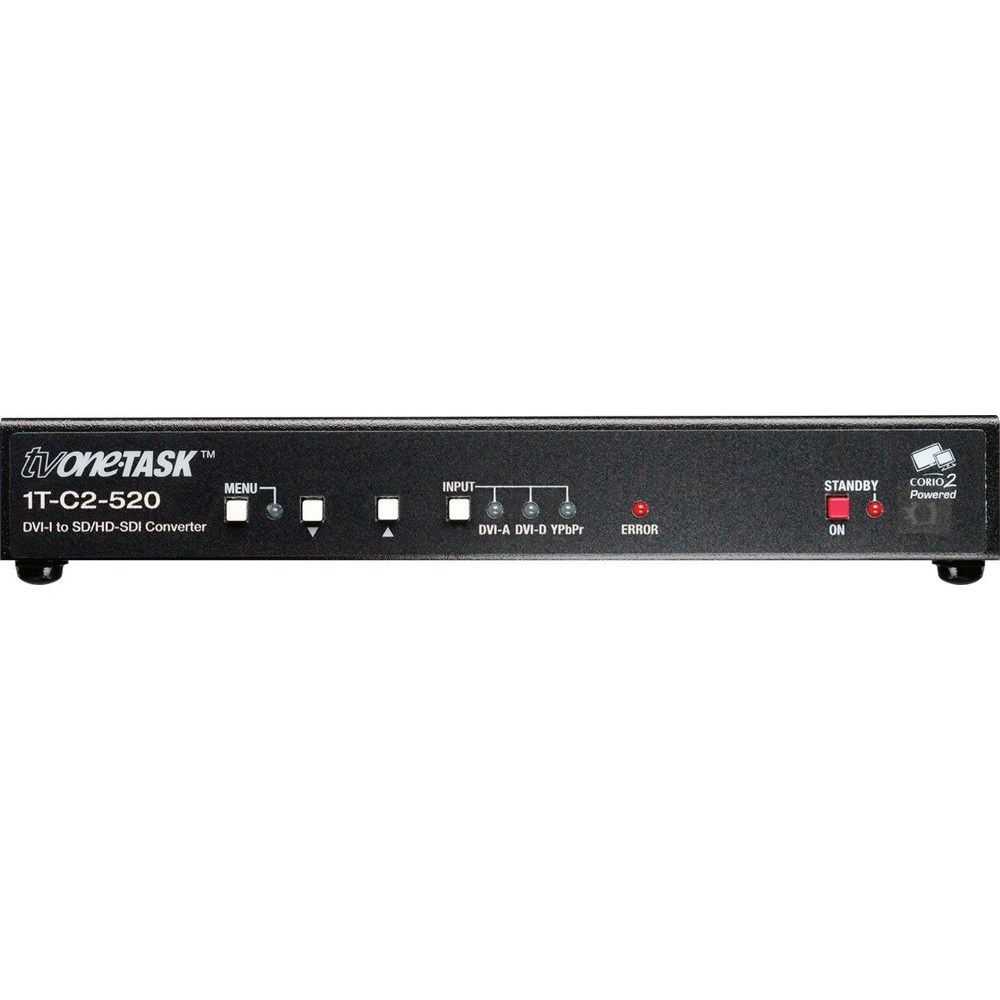

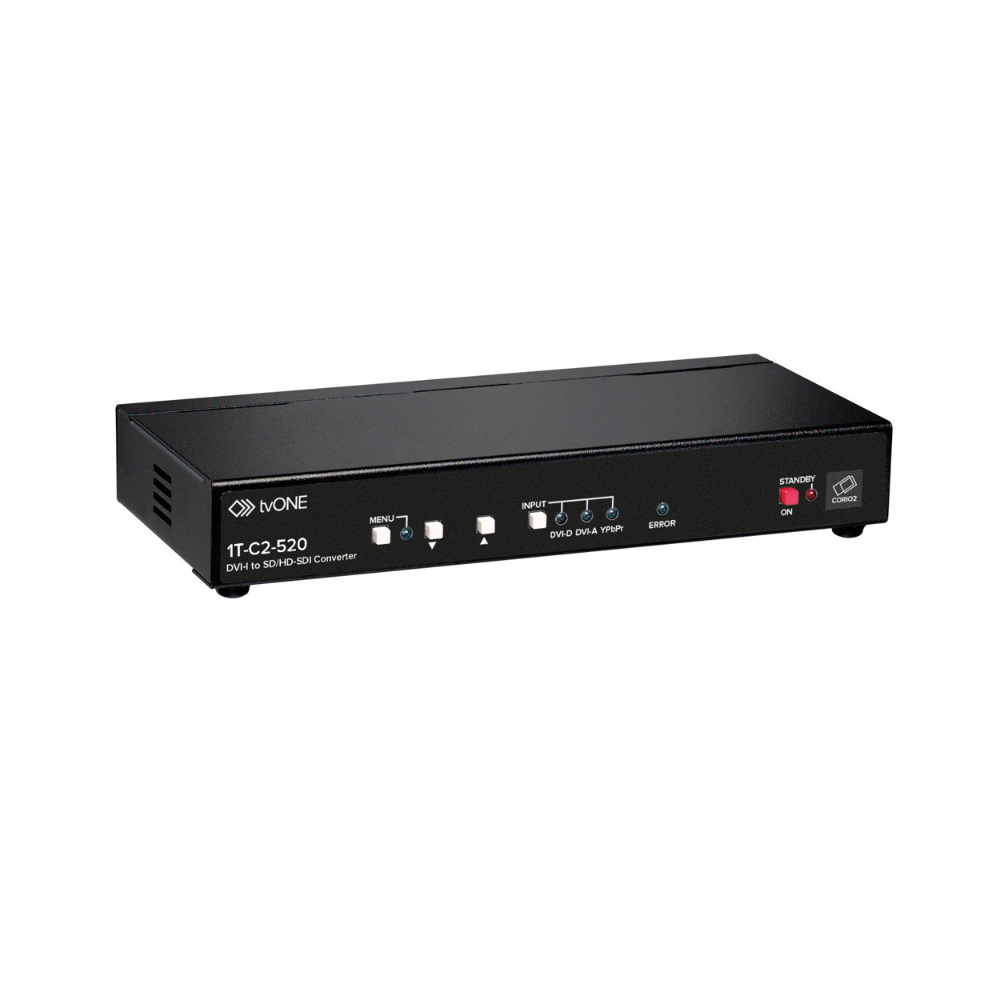

1T-C2-520 is a high performance converter that transforms DVI-D 720p or 1080i HD signals to HD-SDI for broadcast and professional use. An analog YPbPr or RGBHV signal can also be converted to HD-SDI. It also converts a standard analog YUV signal at 525i or 625i to SD-SDI. No scaling is performed within the unit, so the input vertical rates must be exact. The 1T-C2-520 is controlled via front panel buttons and an on-screen display. The unit is housed in a Desktop metal case and an optional Single/Dual Rackmount Kit is available.s.

OVERVİEW

1T-C2-520 is a high performance converter that transforms DVI-D 720p or 1080i HD signals to HD-SDI for broadcast and professional use. An analog YPbPr or RGBHV signal can also be converted to HD-SDI. It also converts a standard analog YUV signal at 525i or 625i to SD-SDI. No scaling is performed within the unit, so the input vertical rates must be exact. The 1T-C2-520 is controlled via front panel buttons and an on-screen display. The unit is housed in a Desktop metal case and an optional Single/Dual Rackmount Kit is available.

KEY FEATURES

Key Features of the 1T-C2-520

Fully Digital Operation for SD-SDI and HD-SDI
Serial Digital Video Output up to 1.485Gbits/sec
HD-SDI output resolution matches DVI input 525i/625i
YUV converts to SD-SDI
RS-232 Interface
