AVT-3155A
Video Scalers

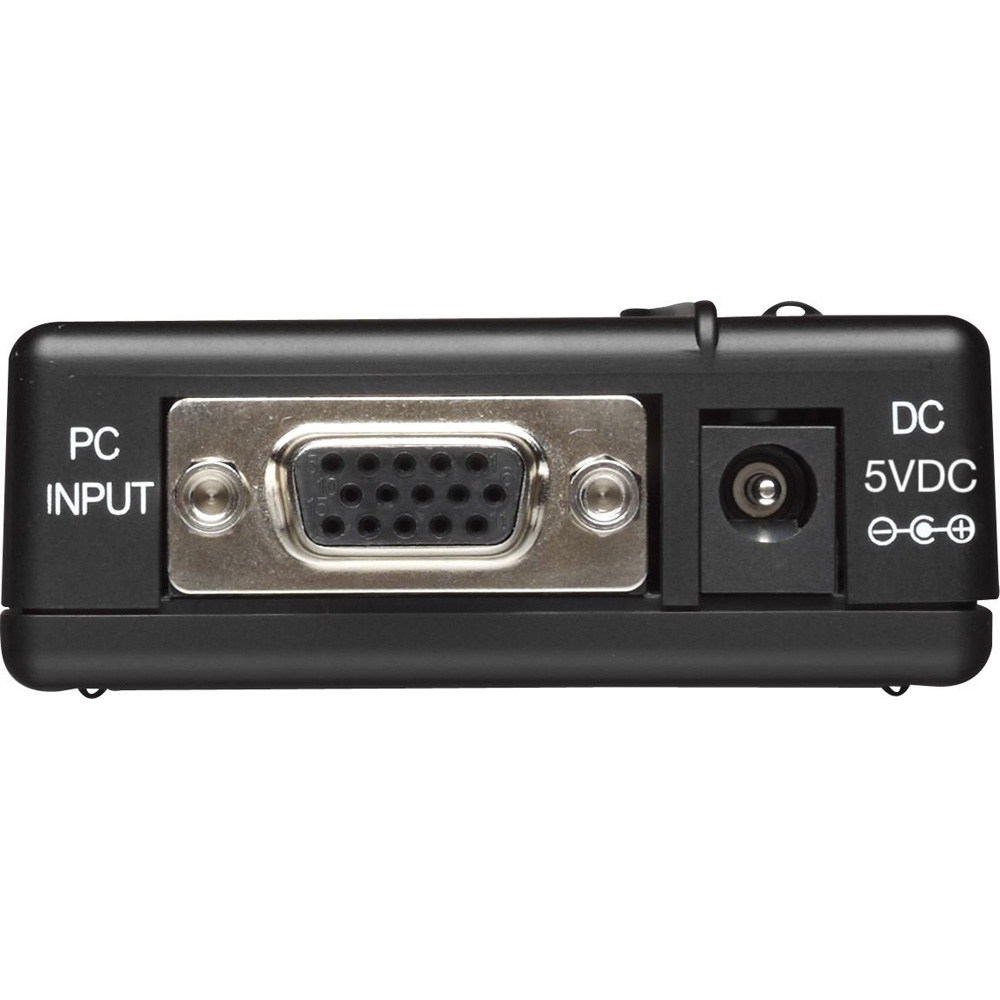

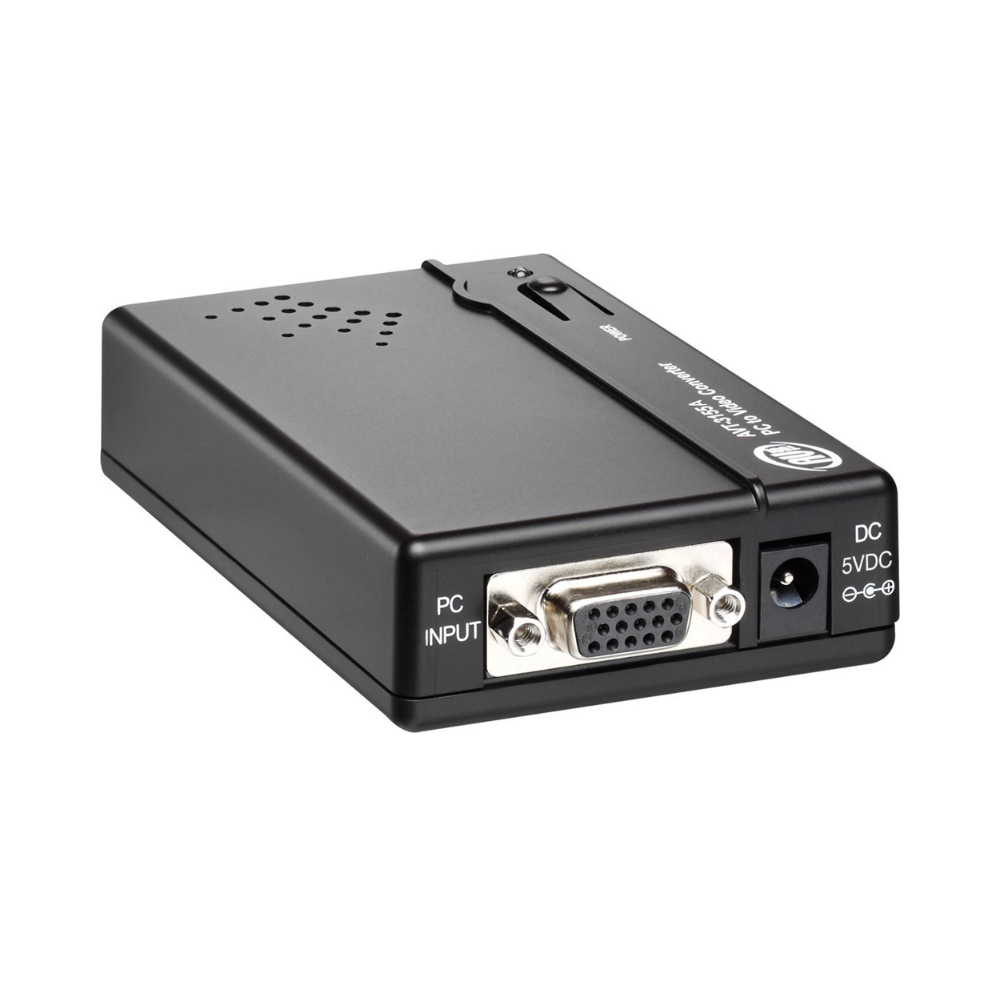

AVT-3155A converts computer signals to standard analog video. It’s settings are controlled via top panel push-buttons. The AVT-3155A’s small size makes it ideal for use with laptops or desktop computers and it handles resolutions up to 1600×1200 at 60Hz vertical refresh rate. Video outputs are simultaneously provided in Composite and S-Video formats, selectable as either NTSC or PAL. Now, you can convert anything on your computer screen for viewing on a TV set or recording on a VCR.

OVERVİEW

AVT-3155A converts computer signals to standard analog video. It’s settings are controlled via top panel push-buttons. The AVT-3155A’s small size makes it ideal for use with laptops or desktop computers and it handles resolutions up to 1600×1200 at 60Hz vertical refresh rate. Video outputs are simultaneously provided in Composite and S-Video formats, selectable as either NTSC or PAL. Now, you can convert anything on your computer screen for viewing on a TV set or recording on a VCR.

KEY FEATURES

Compatible with PC and Macintosh Computers
Plug and Play
Automatically handles up to 1600×1200 resolutions

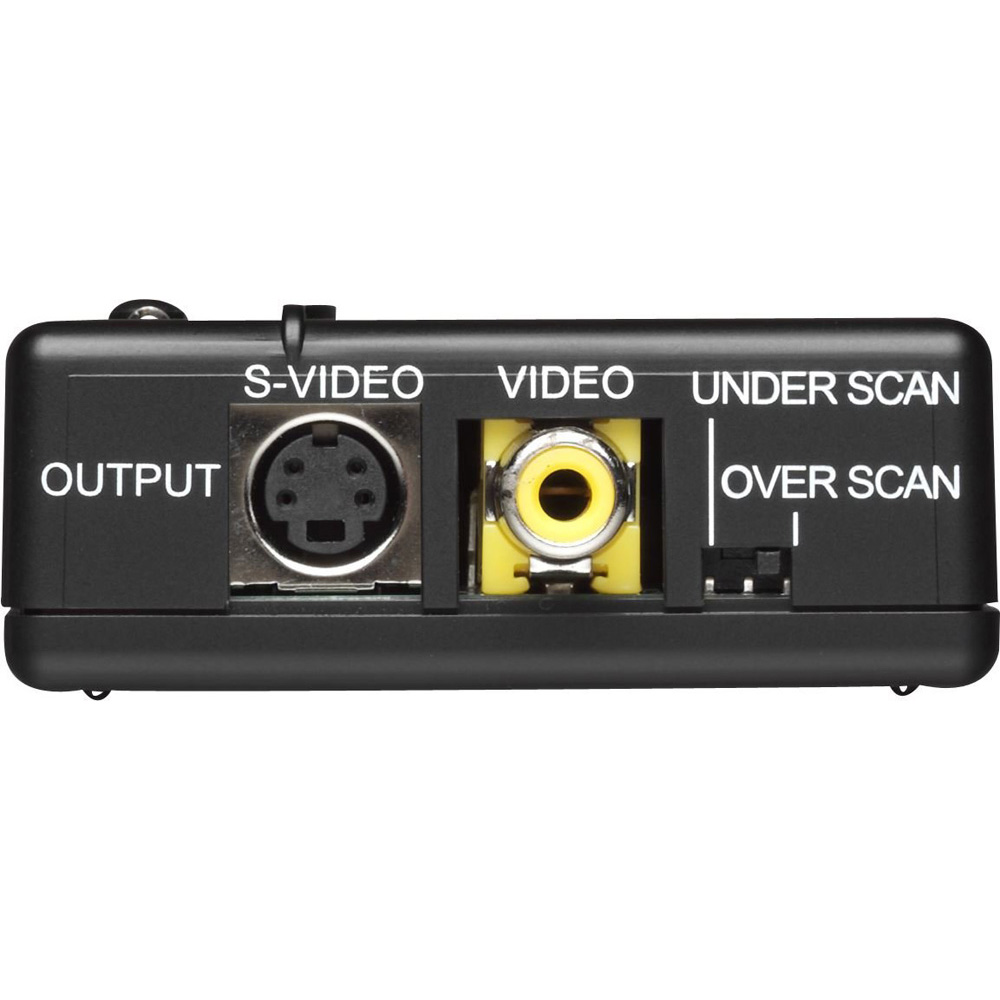

Composite and S-Video Outputs
Underscan and Overscan Switch
NTSC Video Output Standard Switch Selectable
Size 0.9″x3.9″x2.5″ (24x100x64mm)
Weight 3.5 ounces (100 g)
100~240VAC to 5VDC Power Adapter Included
