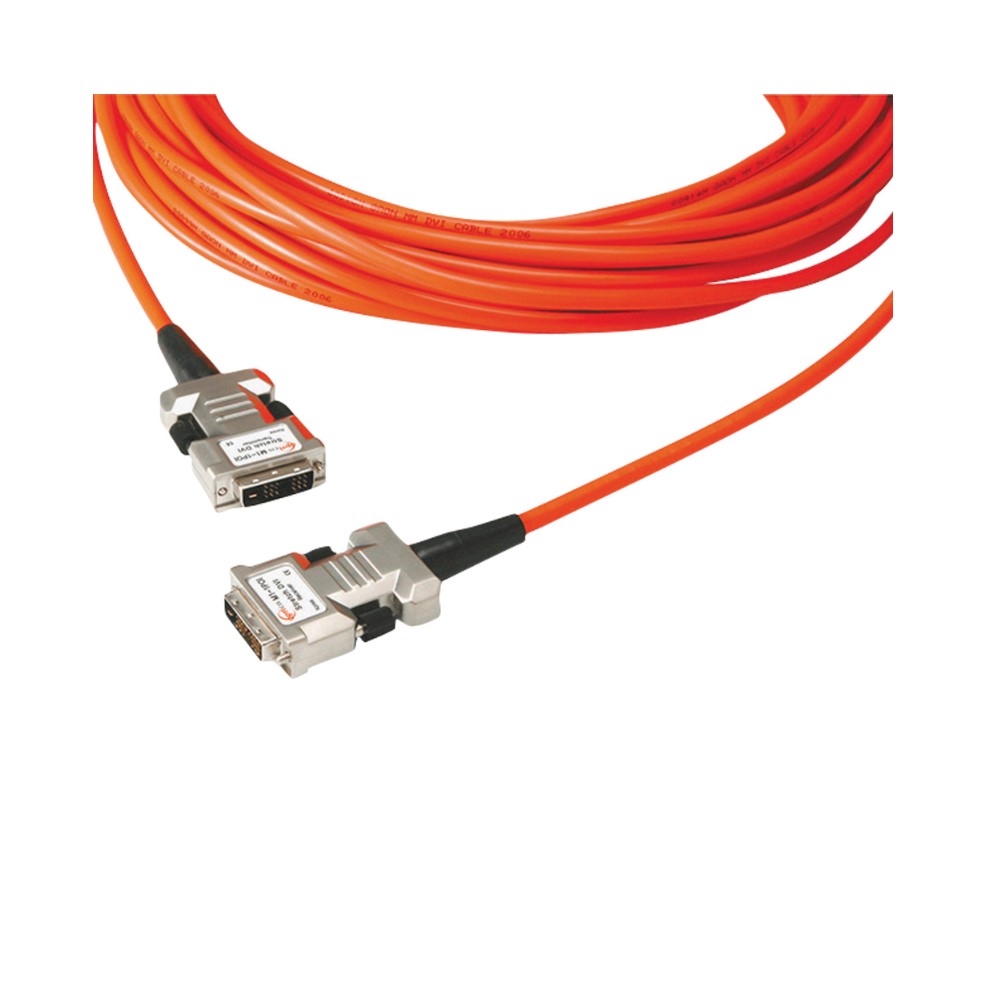

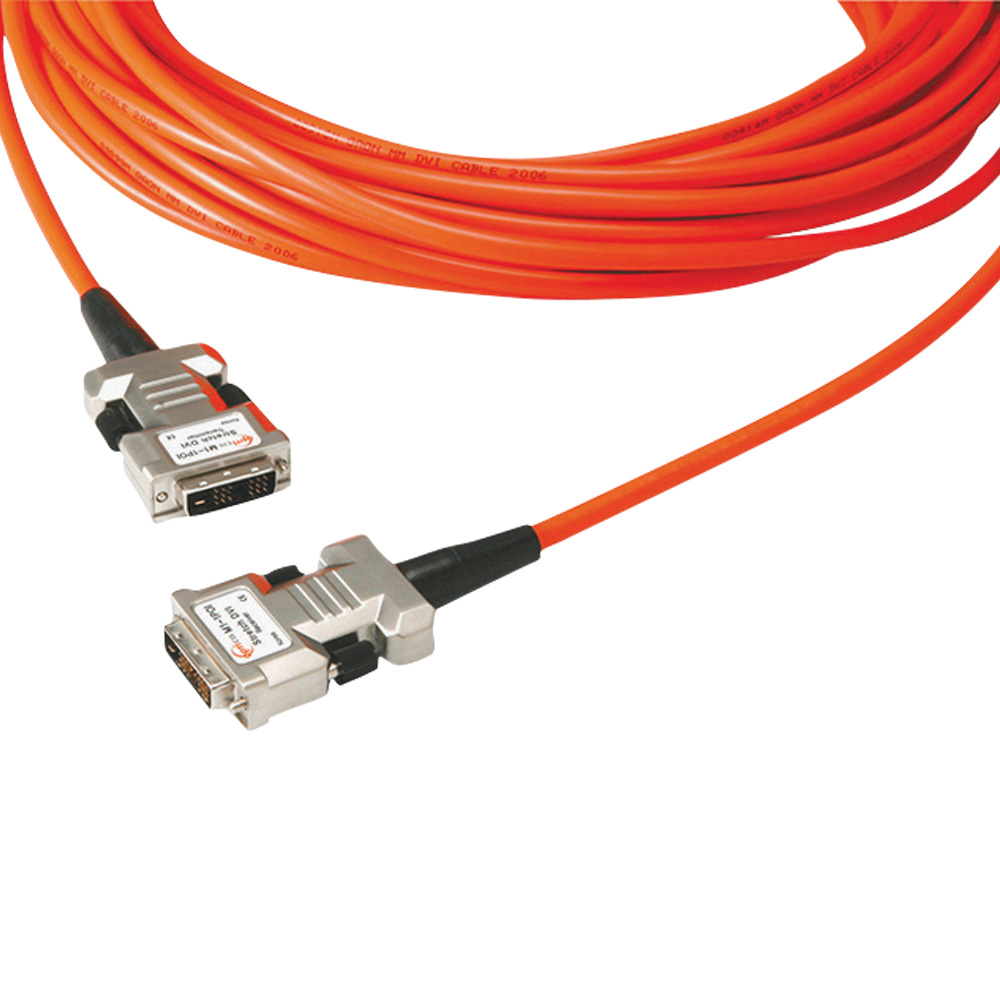

Point-to-Point DVI hybrid cable, M1-1P0E has four (4) multi-mode fibers for TMDS transmission and copper wires for DDC/HDCP in a jacket. It transmits uncompressed 2K resolution at 60Hz or WUXGA (1920×1200) at 60Hz, and 1080p DVI signal up to 100m (328feet). +5V DC power, which can be connected to video source or display, is supplied in a shipping group.
M1-1P0E
DVI Hybrid Cable
Point-to-Point DVI hybrid cable, M1-1P0E has four (4) multi-mode fibers for TMDS transmission and copper wires for DDC/HDCP in a jacket. It transmits uncompressed 2K resolution at 60Hz or WUXGA (1920×1200) at 60Hz, and 1080p DVI signal up to 100m (328feet). +5V DC power, which can be connected to video source or display, is supplied in a shipping group.
PRODUCT SPECIFICATIONS
• Compact design of end connector allows direct connection to the host video card and display
• Auto-power switching
• Adopts LSZH (Low Smoke Zero Halogen) & Halogen-Free Hybrid Cable
• Extends 2K resolution at 60Hz or WUXGA (1920×1200) at 60Hz, and 1080p DVI signal up to 100m (328feet)
• Supports bit rate up to 1.65Gbps/ch
• Operating temperature: 0 ~ 50℃
• Storage temperature: -30 ~ 70℃
• Input power: +5V 1A
• Dimensions (WDH): 39 x 53 x 15.4mm
Product Group

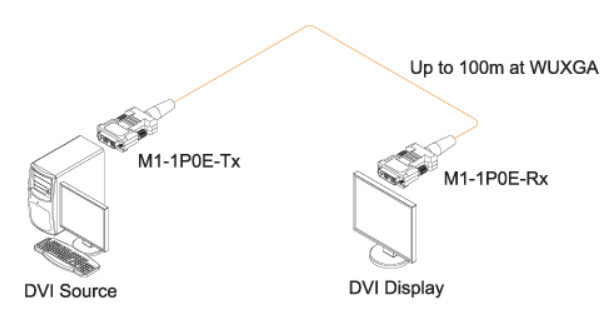

CONNECTION DIAGRAM
