- HDMI 2.0 and DVI 1.0 compatible
- HDCP 2.2 and HDCP 1.x compliant
- Supports resolutions up to 4K@50/60Hz (YUV 4:2:0, 8-bit)
- Supports CEC bypass
- Simultaneous reception of uncompressed video, audio and data over a single 100m Cat.5e/6/7 cable at 1080p and 70m at 4K

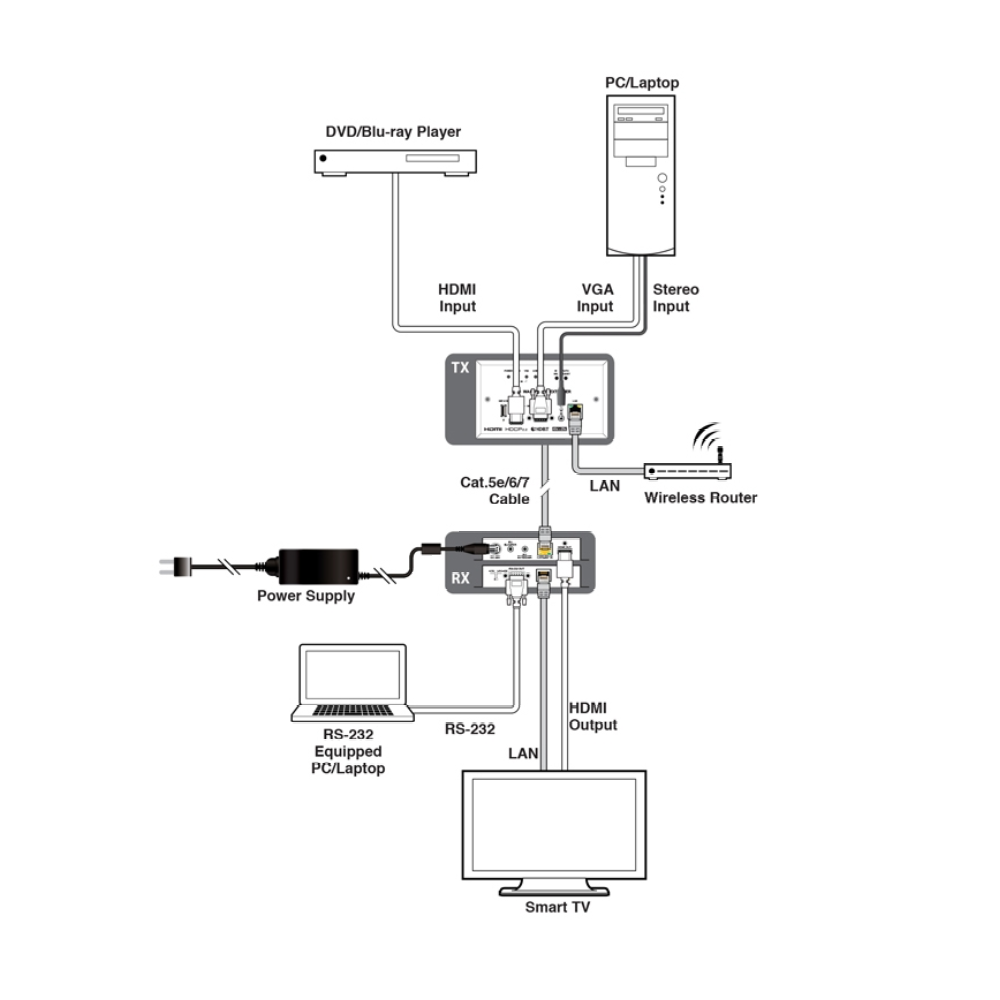

- HDBaseT feature support: HD Video and Audio, 48V PoH, and Control (Ethernet, IR and RS-232 bypass)
- Supports standard 48V PoH from Receiver (PSE) to Transmitter (PD) (compatible Transmitters only)
Notes:
The 48V PoH function is designed to power compatible Transmitter units only. Non-PoH Transmitters will need their own power supply. Other Transmitter brands may not be compatible.
The use of “Premium High Speed HDMI” cables is highly recommended for displaying 3D and 4K content. Compatible display equipment is also required.
- Inputs 1x RJ-45 [1x HDMI & Propriety Data]
- 1x 3.5mm [1x IR2 Infrared Receiver]
- Outputs 1x HDMI [1x Uncompressed AV and Data]
- 1x 3.5mm [1x IR1 Infrared Emitter]
- 1x DE-9 [1x RS-232 Data]
- 1x RJ-45 [1x LAN Serving]
PSU: 48V/0.83A
Dimensions: 128mm [W] x 117mm [D] x 25mm [H]
Net Weight: 370g
