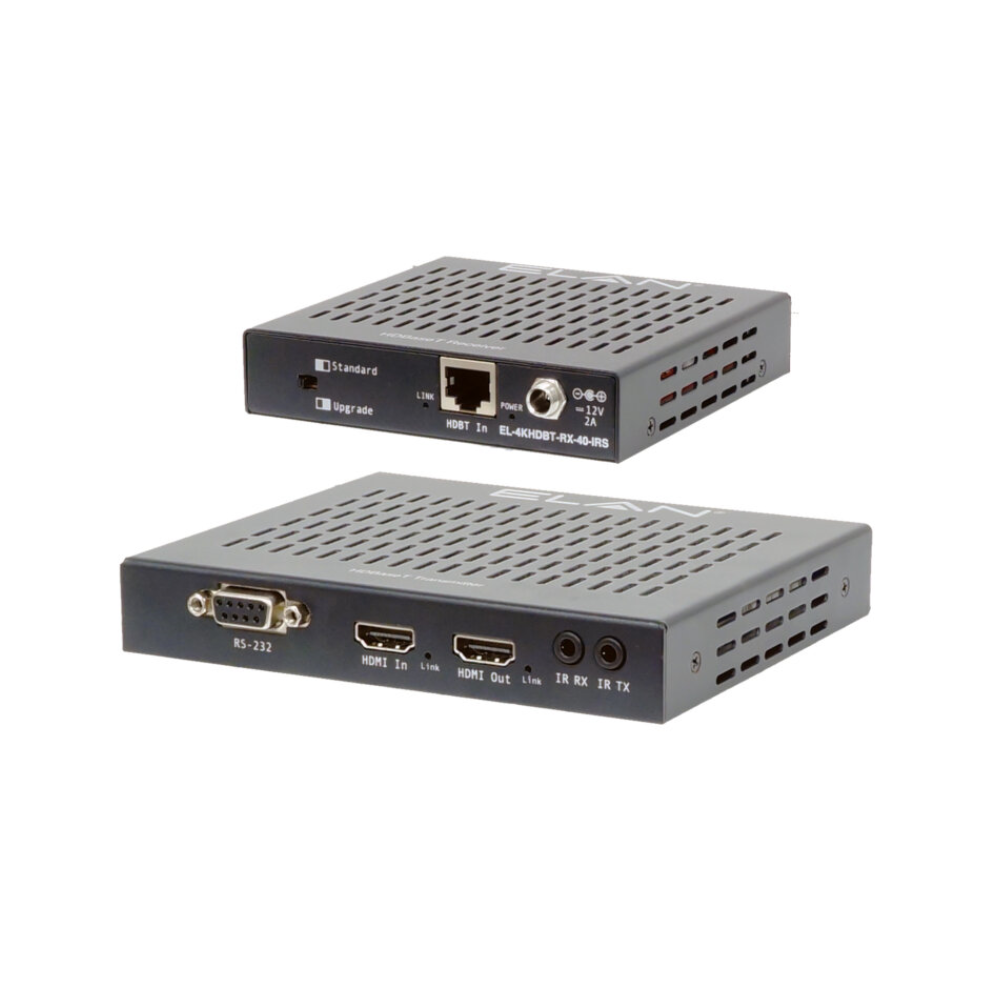

The EL-4KHDBT-KIT-40-IRS 4K HDBaseT extender set offers market leading features and outstanding value. The product extends HDMI, RS-232, Bi-directional IR & RS232 and Bi-directional PoH (PoE) up to lengths of 70m (4K up to 40m). The Transmitter includes a HDMI loop-out for integrating local displays or cascading to multiple devices.
FEATURES
- Advanced HDBaseT technology offering uncompressed video and audio with zero latency
- Extends HDMI 1080p up to a distance of 70m over single CAT cable
- Features 1x HDMI loop-out for integrating local displays or cascading to multiple devices
- Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
- Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
- Supports 3D signal displaySupports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby
- Digital Plus and DTS-HD Master Audio transmission
- Bi-directional RS-232 pass through
- Bi-directional IR from all input and output locations
- Includes 1 x 5v-to-12v IR converter cable for IR Input
- Advanced EDID management HDCP 2.2 compliant
SPECIFICATIONS

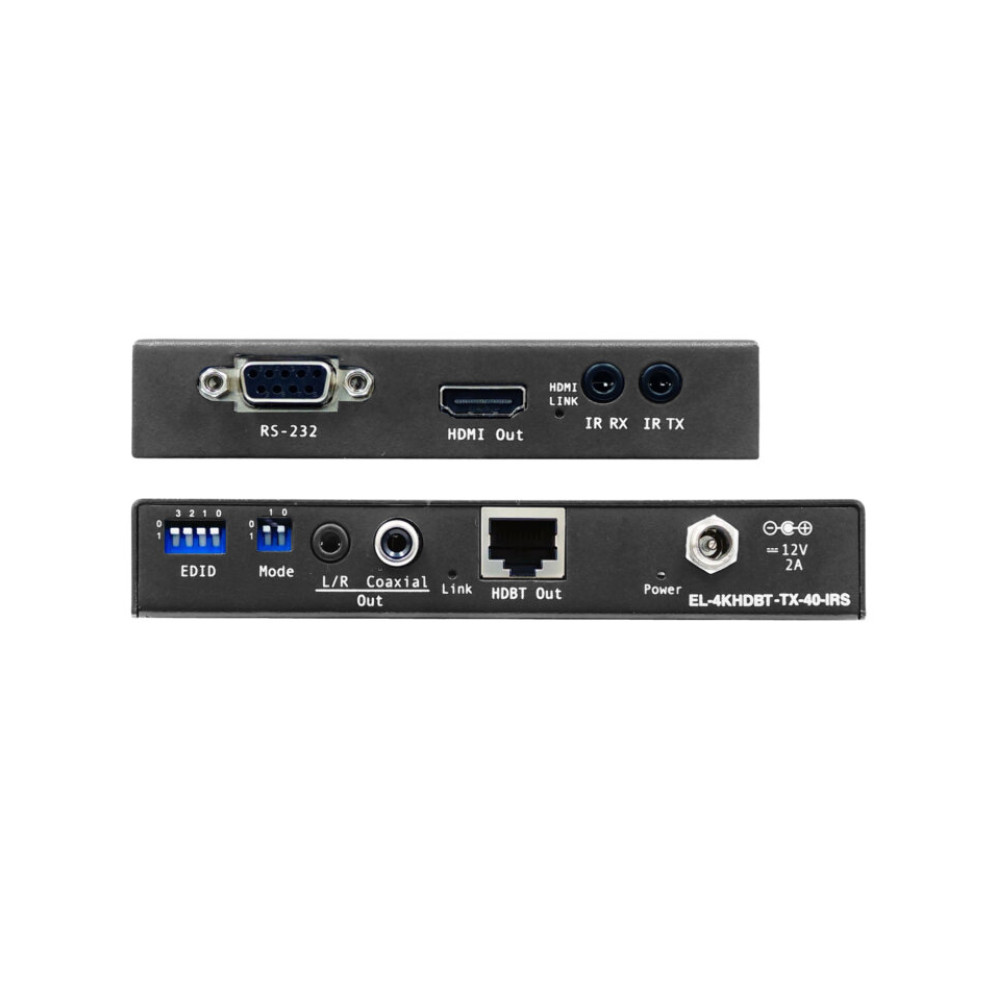

Video Input Connectors:1x HDMI Type A, female
Video Output Connectors:1x HDBaseT RJ45 connector
:1x HDMI Type A, female
RS-232 serial port :1x DB-9 female
IR Input ports :1 x 5v 3.5mm stereo jack
IR Output ports :1 x 5v 3.5mm mono jack

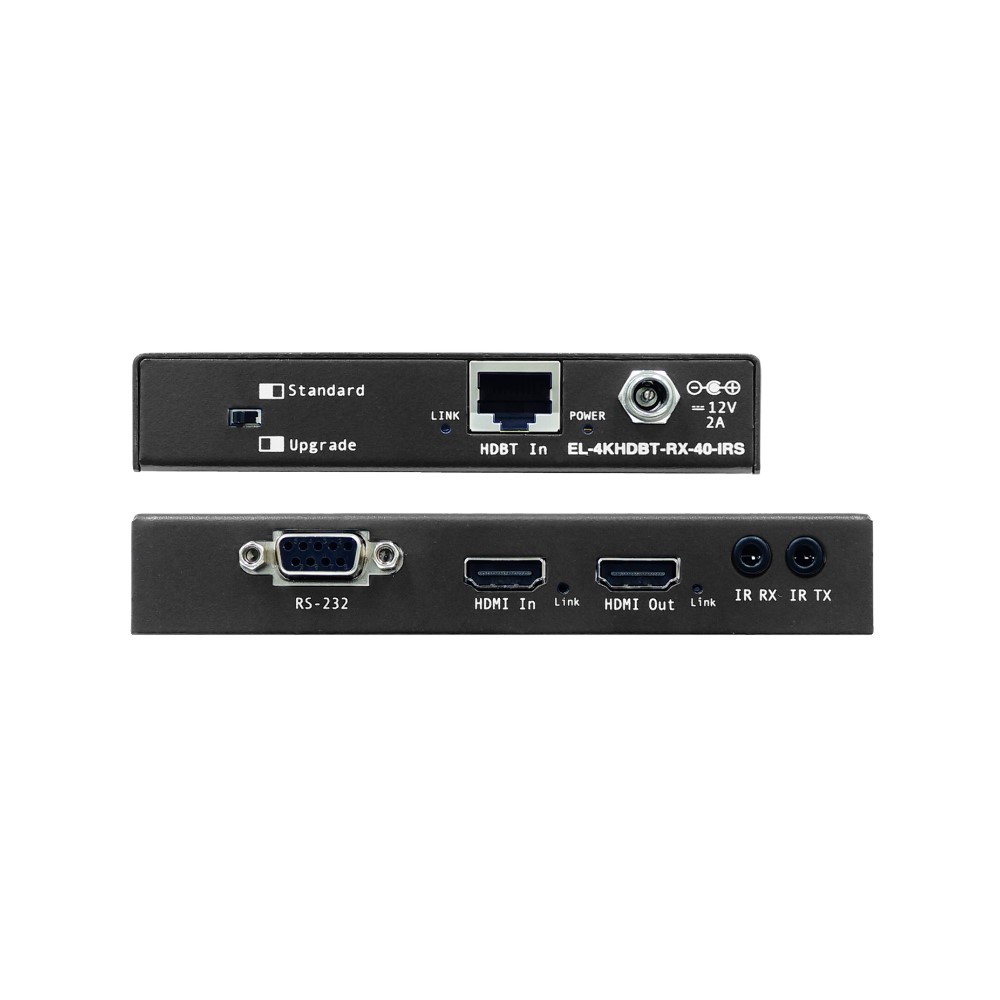

Video Input Connectors :1x HDBaseT RJ45 connector
Video Output Connectors :1x HDMI Type A, female
RS-232 serial port :1x DB-9 female
IR Input :1 x 5v 3.5mm stereo jack
IR Output :1 x 5v 3.5mm mono jack
Mounting kit included
Casing Dimensions (W x D x H) :110mm x 108mm x 22mm (RX)
:139mm x :114mm x 22mm (TX)
Dimensions (W x D x H ) :110mm x 118mm x 22mm (RX)
:139mm x :127mm x 22mm (TX) with connections
Shipping Weight :1.4kg
Operating Temperature :32°F to 104°F (0°C to 40°C)
Storage Temperature :-4°F to 140°F (-20°C to 60°C)
Power Supply :1x 12V/2A DC, screw type connector
Power Consumption :9.5W
OTHER SPECIFICATIONS
Shipping Info
- Length13.2 (Inches)
- Width11.3 (Inches)
- Height2.3 (Inches)
- Weight3.05 (Lbs)
- Unit of MeasureEach
- UPC844039013507
Other Specifications
- Video Input Connectors1x HDMI Type A, female
- Video Output Connectors1x HDBaseT RJ45 connector
- 1x HDMI Type A, female
- RS-232 serial port 1x DB-9 female
- IR Input ports 1 x 5v 3.5mm stereo jack
- IR Output ports 1 x 5v 3.5mm mono jackÂ
- Video Input Connectors 1x HDBaseT RJ45 connector
- Video Output Connectors 1x HDMI Type A, female
- RS-232 serial port 1x DB-9 female
- IR Input 1 x 5v 3.5mm stereo jack
- IR Output 1 x 5v 3.5mm mono jackÂ
- Mounting kit included
- Casing Dimensions (W x D x H) 110mm x 108mm x 22mm (RX)
- 139mm x 114mm x 22mm (TX)
- Dimensions (W x D x H ) 110mm x 118mm x 22mm (RX)
- 139mm x 127mm x 22mm (TX) with connections
- Shipping Weight 1.4kg
- Operating Temperature 32°F to 104°F (0°C to 40°C)
- Storage Temperature -4°F to 140°F (-20°C to 60°C)
- Power Supply 1x 12V/2A DC, screw type connector
- Power Consumption 9.5W
