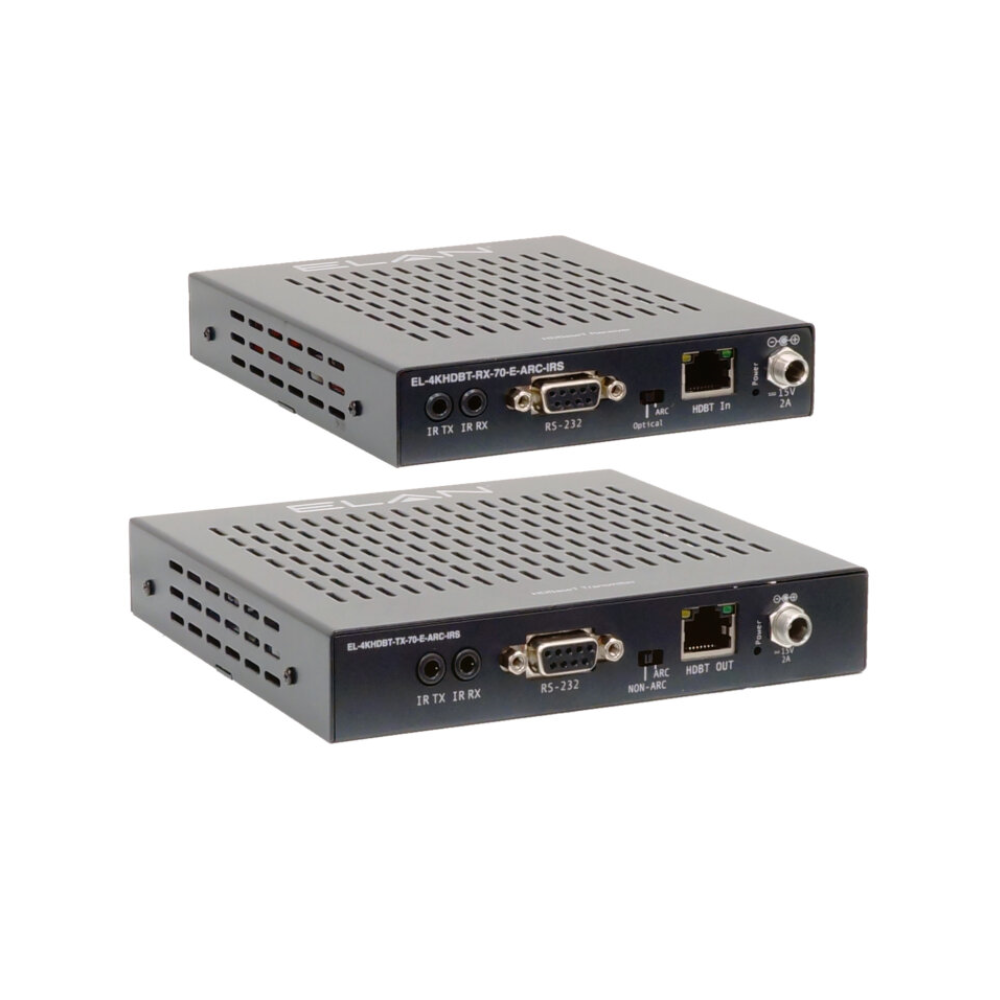

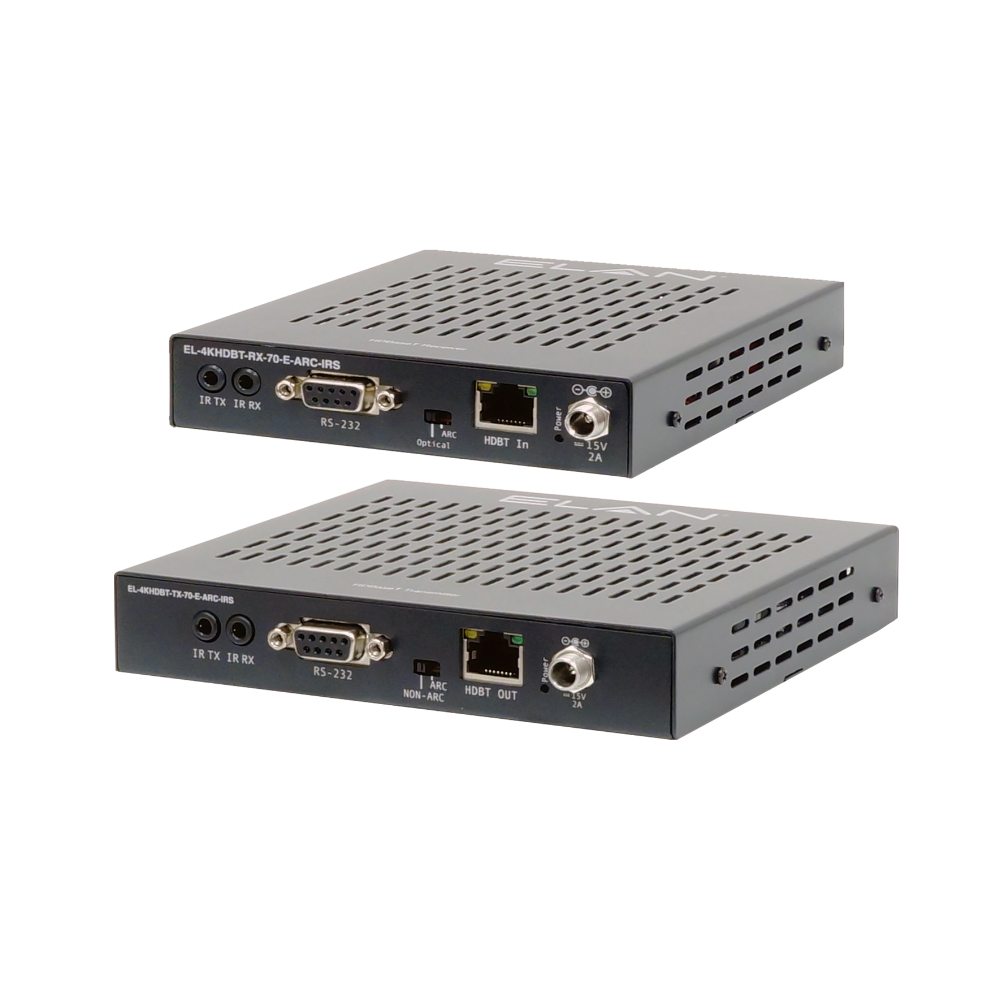

The EL-4KHDBT-KIT-70-E-ARC-IRS extender set is an industry leading 4K HDBaseT solution delivering HDMI with HDCP 2.2 support, Bi-directional IR, RS232 and PoH (PoE) up to lengths of 100m (4K up to 70m) over a single CAT cable. The EL-4KHDBT-KIT-70-E-ARC-IRS also provides enhanced features including HDMI loop-out on the Transmitter, ARC via HDMI or Optical (S/PDIF) and an integrated 3-port Ethernet switch.
FEATURES
- Extends HDMI 1080p up to a distance of 100m over single CAT cable
- Supports 4K UHD video up to 70m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
- Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
- Supports 3D signal display
- Features 1x HDMI loop out for integrating local displays or cascading to multiple devices
- Supports ARC (Audio Return Channel) from display via HDMI and Optical digital inputs
- Supports audio return to HDMI, Optical digital and analog L/R audio outputs (DAC supports 2CH PCM only)
- Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
- Integrated 3-port Ethernet switch (LAN Serving)Bi-directional RS-232 pass through
- Bi-directional IR from all input and output locations
- Includes 1 x 5v-to-12v IR converter cable for IR Input
- Bi-directional PoH (Power over HDBaseT) to power extenders from either transmitter or receiver endHDCP 2.2 compliant
SPECIFICATIONS

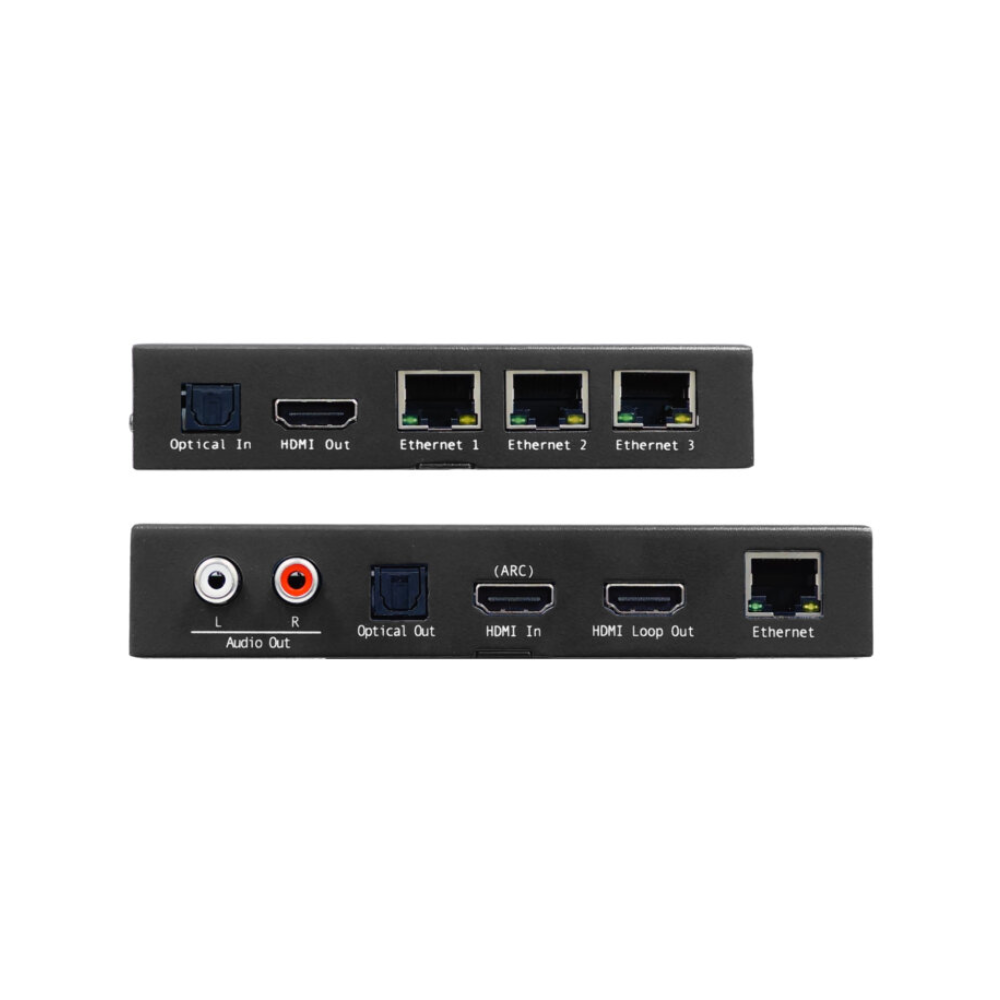

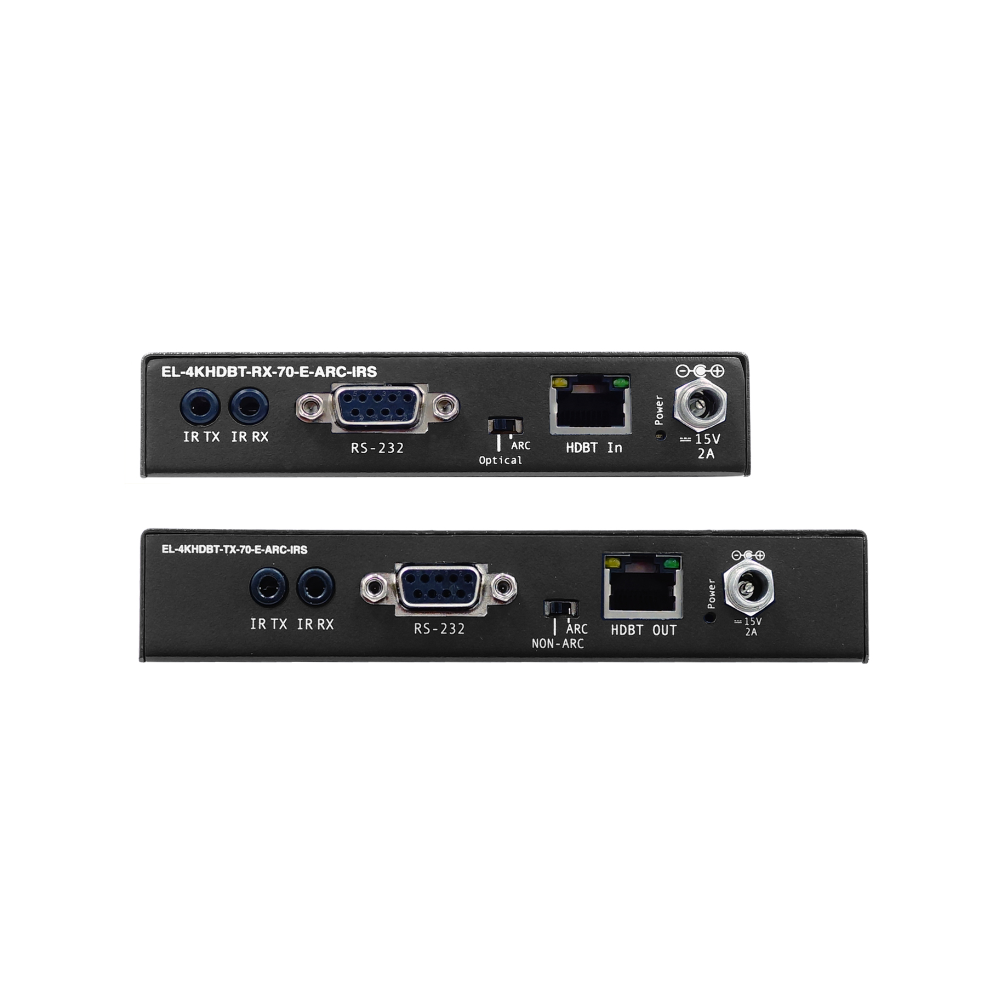

Video Input Connectors :1x HDMI Type A, female
Video Output Connectors :1x HDBaseT RJ45 connector, 1x HDMI Type A, female
Audio Output Connectors :2x RCA (L/R), 1x Optical (SPDIF)
Ethernet port :1x RJ45 connector,
RS-232 serial port :1x DB-9 female
IR Input ports :1 x 5v 3.5mm stereo jack
IR Output ports :1 x 5v 3.5mm mono jack
Rack-Mountable :2x mounting bracket
Video Input Connectors :1x HDBaseT RJ45 connector
Video Output Connectors :1x HDMI Type A, female
Audio Input Connectors :1x Toslink
Ethernet port :3x RJ-45 connector
RS-232 serial port :1x DB-9 female
IR Input ports :1 x 5v 3.5mm stereo jack
IR Output ports :1 x 5v 3.5mm mono jack
Mounting kit included
Casing Dimensions (W x D x H ) :114mm x 135mm x 24mm (RX)
:143mm x 135mm x 25mm (TX)
Dimensions including connections (W x D x H ) :114mm x 139mm x 24mm (RX)
:143mm x 140mm x 25mm (TX) with connections
Shipping Weight :1.4kg
Operating Temperature :32°F to 104°F (0°C to 40°C)
Storage Temperature :-4°F to 140°F (-20°C to 60°C)
Power Supply :1x 15V/2A DC, screw connector
OTHER SPECIFICATIONS
Shipping Info
- Length13.3 (Inches)
- Width11.4 (Inches)
- Height2.3 (Inches)
- Weight1.54 (Lbs)
- Unit of MeasureEach
- UPC844039013514
Other Specifications
- Video Input Connectors 1x HDMI Type A, female
- Video Output Connectors 1x HDBaseT RJ45 connector, 1x HDMI Type A, female
- Audio Output Connectors 2x RCA (L/R), 1x Optical (SPDIF)
- Ethernet port 1x RJ45 connector,
- RS-232 serial port 1x DB-9 female
- IR Input ports 1 x 5v 3.5mm stereo jack
- IR Output ports 1 x 5v 3.5mm mono jack
- Rack-Mountable 2x mounting bracketÂ
- Video Input Connectors 1x HDBaseT RJ45 connector
- Video Output Connectors 1x HDMI Type A, female
- Audio Input Connectors 1x Toslink
- Ethernet port 3x RJ-45 connector
- RS-232 serial port 1x DB-9 female
- IR Input ports 1 x 5v 3.5mm stereo jack
- IR Output ports 1 x 5v 3.5mm mono jackÂ
- Mounting kit included
- Casing Dimensions (W x D x H ) 114mm x 135mm x 24mm (RX)
- 143mm x 135mm x 25mm (TX)
- Dimensions including connections (W x D x H ) 114mm x 139mm x 24mm (RX)
- 143mm x 140mm x 25mm (TX) with connections
- Shipping Weight 1.4kg
- Operating Temperature 32°F to 104°F (0°C to 40°C)
- Storage Temperature -4°F to 140°F (-20°C to 60°C)
- Power Supply 1x 15V/2A DC, screw connector
