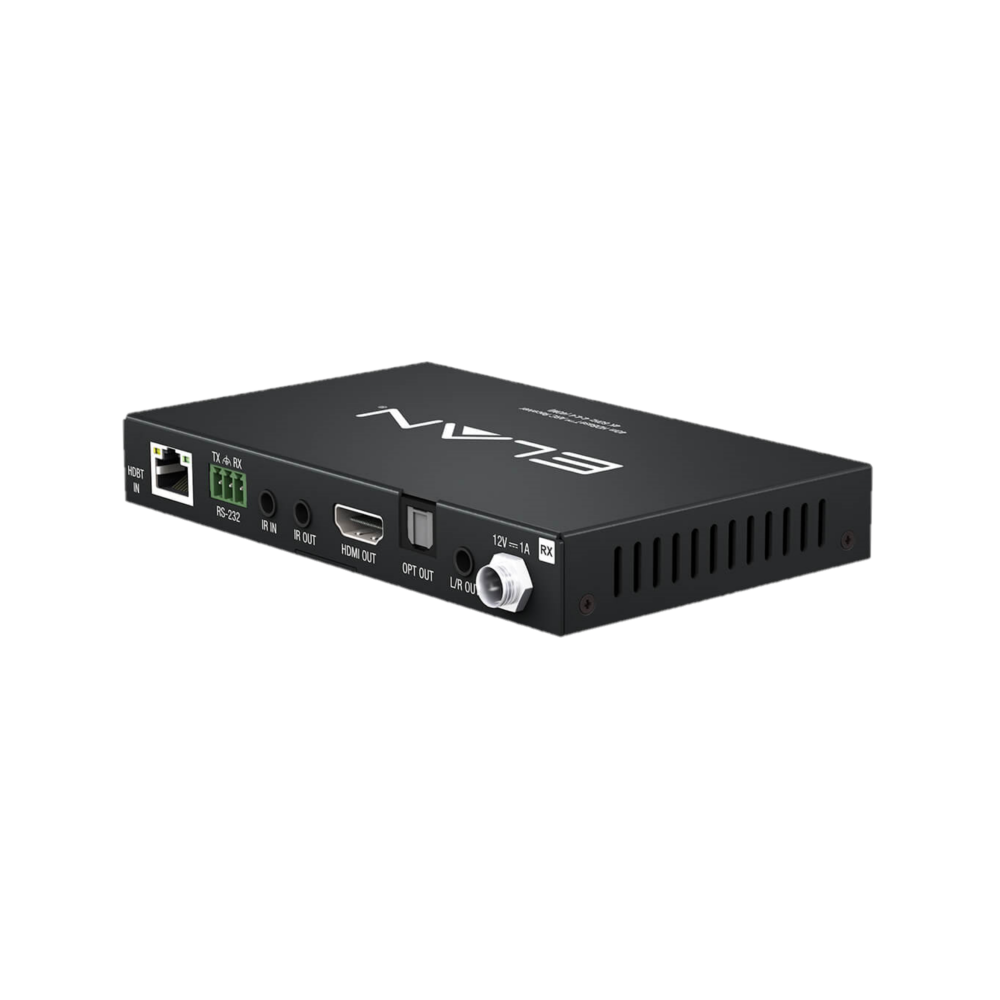

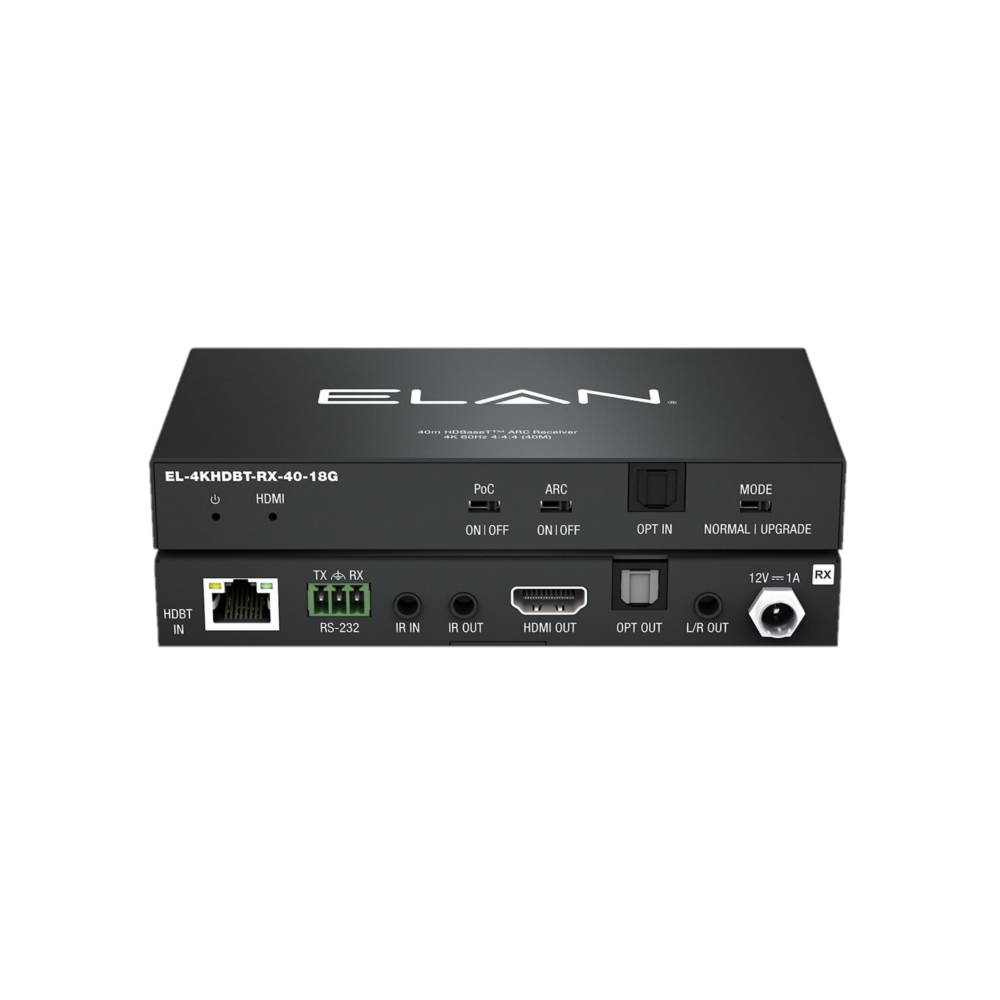

Video Input Connectors: 1 x HDBaseT RJ45 connector
Video Output Connectors: 1 x HDMI Type A, female
RS-232 Input Port: 1 x 3-pin Phoenix connector
IR Input Port: 1 x 3.5mm stereo jack
IR Output Port: 1 x 3.5mm mono jack
Audio Input/Output Ports: Optical in, Optical out, Analog L/R out Mounting Kit included
Casing Dimensions (W x H x D): 140 x 84 x 18mm
Dimensions Including Connections (W x H x D): 140 x 98 x 18mm
Power Supply:12V/1A DC, screw type connector (not included)
Shipping Weight:0.5Kg
Operating Temperature:23°F to 131°F (-5°C to +55°C)
Storage Temperature:-13°F to 158°F (-25°C to +70°C)
Package Contents:
- 1 x EL-4KHDBT-RX-40-18G
- 1 x Mounting Bracket Set
- 1 x Quick Reference Guide
