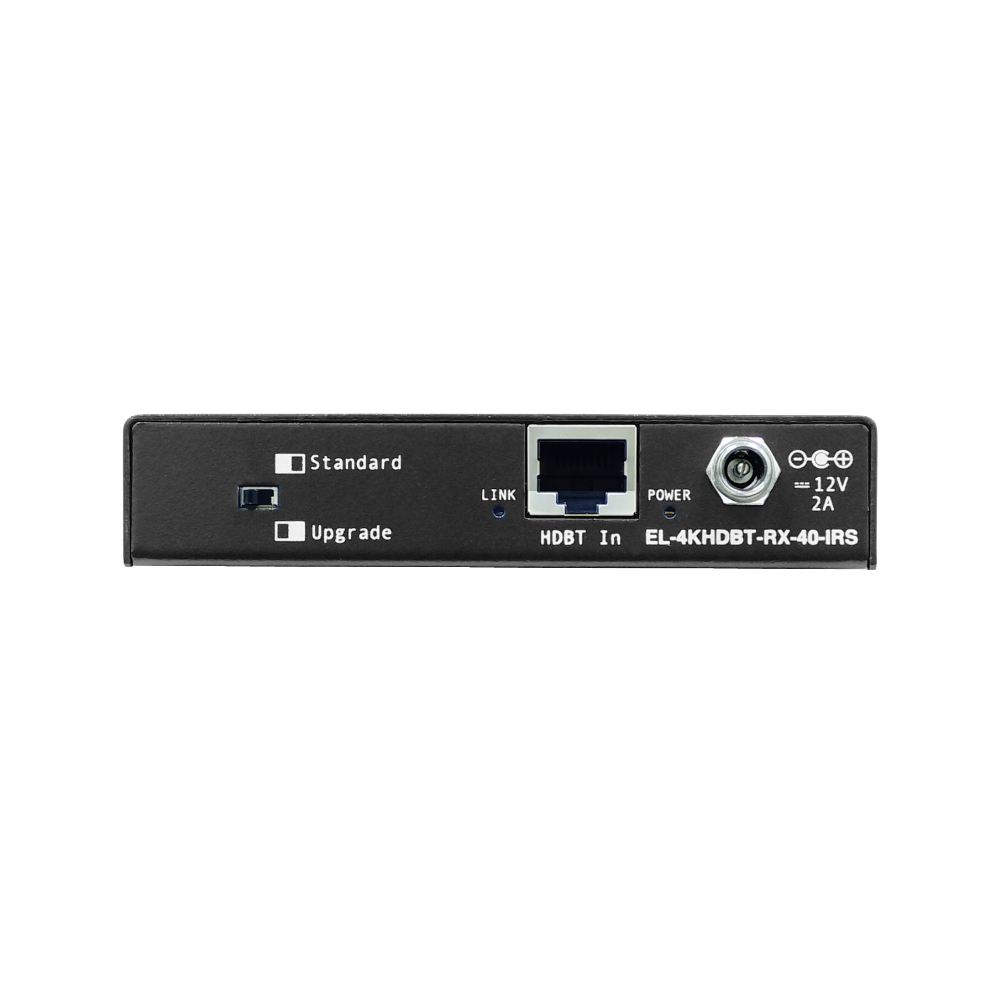

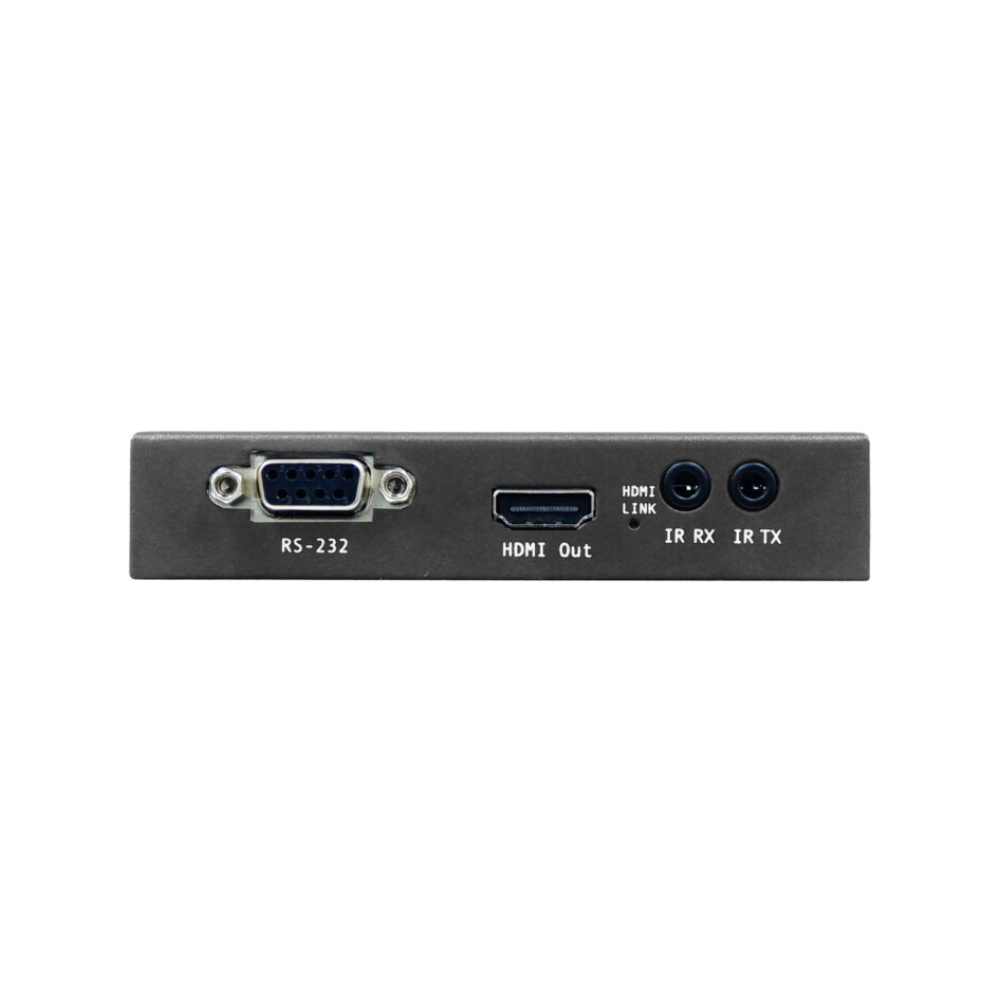

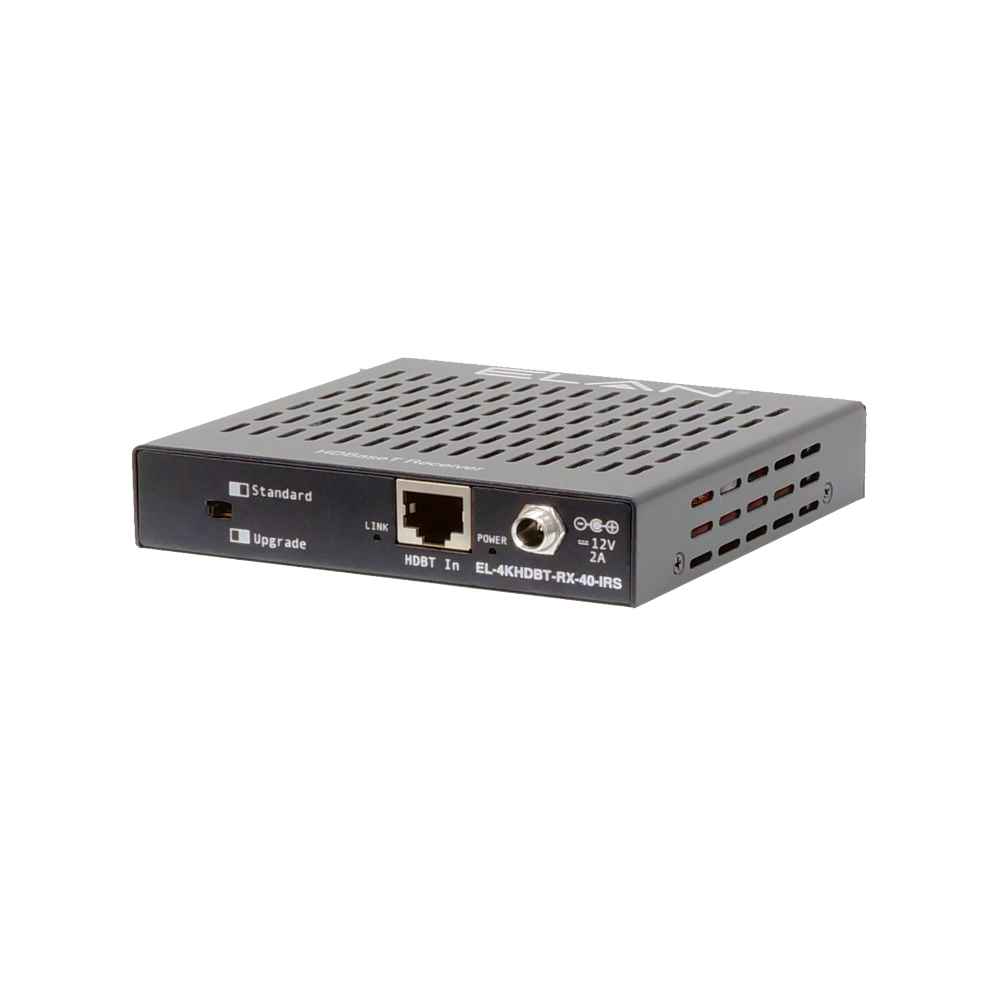

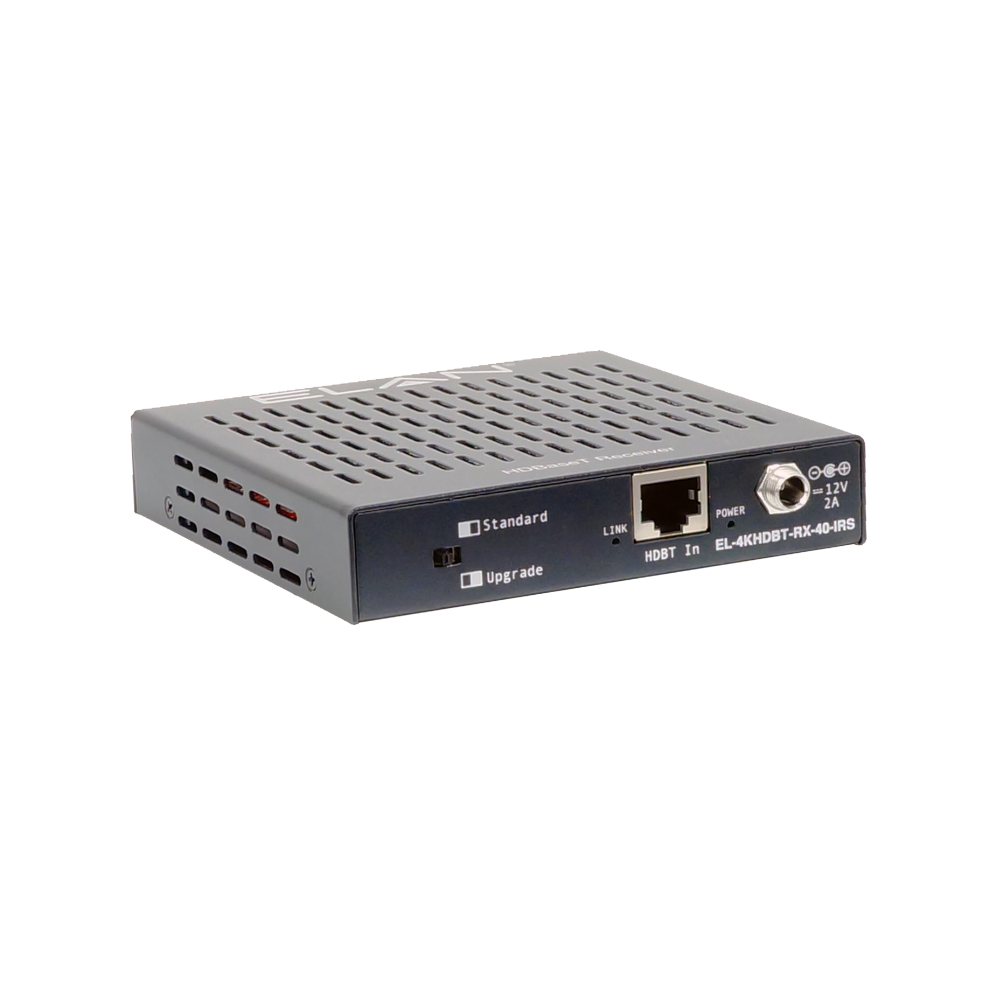

The EL-4KHDBT-RX-40-IRS 4K HDBaseT receiver offers market leading features and outstanding value. The product receives HDMI, RS-232, Bi-directional IR and Bi-directional PoH (PoE) up to lengths of 70m (4K up to 40m).
FEATURES
- Extends HDMI 1080p up to a distance of 70m over single CAT cable
- Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
- Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
- Supports 3D signal displaySupports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
- Bi-directional PoH (Power over HDBaseT) to power extenders from either Nice/ELAN Matrix products or receiver ends
- Bi-directional RS-232 pass throughB-directional IR from all input and output locations
- HDCP 2.2 compliant
SPECIFICATIONS
Video input :1x HDBaseT RJ45 connector
Video output :1x HDMI Type A, 19-pin, female
IR input :1x5v 3.5mm stereo jack
IR output :1x5v 3.5mm mono jack
RS-232 serial port :1x DB-9 female
Power Supply :12V/2A DC, screw type connector
Power Consumption :9.5W
Casing Dimensions (W x D x H) :110mm x 108mm x 22mm
Dimensions (W x D x H) :110mm x 118mm x 22mm with connections
Shipping Weight :0.5kg
Operating Temperature :32°F to 104°F (0°C to 40°C)
Storage Temperature :-4°F to 140°F (-20°C to 60°C)
Mounting kit included
OTHER SPECIFICATIONS
Shipping Info
- Length7.4 (Inches)
- Width6.3 (Inches)
- Height1.8 (Inches)
- Weight0.46 (Lbs)
- Unit of MeasureEach
- UPC844039013491
Other Specifications
- Video input 1x HDBaseT RJ45 connector
- Video output 1x HDMI Type A, 19-pin, female
- IR input 1x5v 3.5mm stereo jack
- IR output 1x5v 3.5mm mono jack
- RS-232 serial port 1x DB-9 female
- Power Supply 12V/2A DC, screw type connector
- Power Consumption 9.5W
- Casing Dimensions (W x D x H) 110mm x 108mm x 22mm
- Dimensions (W x D x H) 110mm x 118mm x 22mm with connections
- Shipping Weight 0.5kg
- Operating Temperature 32°F to 104°F (0°C to 40°C)
- Storage Temperature -4°F to 140°F (-20°C to 60°C)
- Mounting kit included
