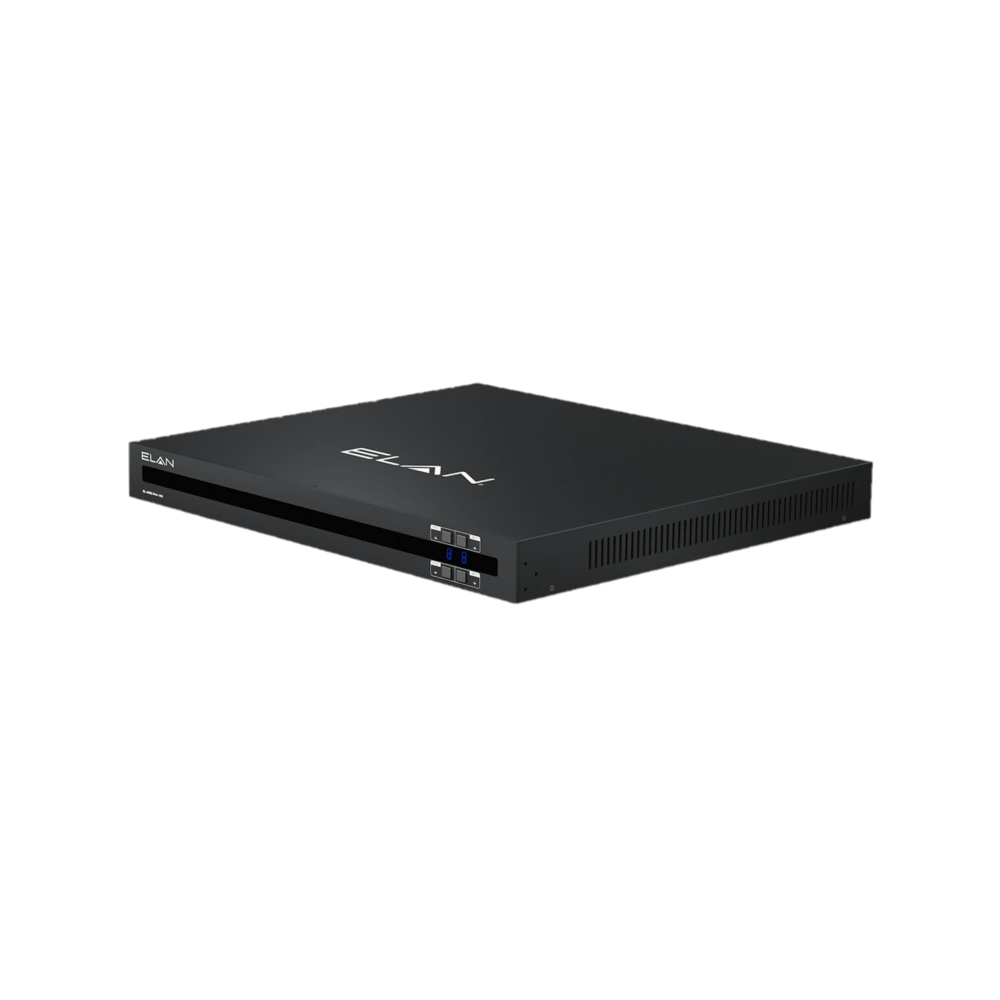

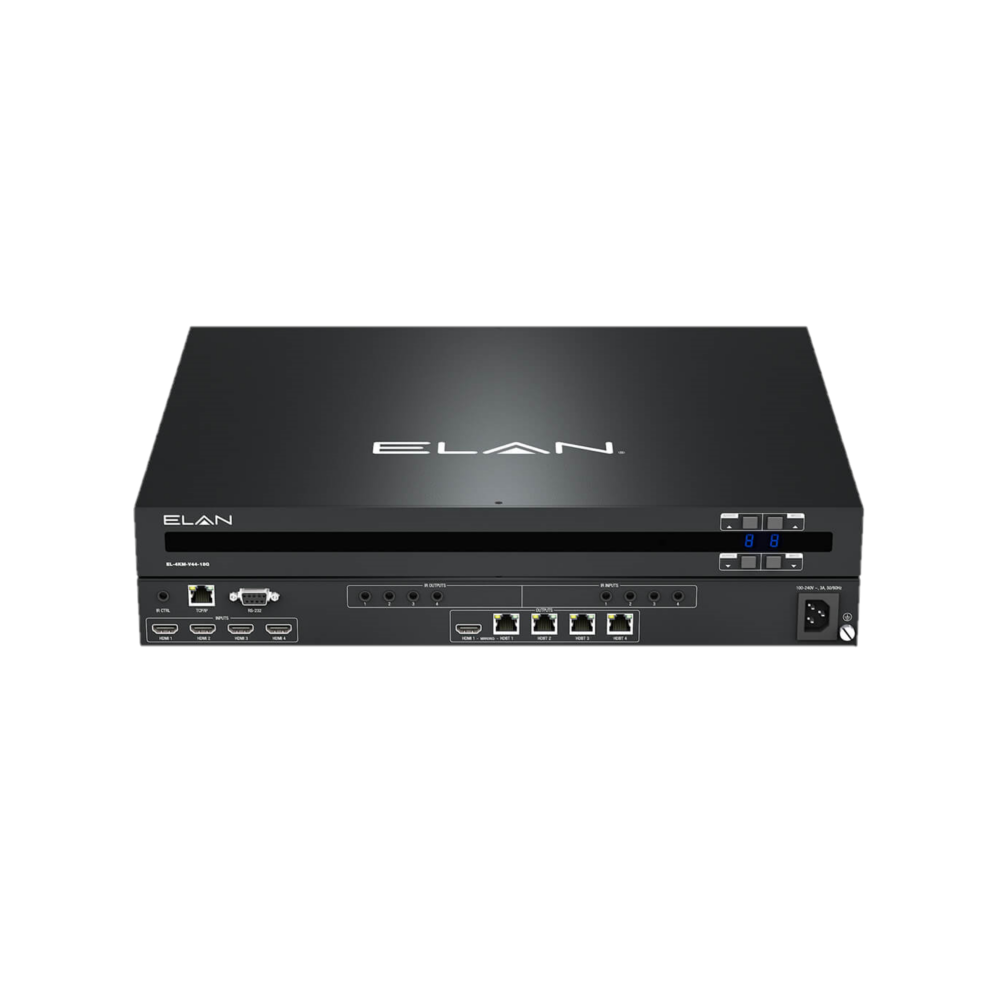

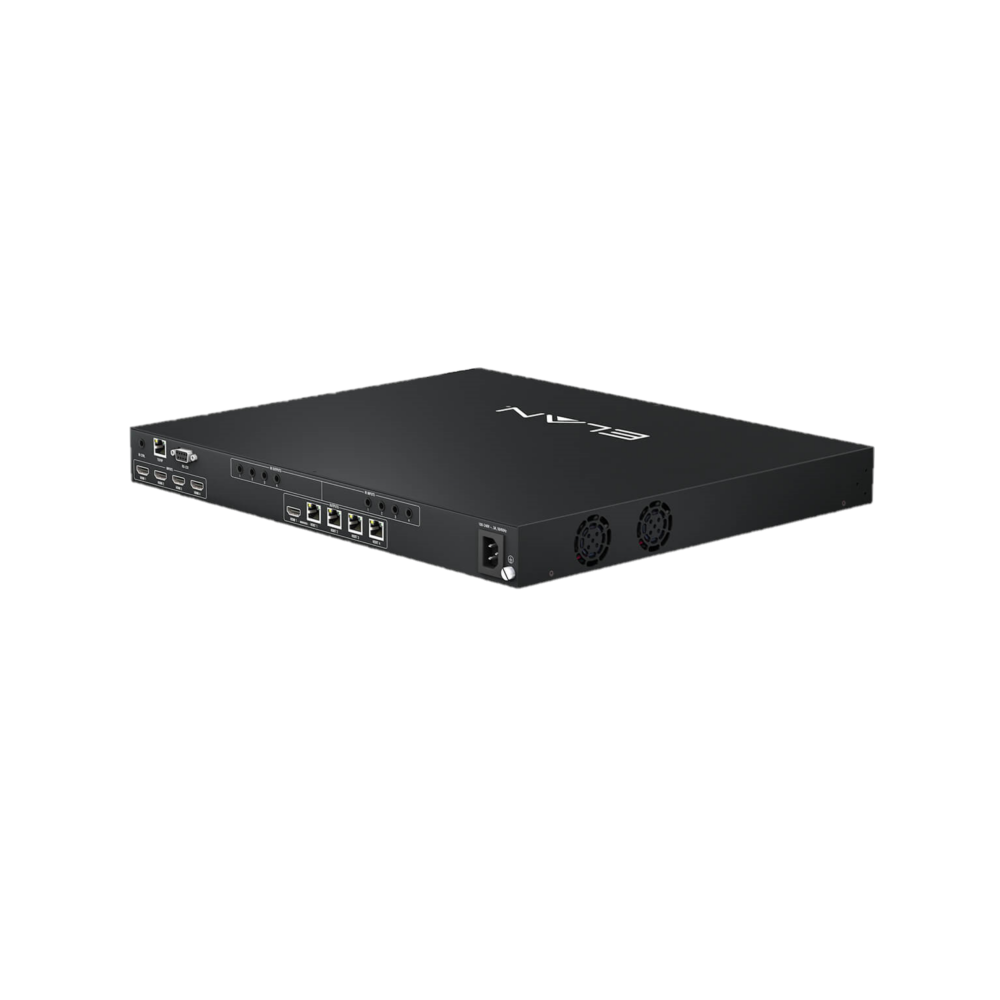

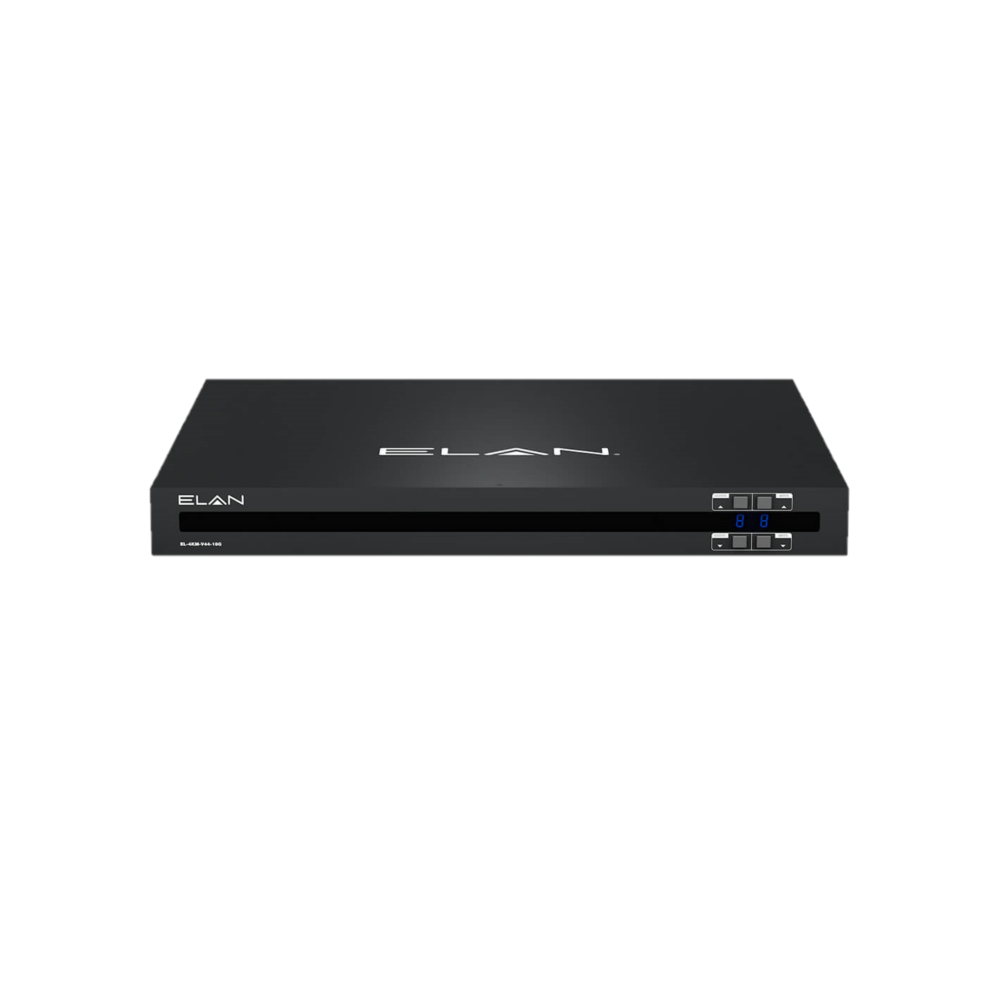

The Nice/ELAN® 4×4 HDBaseT matrix offers unprecedented performance and value for the custom installation market. The EL-4KM-V44-18G is a HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.2 matrix utilizing CSC technology to deliver HDMI, bi-directional IR and PoC up to lengths of 70m over a single CAT cable. The matrix also provides advanced features including simultaneous HDBaseT / HDMI on output 1, video down conversion on HDBaseT outputs and a web browser interface module for control and configuration of the matrix.
SPECIFICATIONS
Video Input Connectors: 4 x HDMI Type A, 19-pin, female
Video Output Connectors: 1 x HDMI Type A, 19-pin, female, 4 x HDBaseT™ RJ45 connectors
RS-232 Serial Port:1 x 3-pin Phoenix connector
IR Input Ports: 5 x 3.5mm stereo jack
IR Output Ports: 4 x 3.5mm mono jack
Rack Mountable:1U rack height, rack ears included
Casing Dimensions (W x H x D):437mm x 44mm x 377mm (without feet)
Dimensions (W x H x D): 437mm x 53mm x 384mm Shipping
Weight: 6.25kg
Operating Temperature: 32°F to 104°F (-5°C to +55°C)
Storage Temperature: -4°F to 140°F (-25°C to +70°C)
Power Supply: Internal 100-240V AC 3A HDBT
Power Output: 12V DC 0.8A Per Port
Package Contents:
• 1 x EL-4KM-V44-18G
• 1 x Rack mounting kit
• 1 x Remote control
• 4 x IR emitters
• 5 x IR receivers
• 1 x RS-232 control cable
• 1 x IR control cable – 3.5mm-3.5mm cable
• 1 x Quick Reference Guide
• 4 x IEC Power cables (US, UK, EU & AU)
