• Supports video transmission over IP up to 330ft/100m
• Supports IP switch/hub/router
• Supports High Definition resolutions up to 1080P@60Hz
• Supports up to 7.1 channels LPCM, Dolby Digital, and DTS 5.1 Audio)
• Supports unidirectional wideband IR control from display to source
• DC 5V power supply
• Compact design for an easy and flexible installation
Technical
HDMI Compliance
HDMI 1.3b
HDCP Compliance
HDCP 1.4
Video Bandwidth
6.75 Gbps
Video Resolutions
up to 1080P@60Hz
Color Space
RGB, YCbCr 4:4:4, YCbCr 4:2:2
Color Depth
10-bit, 12-bit
Audio Formats
PCM 2CH, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital+
ESD Protection
Human body model — ±8kV (air-gap discharge) & ±4kV (contact discharge)

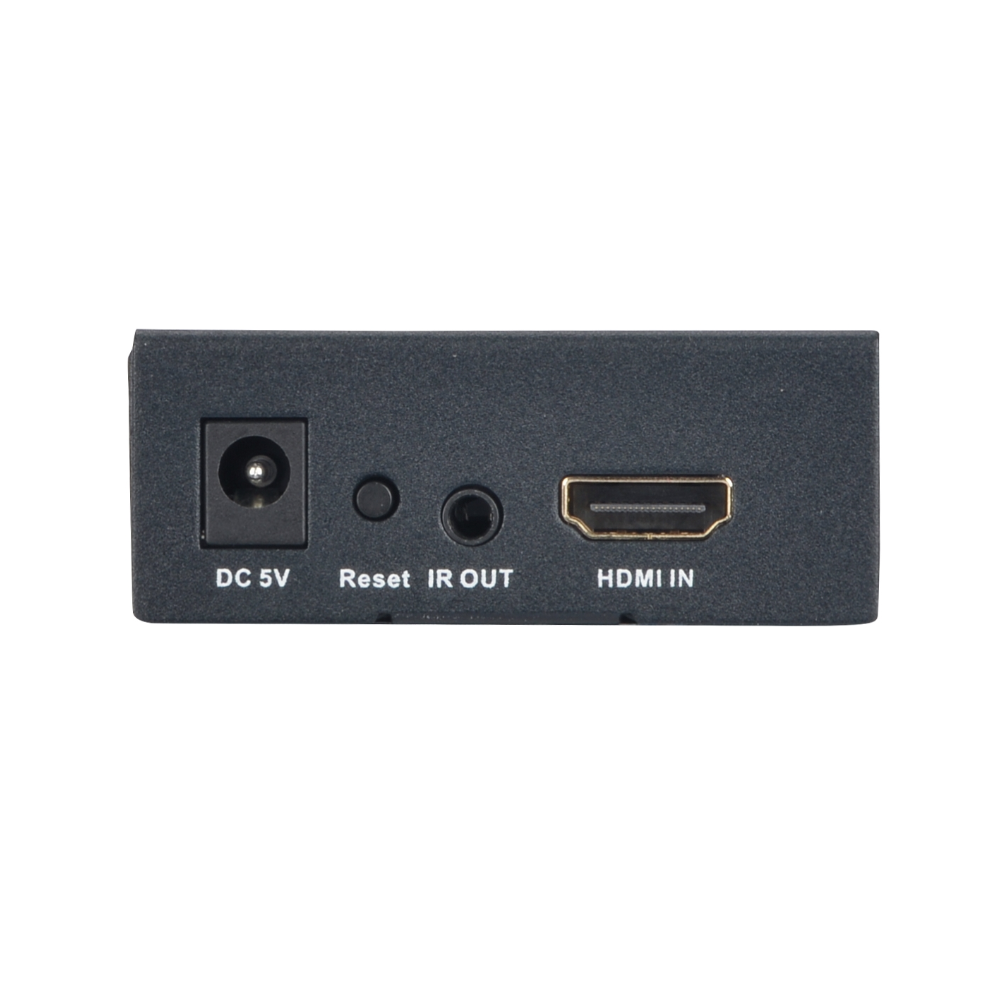

Connections
Inputs
TX:
1x HDMI Type A [19-pin female]
RX:
1x RJ45 [HDMI & Propriety Data]
1x 3.5mm Stereo Mini-jack [Infrared Receiver]

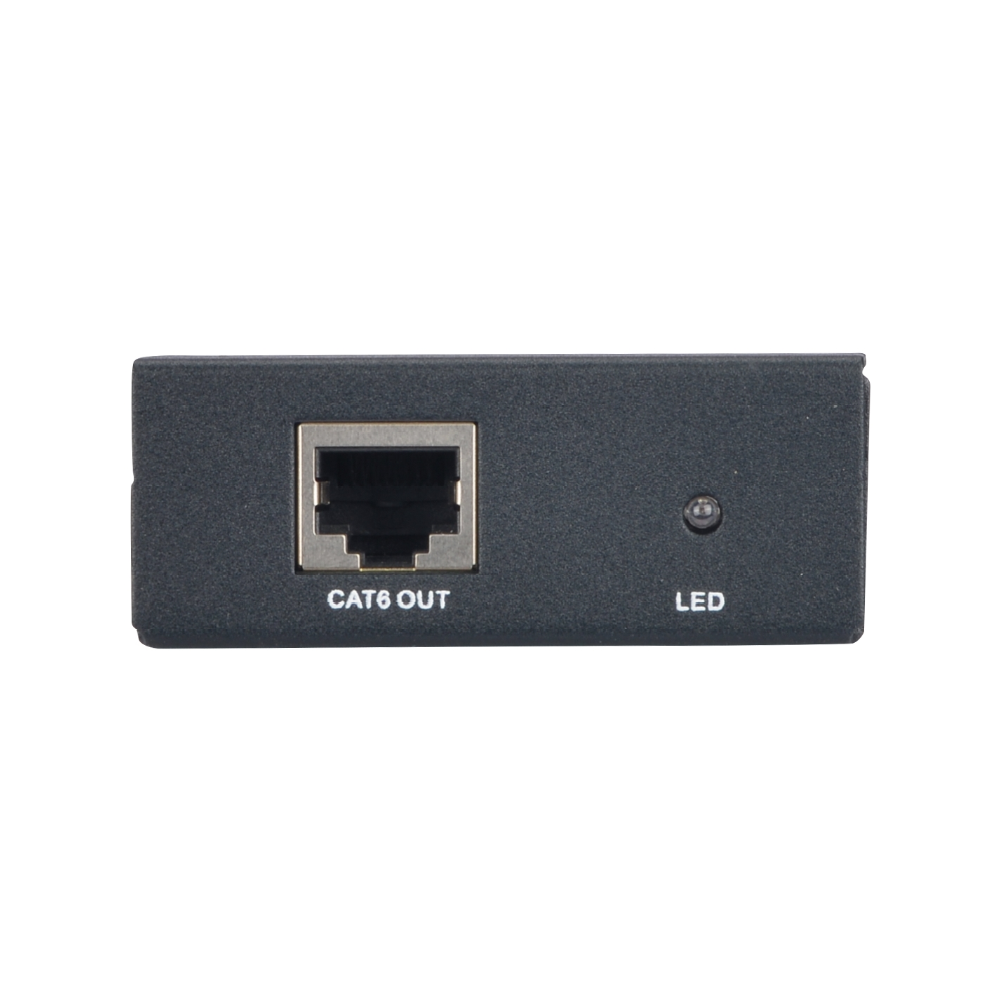

Outputs
TX:
1x RJ45 [HDMI & Propriety Data]
1x 3.5mm Stereo Mini-jack [Infrared Emitter]
RX:
1x HDMI Type A [19-pin female]
Mechanical
Housing
Metal Enclosure
Dimensions
TX/RX: 65mm [W] x 100mm [D] x 25mm [H]
Net Weight
TX/RX: 300g
Power Supply
Input: AC100 – 240V 50/60Hz
Output: DC 5V/1A (US/EU standards, CE/FCC/UL certified)
Power Consumption (Max)
TX: 2W RX: 2.5W
Operation Temperature
32 – 104°F / 0 – 40°C
Storage temperature
-4 – 140°F / -20 – 60°C
Relative Humidity
20 – 90% RH (no condensation)
