The Gefen EXT-UHDV-HBTLS-TX is a high-performance solution in a compact easy-to-install enclosure for switching 4K Ultra HD HDMI and VGA inputs, and extending them up to 70 meters (230 feet) at 1080p and 40 meters (130 feet) at 4K, over a single CAT-5e cable. Switching between the HDMI and VGA can be set to Automatic or be done manually via the front panel button or RS-232. Its HDMI input supports 18 Gbps of data and 600 MHz TMDS Clock frequency, accepting full spec HDMI 2.0 to 4K Ultra HD (3860 x 2160) and 4K Cinema-DCI (4096 x 2160), at 60 Hz 4:4:4 with HDCP 2.2 and 1.4. The HDBaseT extension system supports 10.2 Gbps of data throughput and 300 MHz TMDS Clock frequency, and resolution/timing up to 4K 30 Hz 4:4:4. It uses Gefen’s implementation of the HDBaseT technology with enhancements including Advanced EDID Management. Highest performance multichannel digital audio including 7.1 channels of LPCM and HBR (High Bit Rate) digital audio formats, such as Dolby Atmos®, Dolby® TrueHD, DTS:X, and DTS-HD Master Audio are passed through from the HDMI input to output. The VGA input features a companion L/R analog audio input, and accepts VESA and CEA resolutions up to WUXGA (1920 x 1200 to 60 Hz, 4:4:4) and 1080p Full HD (1920 x 1080 at 60 Hz, 4:4:4). A powerful built-in scaler can(more…)
FEATURES
- HDMI Input supports 600 MHz TMDS Clock and data throughput of up to 18 Gbps: 4K Ultra HD (3840 x 2160) or 4K Cinema-DCI (4096 x 2160) up to 60 Hz, 4:4:4
- HDBaseT extension supports 300 MHz TMDS Clock and data throughput of up to 10.2 Gbps
- Automatic switching of 4K HDMI and VGA
- Manual switching of 4K HDMI and VGA via front panel button or RS-232
- VGA scaling up to 1920 x 1200 with picture adjustments
- Extend HDMI, VGA with analog audio, and RS-232 over a single CAT-5e:
- 4K Ultra HD (3840 x 2160 @ 30 Hz, 4:4:4), up to 130 feet/40 meters (8-bit color)
- 4K Cinema-DCI (4096 x 2160 @ 24 or 30 Hz 4:4:4), up to 130 feet/40 meters (8-bit color)
- 1080p Full HD (60 Hz) or WUXGA (1920×1200 @ 60 Hz), up to 230 feet/70 meters (up to 12-bit Deep Color)
- HDMI Features Supported:
- HDMI 2.0
- HDCP 2.2 and 1.4
- 12-bit Deep Color (at 1080p)
- LPCM 7.1, Dolby Atmos®, Dolby® TrueHD, DTS:X, and DTS-HD Master Audio pass-through
- 3DTV pass-through
- CEC pass-through
- Lip Sync pass-through
- Analog L/R audio input for VGA
- RS-232 control of switching, scaler, and EDID management functions
- Bi-Directional R(more…)
SPECIFICATIONS
- Recommended Receiver: EXT-UHDA-HBTL-RX
- Maximum TMDS Clock: HDMI Input: 600 MHz
- : Extension System: 300 MHz
- Total Signal Bandwidth/Data Rate:
HDMI Input: 18 Gbps - : Extension System: 10.2 Gbps

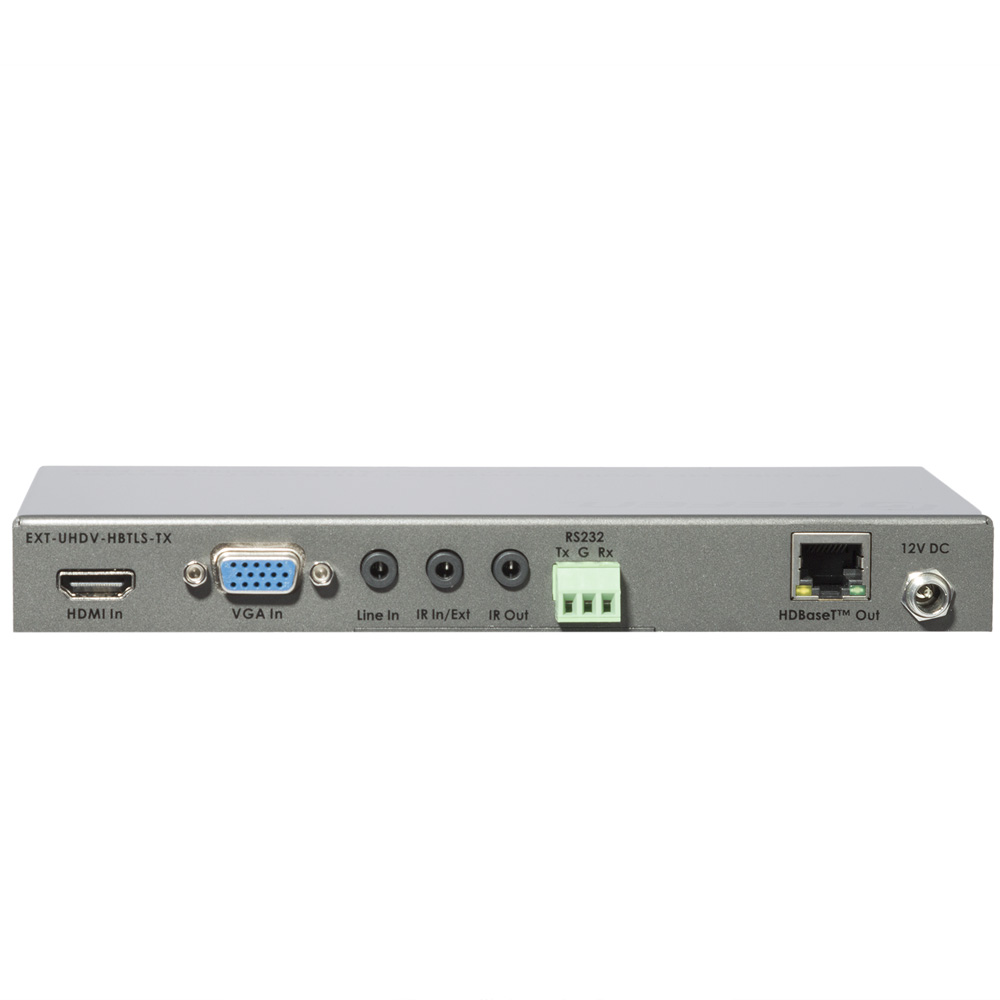

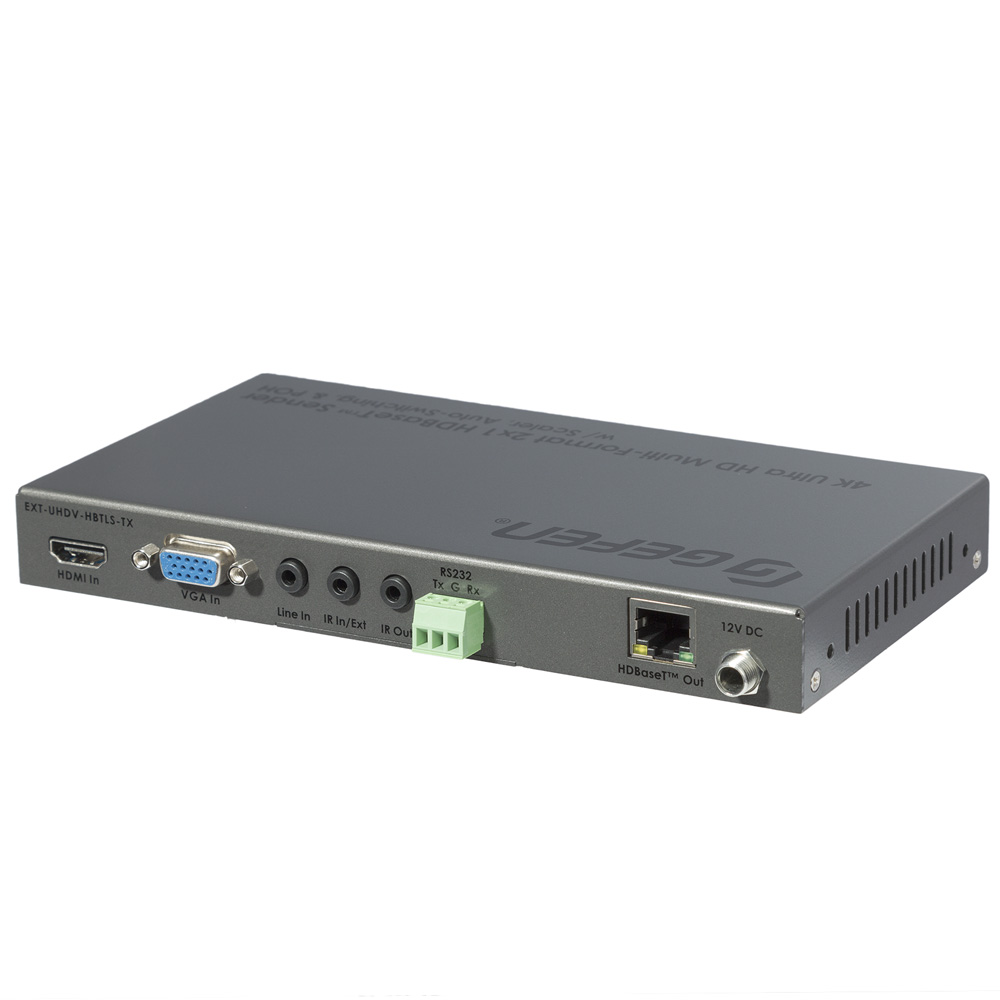

- Video Input Connector: (1) HDMI Type A 19-pin, female
- : (1)VGA HD-15, female
- L/R Analog Audio Input port: (1) 3.5mm mini-stereo jack
- Link Connector: (1) RJ-45, shielded
- RS-232 port: (1) 3-pin Phoenix
- IR In/Ext port: (1) 3.5mm mini-stereo jack
- IR Out port: (1) 3.5mm mini-mono jack
- IR Extender type: EXT-RMT-EXTIRN
- Firmware Update port: (1) USB-Mini-B, female

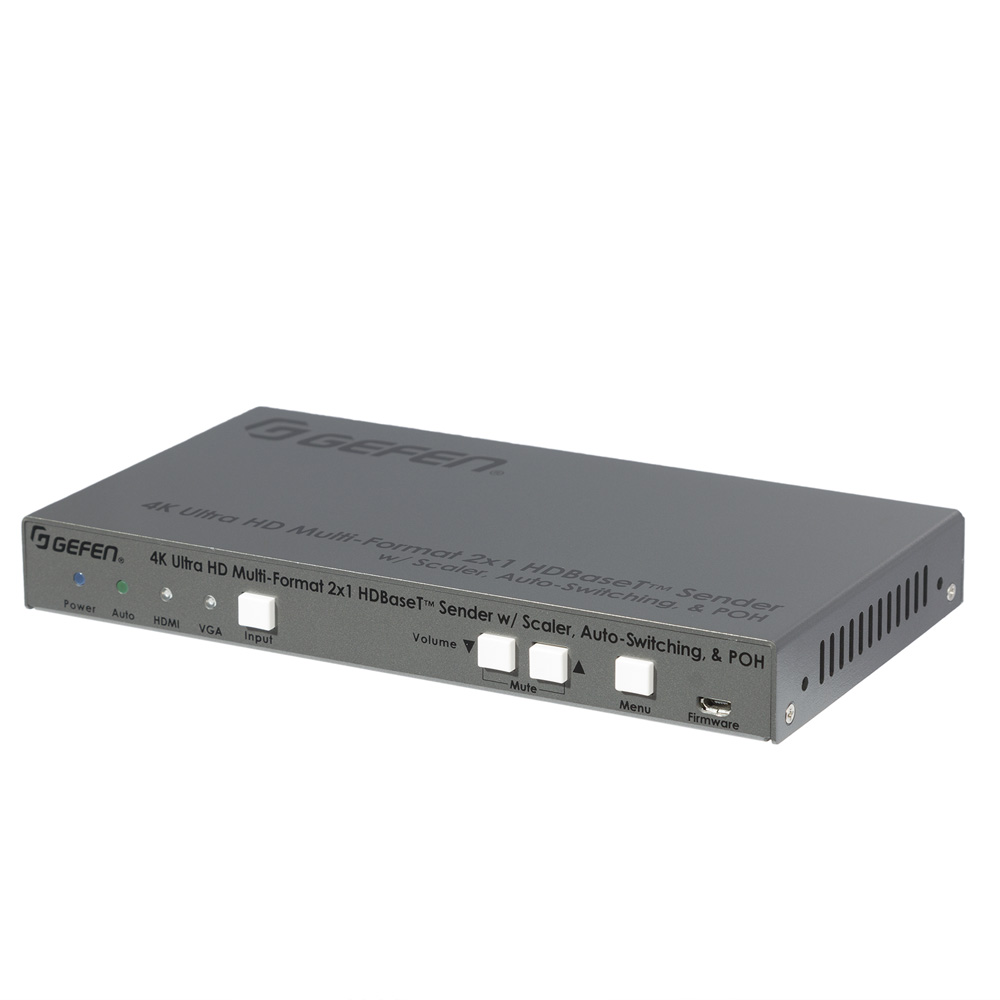

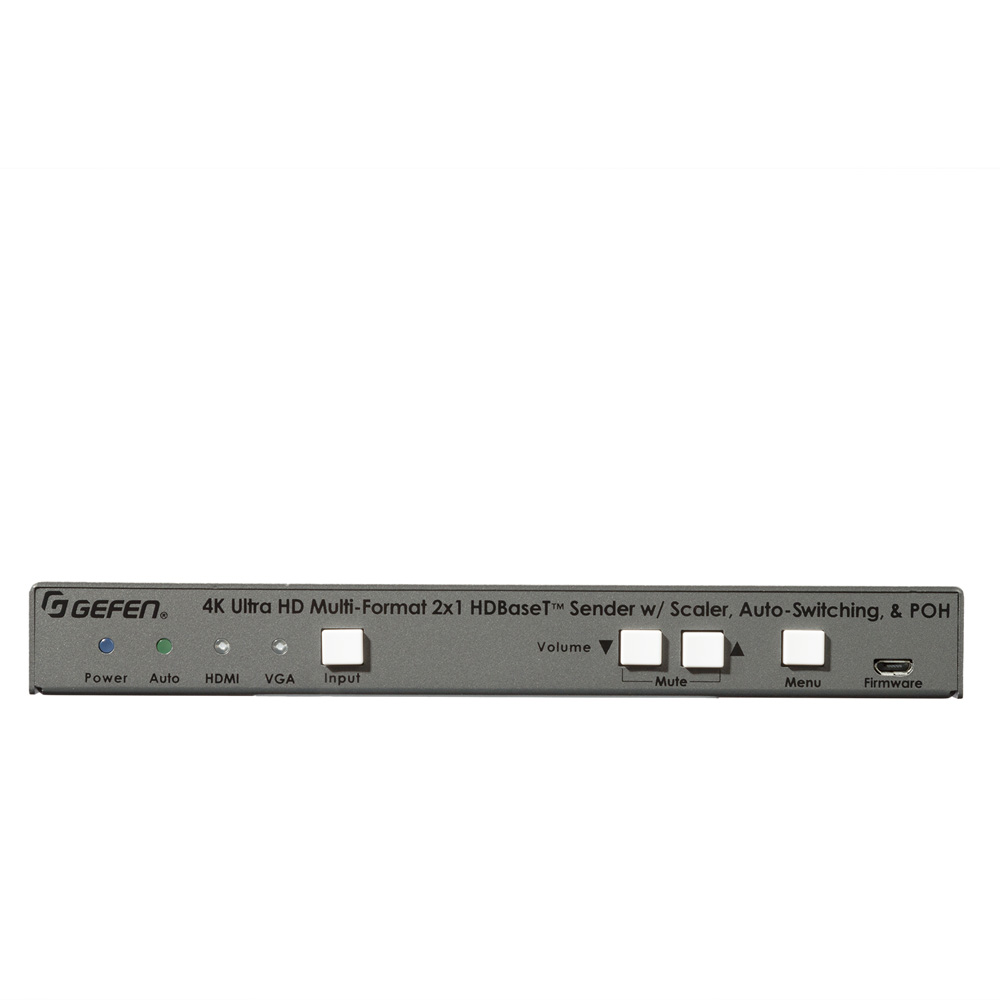

- Power Indicator LED: (1) Blue
- HDMI Input Indicator LED: (1) Green
- VGA Input Indicator LED: (1) Green
- Auto-Switch-On Indicator LED: (1) Green
- Input Select Switch (hold to select Auto or Manual): (1) tact-type
- Menu (On Screen Display) Select Switch: (1) tact-type
- Volume Up and Down Switches (hold both for Mute): (2) tact-type
- Power Supply Connector: (1) 5.5mm barrel/2.1mm pin, Locking
- Power Supply: (1) 12V DC, locking, 5.5mm barrel/2.1mm pin
- Power Consumption: Not powering a Receiver: 9W maximum
- : Powering a Receiver: 22W maximum
- Operating Temperature: +32 to +122 °F (0 to +50 (more…)
OTHER SPECIFICATIONS
Shipping Info
- Length10.3 (Inches)
- Width9.2 (Inches)
- Height3.2 (Inches)
- Weight1.85 (Lbs)
- Unit of MeasureEach
- UPC888814999884
Other Specifications
- Recommended Receiver EXT-UHDA-HBTL-RX
- Maximum TMDS Clock HDMI Input: 600 MHz
- Extension System: 300 MHz
- Total Signal Bandwidth/Data Rate HDMI Input: 18 Gbps
- Extension System: 10.2 Gbps
- Video Input Connector(1) HDMI Type A 19-pin, female
- (1)VGA HD-15, female
- L/R Analog Audio Input port(1) 3.5mm mini-stereo jack
- Link Connector (1) RJ-45, shielded
- RS-232 port (1) 3-pin Phoenix
- IR In/Ext port (1) 3.5mm mini-stereo jack
- IR Out port (1) 3.5mm mini-mono jack
- IR Extender type EXT-RMT-EXTIRN
- Firmware Update port (1) USB-Mini-B, female
- Power Indicator LED (1) Blue
- HDMI Input Indicator LED (1) Green
- VGA Input Indicator LED (1) Green
- Auto-Switch-On Indicator LED (1) Green
- Input Select Switch (hold to select Auto or Manual) (1) tact-type
- Menu (On Screen Display) Select Switch (1) tact-type
- Volume Up and Down Switches (hold both for Mute) (2) tact-type
- Power Supply Connector (1) 5.5mm barrel/2.1mm pin, Locking
- Power Supply (1) 12V DC, locking, 5.5mm barrel/2.1mm pin
- Power Consumption Not powering a Receiver: 9W maximum
- Powering a Receiver: 22W maximum
- Operating Temperature +32 to +122 °F (0 to +50 °C)
- Operating Humidity 5% to 90% RH, non-condensing
- Storage Temperature -4 to +185 °F (-20 to +85 °C)
- Storage Humidity 0% to 95% RH, non-condensing
- MTBF 50000 hours
- Dimensions (W x H x D, not including the connectors)Not including the mounting brackets: 7.7″ x 0.93″ x 4″ (195mm x 24 x 100mm)

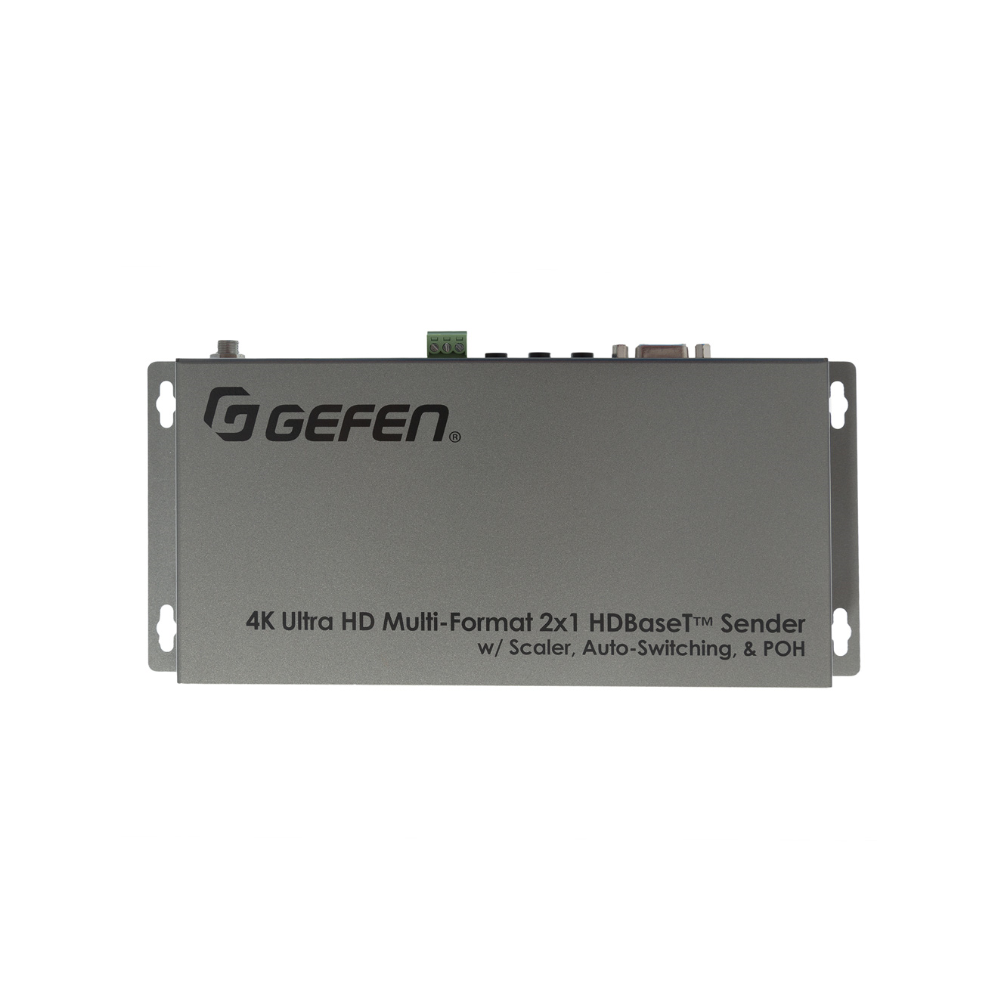

- Including the mounting brackets: 8.7″ x 0.93″ x 4″ (221mm x 24 x 100mm)
- Net Weight 0.8 lbs (0.35 kg)
- Shipping Weight 1.9 lbs (0.9 kg)
- * Features and specifications are subject to change without notice.
In The Box
- 4K Ultra HD Multi-Format 2×1 HDBaseTâ„¢ Sender unit (EXT-UHDV-HBTLS-TX)1
- 12V/3A DC power supply with US/EU/UK/AU Plugs (EXT-PS12U3IP-LP21-6)1
- 3-pin Phoenix plug (attached to unit) 1
- Mounting Brackets 2
- Self-adhesive rubber feet4
- Quick Start Guide 1
