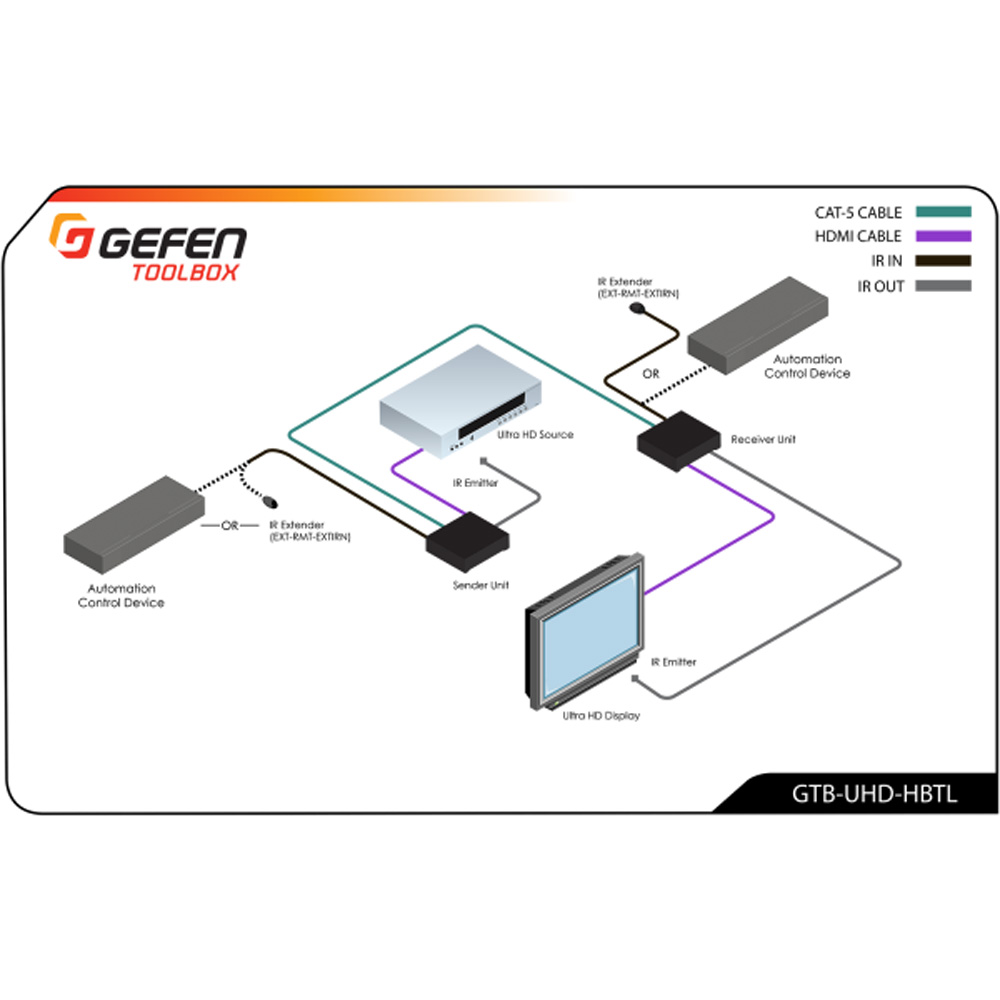

The GTB-UHD-HBTL 4K Ultra HD Extender uses Gefen’s implementation of the HDBaseT technology to extend HDMI up to 230 feet/70 meters at 1080p and up to 130 feet/40 meters at 4K, using one CAT-5e or better cable. Resolutions up to 4K Ultra HD (3840 x 2160 @ 60 Hz 4:2:0) with 7.1 channels of HBR (High Bit Rate) lossless digital audio are supported. This product provides 2-way IR extension between the Sender and the Receiver units, facilitating the control of A/V sources placed near the Sender unit and sending automation commands to the display or another device placed near the Receiver unit. Gefen’s Bi-Directional POL (Power Over Line) technology powers the Sender or the Receiver unit using the same cable that extends the HDMI signal. Only one of the two units will need a power supply. This feature simplifies installation in cases when an electrical outlet may not be available near the source or the display. Small, low profile enclosures can be securely surface-mounted and conveniently hidden away from sight.
Notes:
1. Shielded (STP) CAT-5e or CAT-6A is recommended. Unshielded (UTP) CAT-5e or CAT-6A may be acceptable depending on cable quality but is not the preferred choice. Care should always be given to keep these cables away from power lines and other sourc(more…)
