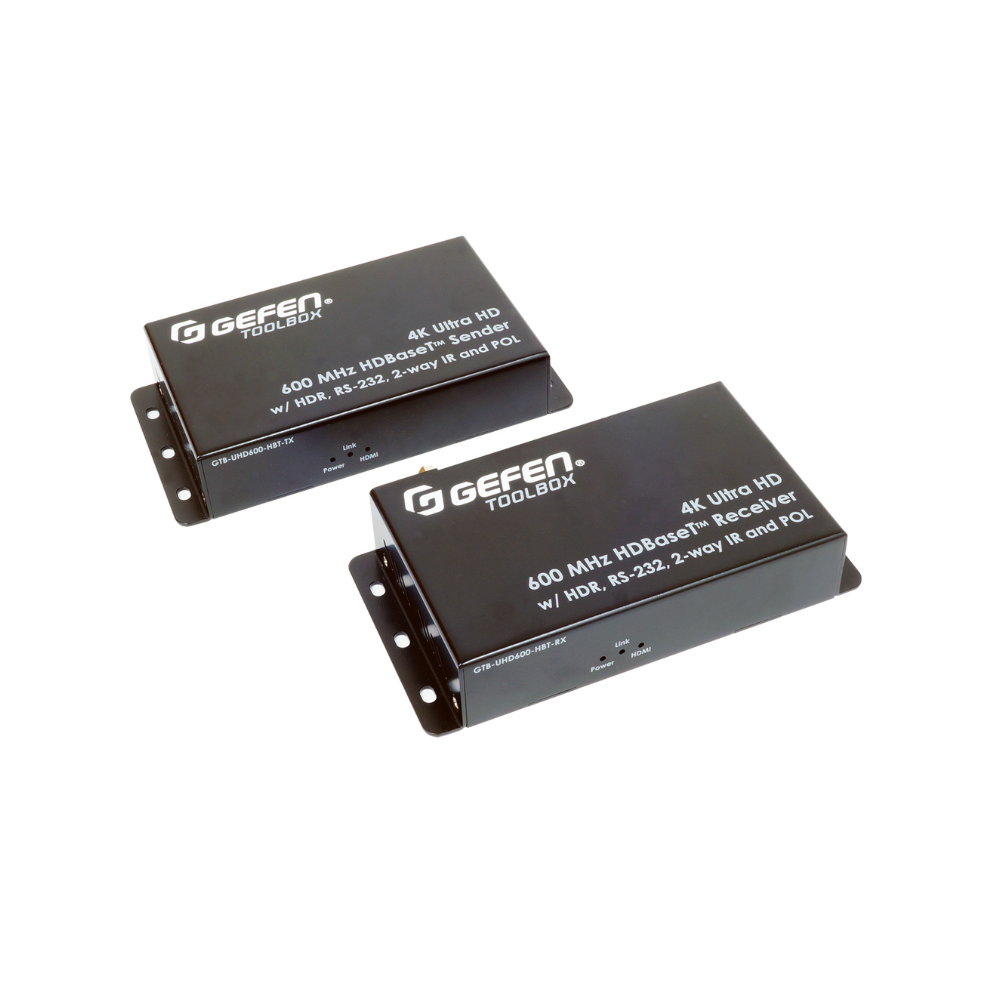

The Gefen GTB-UHD600-HBT is a compact and high-performance solution for extending full-bandwidth HDMI 2.0 audio/video with HDR up to 80 meters (264 feet), over a CAT-5e or better cable. It supports 18.2 Gbps of data throughput and 600 MHz TMDS Clock frequency, the highest specified under the HDMI 2.0 standard. This extender uses HDBaseT technology along with Gefen’s visually lossless proprietary compression algorithms with very high PSNR (Peak Signal to Noise Ratio), to accommodate resolutions up to 4K Cinema-DCI (4096 x 2160 to 60 Hz 4:4:4) and 4K Ultra HD (3860 x 2160 to 60 Hz, 4:4:4) with HDR. High Dynamic Range (HDR) delivers greater contrast between light and dark areas of a video image, resulting in tremendous improvement in picture quality and color depth. HDCP 2.2 and the legacy HDCP 1.4 are both supported. The GTB-UHD600-HBT also supports 1080p Full HD, WUXGA (1920 x 1200), 3DTV, and Deep Color (up to 1080p resolution). Highest performance multichannel digital audio including 7.1 channels of LPCM and HBR (High Bit Rate) digital audio formats, such as Dolby Atmos®, Dolby® TrueHD, DTS:X, and DTS-HD Master Audio are passed through to the HDMI outputs. The GTB-UHD600-HBT provides RS-232 and 2-way IR extension between the Sender and the Receiver units, facilitating the con(more…)
FEATURES
- Supports 18.2 Gbps bandwidth and 600 MHz TMDS clock
- Extends HDMI, RS-232, & Bi-Directional IR over a single CAT-5e/CAT-6A:
- 4K Ultra HD (3840 x 2160 to 60 Hz, 4:4:4), up to 264 feet/80 meters (8-bit color)
- 4K Cinema (DCI) (4096 x 2160 to 60 Hz 4:4:4), up to 264 feet/80 meters (8-bit color)
- 1080p Full HD (60 Hz) and WUXGA (1920 x 1200 to 60 Hz), up to 330 feet/100 meters (up to 12-bit Deep Color)
- HDMI Features Supported:
- HDMI 2.0 (full bandwidth to 18 Gbps/600 MHz)
- HDR (High Dynamic Range) 10-bit Deep Color at 4K 60 Hz 4:2:0 and 4K 24 Hz 4:4:4
- HDCP 2.2 and 1.4
- 12-bit Deep Color (at 1080p)
- Uncompressed LPCM digital audio up to 7.1 channels
- HBR (High Bit Rate) digital audio up to 7.1 channels, including Dolby Atmos®, Dolby® TrueHD, DTS:X, and DTS-HD Master
- Audio
- 3DTV pass-through
- CEC pass-through
- Lip Sync pass-through
- Supports the use of DVI sources and DVI displays up to 1080p Full HD and WUXGA (1920×1200), with Gefen CAB
- DVI2HDMI-LCK DVI-to-HDMI cables (not included)
- RS-232 2-way link between Sender and Receiver
- IR extension from Sender to Receiver and(more…)
SPECIFICATIONS
- Maximum TMDS Clock: 600 MHz
- Total Signal Bandwidth/Data Rate: 18.2 Gbps
- Video Input Connector (Sender): (1) HDMI Type A 19-pin, female, locking
- Video Output Connector (Receiver): (1) HDMI Type A 19-pin, female, locking
- Link Connector (Sender/Receiver): (1) RJ-45, shielded
- RS-232 port (Sender): (1) 3-pin Phoenix
- RS-232 port (Receiver): (1) 3-pin Phoenix
- IR In/Ext port (Sender/Receiver): (1) 3.5mm mini-stereo jack
- IR Extender type: EXT-RMT-EXTIRN
- IR Out port (Sender/Receiver): (1) 3.5mm mini-mono jack

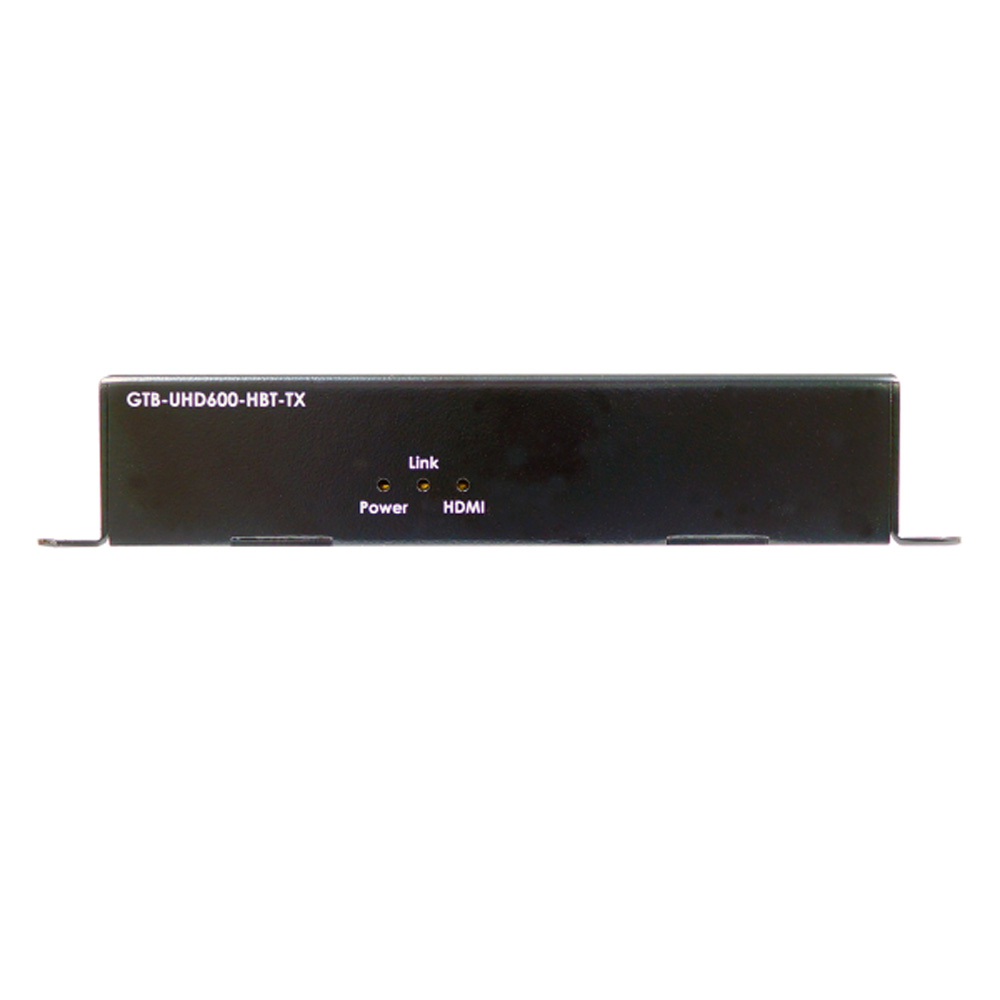

- Power Indicator LED (Sender/Receiver): (1) Blue
- Link Indicator LED (Sender/Receiver): (1) Green
- HDMI-Active Indicator LED (Sender/Receiver): (1) Green
- Power Supply: (1) 12V DC, locking, 5.5mm barrel/2.1mm pin
- Power Consumption (Sender and Receiver combined): 14W maximum
- Operating Temperature: +32 to +113 °F (0 to +45 °C)
- Operating Humidity: 5% to 90% RH, non-condensing
- Storage Temperature: -4 to +185 °F (-20 to +85 °C)
- Storage Humidity: 0% to 95% RH, non-condensing
- MTBF: 50000 hours
- Dimensions (W x H x D, Sender/Receiver): 4.7� x 1� x 2.9� (119mm x 26mm x 73mm)
- Net Weight (Sender/Receiver): 0.3 lbs. (0.14 kg) each
- Shipping Weight: 2.1 lbs (0.95 kg)<(more…)
OTHER SPECIFICATIONS
Shipping Info
- Length10.5 (Inches)
- Width6.75 (Inches)
- Height3.75 (Inches)
- Weight1 (Lbs)
- Unit of MeasureSet
- UPC888814999921
Other Specifications
- Maximum TMDS Clock 600 MHz
- Total Signal Bandwidth/Data Rate 18.2 Gbps
- Video Input Connector (Sender) (1) HDMI Type A 19-pin, female, locking
- Video Output Connector (Receiver) (1) HDMI Type A 19-pin, female, locking
- Link Connector (Sender/Receiver) (1) RJ-45, shielded
- RS-232 port (Sender) (1) 3-pin Phoenix
- RS-232 port (Receiver) (1) 3-pin Phoenix
- IR In/Ext port (Sender/Receiver) (1) 3.5mm mini-stereo jack
- IR Extender type EXT-RMT-EXTIRN
- IR Out port (Sender/Receiver) (1) 3.5mm mini-mono jack
- Power Indicator LED (Sender/Receiver) (1) Blue
- Link Indicator LED (Sender/Receiver) (1) Green
- HDMI-Active Indicator LED (Sender/Receiver) (1) Green
- Power Supply (1) 12V DC, locking, 5.5mm barrel/2.1mm pin
- Power Consumption (Sender and Receiver combined) 14W maximum
- Operating Temperature +32 to +113 °F (0 to +45 °C)
- Operating Humidity 5% to 90% RH, non-condensing
- Storage Temperature -4 to +185 °F (-20 to +85 °C)
- Storage Humidity 0% to 95% RH, non-condensing
- MTBF 50000 hours
- Dimensions (W x H x D, Sender/Receiver) 4.7″ x 1″ x 2.9″ (119mm x 26mm x 73mm)
- Net Weight (Sender/Receiver) 0.3 lbs. (0.14 kg) each
- Shipping Weight 2.1 lbs (0.95 kg)
- * Features and specifications are subject to change without notice.
In The Box
- Sender Unit (GTB-UHD600-HBT-TX)1

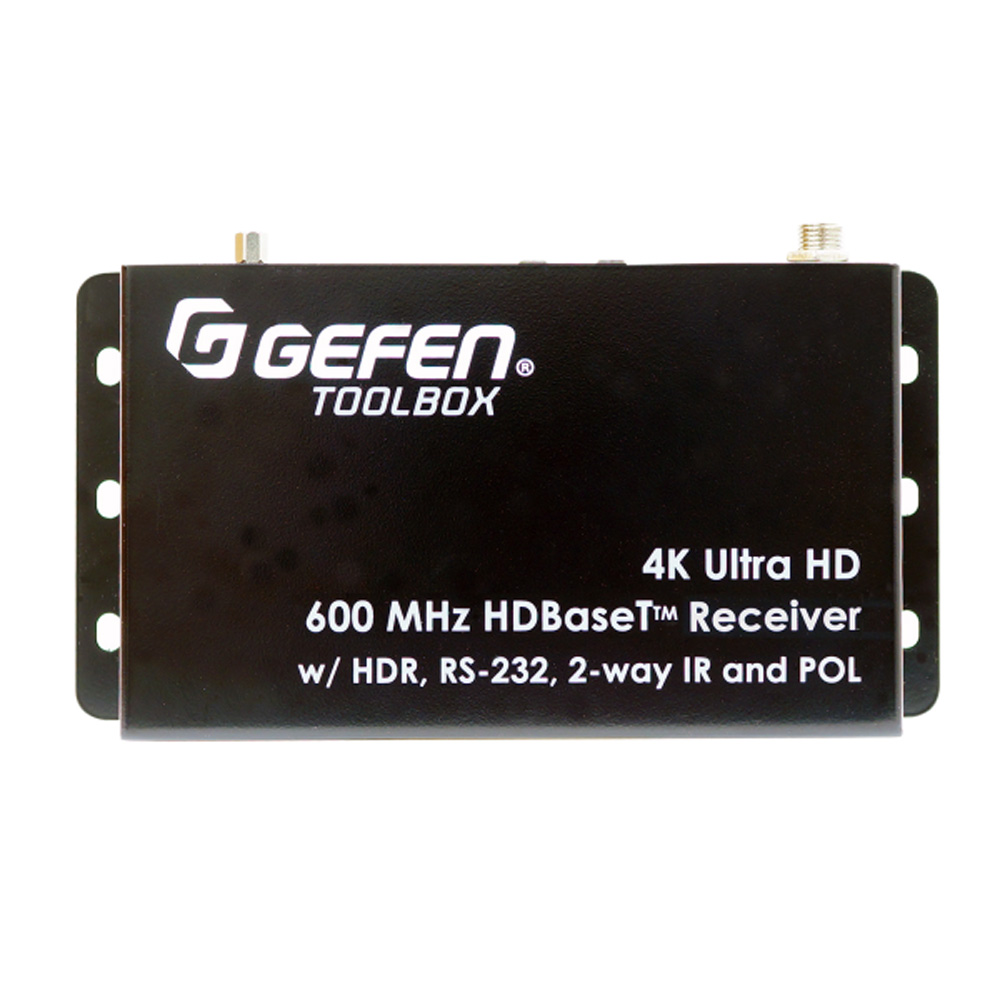

- Receiver Unit (GTB-UHD600-HBT-RX) 1
- HDMI-to-HDMI Male-to-Male Locking cable, 6 feet1
- IR Emitter (EXT-IREMIT) 1
- IR Extender (EXT-RMT-EXTIRN)1
- 12V DC power supply with US/EU/UK/AU reginal AC plugs and 5.5mm/2.1mm DC plug (EXT-PS121.5AIP-LP-6)1
- Quick-Start Guide 1
