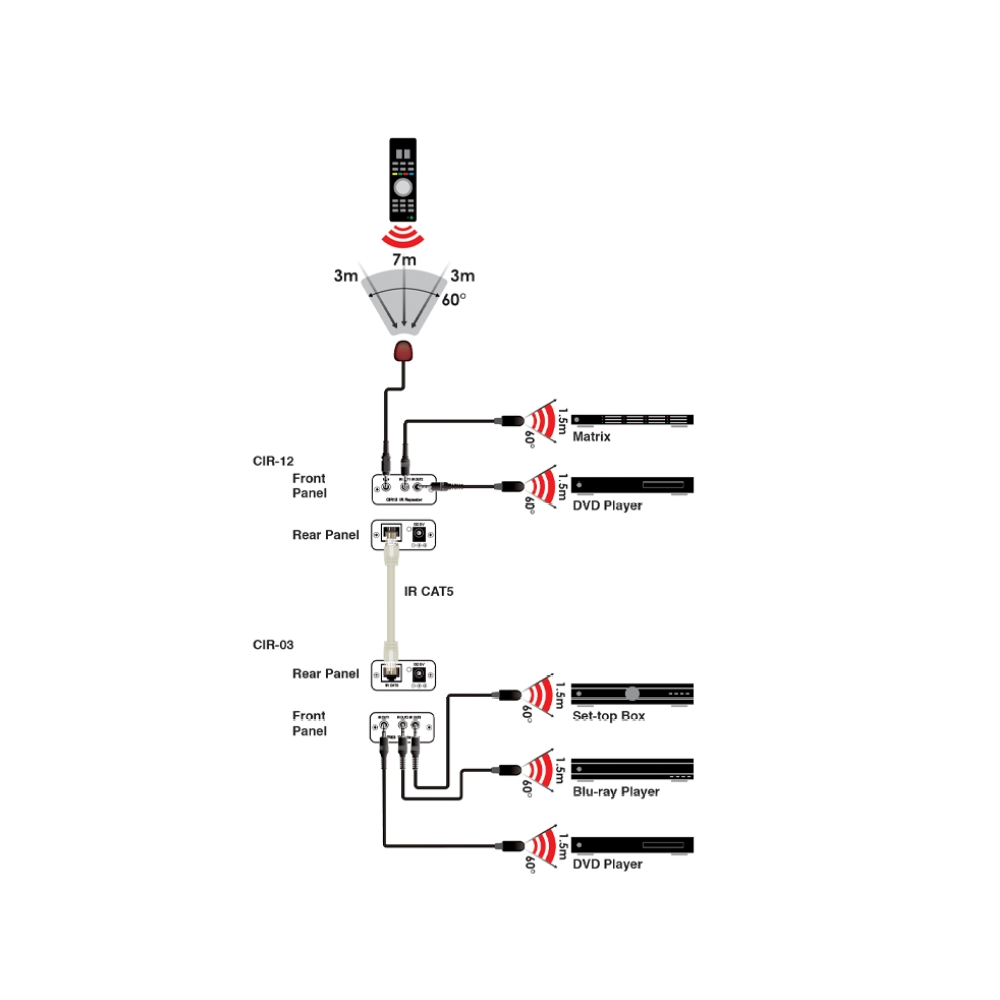

- Supports up to 5 outputs (3 for Infrared Extender, 2 for Infrared Repeater)
- Control sources anywhere, can be run through walls and extends IR up to 250m
- Extends infrared signals only
- It allows usage of existing remote controls
- Only one IR Receiver is needed
- IR Receiver’s frequency range can be 30-50 kHz
TRANSMITTER
Inputs
- 1x 3.5mm Stereo Mini-jack [1x Infrared Receiver]
- 1x RJ45 [1x IR Propriety Data]
Outputs
- 2x 3.5mm Stereo Mini-jack [2x Infrared Emitter]
PSU:
- 5V/1A
Dimensions
- 62mm [W] x 50mm [D] x 23mm [H]
Net Weight
- 78gr

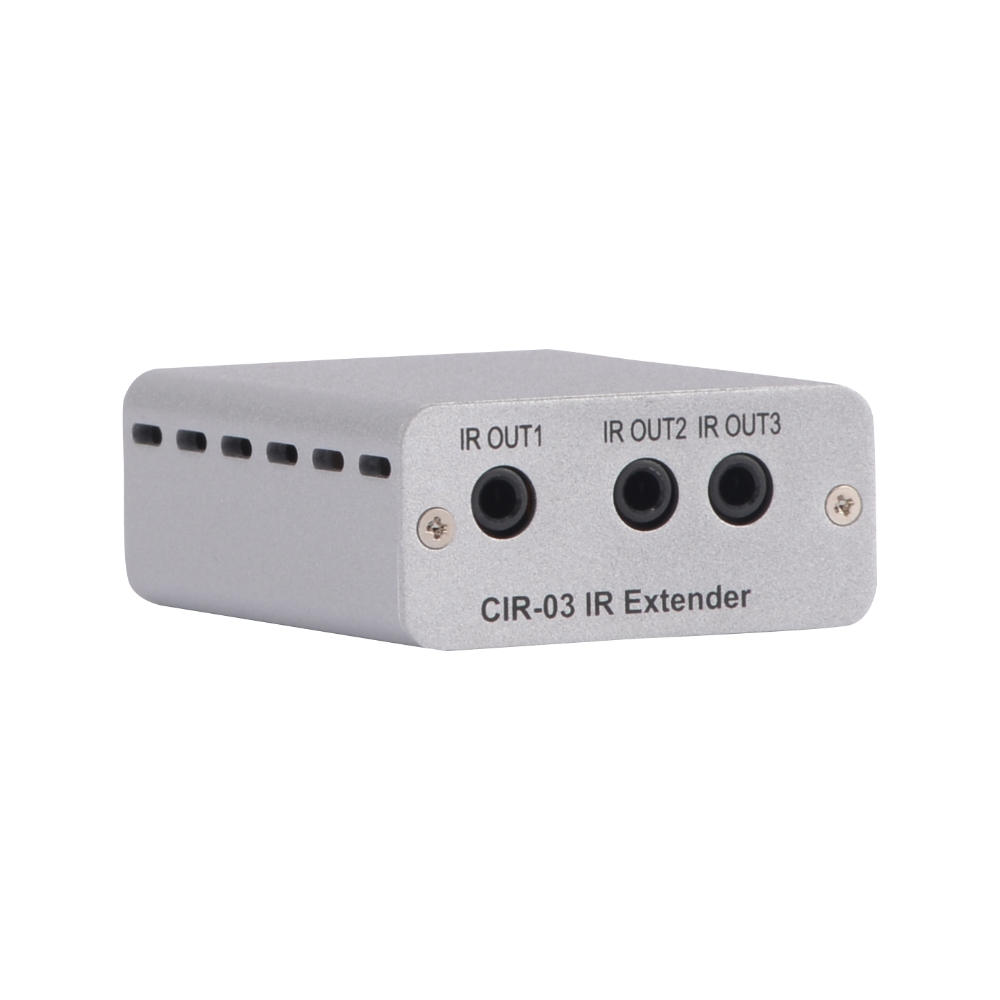

RECEIVER
Inputs

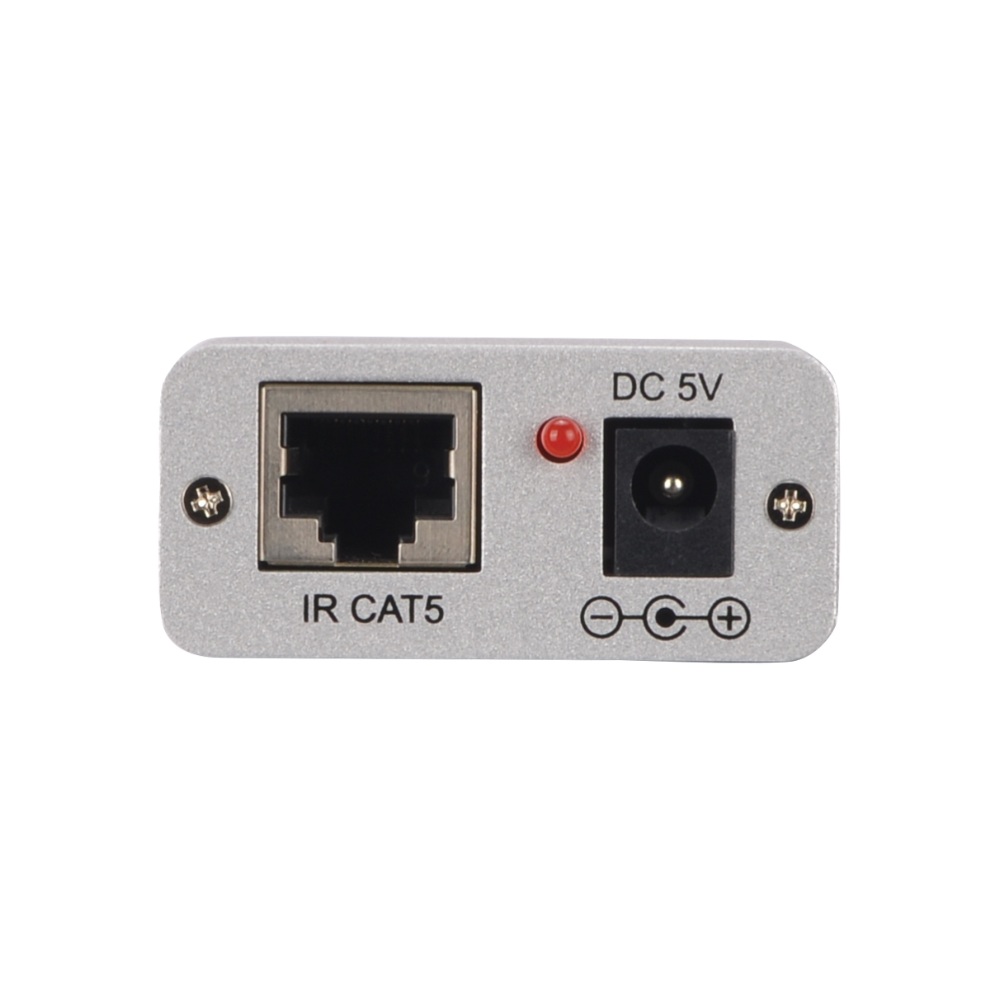

- 1x RJ45 [1x IR Propriety Data]
Outputs

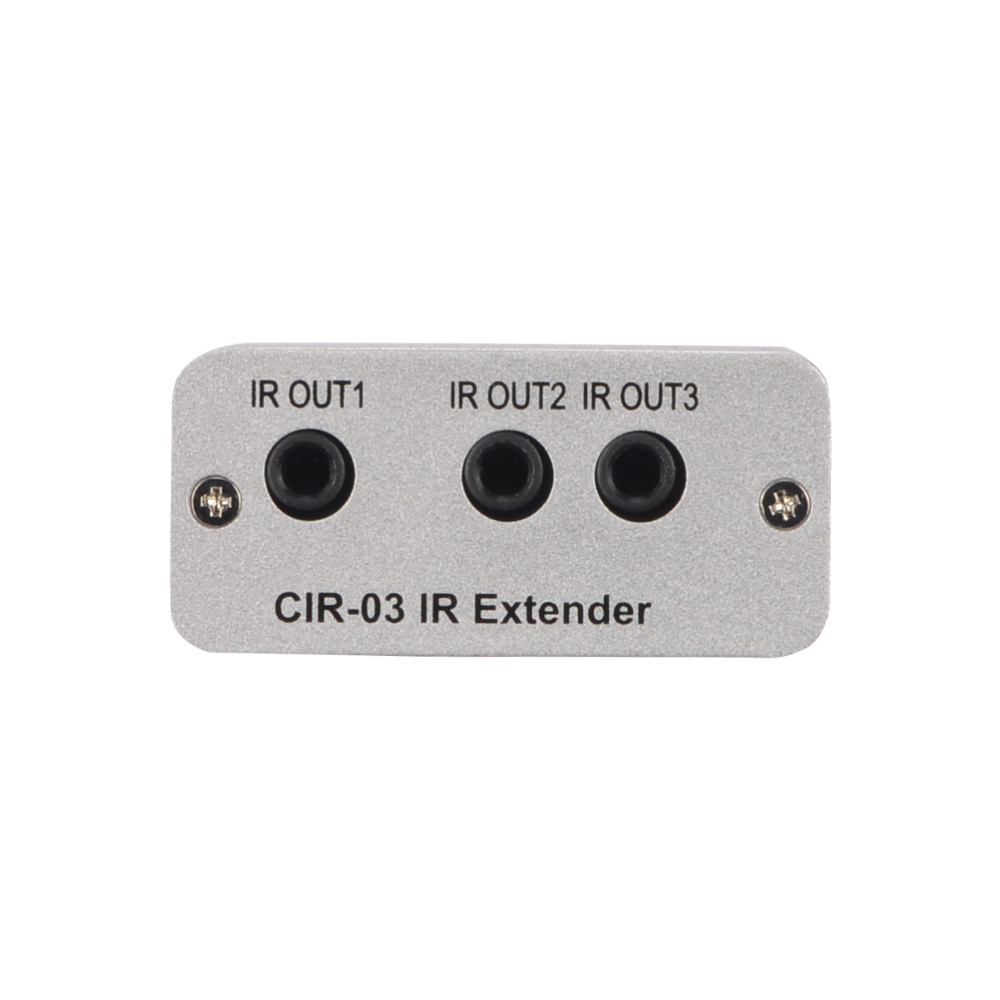

- 3x 3.5mm Stereo Mini-jack [3x Infrared Emitter]
PSU:
- 5V/1A
Dimensions
- 62mm [W] x 50mm [D] x 23mm [H]
Net Weight
- 78gr
