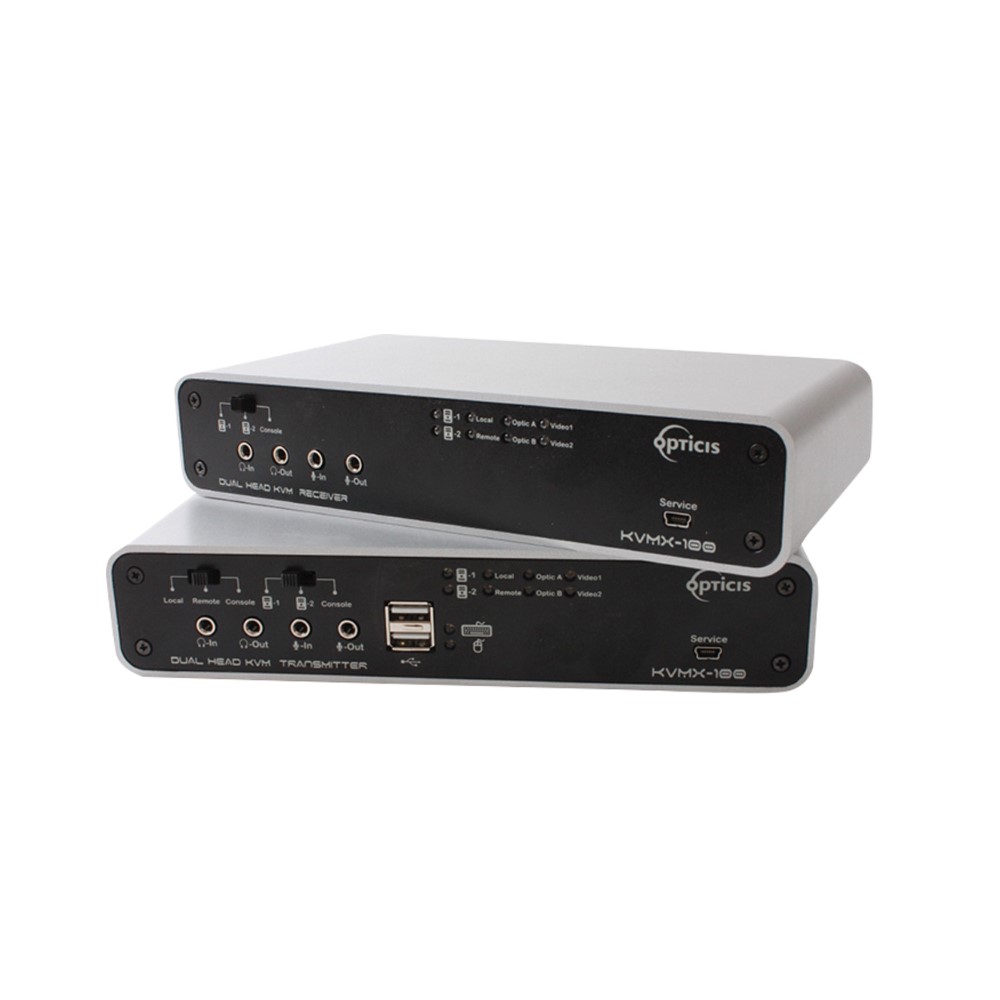

KVMX-100-TR
Optical KVM Extender

Dual-head DVI optical KVM extender, KVMX-100-TR is designed to extend Dual DVI outputs with keyboard, mouse and bi-directional audio. The key feature of KVMX-100-TR is 2:1 KVM switch function which enables user to select to switch and control one PC between two (2) PCs when it has two (2) PCs as a host.

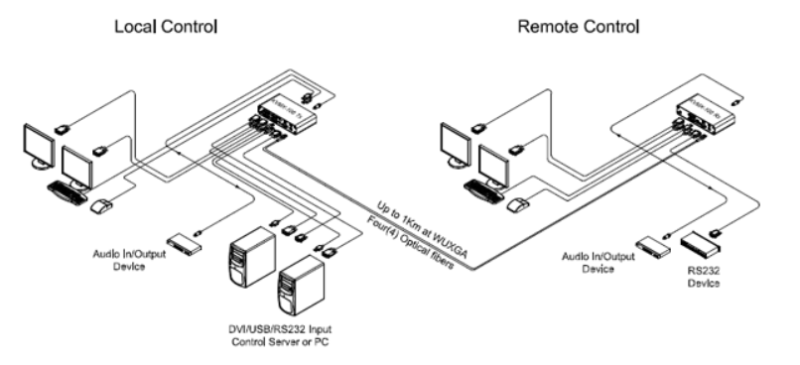

KVMX-100-TR transmits DVI, USB HID, RS232 and bi-directional stereo audio signal up to 1.0km (3280feet) over two (2) duplex LC single-mode fibers or 300m (985feet) over two (2) duplex LC multi-mode fibers.

Designed for high resolution performance, KVMX-100-TR guarantees lossless image quality and no frx-ame dropping. Besides, it delivers perfect graphic data transmission up to WUXGA (1,920×1,200) at 60Hz.

KVMX-100-TR provides Auto-mix EDID programing feature that reads EDID information from both local and remote displays and then determines the lowest resolution of them. It makes the installation of KVMX-100-TR easy and flexible at any variable resolutions.

PRODUCT SPECIFICATIONS

• Switches and Controls Two (2) PCs – 2:1 KVM switch function
• Supports two (2) single-link DVI displays up to WUXGA (1,920×1,200) resolution at 60Hz
• Transmits DVI, USB HID, RS232 and audio signal up to 1km (3280feet) over two (2) duplex LC optical fibers
• Operates with both single and multi-mode optical fibers
– Up to 1.0km (3280feet) with two (2) duplex LC single-mode fibers
– Up to 300m (985feet) with two (2) duplex LC multi-mode fibers
• Offers DVI, USB Loop through ports for Local two (2) displays and Keyboard / Mouse
• Supports bi-directional stereo audio
• Lossless Image Quality, with no frame Dropping
• USB HID ports for keyboard and mouse
• Provides Serial Control Data: RS232C through 9 pin D-sub connector
• Auto-mix EDID feature
• Offers remote console switch (option)
• 19” 1RU mounting rack, mounting bracket (option)
• Power supplying: +12V, 3A power adapter
• Input power: +12V 3A
• Dimensions (WDH): 216mm x 112mm x 44mm
• Certifications: CE / FCC
